PSMC Temperatures Check

Summary

Date start 2026:117:01:16:40.316
Date stop 2026:123:23:23:16.016
Model status OK
Load directory /data/acis/LoadReviews/2026/APR2726/oflsa
Run time Wed Apr 22 09:29:24 2026 by acisdude
Run log run.dat
Temperatures temperatures.dat
States states.dat

No 1PDEAAT Upper Limit Violations

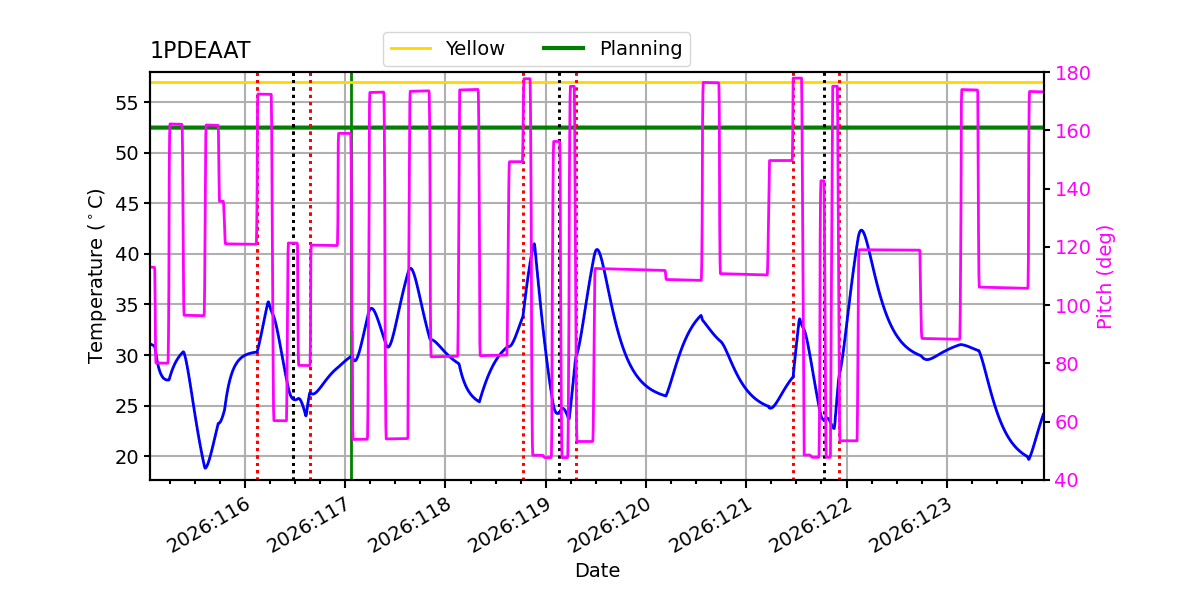

1pdeaat.png pow_sim.png roll.png

PSMC Model Validation

MSID quantiles

Note: Quantiles are calculated using only points where 1PDEAAT >= 30.0 C.

MSID 1% 5% 16% 50% 84% 95% 99%
1pdeaat -4.33 -3.08 -1.96 -0.21 1.59 2.58 4.14
pitch -11.066 -0.652 -0.004 0.000 0.004 0.988 11.266
tscpos -1 -1 -1 0 0 0 0
roll -1.929 -0.143 -0.007 -0.000 0.007 0.144 1.978

Validation Violations

MSID Quantile Value Limit
1PDEAAT 1 -4.33 2.50
PITCH 1 -11.066 3.00
PITCH 99 11.266 3.00

1PDEAAT

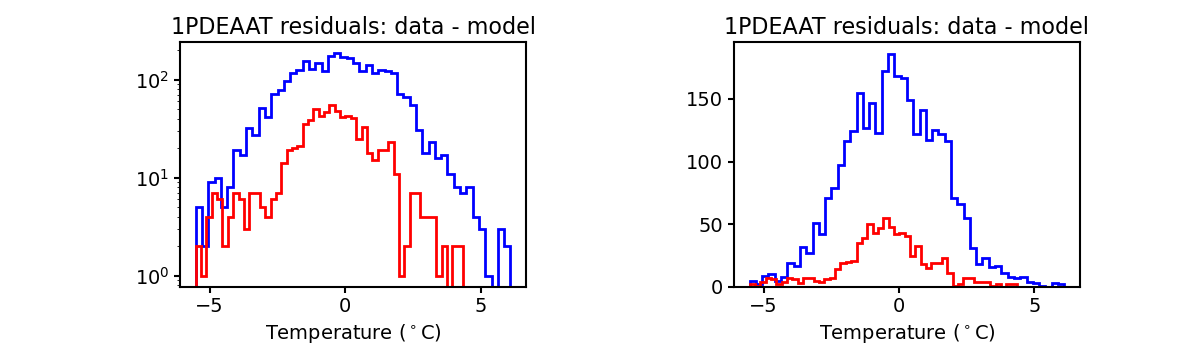

Note: 1PDEAAT residual histograms include only points where 1PDEAAT >= 30.0 C in blue and points where 1PDEAAT >= 40.0 C in red.

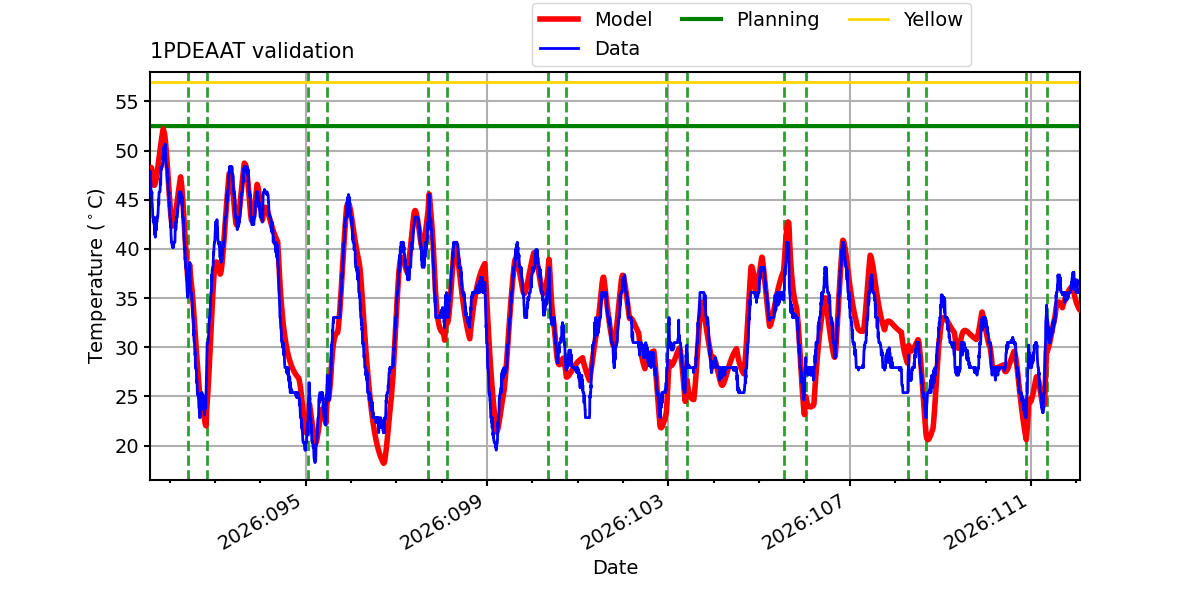

1pdeaat_valid.png 1pdeaat_valid_hist.png

PITCH

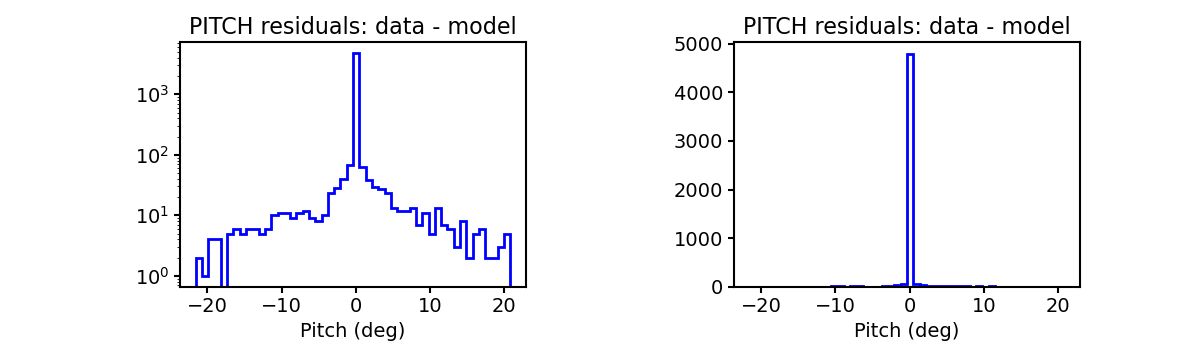

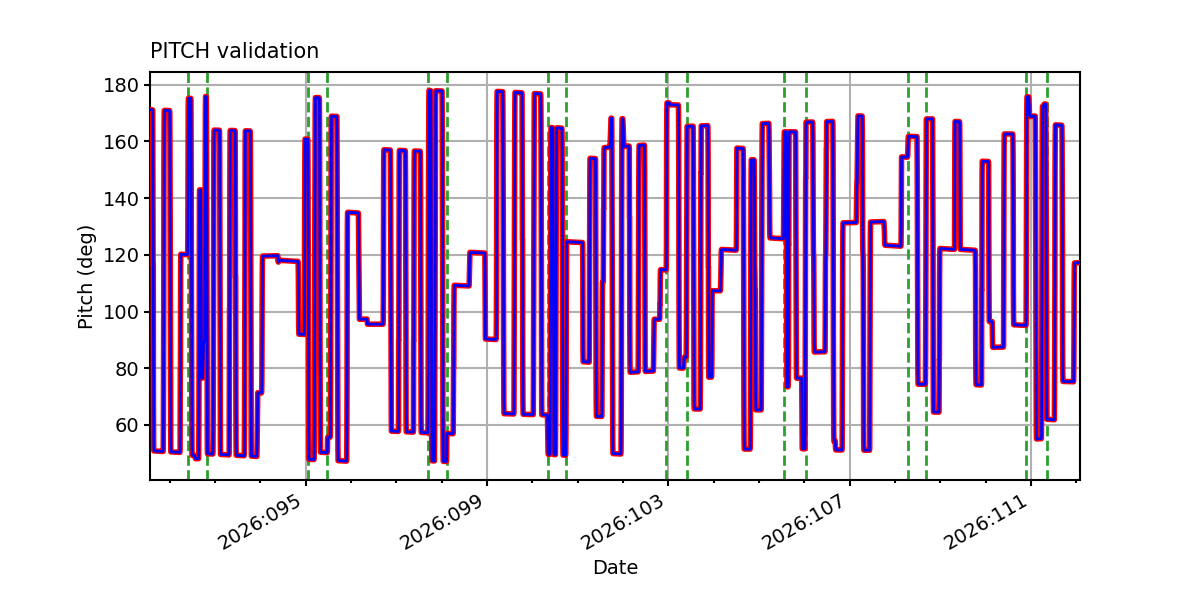

pitch_valid.png pitch_valid_hist.png

TSCPOS

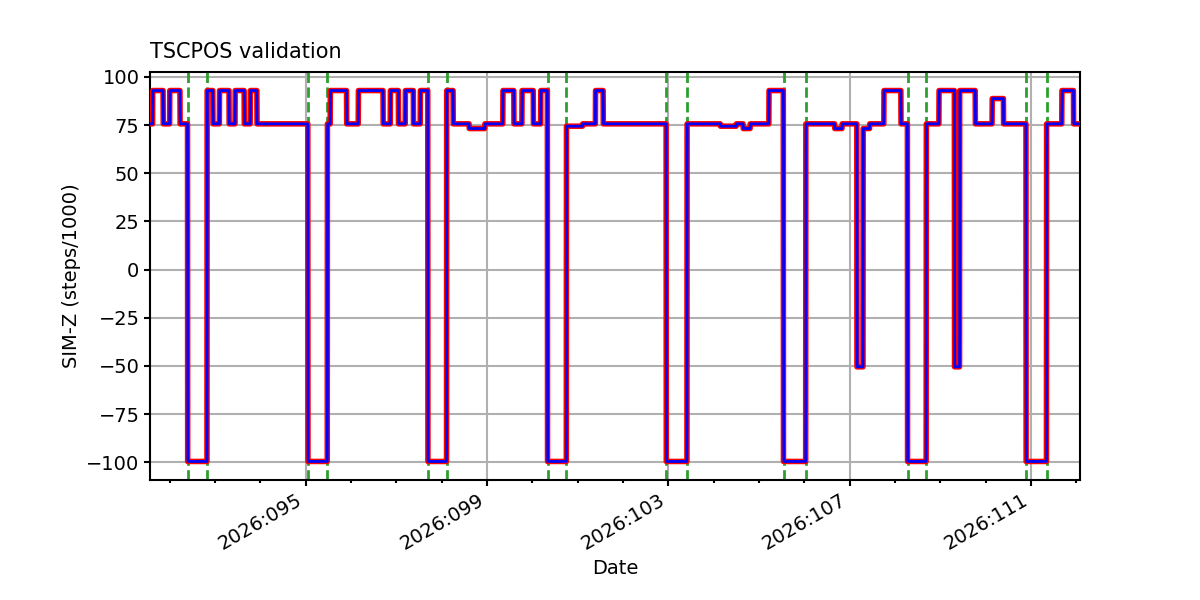

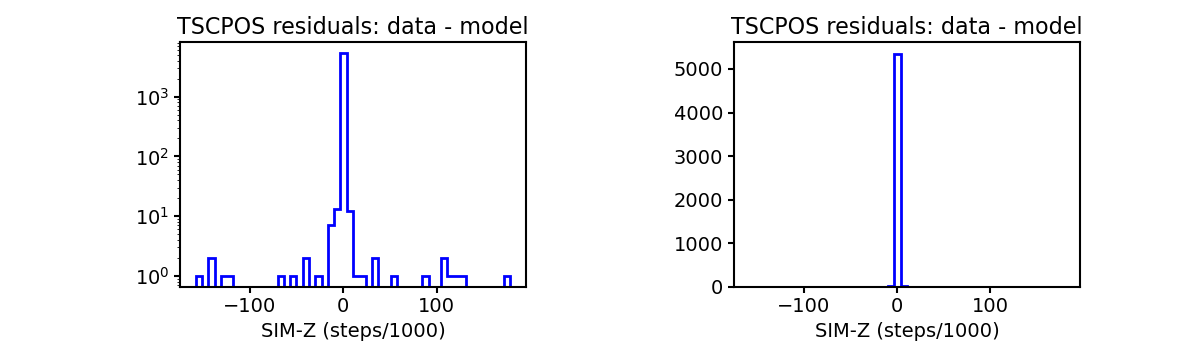

tscpos_valid.png tscpos_valid_hist.png

ROLL

roll_valid.png roll_valid_hist.png

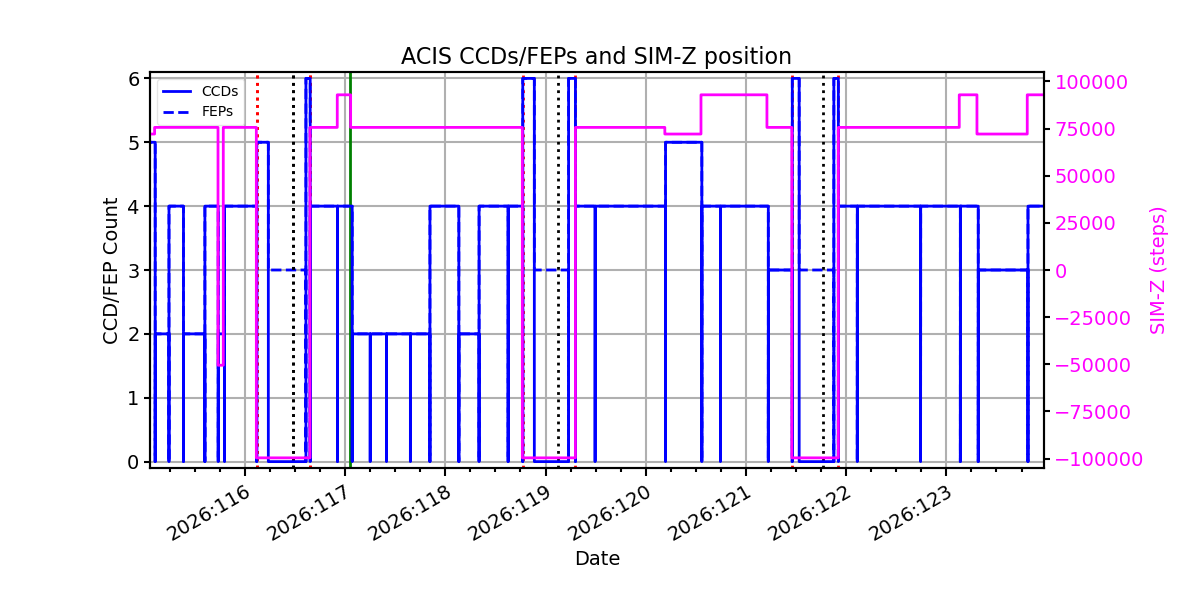

ACIS CCD/FEP Count
