PSMC Temperatures Check
Summary
| Date start | 2026:215:01:01:13.716 |
| Date stop | 2026:222:00:50:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/AUG0326/oflsa |
| Run time | Wed Jul 29 19:52:26 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEAAT Upper Limit Violations
PSMC Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEAAT >= 30.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeaat | -2.40 | -1.86 | -1.31 | 0.09 | 2.21 | 4.79 | 8.36 |
| pitch | -11.709 | -1.381 | -0.004 | 0.000 | 0.004 | 1.165 | 11.956 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 1 | 1 |
| roll | -2.048 | -0.235 | -0.009 | 0.000 | 0.009 | 0.271 | 1.849 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEAAT | 99 | 8.36 | 5.50 |
| PITCH | 1 | -11.709 | 3.00 |
| PITCH | 99 | 11.956 | 3.00 |
1PDEAAT

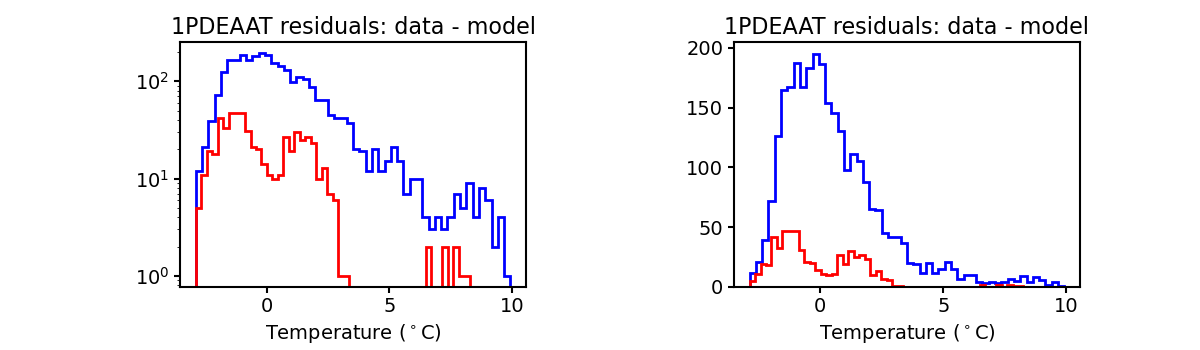

Note: 1PDEAAT residual histograms include only points where 1PDEAAT >= 30.0 C in blue and points where 1PDEAAT >= 40.0 C in red.

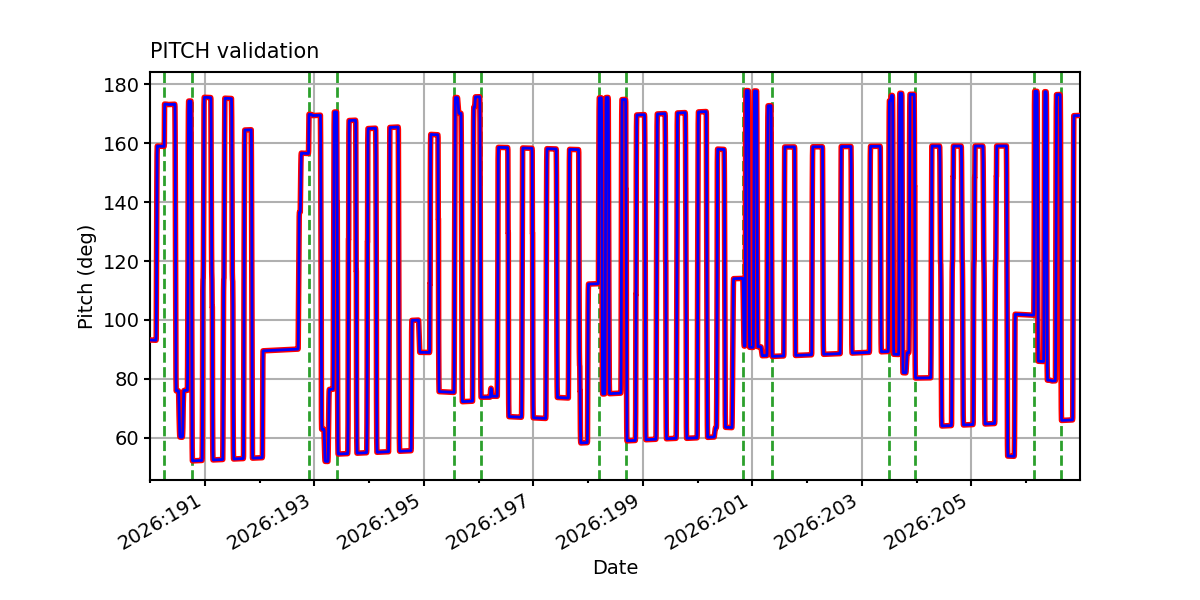

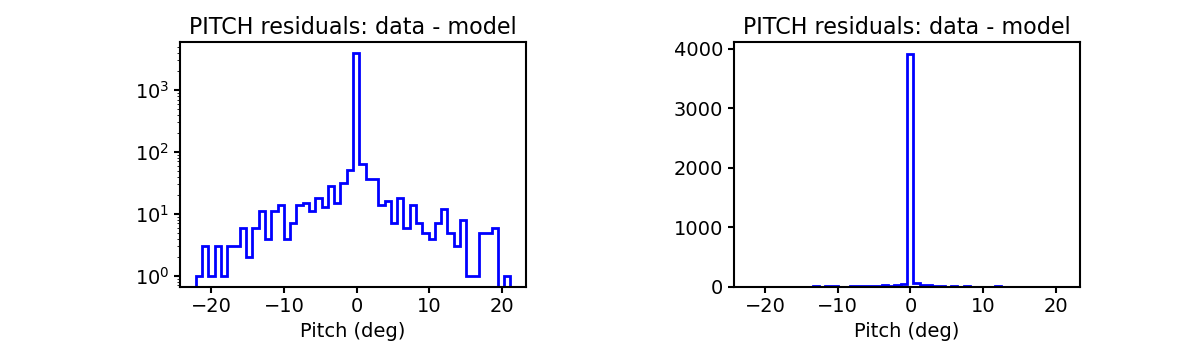

PITCH

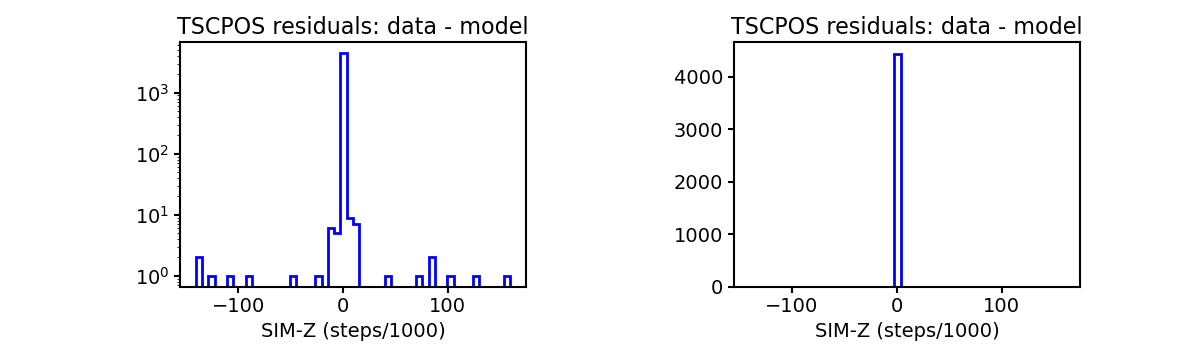

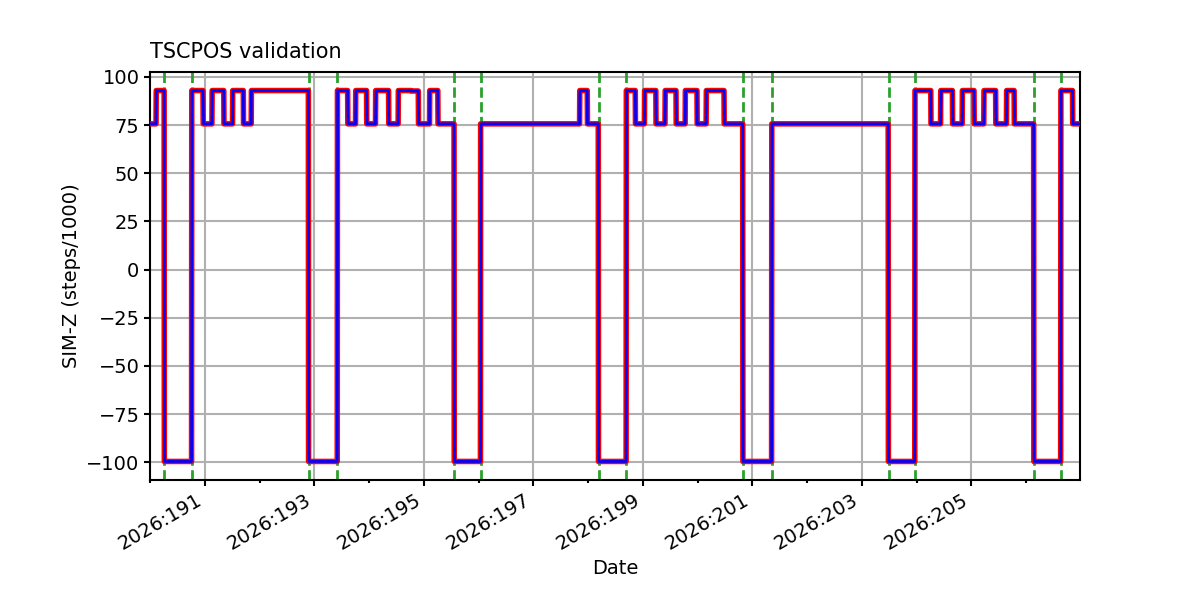

TSCPOS

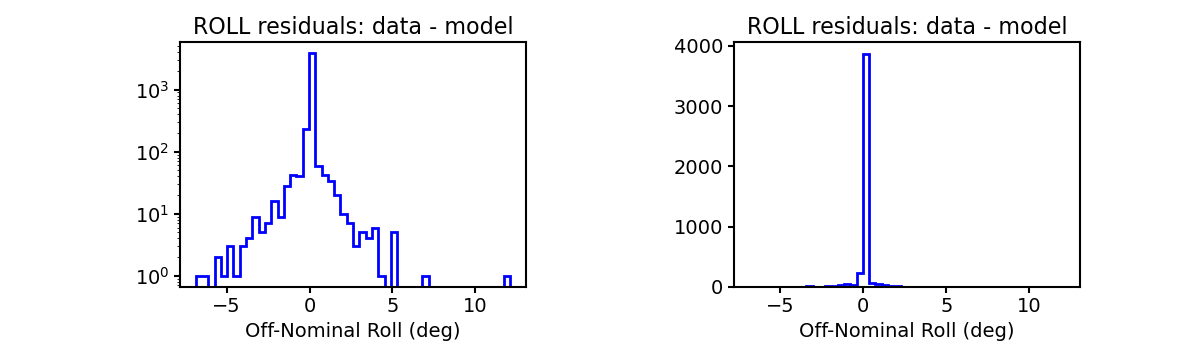

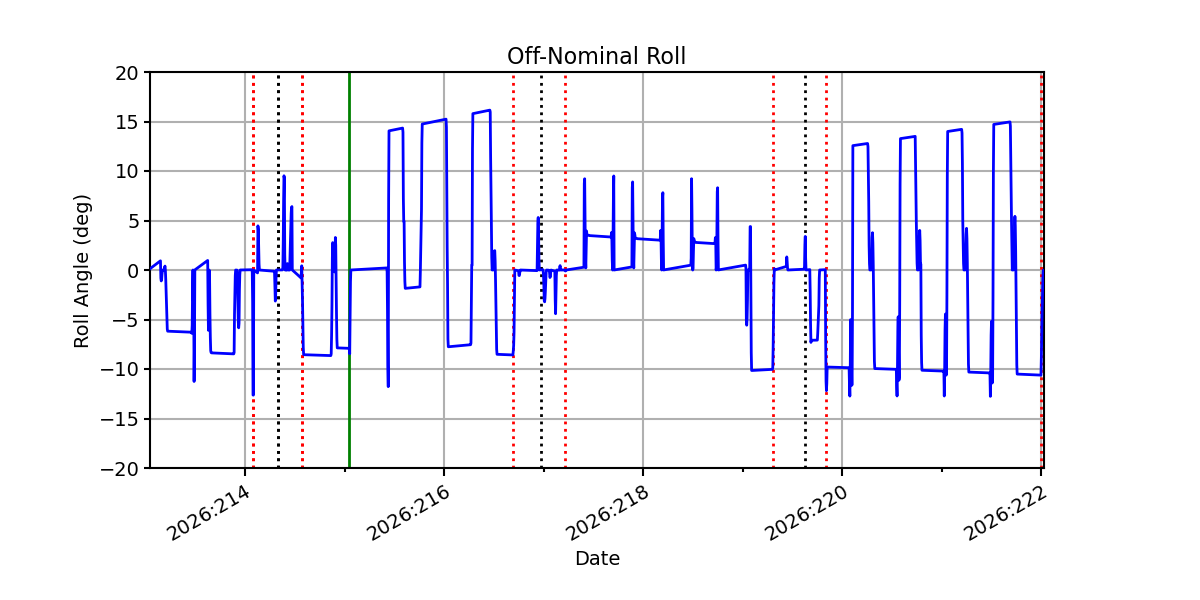

ROLL

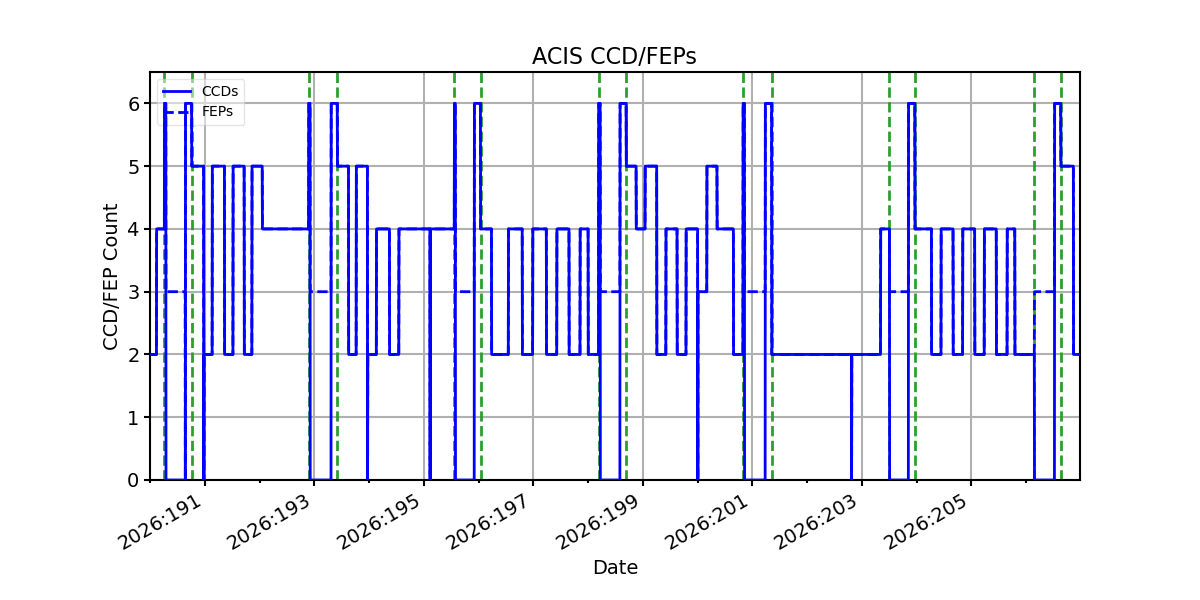

ACIS CCD/FEP Count
