PSMC Temperatures Check
Summary
| Date start | 2025:216:00:55:48.416 |
| Date stop | 2025:222:16:35:40.916 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/AUG0425/ofls |
| Run time | Wed Jul 30 12:30:49 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEAAT Upper Limit Violations
PSMC Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEAAT >= 30.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeaat | -2.93 | -1.70 | -0.78 | 0.88 | 2.68 | 3.63 | 5.14 |
| pitch | -9.335 | -0.136 | -0.004 | 0.000 | 0.004 | 0.371 | 8.459 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 1 | 1 |
| roll | -2.035 | -0.108 | -0.006 | -0.000 | 0.006 | 0.093 | 1.802 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEAAT | 1 | -2.93 | 2.50 |
| PITCH | 1 | -9.335 | 3.00 |
| PITCH | 99 | 8.459 | 3.00 |

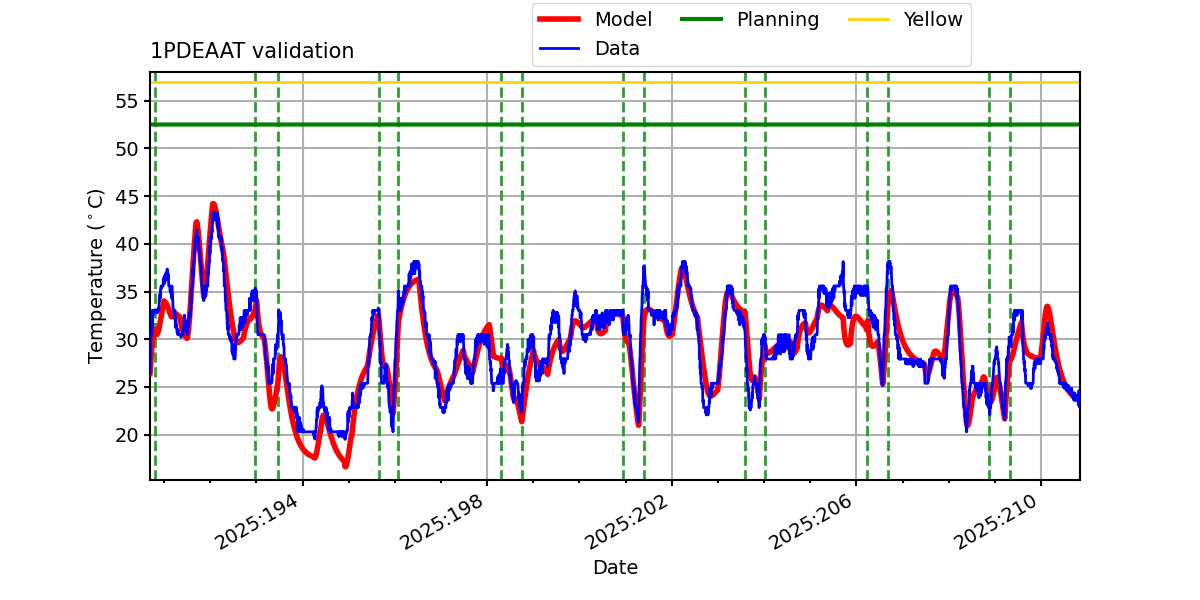

1PDEAAT

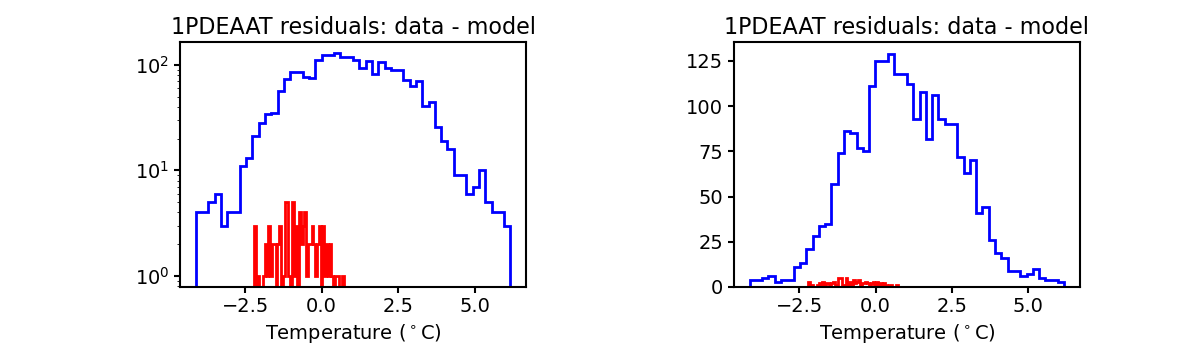

Note: 1PDEAAT residual histograms include only points where 1PDEAAT >= 30.0 C in blue and points where 1PDEAAT >= 40.0 C in red.

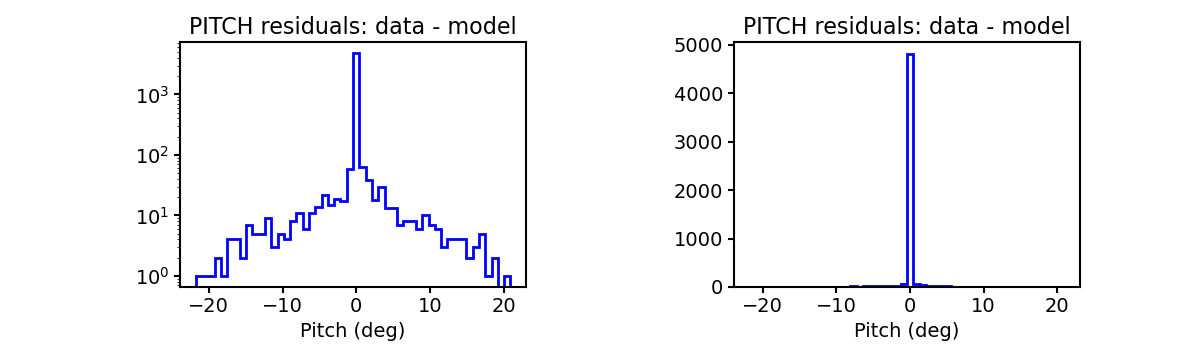

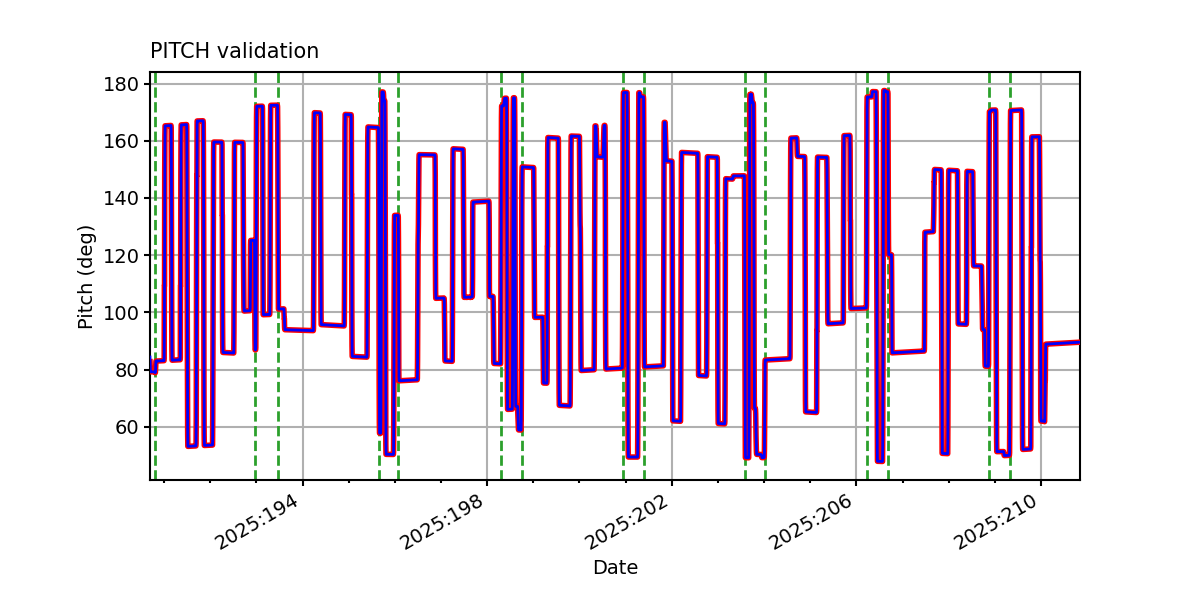

PITCH

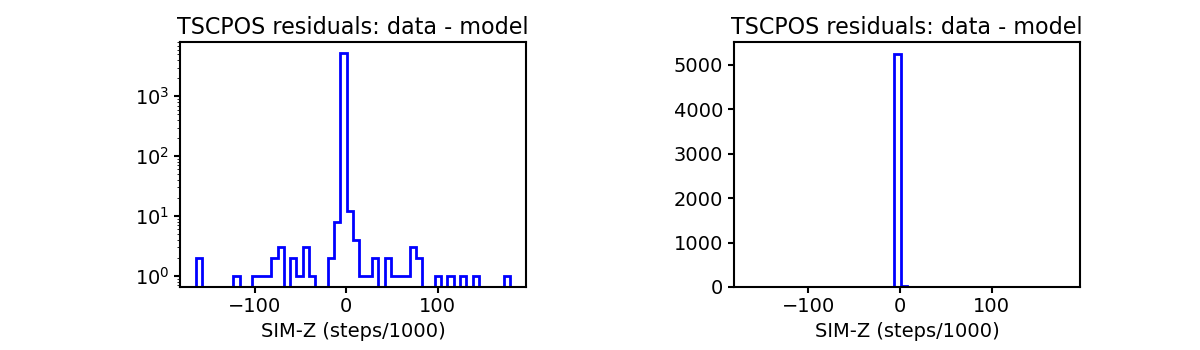

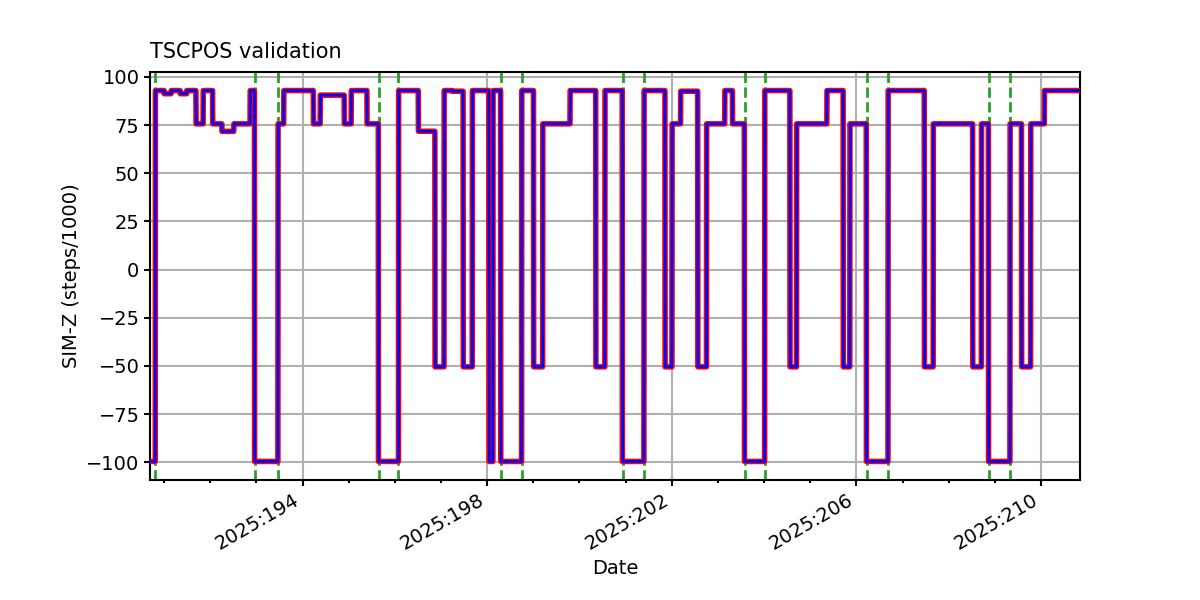

TSCPOS

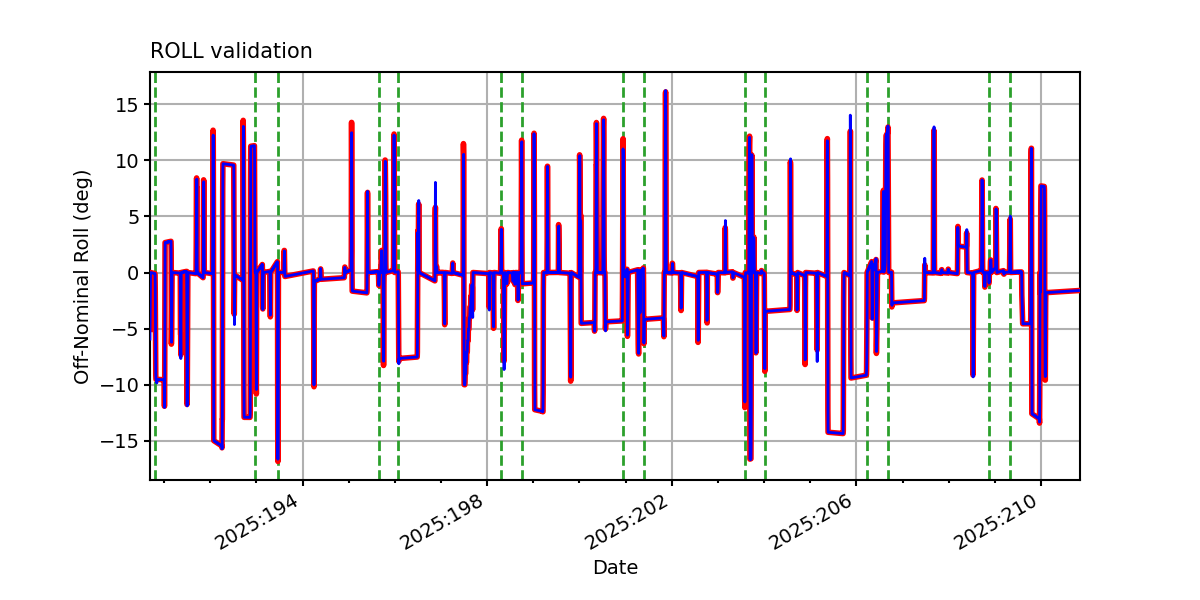

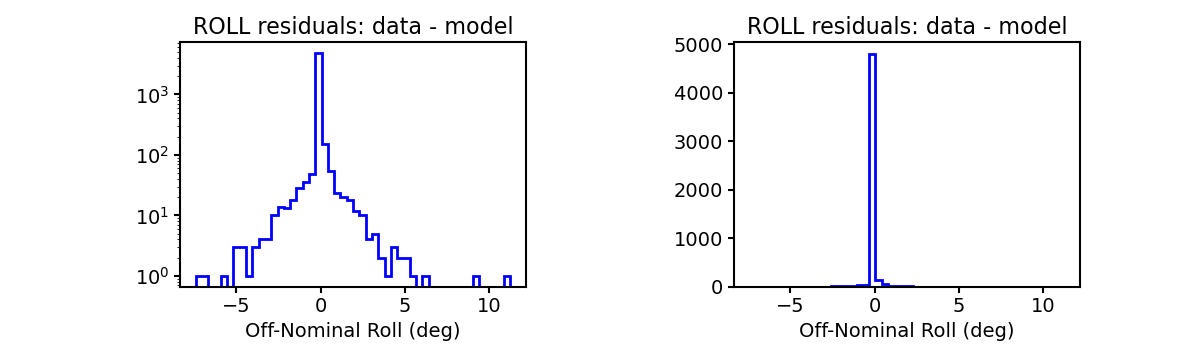

ROLL

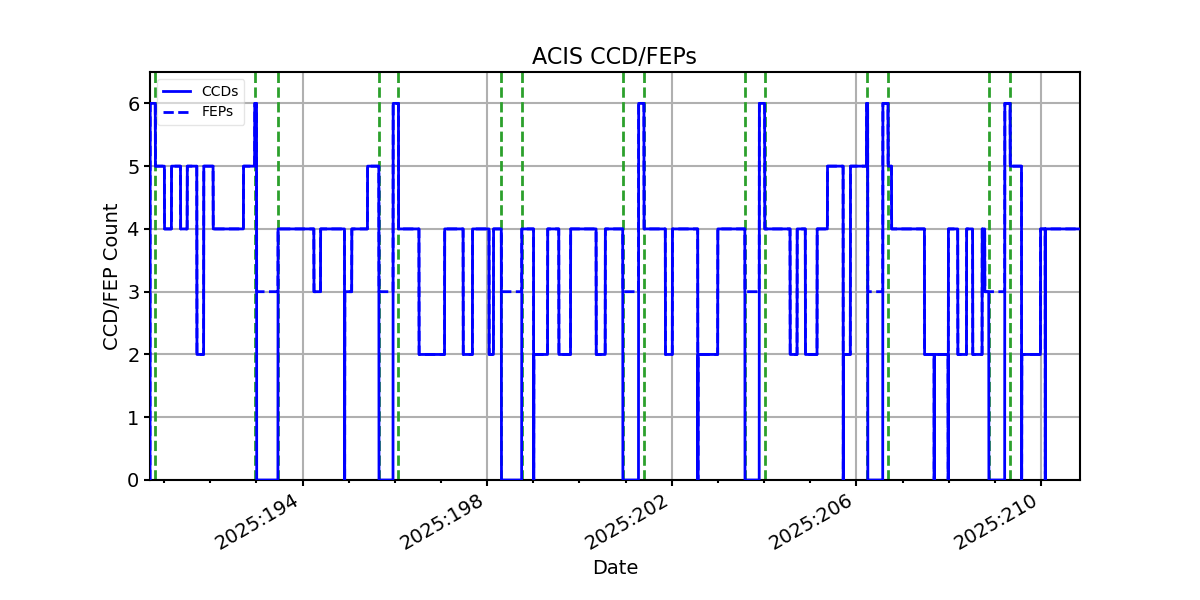

ACIS CCD/FEP Count
