PSMC Temperatures Check
Summary
| Date start | 2025:222:16:32:40.916 |
| Date stop | 2025:230:00:53:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/AUG1125/oflsa |
| Run time | Wed Aug 6 15:40:41 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEAAT Upper Limit Violations
PSMC Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEAAT >= 30.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeaat | -2.96 | -2.16 | -0.97 | 0.75 | 2.92 | 3.87 | 5.29 |
| pitch | -10.967 | -0.326 | -0.004 | 0.000 | 0.004 | 0.541 | 9.724 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -1.780 | -0.112 | -0.006 | -0.000 | 0.005 | 0.121 | 1.591 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEAAT | 1 | -2.96 | 2.50 |
| PITCH | 1 | -10.967 | 3.00 |
| PITCH | 99 | 9.724 | 3.00 |

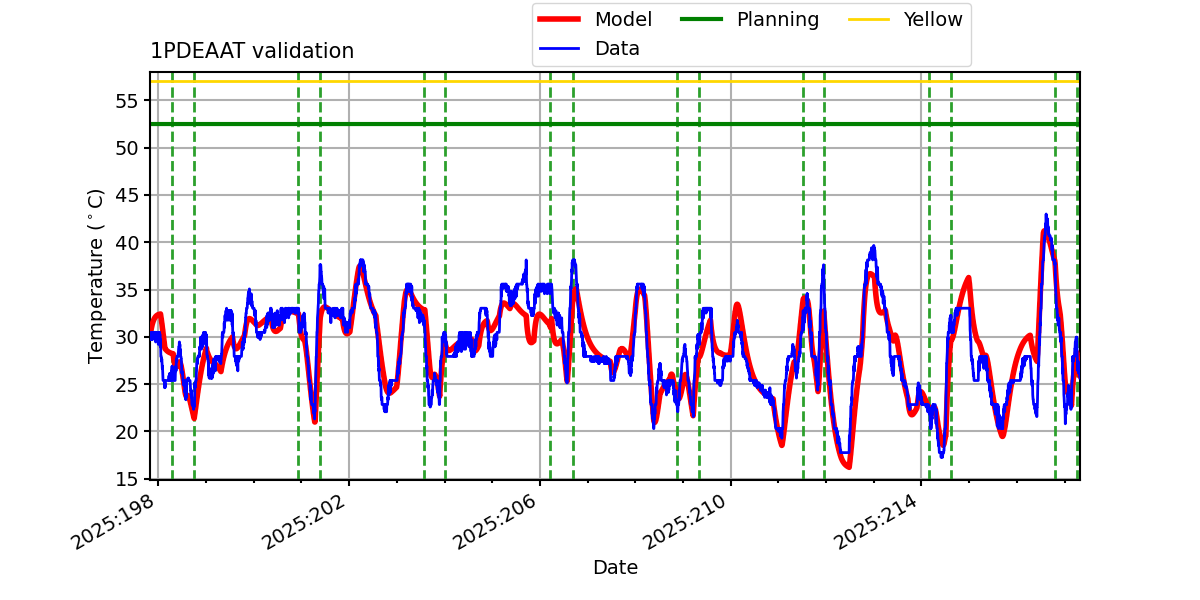

1PDEAAT

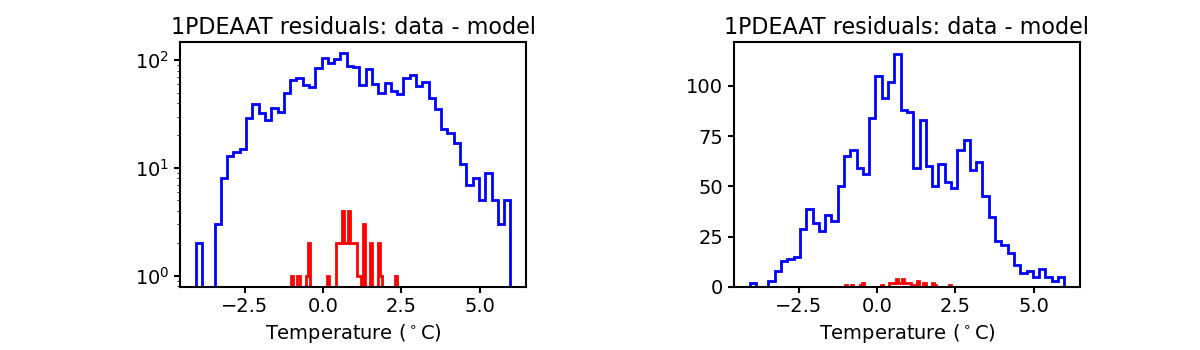

Note: 1PDEAAT residual histograms include only points where 1PDEAAT >= 30.0 C in blue and points where 1PDEAAT >= 40.0 C in red.

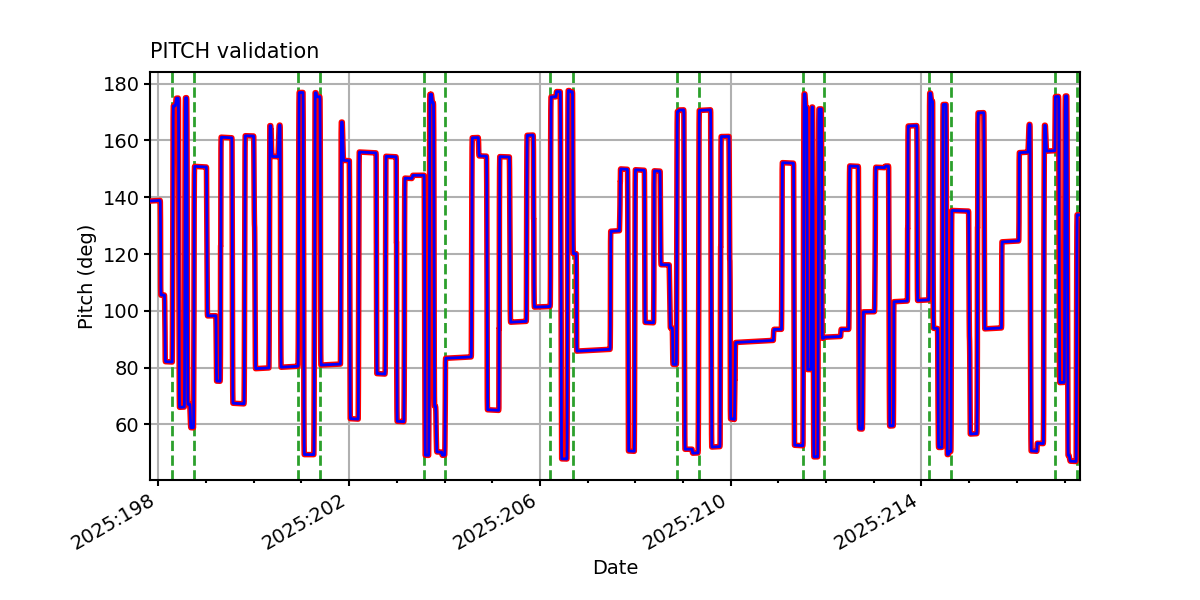

PITCH
TSCPOS

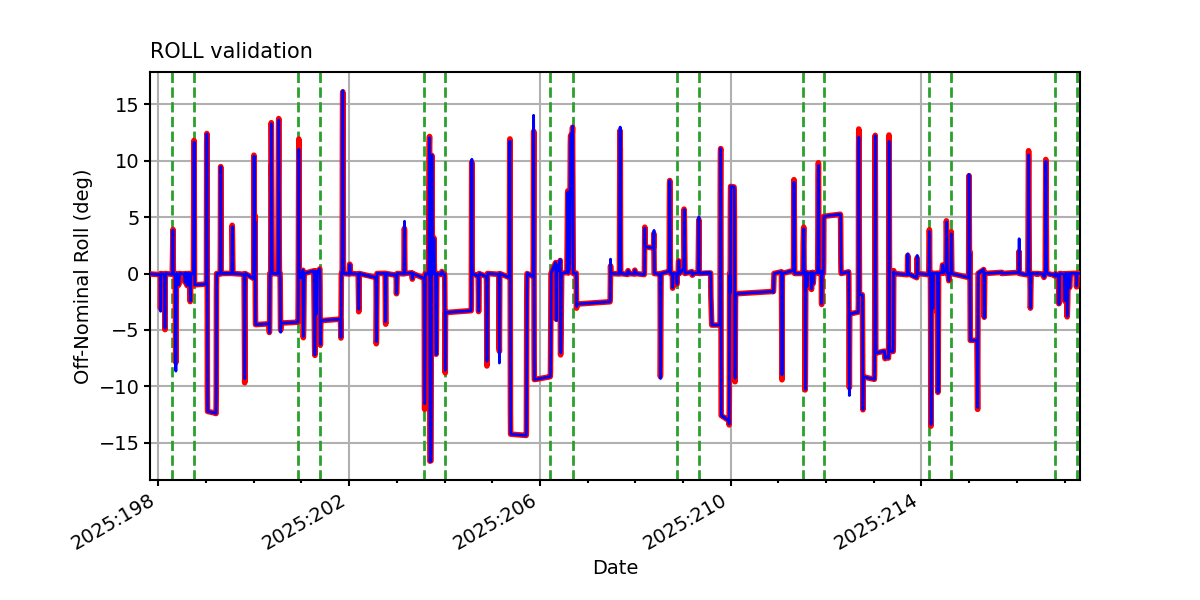

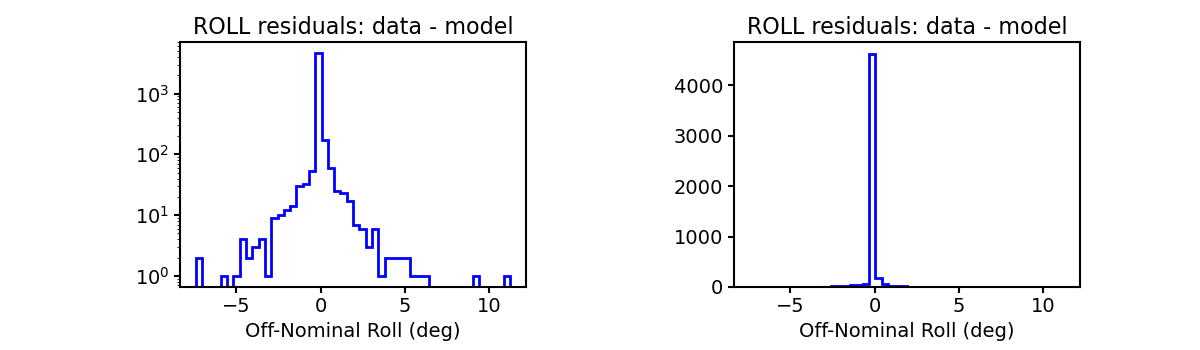

ROLL

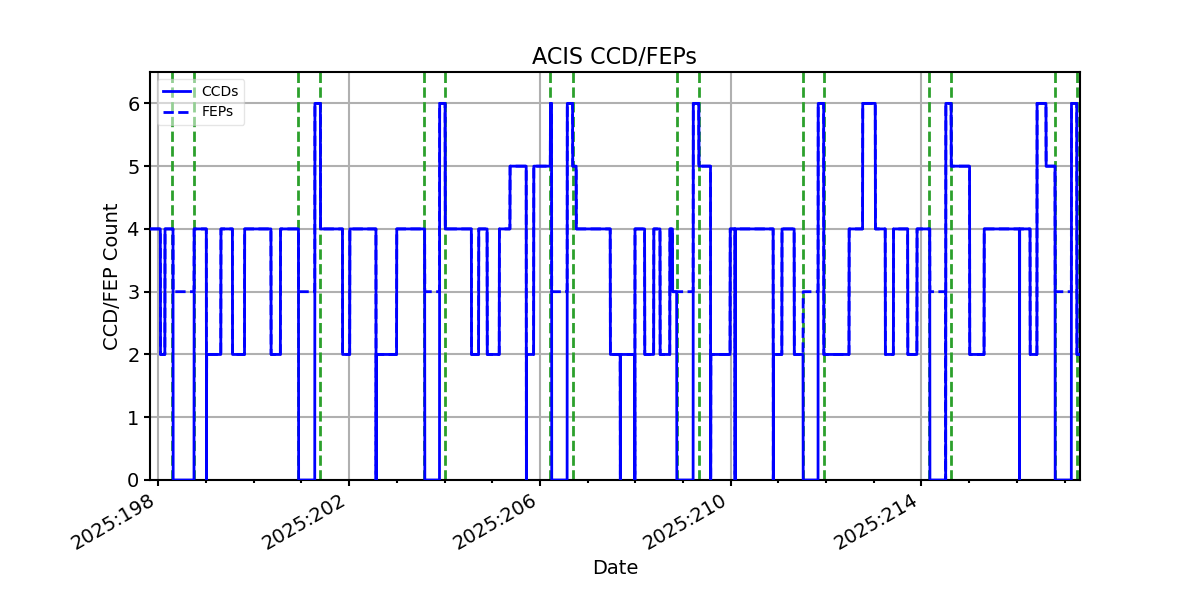

ACIS CCD/FEP Count
