PSMC Temperatures Check
Summary
| Date start | 2025:335:01:19:35.216 |
| Date stop | 2025:342:01:01:51.816 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/DEC0125/oflsa |
| Run time | Tue Nov 25 12:05:51 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEAAT Upper Limit Violations
PSMC Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEAAT >= 30.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeaat | -2.81 | -1.96 | -1.14 | 0.74 | 2.93 | 5.01 | 6.92 |
| pitch | -12.488 | -1.692 | -0.004 | -0.000 | 0.004 | 1.263 | 12.001 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.636 | -0.242 | -0.007 | -0.000 | 0.008 | 0.293 | 2.822 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEAAT | 1 | -2.81 | 2.50 |
| 1PDEAAT | 99 | 6.92 | 5.50 |
| PITCH | 1 | -12.488 | 3.00 |
| PITCH | 99 | 12.001 | 3.00 |
1PDEAAT
Note: 1PDEAAT residual histograms include only points where 1PDEAAT >= 30.0 C in blue and points where 1PDEAAT >= 40.0 C in red.

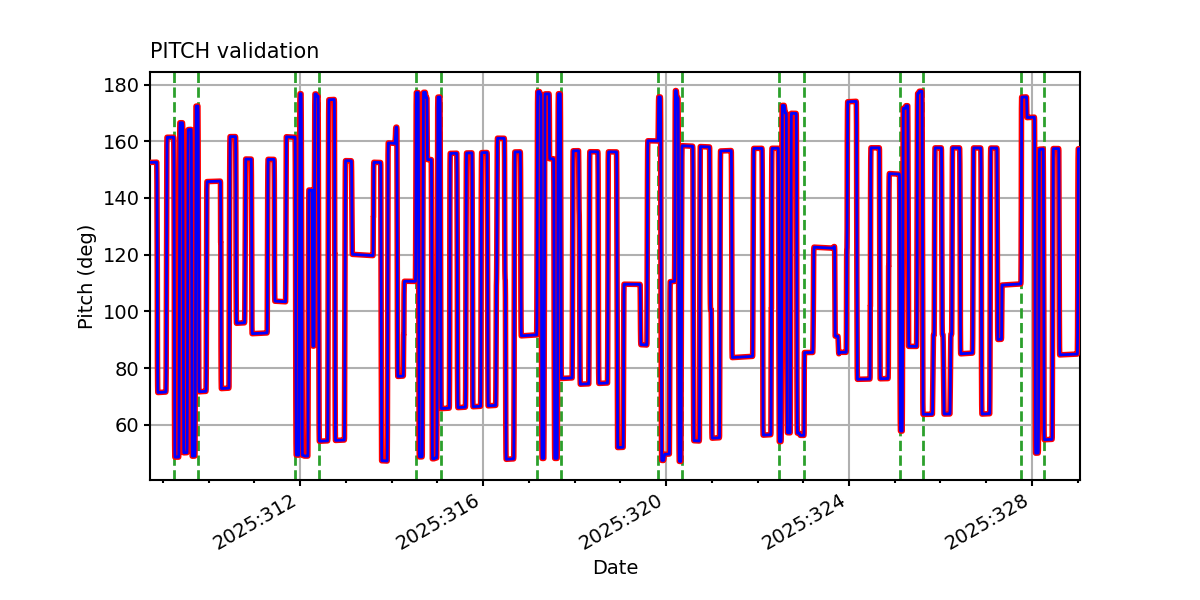

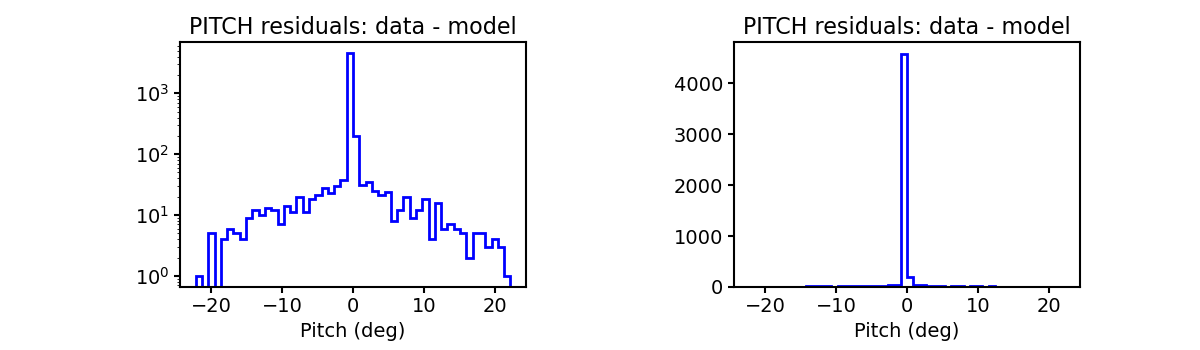

PITCH

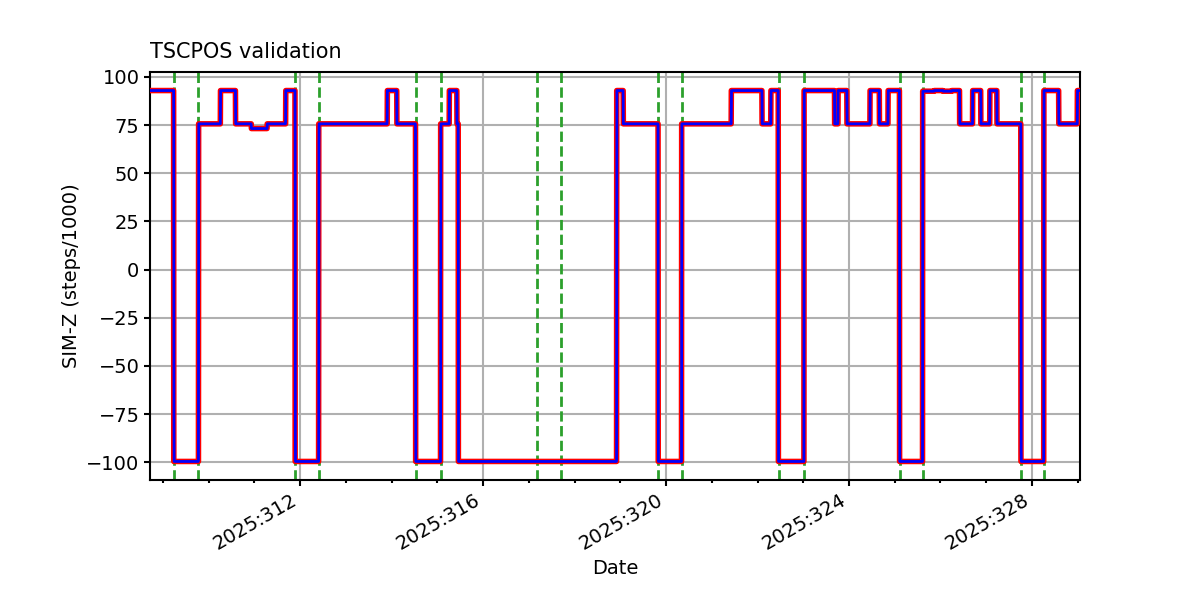

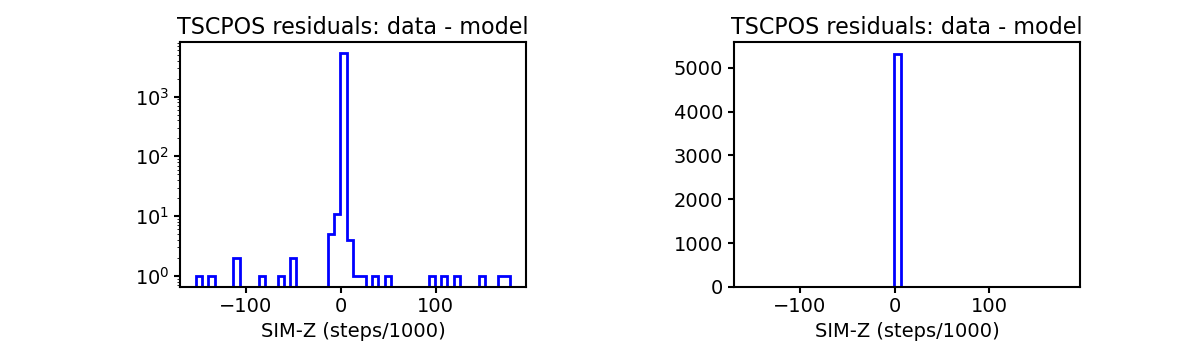

TSCPOS

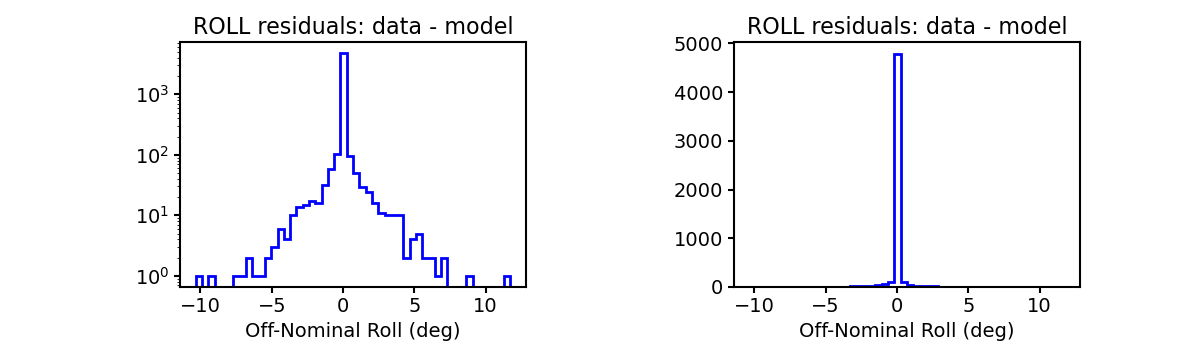

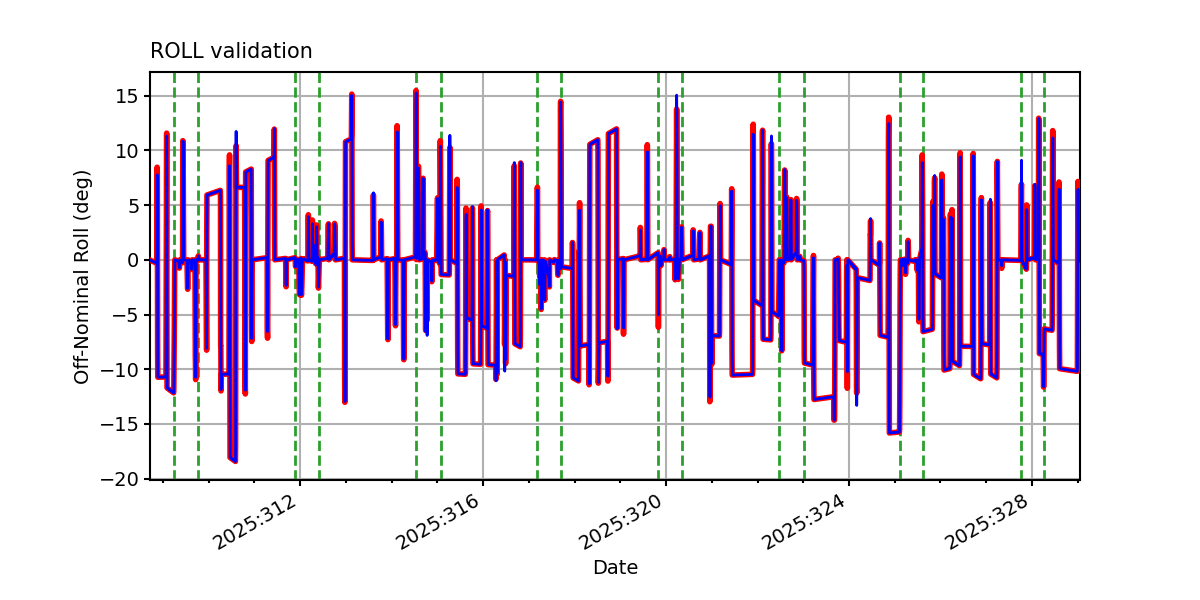

ROLL

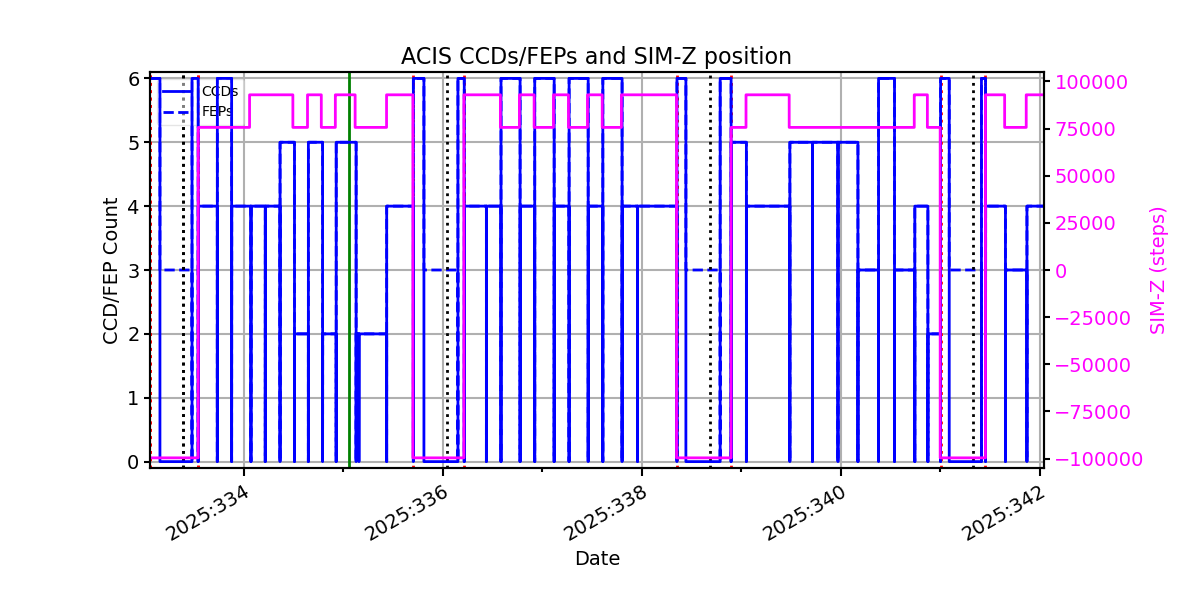

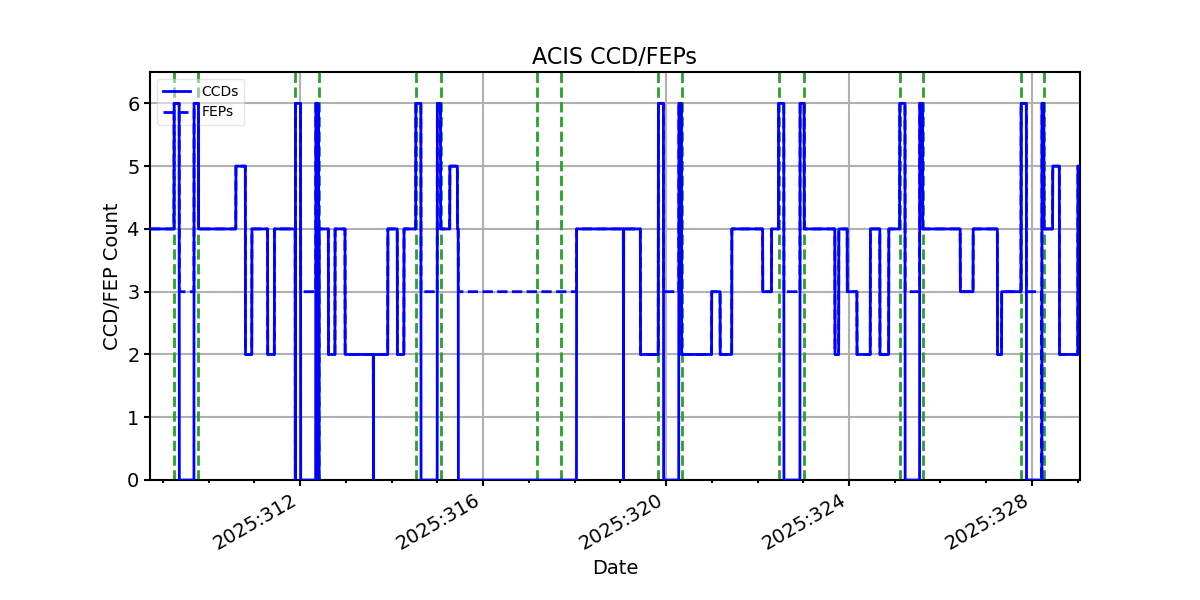

ACIS CCD/FEP Count
