PSMC Temperatures Check
Summary
| Date start | 2025:342:00:58:51.816 |
| Date stop | 2025:349:00:38:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/DEC0825/oflsa |
| Run time | Wed Dec 3 15:19:33 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEAAT Upper Limit Violations
PSMC Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEAAT >= 30.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeaat | -2.58 | -1.72 | -0.61 | 1.08 | 3.71 | 5.72 | 7.24 |
| pitch | -10.648 | -0.769 | -0.004 | 0.000 | 0.004 | 0.656 | 10.791 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.503 | -0.188 | -0.007 | -0.000 | 0.008 | 0.193 | 2.235 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEAAT | 1 | -2.58 | 2.50 |
| 1PDEAAT | 50 | 1.08 | 1.00 |
| 1PDEAAT | 99 | 7.24 | 5.50 |
| PITCH | 1 | -10.648 | 3.00 |
| PITCH | 99 | 10.791 | 3.00 |

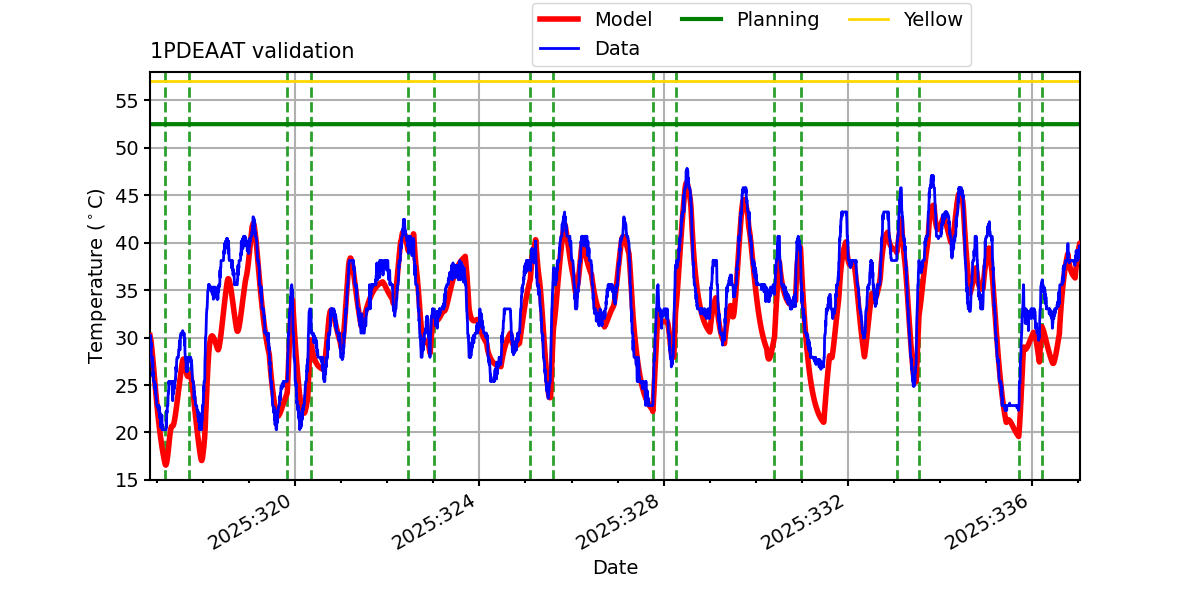

1PDEAAT

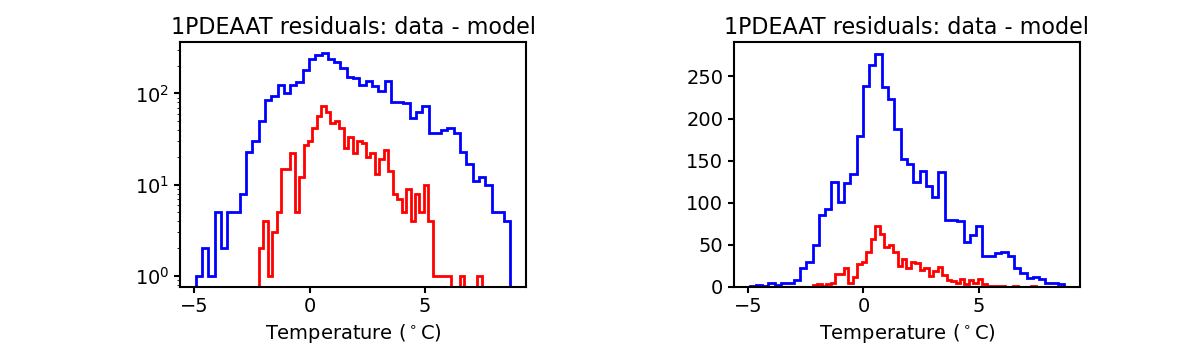

Note: 1PDEAAT residual histograms include only points where 1PDEAAT >= 30.0 C in blue and points where 1PDEAAT >= 40.0 C in red.

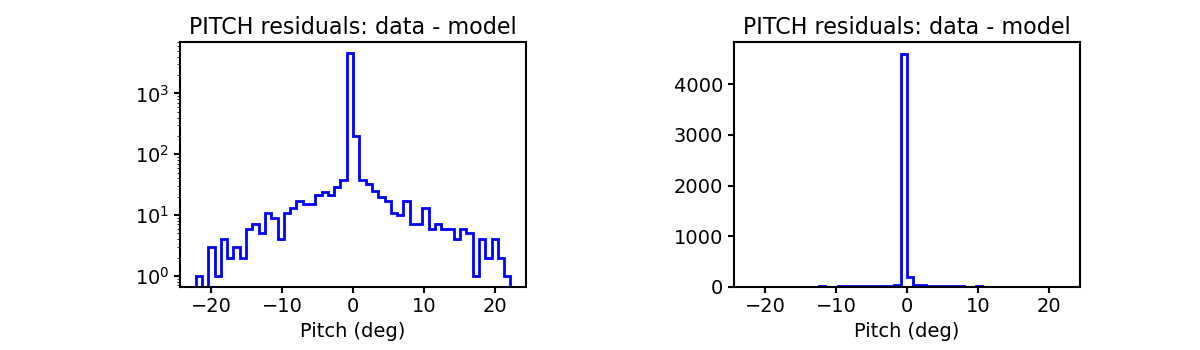

PITCH

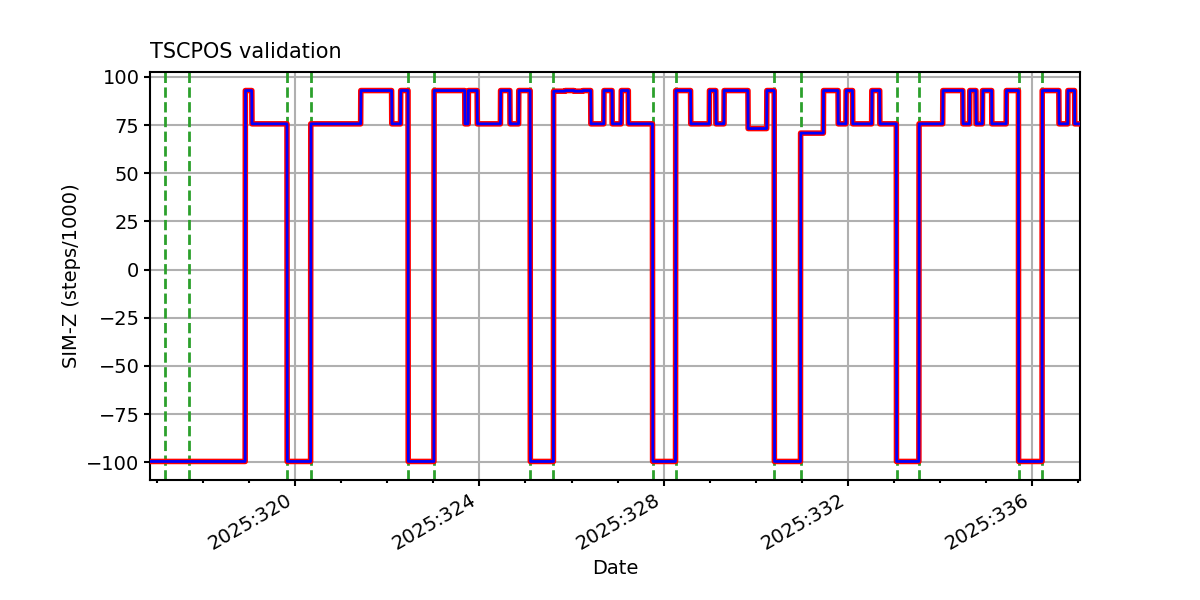

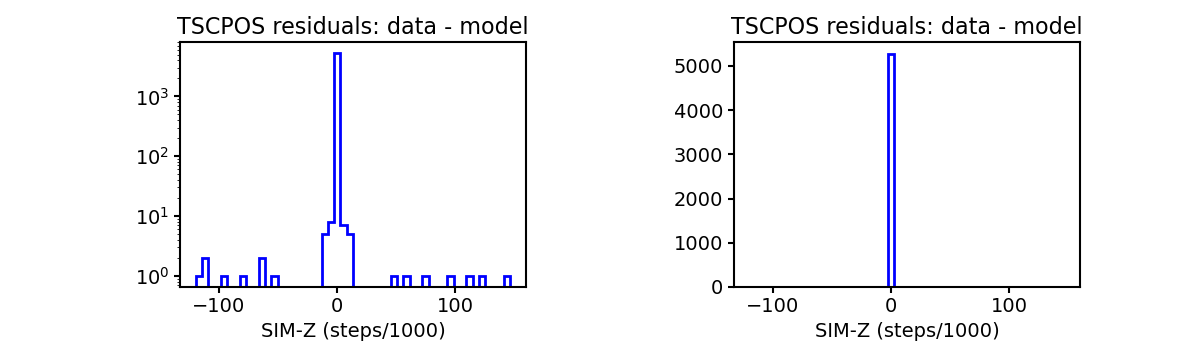

TSCPOS

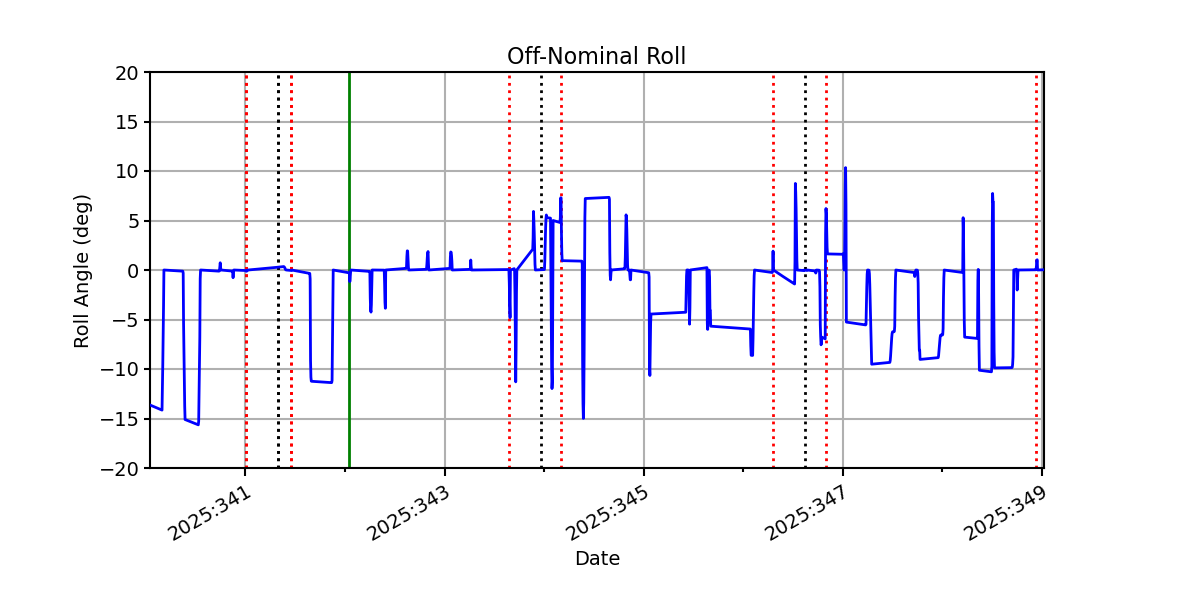

ROLL

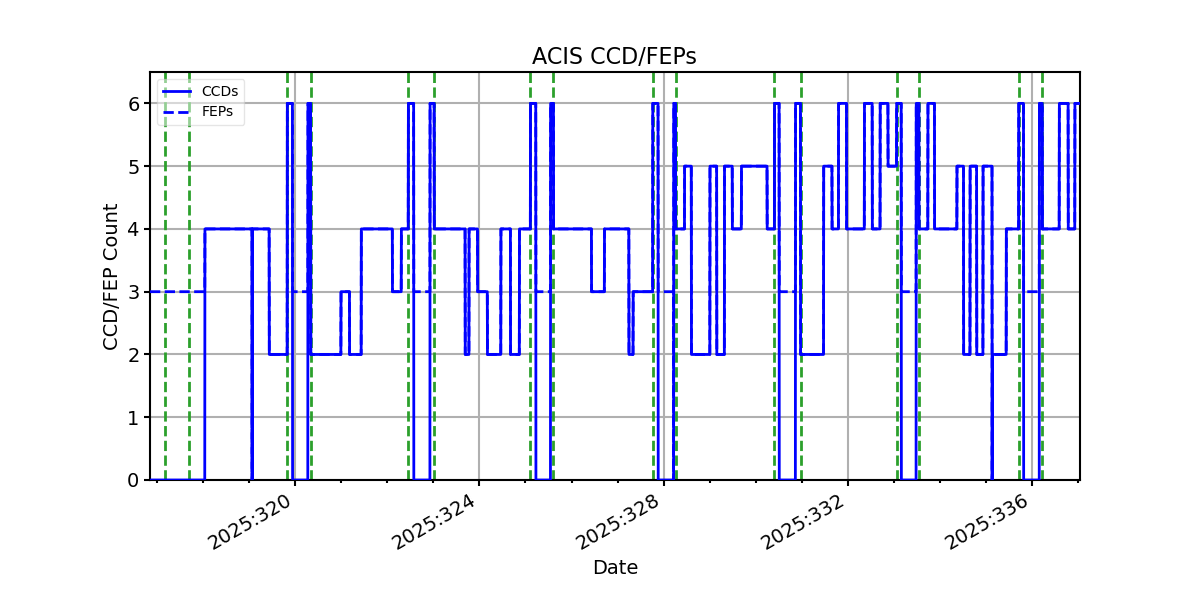

ACIS CCD/FEP Count
