PSMC Temperatures Check
Summary
| Date start | 2025:349:00:38:00.016 |
| Date stop | 2025:355:22:58:21.916 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/DEC1525/oflsa |
| Run time | Wed Dec 10 14:35:30 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEAAT Upper Limit Violations
PSMC Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEAAT >= 30.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeaat | -2.59 | -1.58 | -0.46 | 1.19 | 3.43 | 5.07 | 7.34 |
| pitch | -9.702 | -0.366 | -0.004 | -0.000 | 0.004 | 0.448 | 10.293 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -2.000 | -0.101 | -0.007 | -0.000 | 0.007 | 0.137 | 2.045 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEAAT | 1 | -2.59 | 2.50 |
| 1PDEAAT | 50 | 1.19 | 1.00 |
| 1PDEAAT | 99 | 7.34 | 5.50 |
| PITCH | 1 | -9.702 | 3.00 |
| PITCH | 99 | 10.293 | 3.00 |

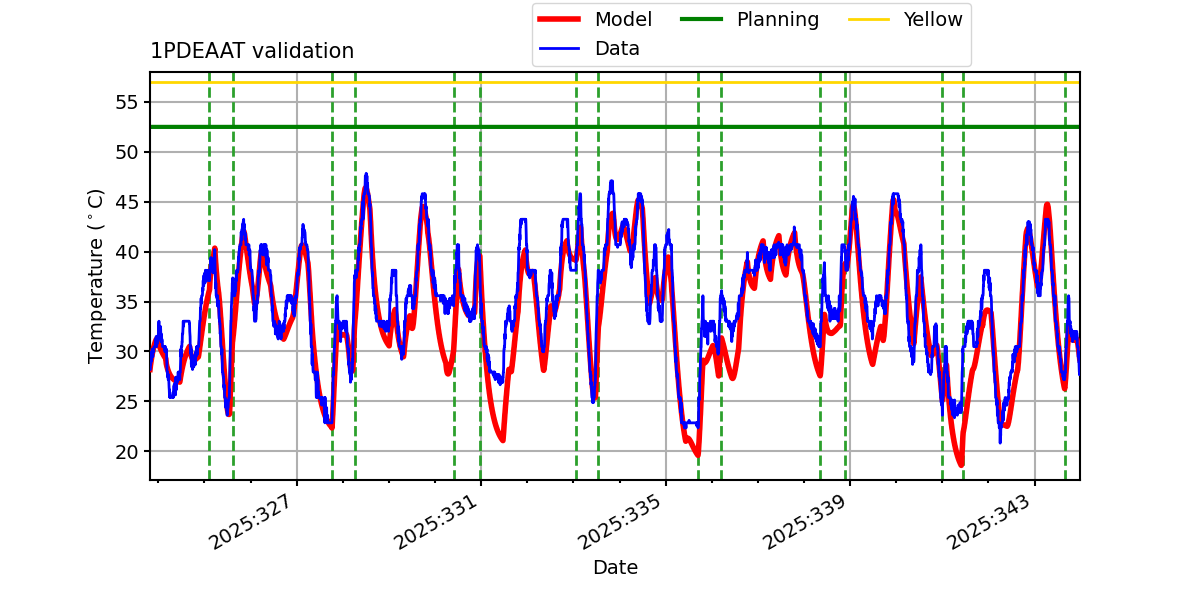

1PDEAAT

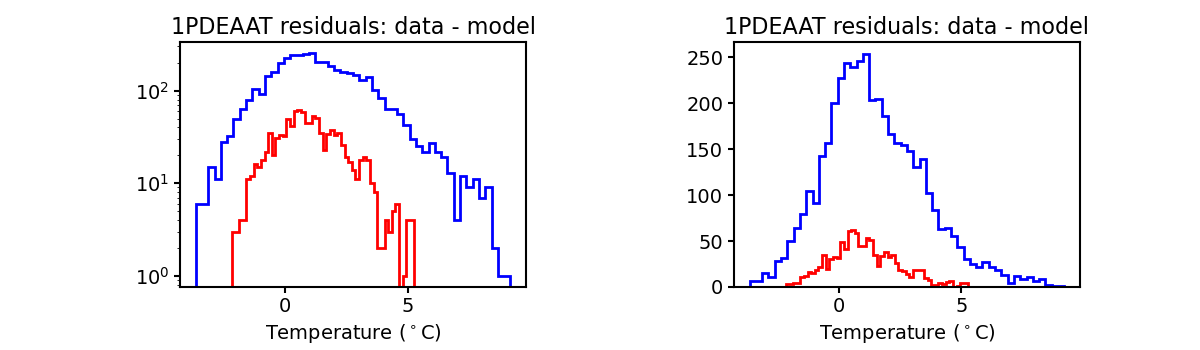

Note: 1PDEAAT residual histograms include only points where 1PDEAAT >= 30.0 C in blue and points where 1PDEAAT >= 40.0 C in red.

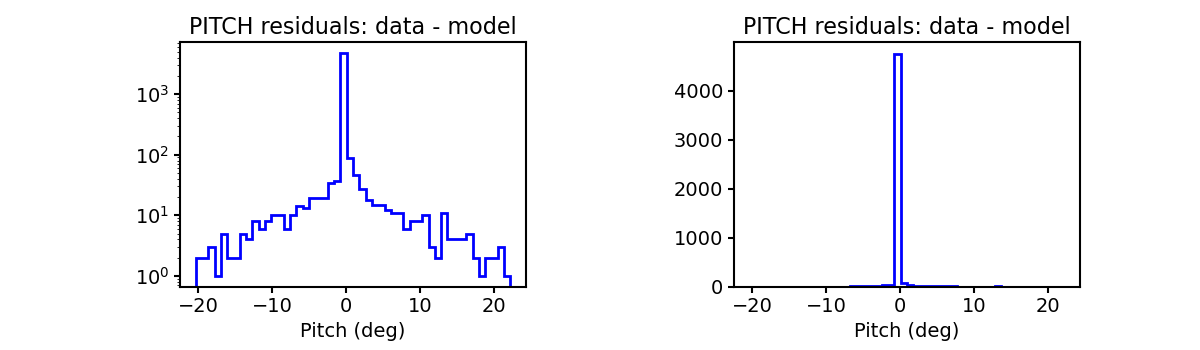

PITCH
TSCPOS

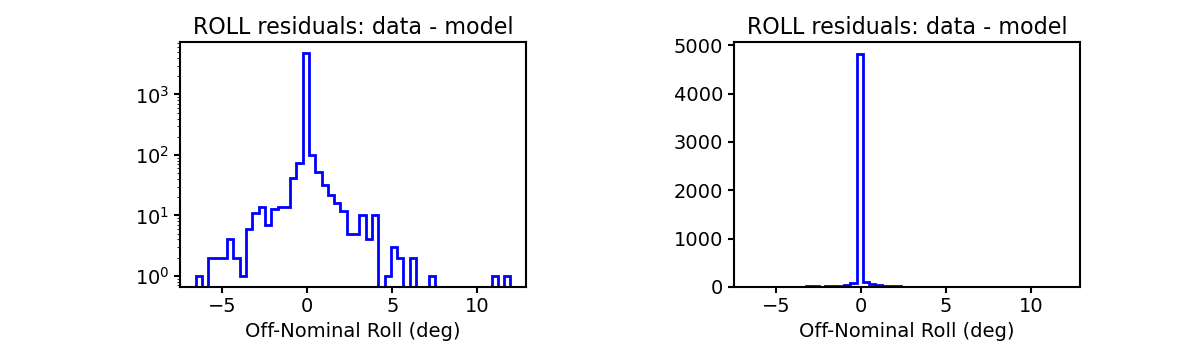

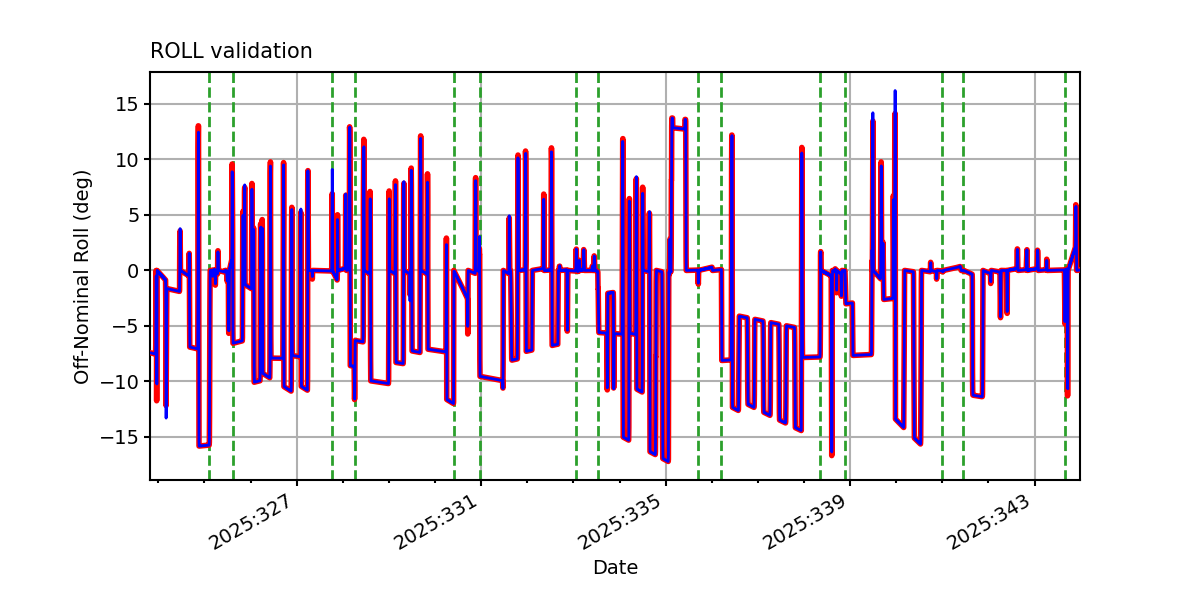

ROLL

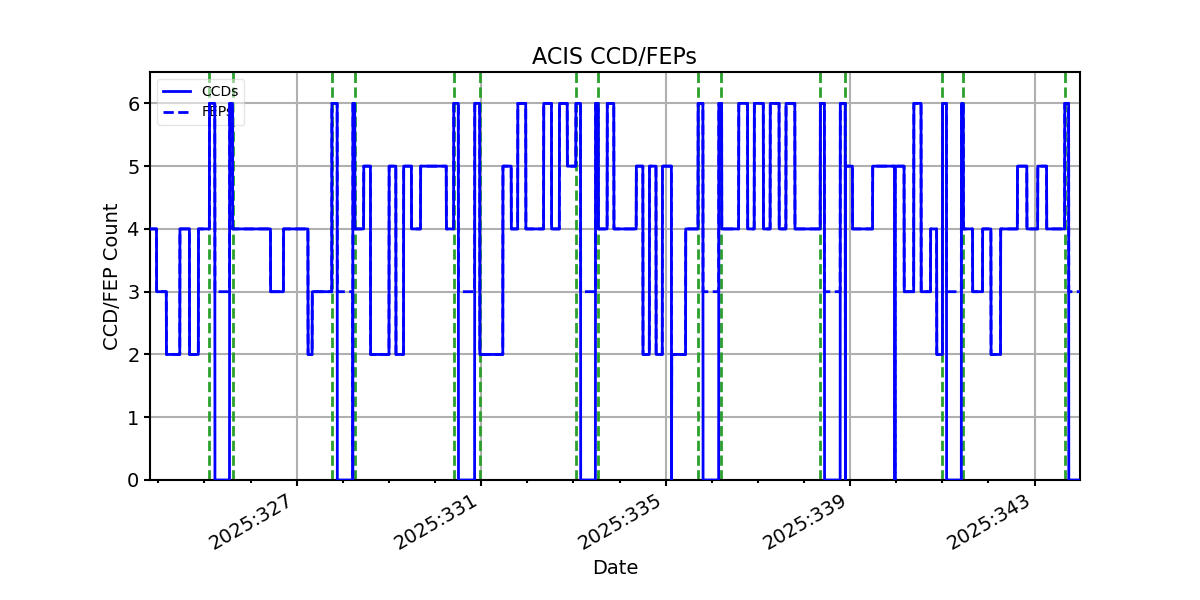

ACIS CCD/FEP Count
