PSMC Temperatures Check
Summary
| Date start | 2025:355:22:55:21.916 |
| Date stop | 2025:363:02:43:37.616 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/DEC2225/oflsa |
| Run time | Thu Dec 18 20:05:34 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

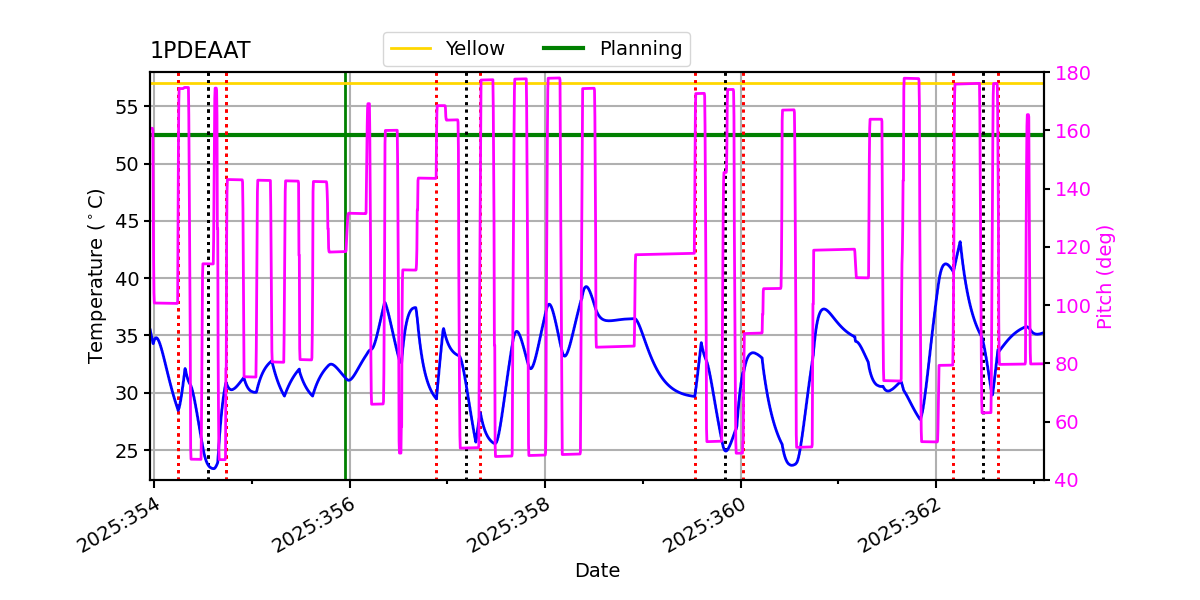

No 1PDEAAT Upper Limit Violations
PSMC Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEAAT >= 30.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeaat | -2.63 | -1.57 | -0.71 | 0.92 | 2.97 | 4.38 | 6.72 |
| pitch | -10.709 | -0.383 | -0.004 | 0.000 | 0.004 | 0.546 | 11.156 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.555 | -0.091 | -0.007 | 0.000 | 0.007 | 0.126 | 1.573 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEAAT | 1 | -2.63 | 2.50 |
| 1PDEAAT | 99 | 6.72 | 5.50 |
| PITCH | 1 | -10.709 | 3.00 |
| PITCH | 99 | 11.156 | 3.00 |

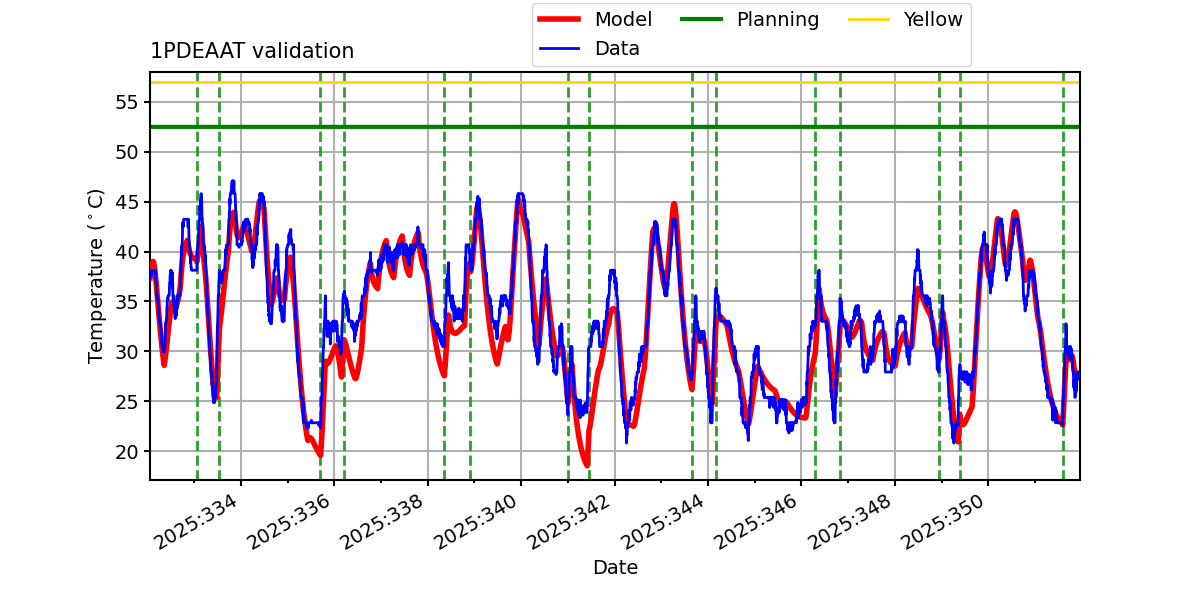

1PDEAAT

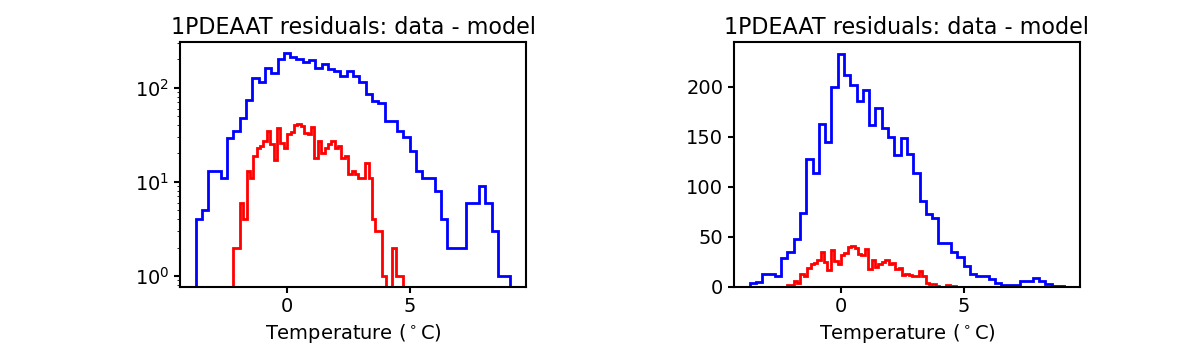

Note: 1PDEAAT residual histograms include only points where 1PDEAAT >= 30.0 C in blue and points where 1PDEAAT >= 40.0 C in red.

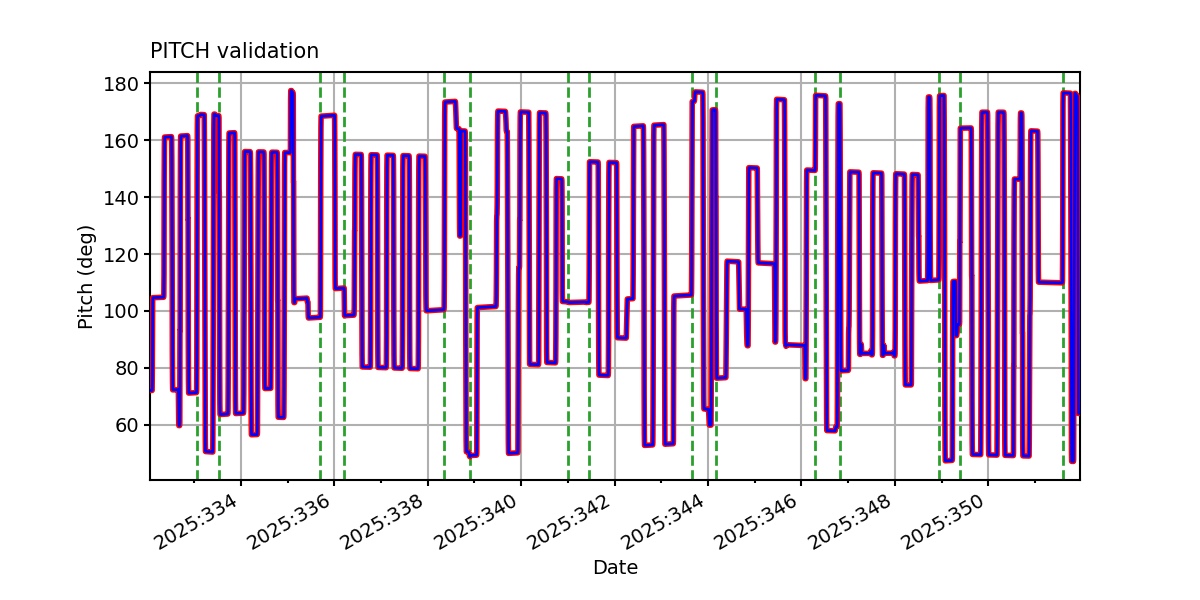

PITCH

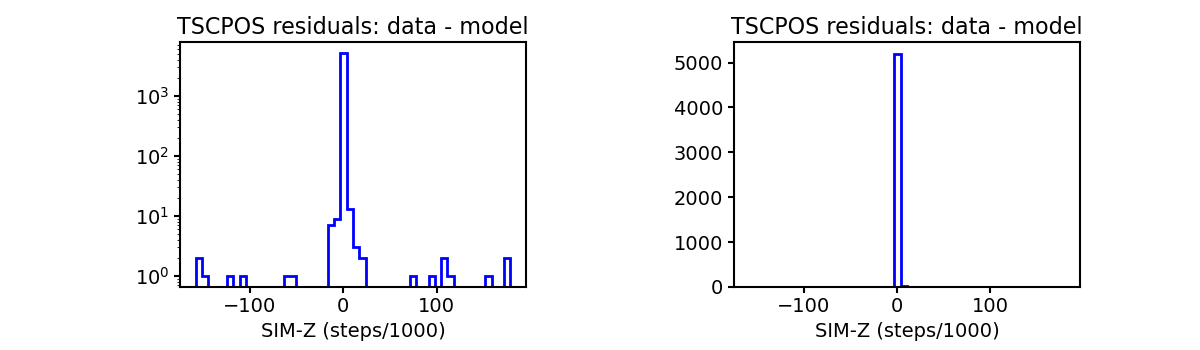

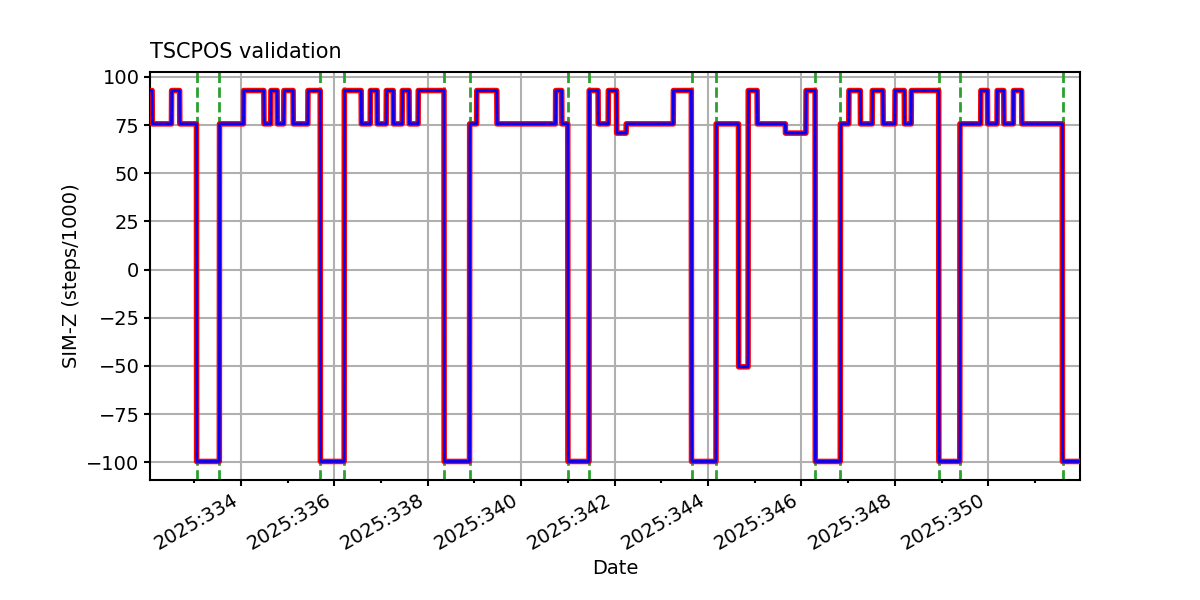

TSCPOS

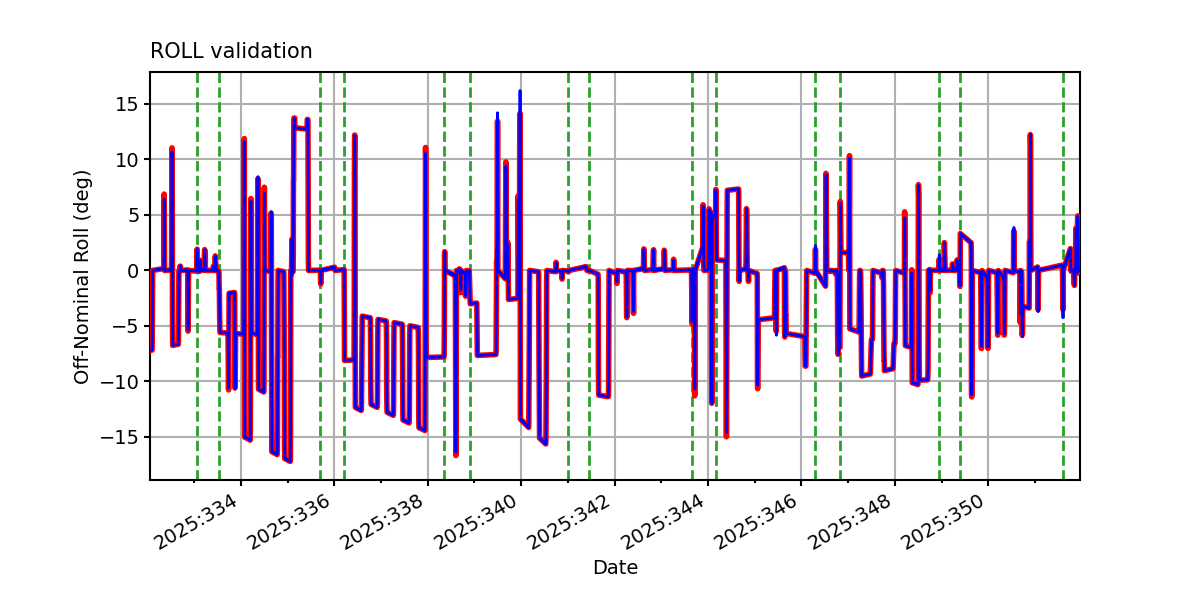

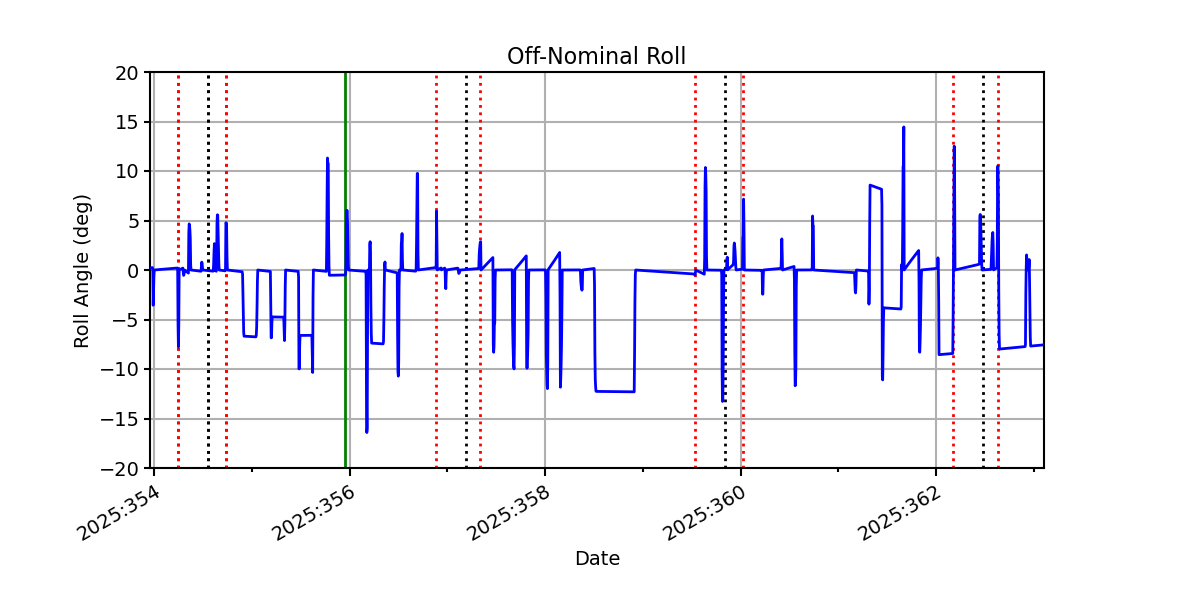

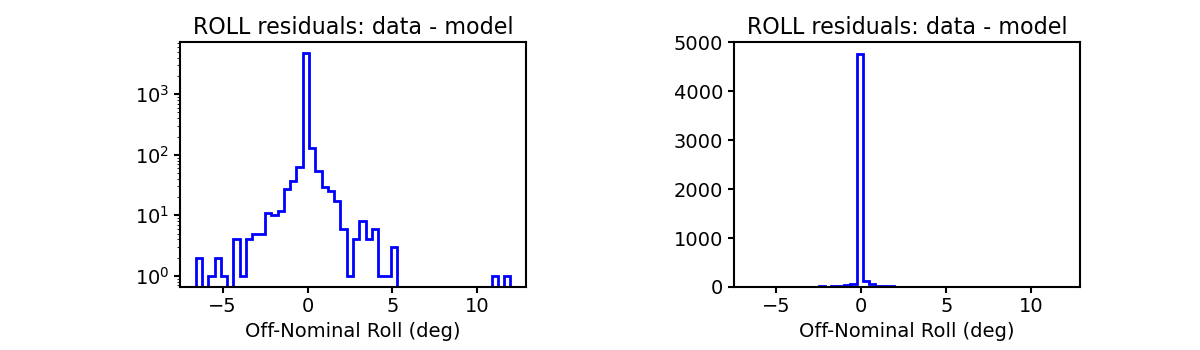

ROLL

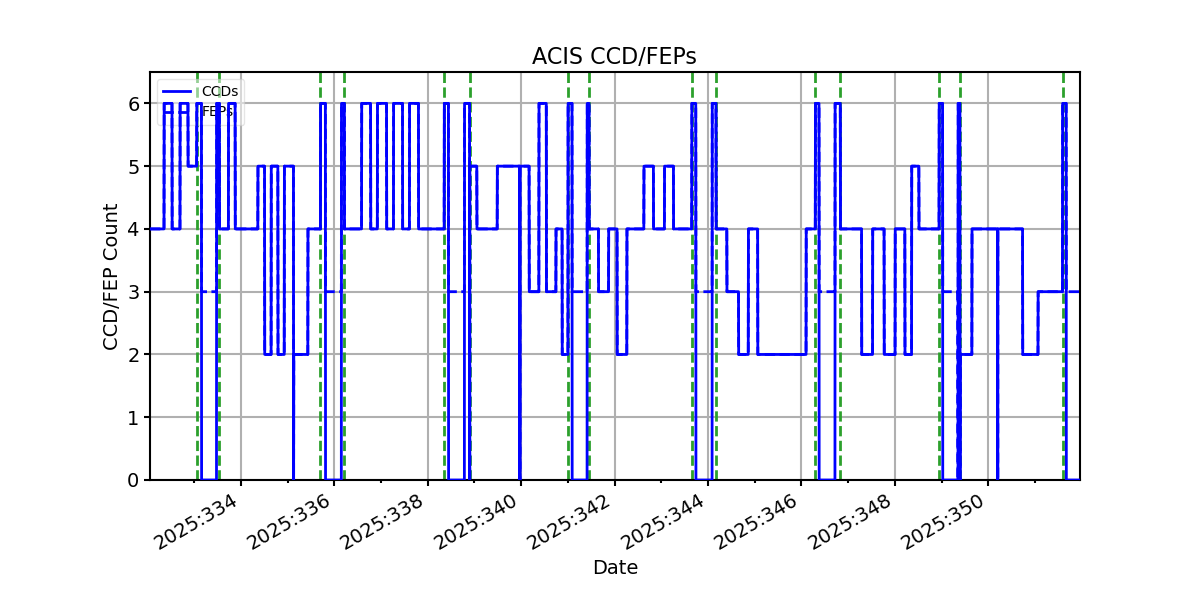

ACIS CCD/FEP Count
