PSMC Temperatures Check
Summary
| Date start | 2025:363:02:40:37.616 |
| Date stop | 2026:012:00:54:56.516 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/DEC2925/oflsb |
| Run time | Tue Dec 23 11:50:00 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEAAT Upper Limit Violations
PSMC Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEAAT >= 30.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeaat | -3.23 | -1.91 | -0.88 | 0.66 | 2.46 | 3.83 | 6.96 |
| pitch | -10.709 | -0.540 | -0.004 | -0.000 | 0.004 | 0.541 | 10.879 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.593 | -0.102 | -0.006 | 0.000 | 0.006 | 0.158 | 1.533 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEAAT | 1 | -3.23 | 2.50 |
| 1PDEAAT | 99 | 6.96 | 5.50 |
| PITCH | 1 | -10.709 | 3.00 |
| PITCH | 99 | 10.879 | 3.00 |

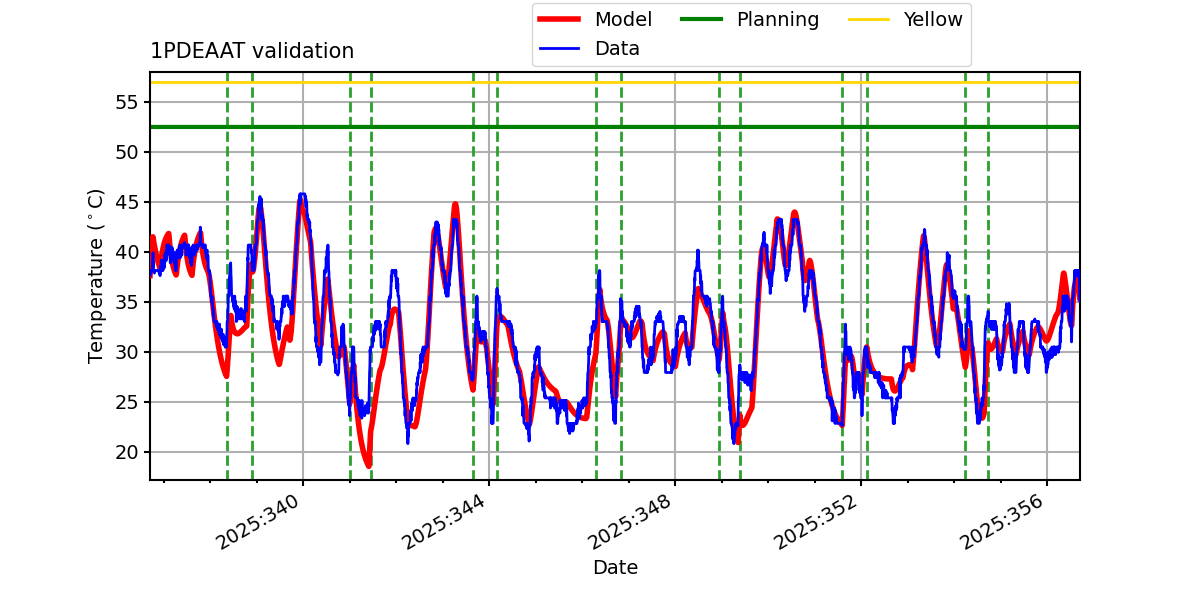

1PDEAAT
Note: 1PDEAAT residual histograms include only points where 1PDEAAT >= 30.0 C in blue and points where 1PDEAAT >= 40.0 C in red.

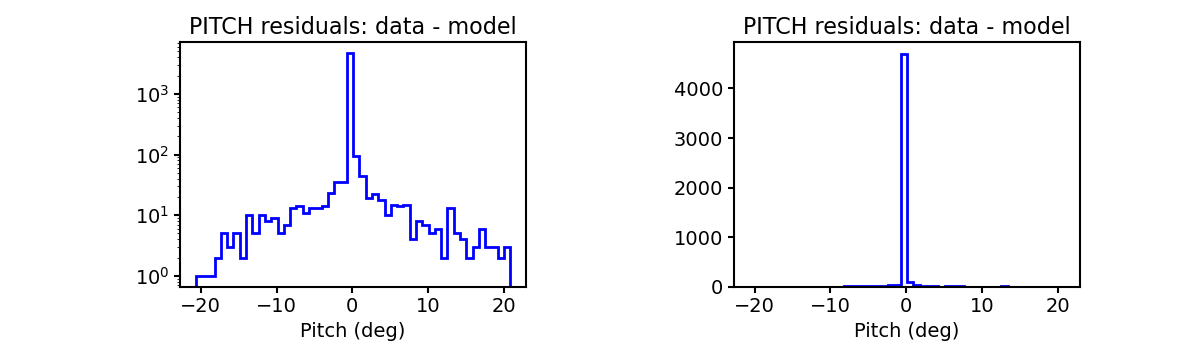

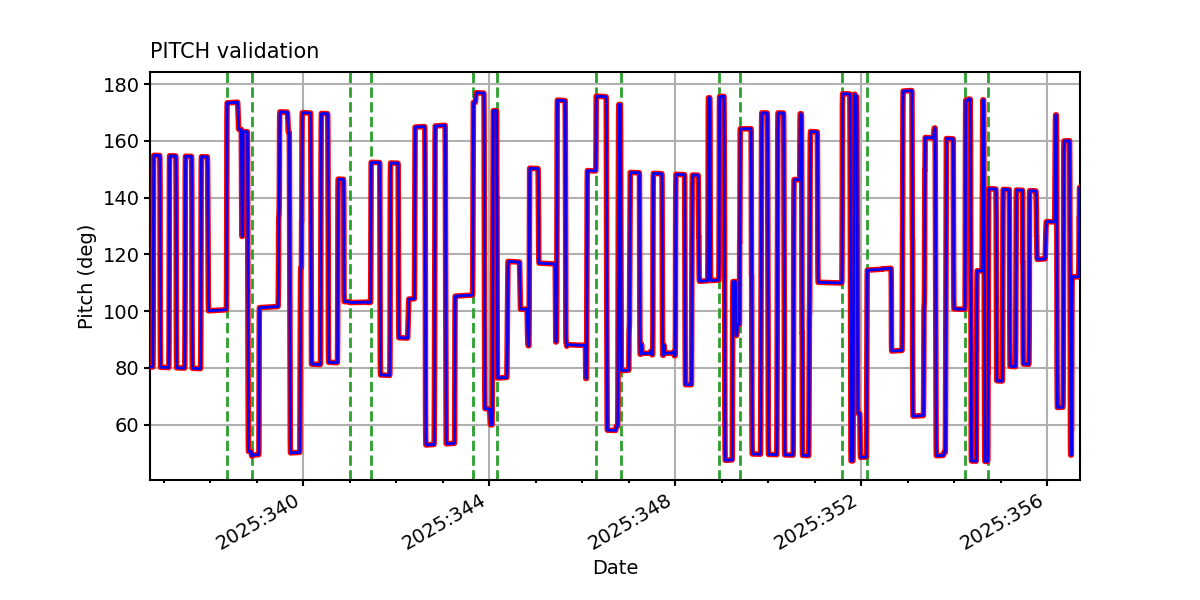

PITCH

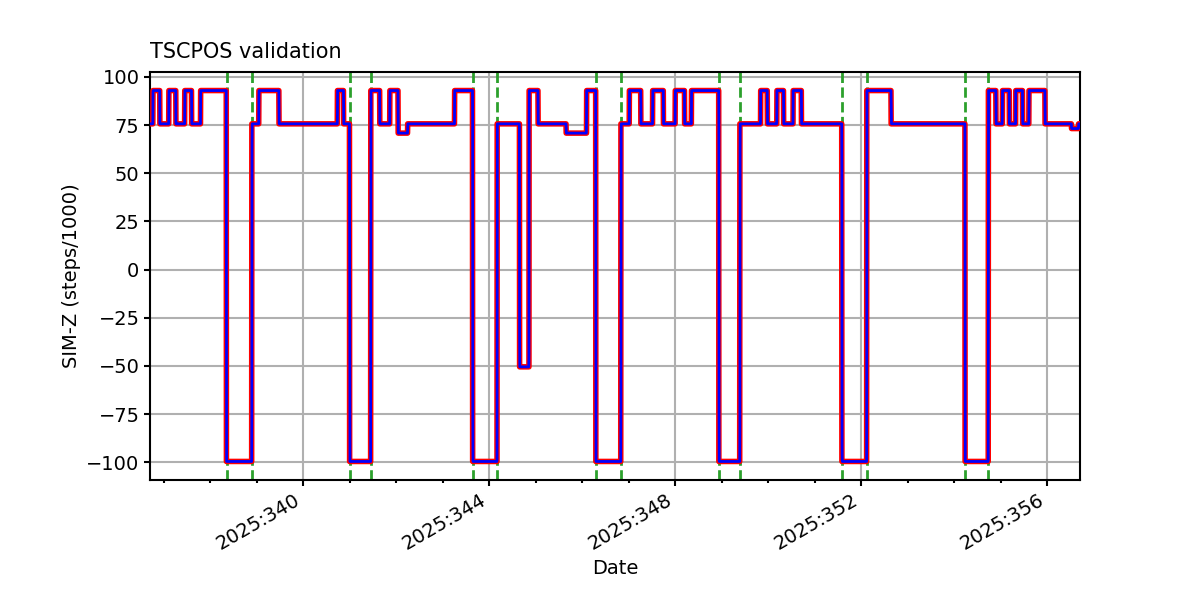

TSCPOS

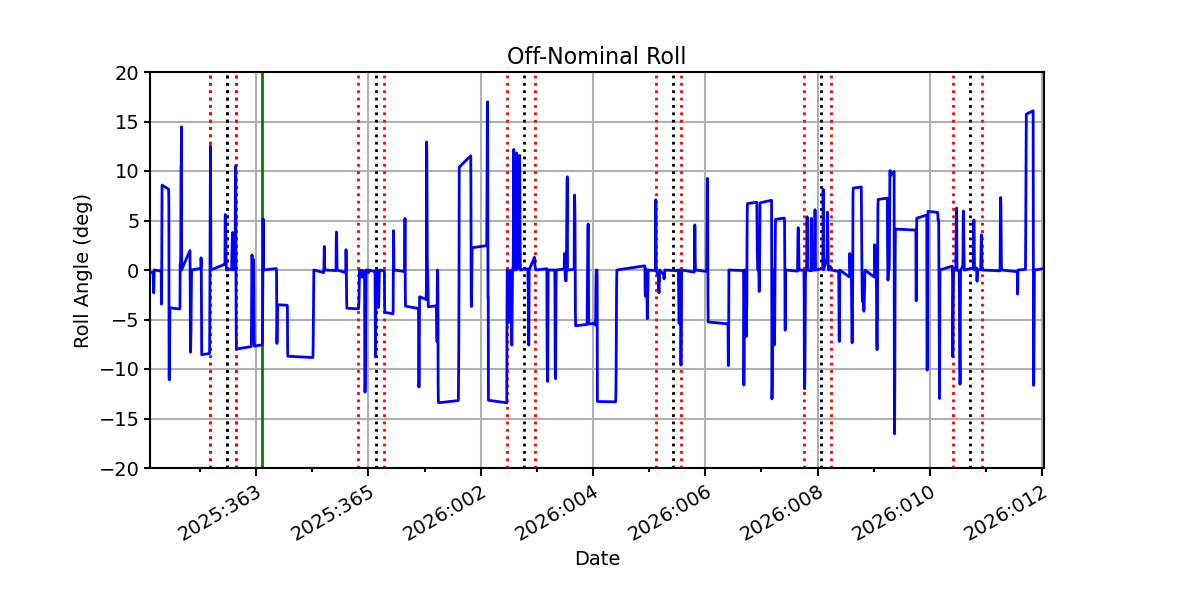

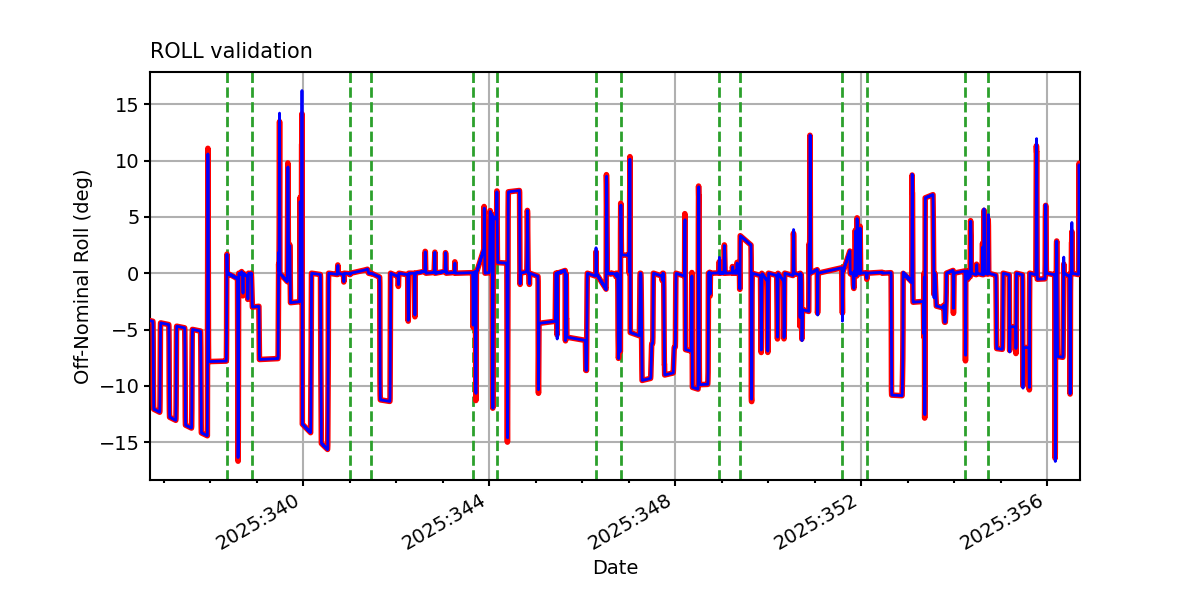

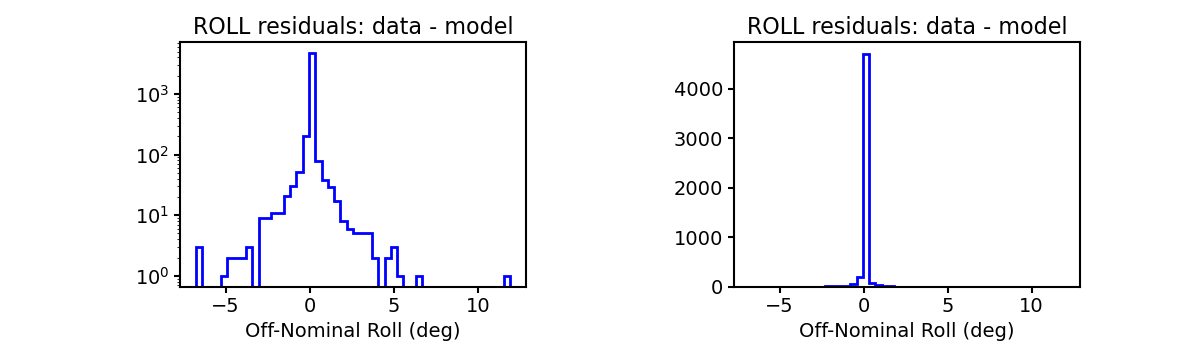

ROLL

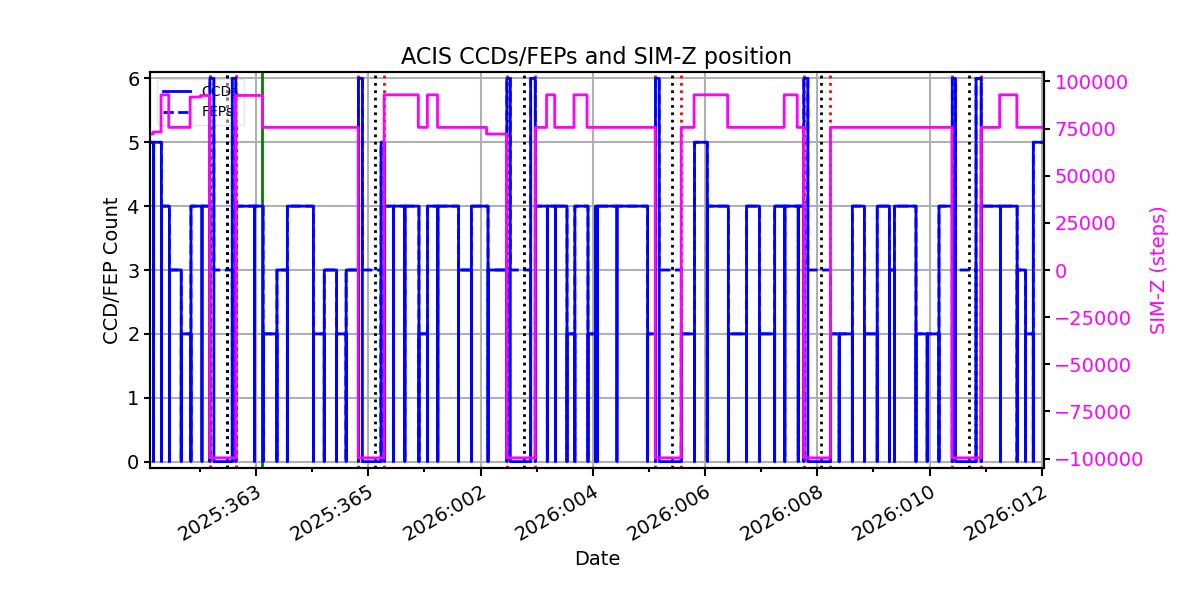

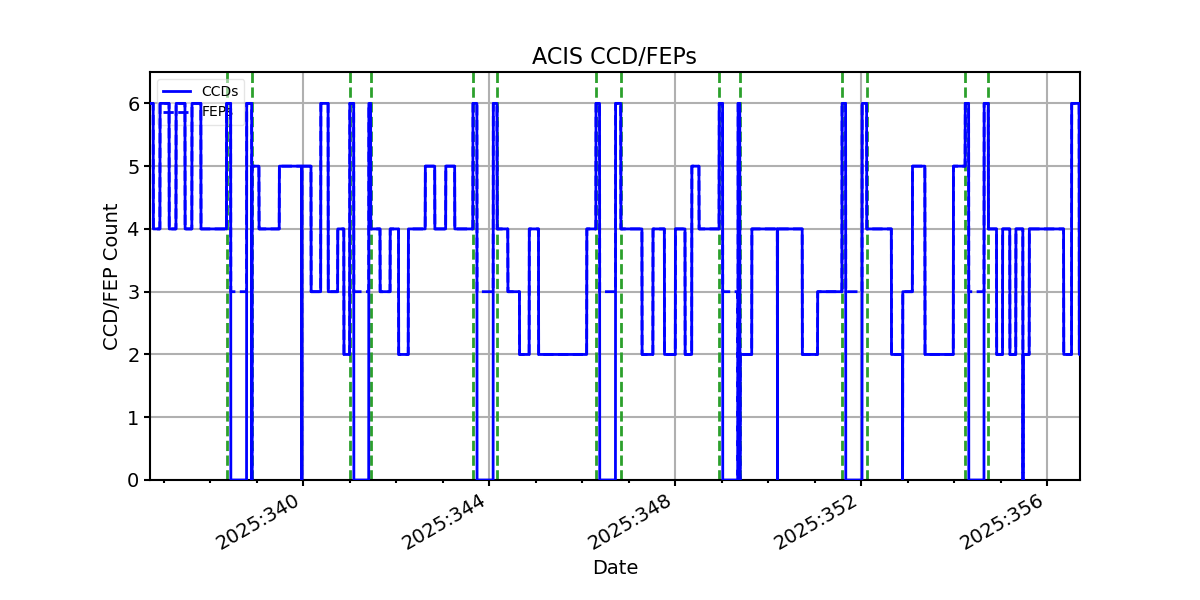

ACIS CCD/FEP Count
