PSMC Temperatures Check
Summary
| Date start | 2026:032:23:30:17.516 |
| Date stop | 2026:040:02:46:01.216 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/FEB0226/oflsa |
| Run time | Thu Jan 29 07:40:09 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEAAT Upper Limit Violations
PSMC Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEAAT >= 30.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeaat | -2.66 | -1.94 | -0.52 | 1.40 | 3.02 | 4.94 | 5.66 |
| pitch | -9.788 | -0.642 | -0.004 | -0.000 | 0.004 | 0.617 | 9.825 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.128 | -0.209 | -0.007 | -0.000 | 0.006 | 0.136 | 1.888 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEAAT | 1 | -2.66 | 2.50 |
| 1PDEAAT | 50 | 1.4 | 1.00 |
| 1PDEAAT | 99 | 5.66 | 5.50 |
| PITCH | 1 | -9.788 | 3.00 |
| PITCH | 99 | 9.825 | 3.00 |

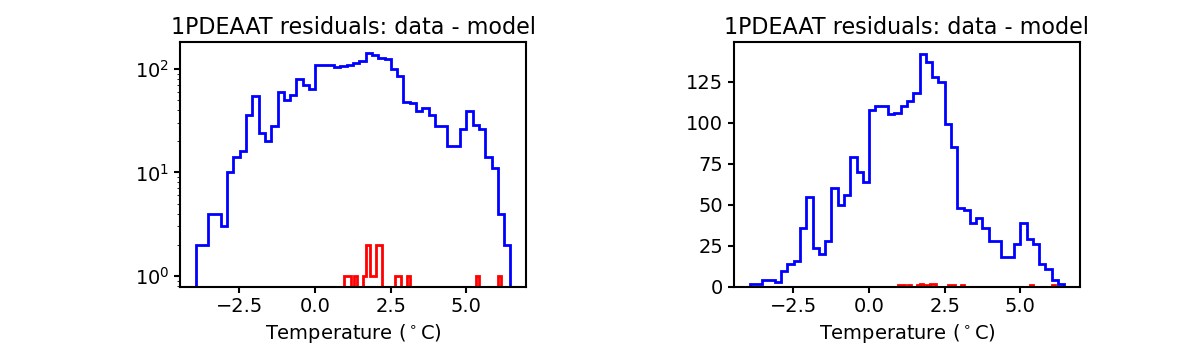

1PDEAAT
Note: 1PDEAAT residual histograms include only points where 1PDEAAT >= 30.0 C in blue and points where 1PDEAAT >= 40.0 C in red.

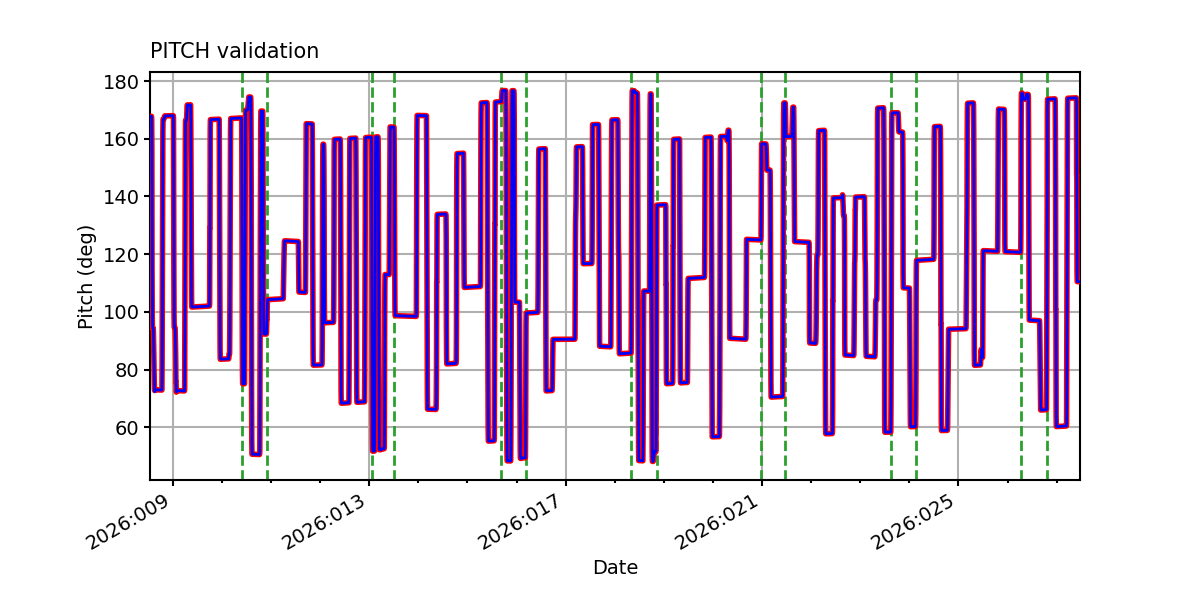

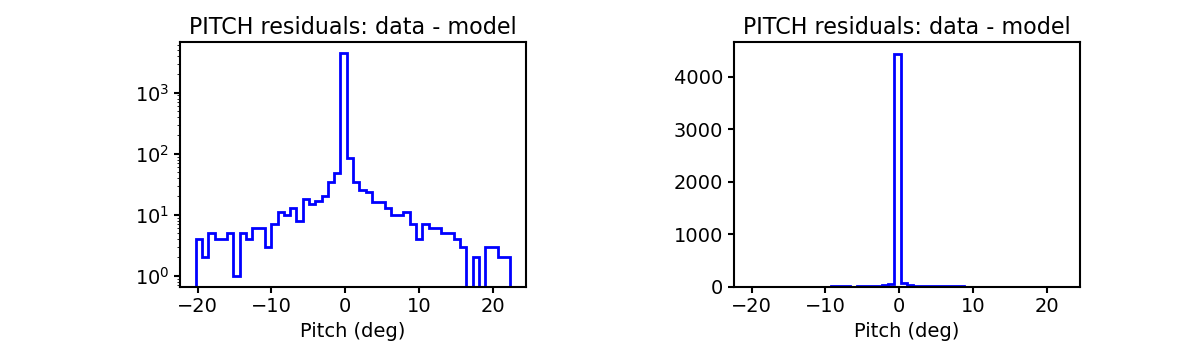

PITCH

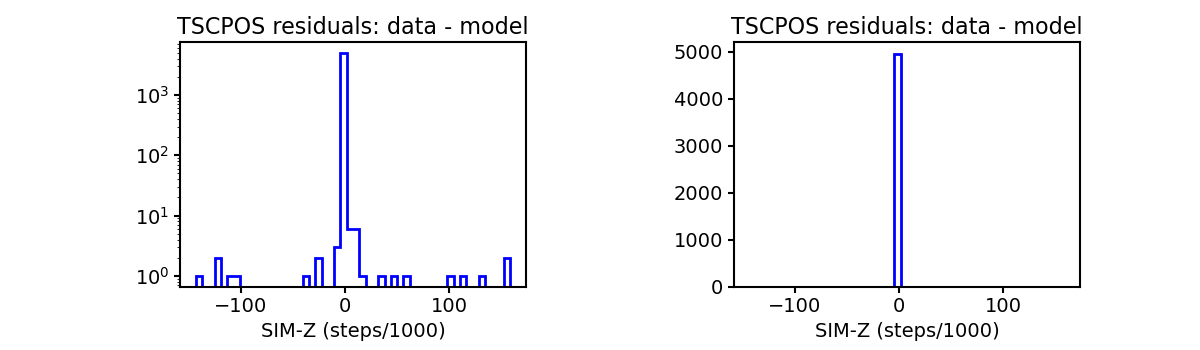

TSCPOS

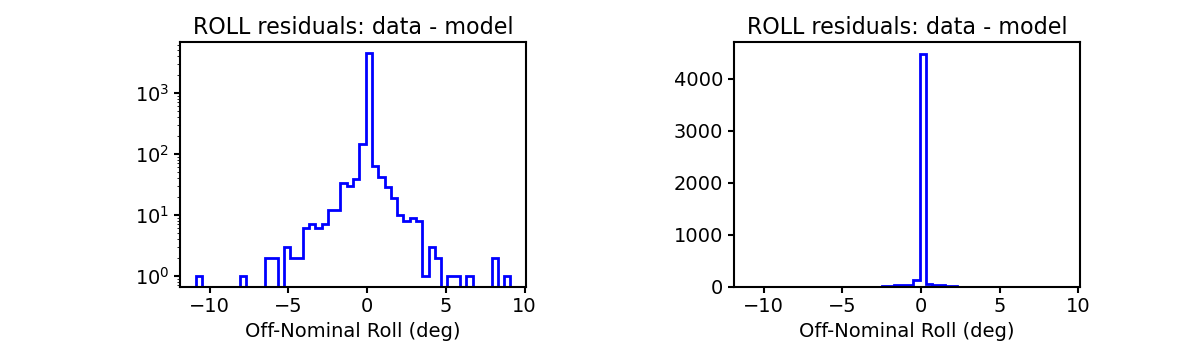

ROLL

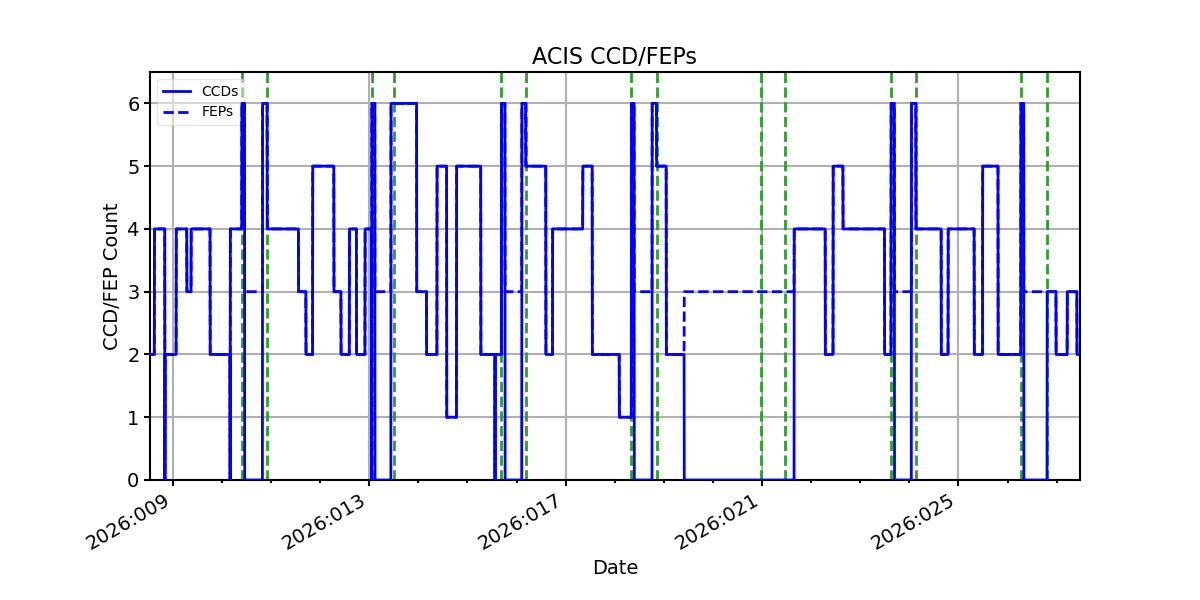

ACIS CCD/FEP Count
