PSMC Temperatures Check
Summary
| Date start | 2026:054:01:52:44.816 |
| Date stop | 2026:060:17:11:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/FEB2326/oflsa |
| Run time | Wed Feb 18 17:45:13 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

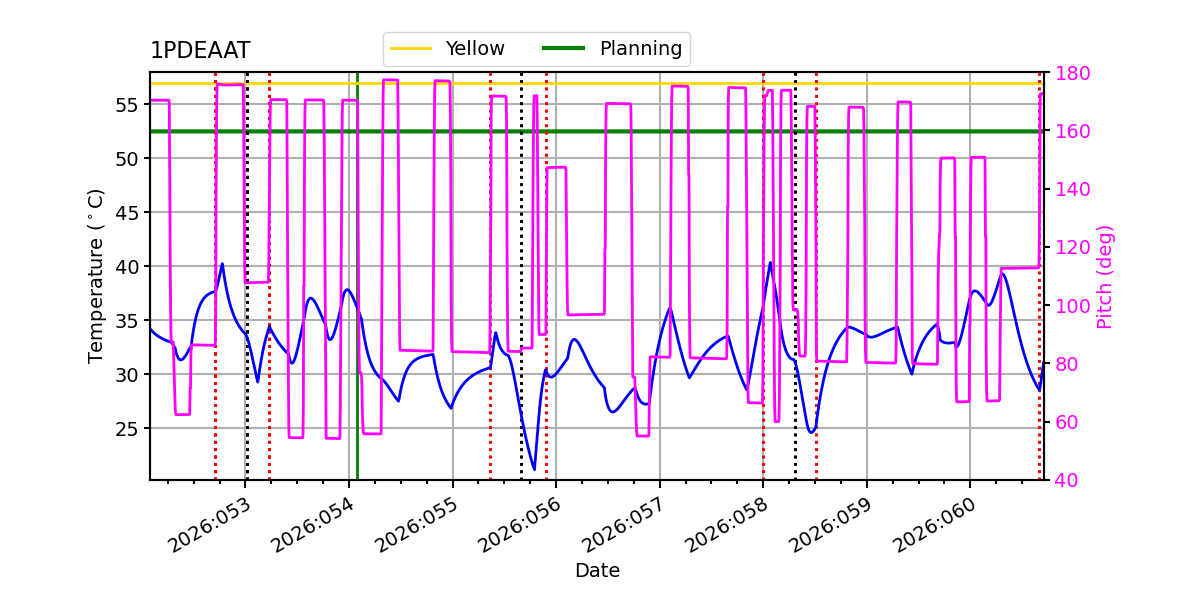

No 1PDEAAT Upper Limit Violations
PSMC Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEAAT >= 30.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeaat | -2.28 | -1.68 | -0.91 | 0.76 | 2.70 | 4.37 | 5.60 |
| pitch | -9.415 | -0.706 | -0.004 | -0.000 | 0.004 | 0.438 | 11.565 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -1.695 | -0.146 | -0.010 | -0.000 | 0.010 | 0.099 | 1.742 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEAAT | 99 | 5.6 | 5.50 |
| PITCH | 1 | -9.415 | 3.00 |
| PITCH | 99 | 11.565 | 3.00 |

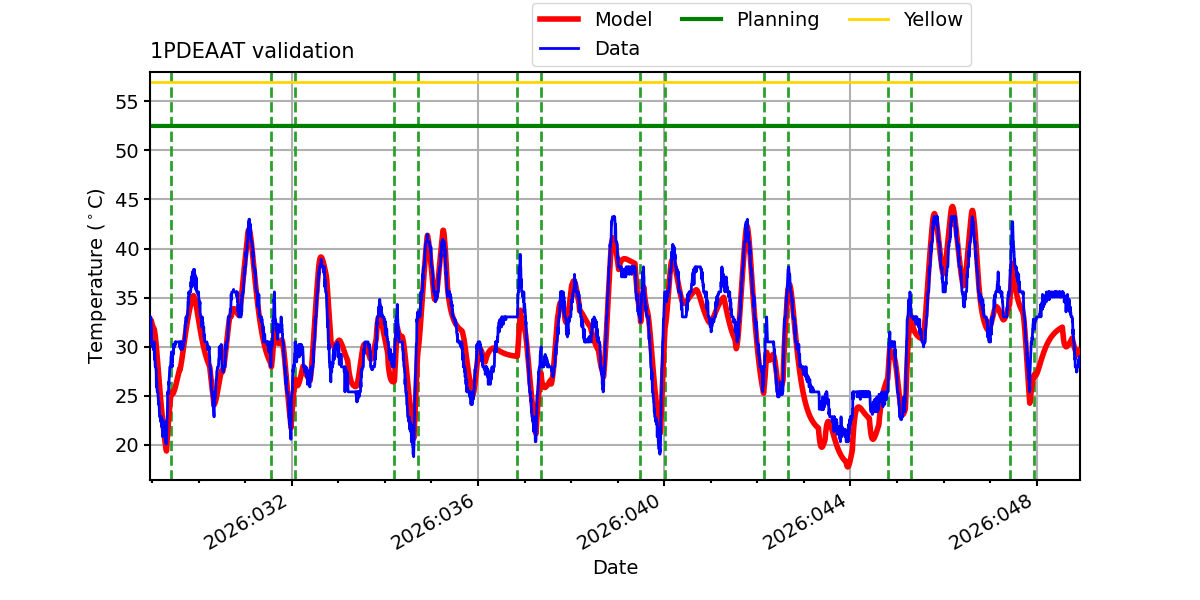

1PDEAAT

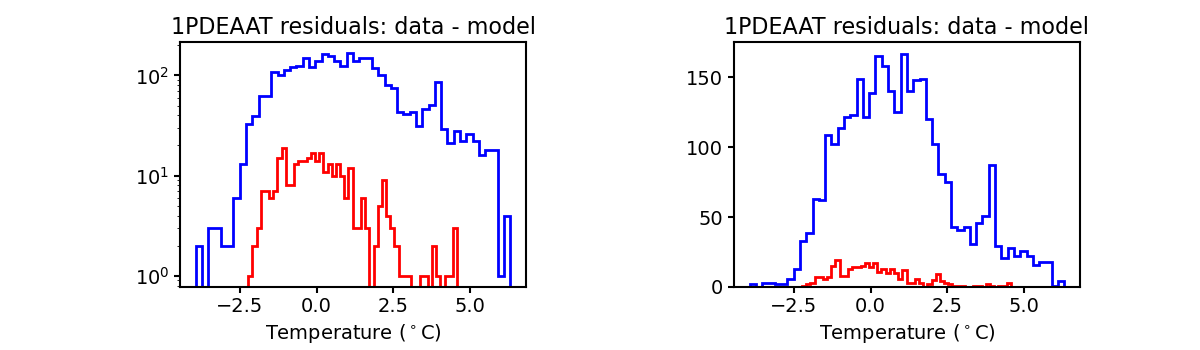

Note: 1PDEAAT residual histograms include only points where 1PDEAAT >= 30.0 C in blue and points where 1PDEAAT >= 40.0 C in red.

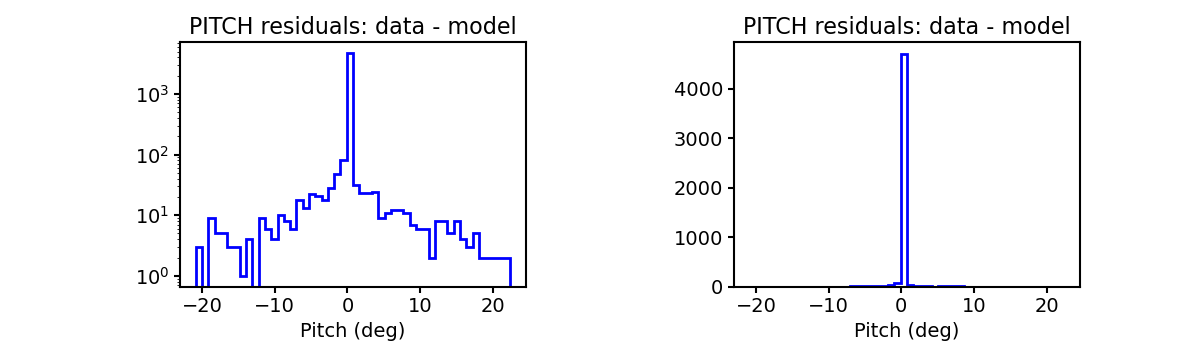

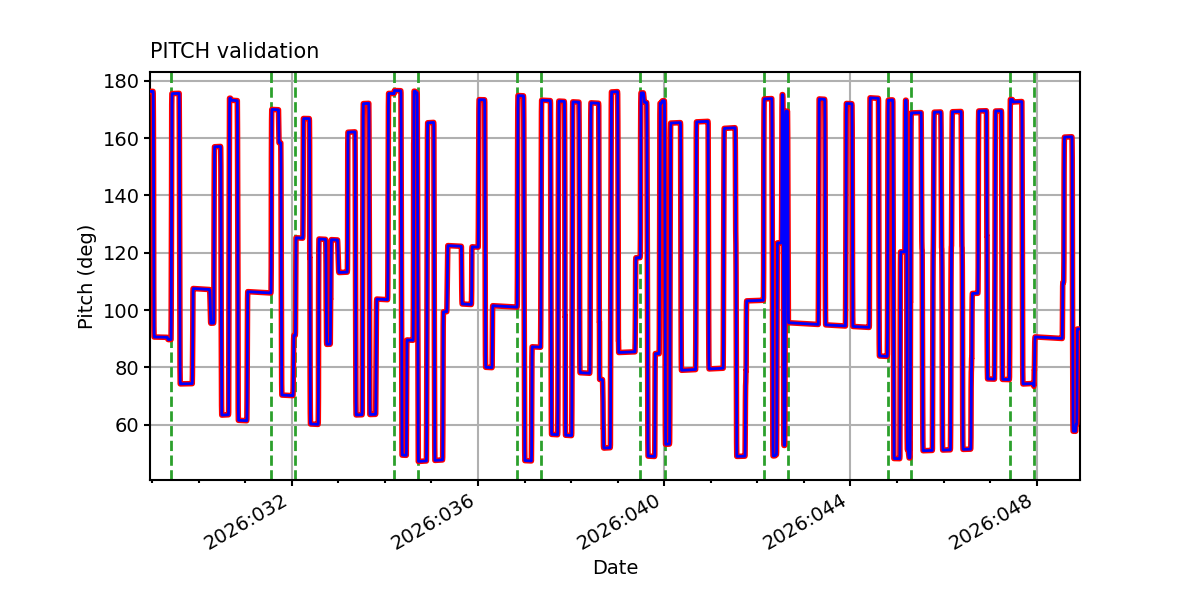

PITCH

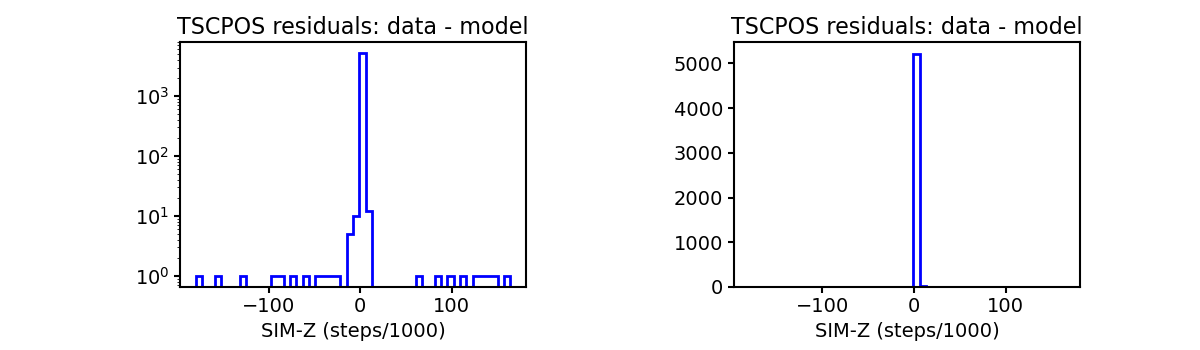

TSCPOS

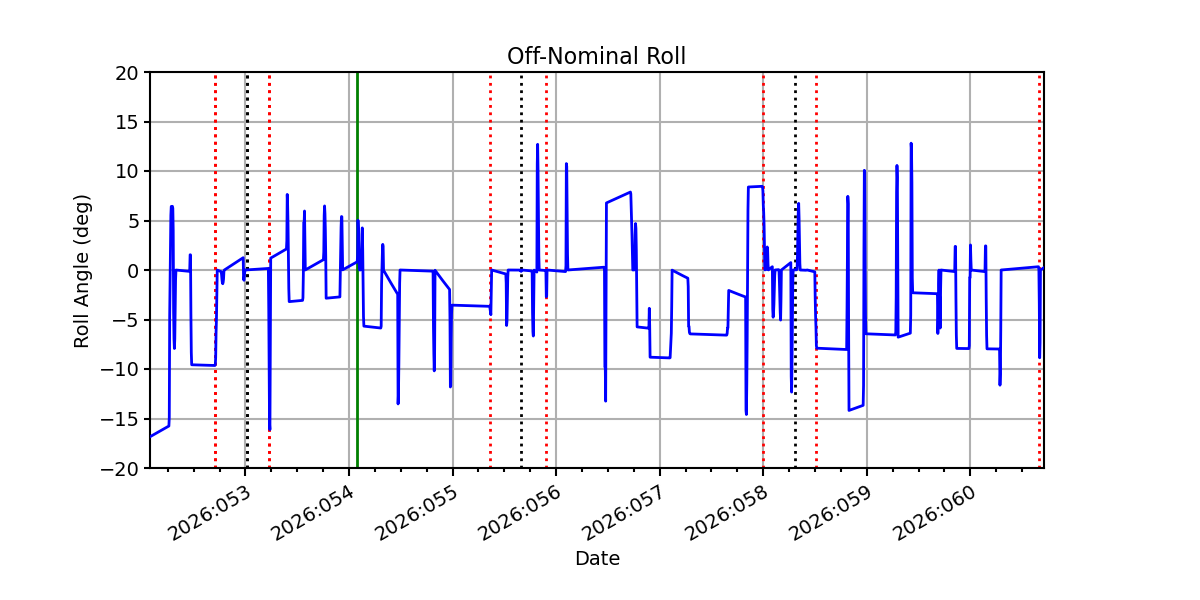

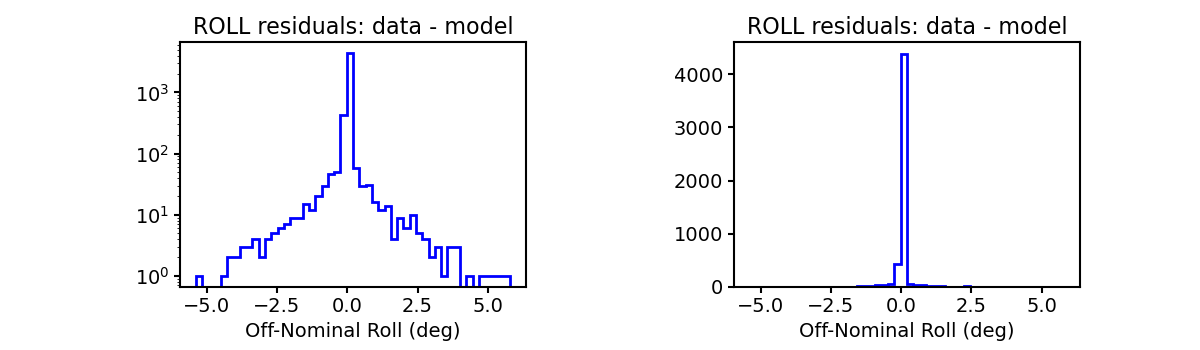

ROLL

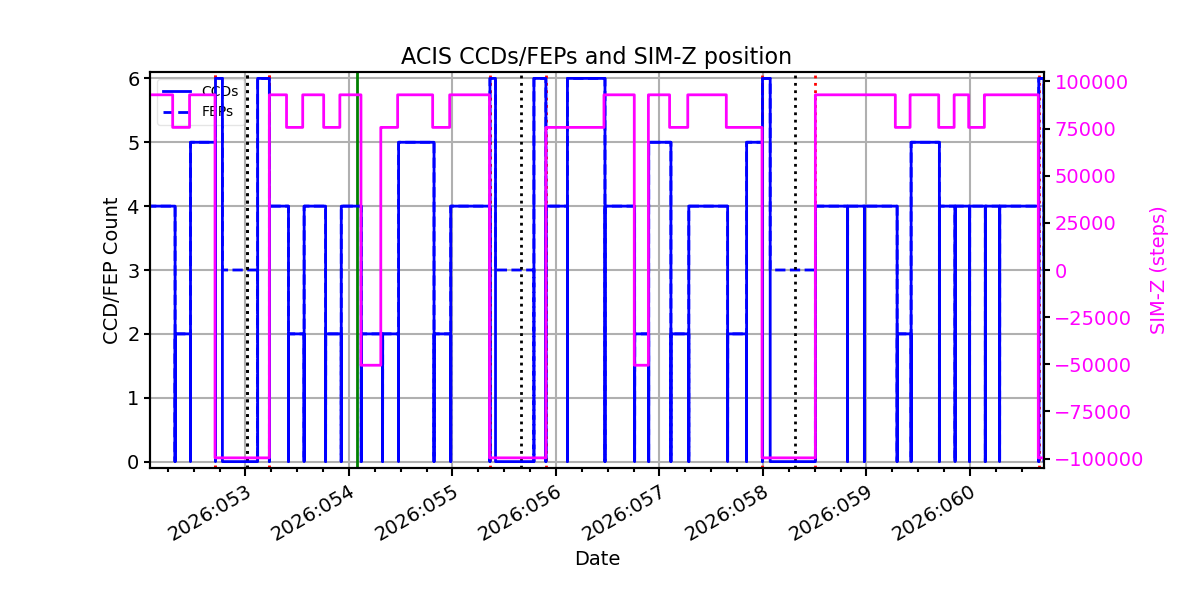

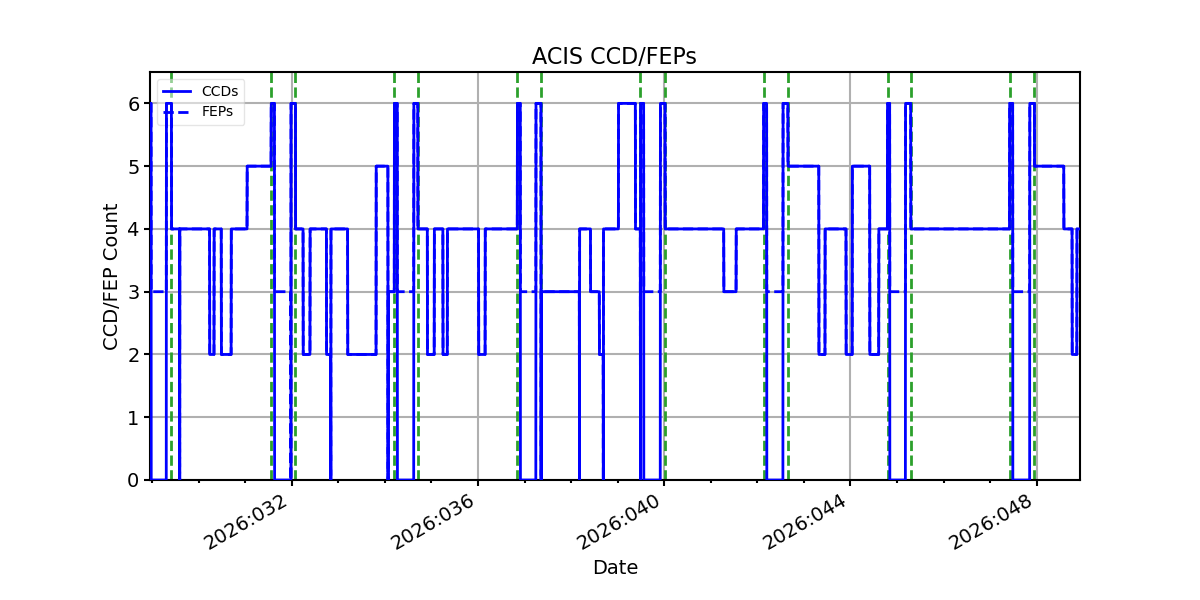

ACIS CCD/FEP Count
