PSMC Temperatures Check
Summary
| Date start | 2026:056:22:59:59.016 |
| Date stop | 2026:060:17:11:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/FEB2526/oflsa |
| Run time | Sun Feb 22 20:14:20 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

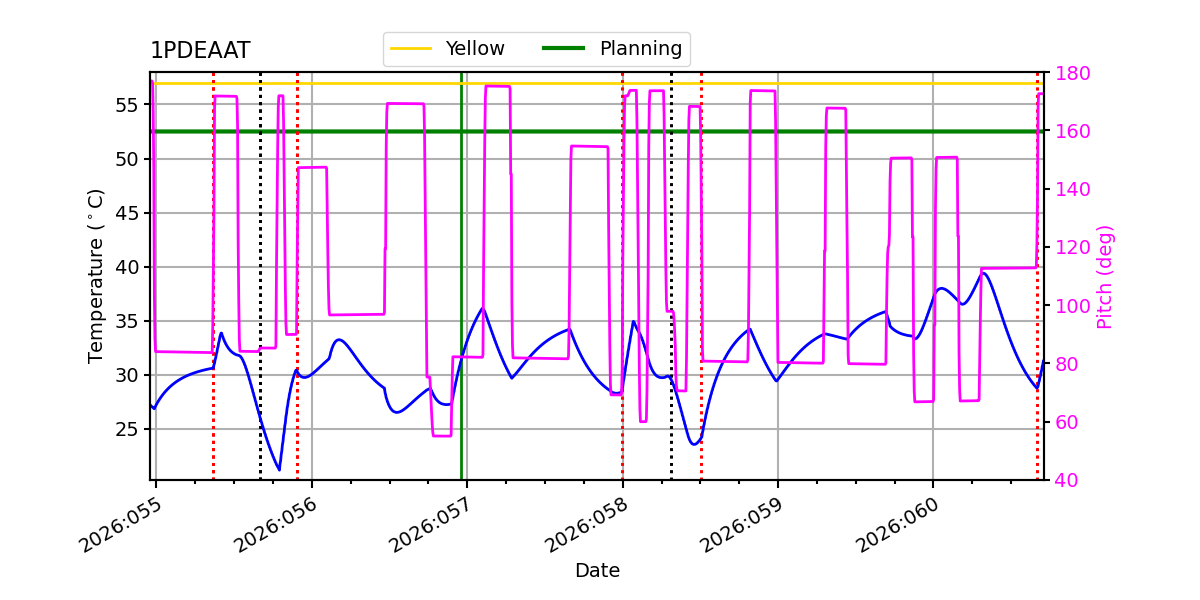

No 1PDEAAT Upper Limit Violations
PSMC Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEAAT >= 30.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeaat | -2.20 | -1.56 | -0.72 | 1.05 | 3.30 | 4.79 | 5.81 |
| pitch | -9.334 | -0.697 | -0.004 | -0.000 | 0.004 | 0.314 | 12.426 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.696 | -0.137 | -0.010 | 0.000 | 0.011 | 0.109 | 1.749 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEAAT | 50 | 1.05 | 1.00 |
| 1PDEAAT | 99 | 5.81 | 5.50 |
| PITCH | 1 | -9.334 | 3.00 |
| PITCH | 99 | 12.426 | 3.00 |

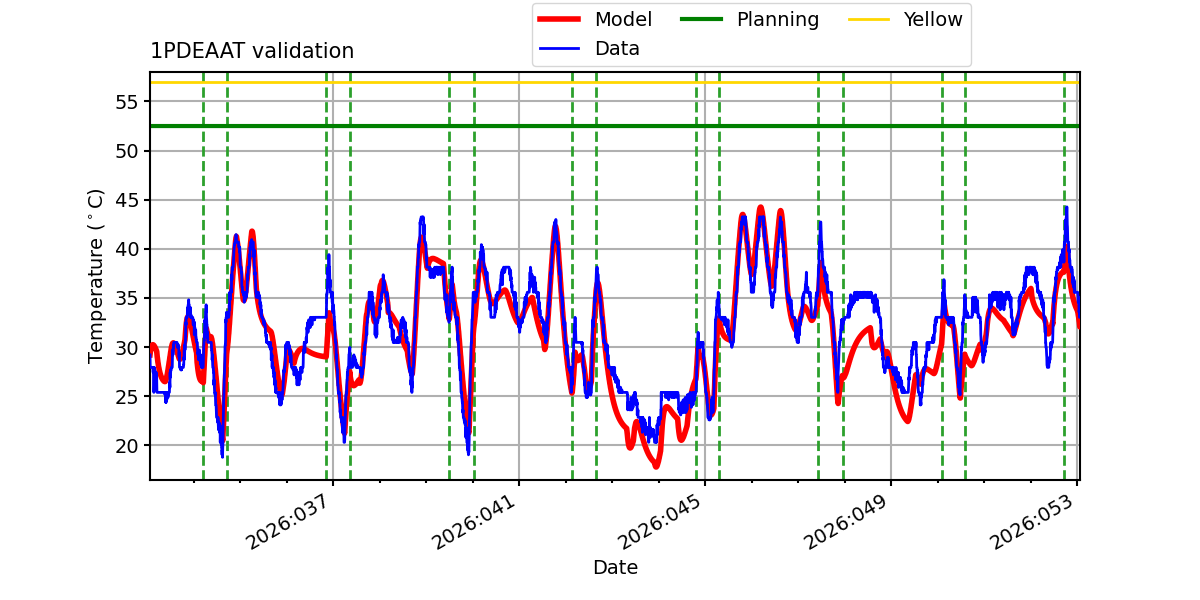

1PDEAAT

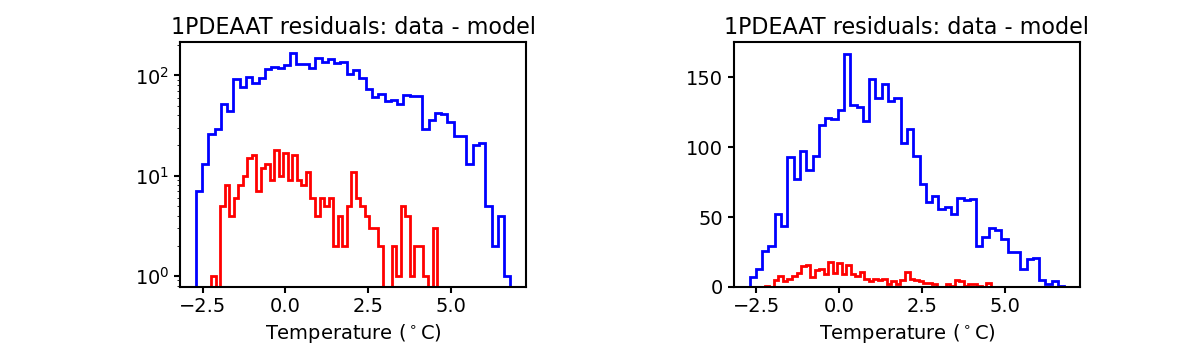

Note: 1PDEAAT residual histograms include only points where 1PDEAAT >= 30.0 C in blue and points where 1PDEAAT >= 40.0 C in red.

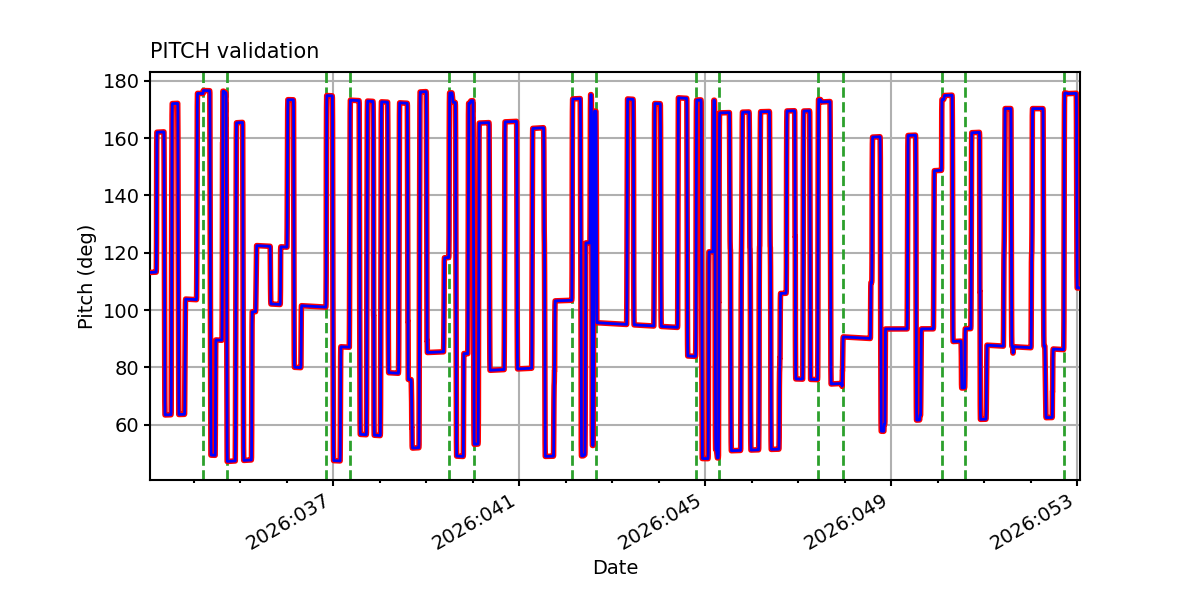

PITCH
TSCPOS

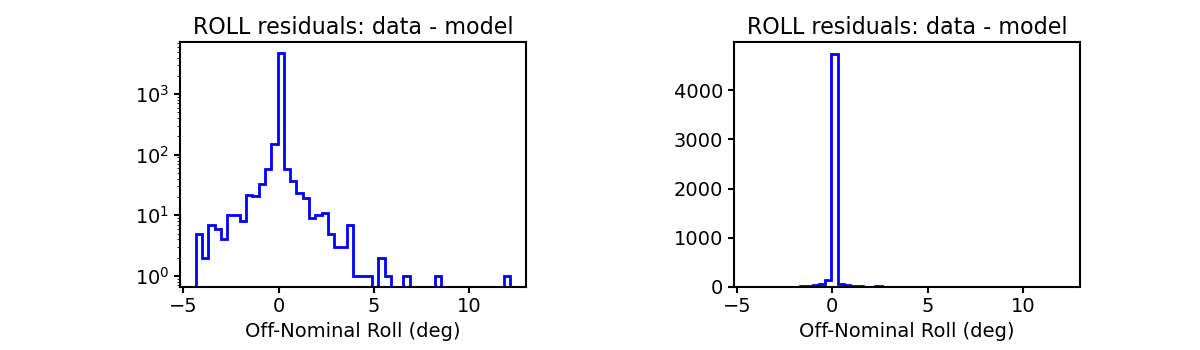

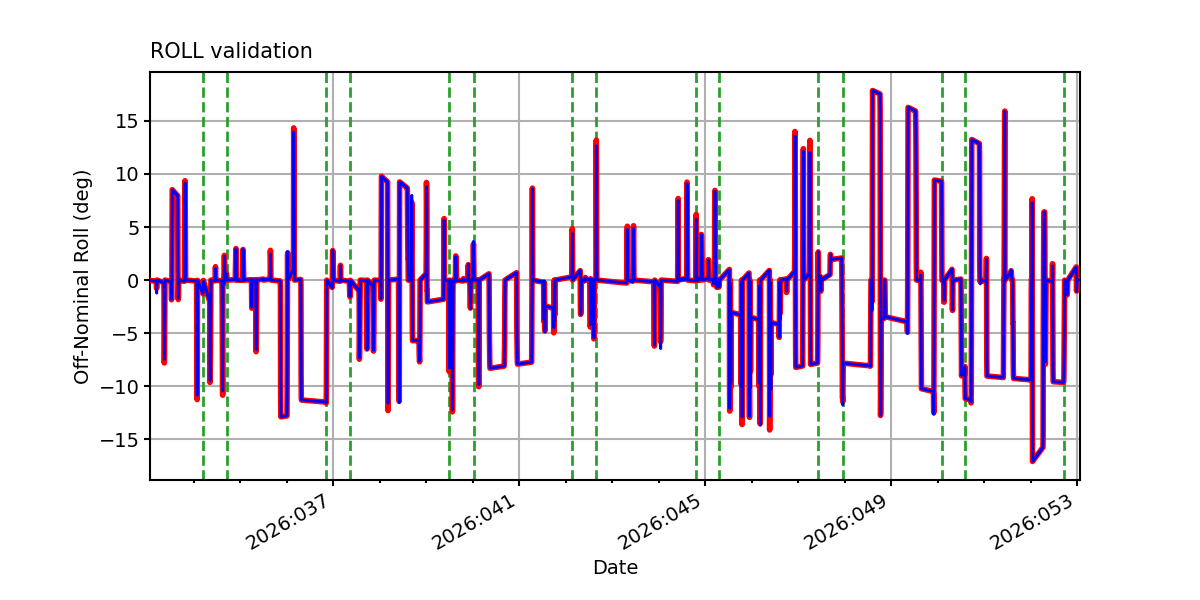

ROLL

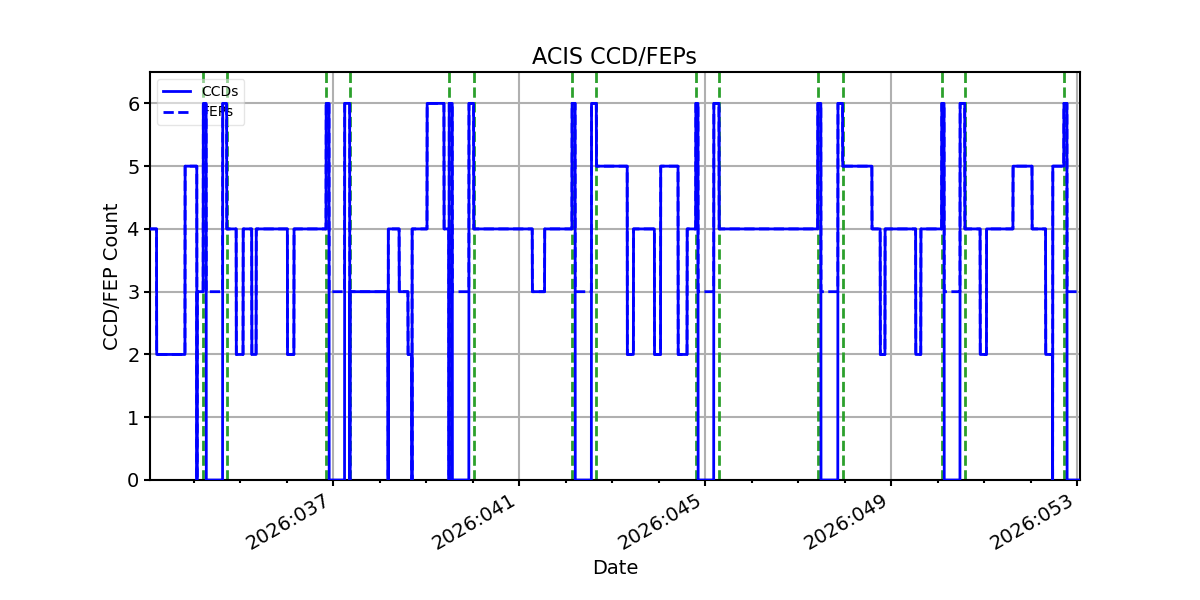

ACIS CCD/FEP Count
