PSMC Temperatures Check
Summary
| Date start | 2026:012:00:51:56.516 |
| Date stop | 2026:019:00:52:29.616 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/JAN1226/oflsa |
| Run time | Thu Jan 8 08:38:39 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEAAT Upper Limit Violations
PSMC Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEAAT >= 30.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeaat | -3.10 | -1.83 | -0.84 | 0.66 | 2.36 | 4.69 | 6.80 |
| pitch | -11.683 | -0.818 | -0.004 | -0.000 | 0.004 | 0.584 | 11.250 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -1.743 | -0.205 | -0.007 | -0.000 | 0.007 | 0.165 | 2.005 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEAAT | 1 | -3.1 | 2.50 |
| 1PDEAAT | 99 | 6.8 | 5.50 |
| PITCH | 1 | -11.683 | 3.00 |
| PITCH | 99 | 11.25 | 3.00 |

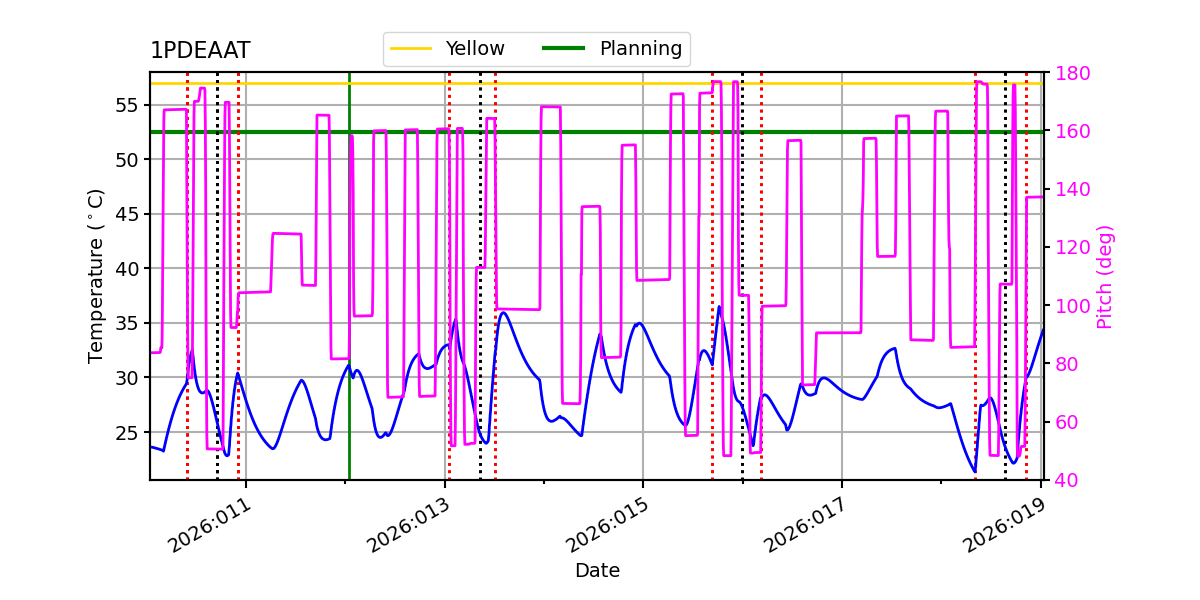

1PDEAAT

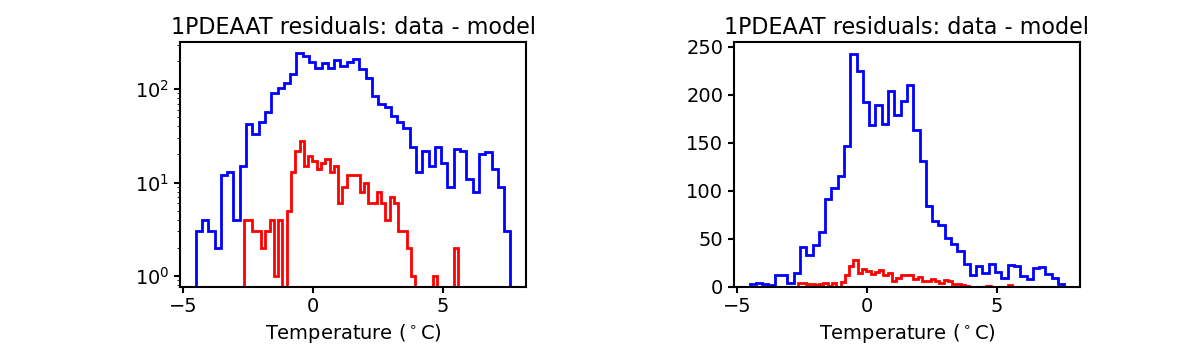

Note: 1PDEAAT residual histograms include only points where 1PDEAAT >= 30.0 C in blue and points where 1PDEAAT >= 40.0 C in red.

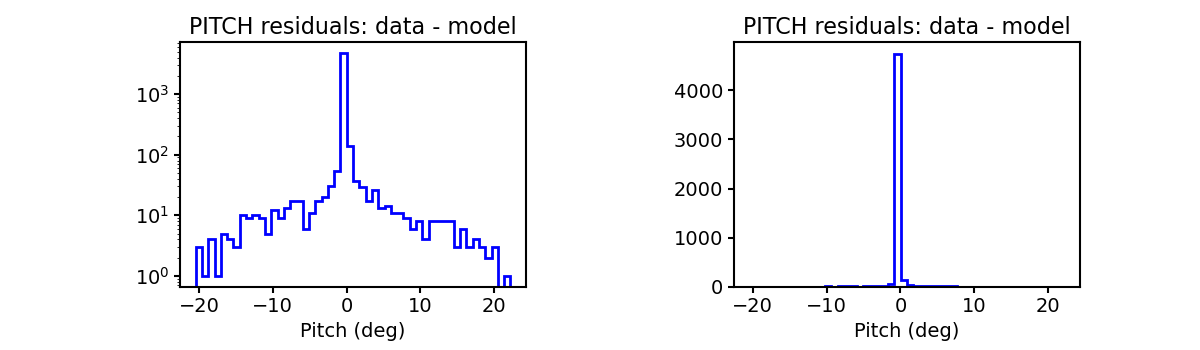

PITCH

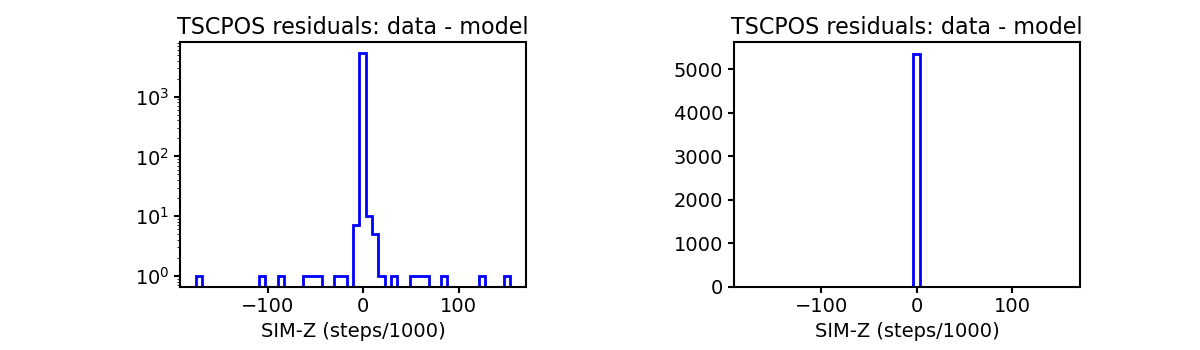

TSCPOS

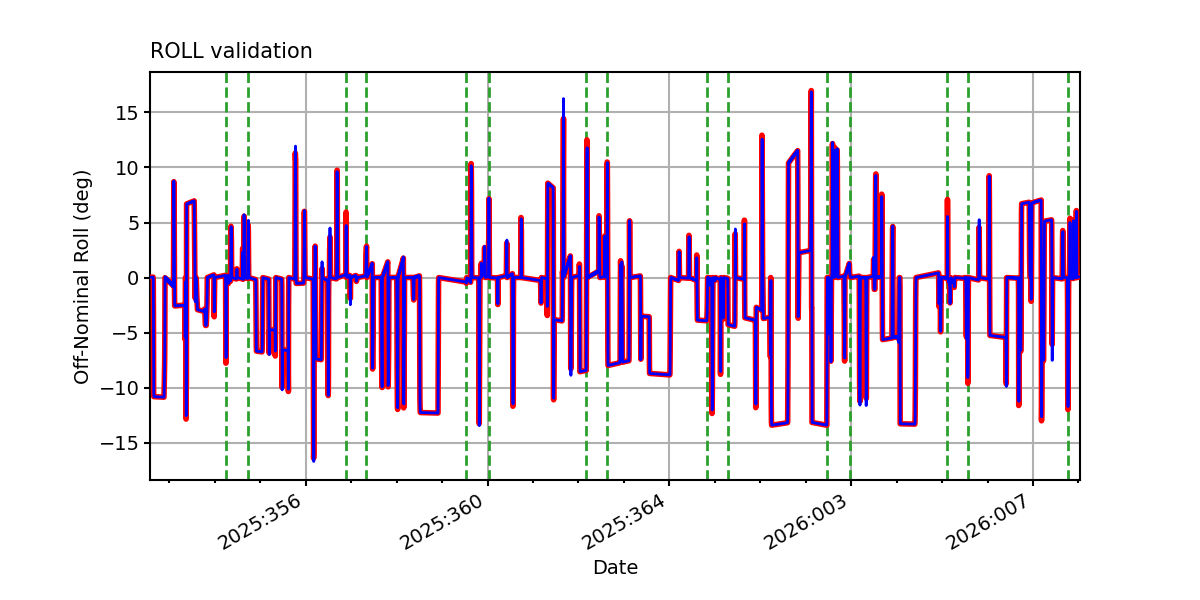

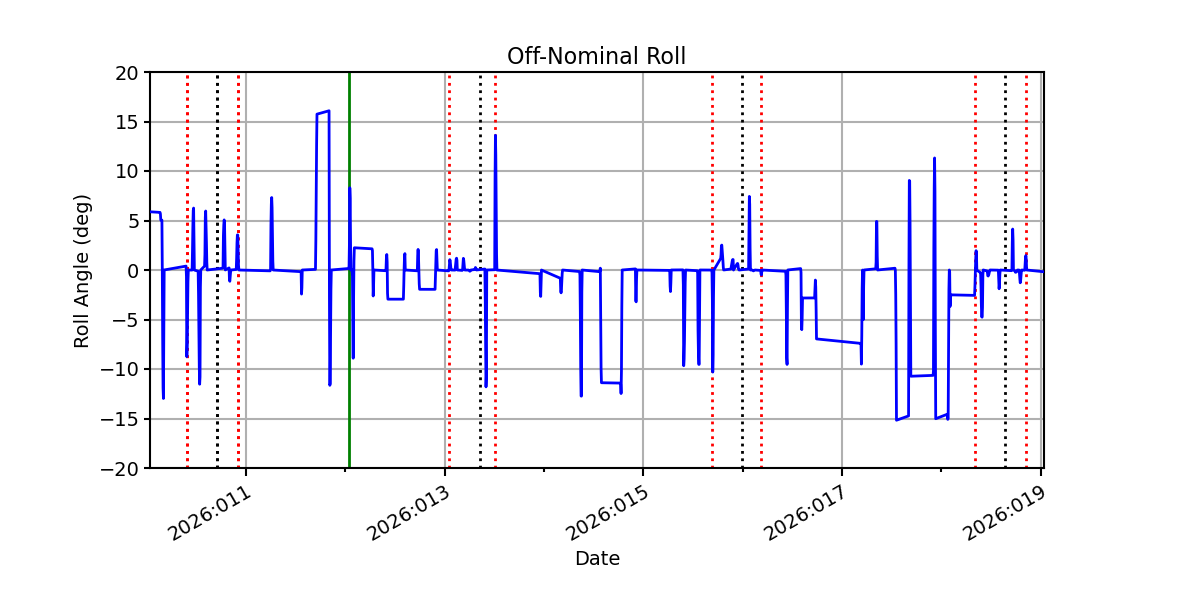

ROLL

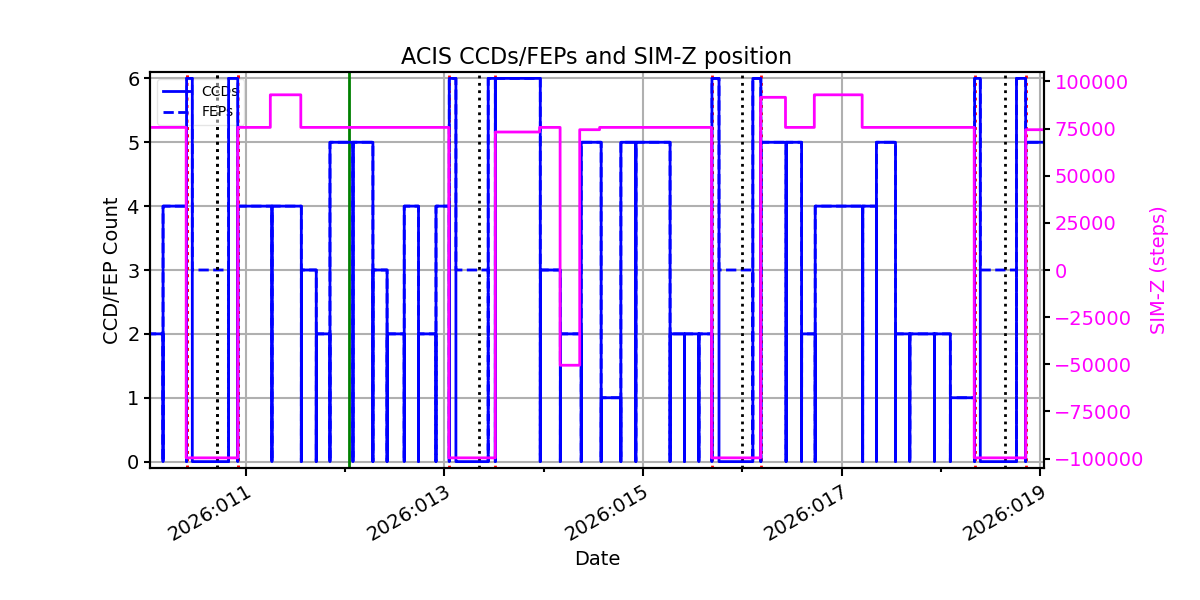

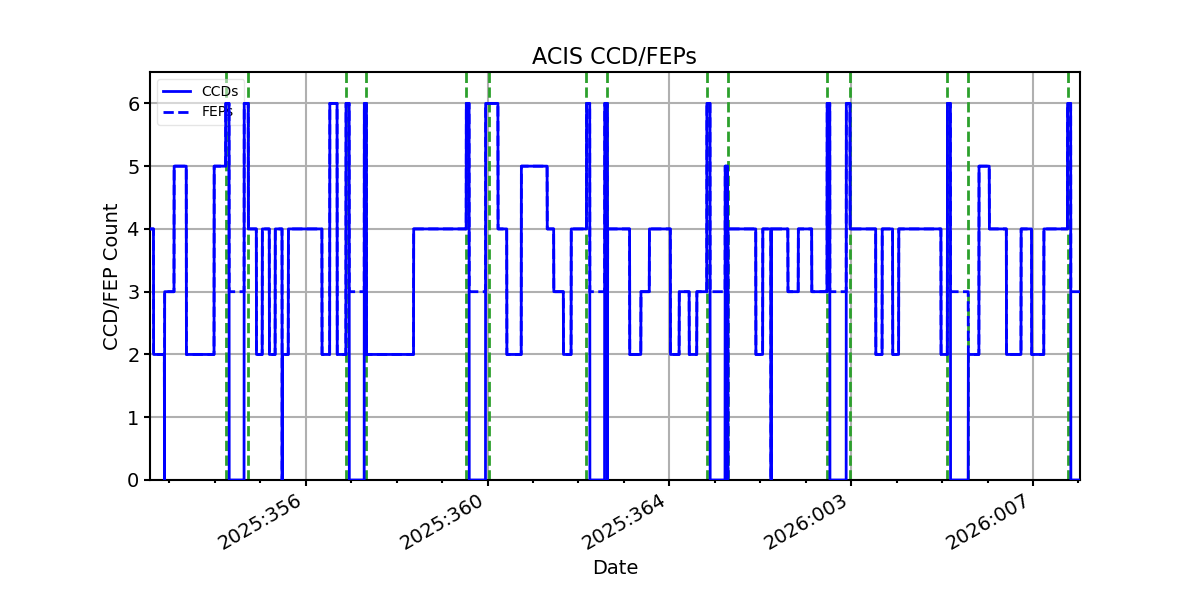

ACIS CCD/FEP Count
