PSMC Temperatures Check
Summary
| Date start | 2026:021:13:00:00.016 |
| Date stop | 2026:025:19:08:18.516 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/JAN2126/oflsa |
| Run time | Tue Jan 20 11:37:55 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEAAT Upper Limit Violations
PSMC Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEAAT >= 30.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeaat | -2.52 | -1.63 | -0.37 | 1.57 | 3.33 | 5.03 | 5.76 |
| pitch | -11.845 | -0.750 | -0.004 | 0.000 | 0.004 | 0.744 | 11.250 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.132 | -0.245 | -0.009 | -0.000 | 0.007 | 0.172 | 2.019 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEAAT | 1 | -2.52 | 2.50 |
| 1PDEAAT | 50 | 1.57 | 1.00 |
| 1PDEAAT | 99 | 5.76 | 5.50 |
| PITCH | 1 | -11.845 | 3.00 |
| PITCH | 99 | 11.25 | 3.00 |
1PDEAAT

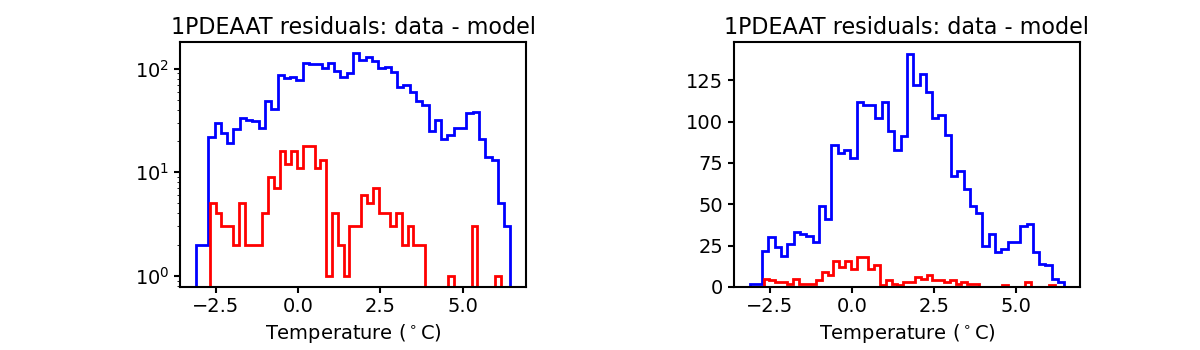

Note: 1PDEAAT residual histograms include only points where 1PDEAAT >= 30.0 C in blue and points where 1PDEAAT >= 40.0 C in red.

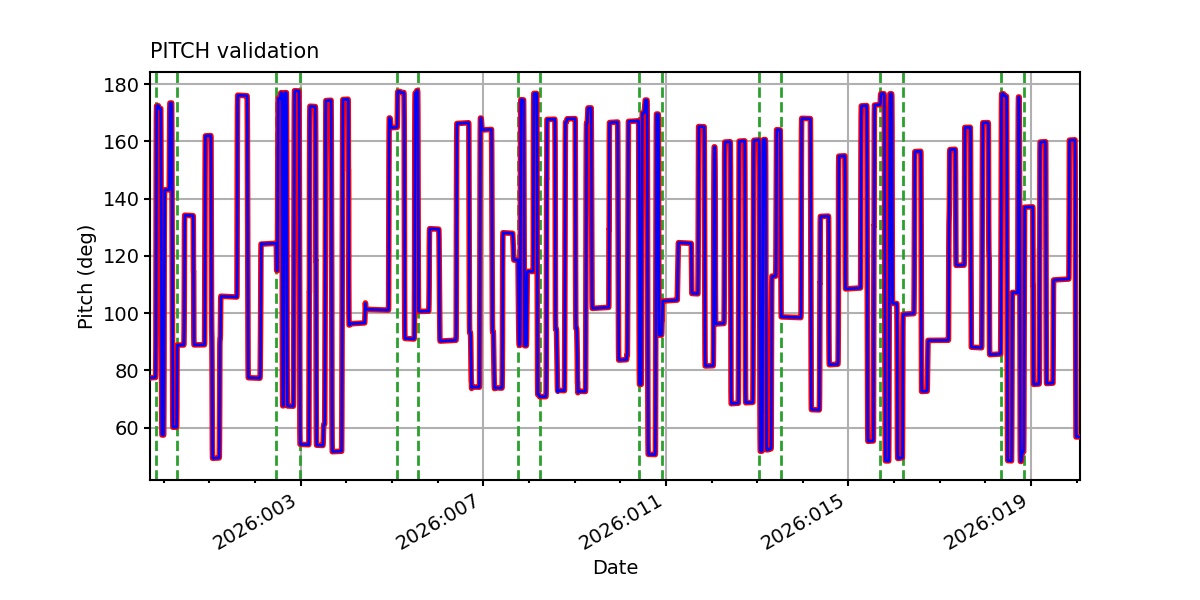

PITCH

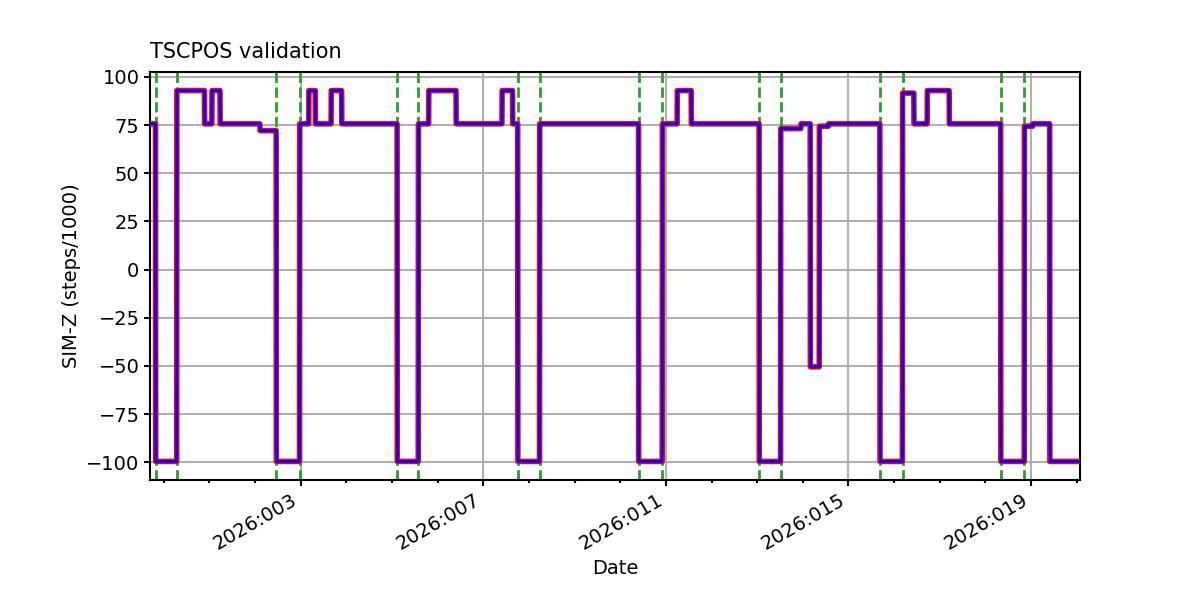

TSCPOS

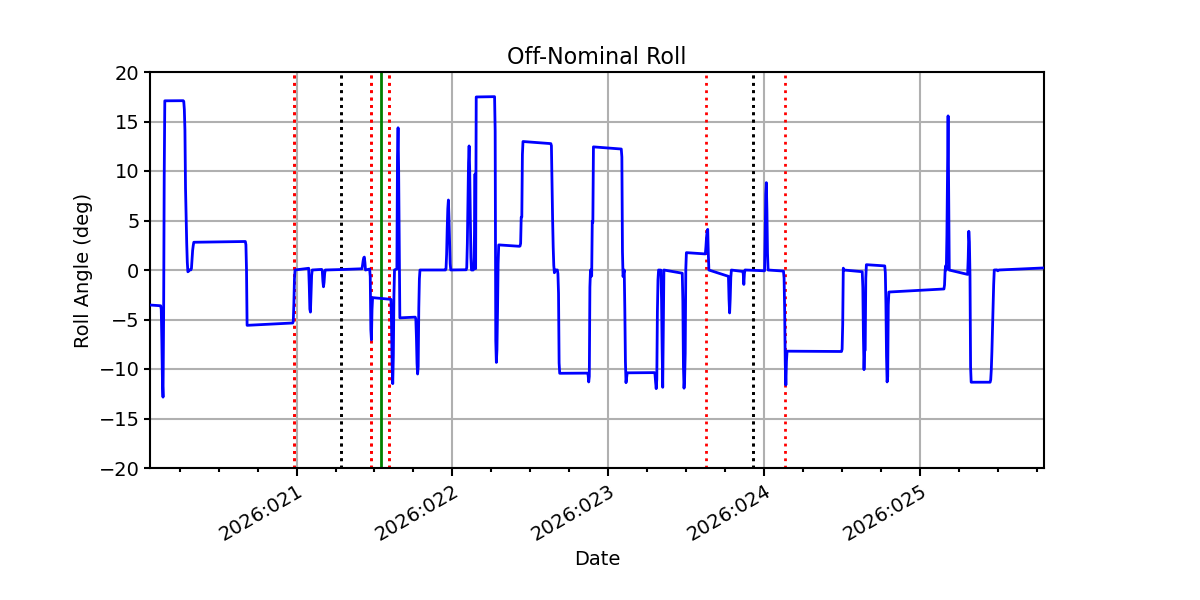

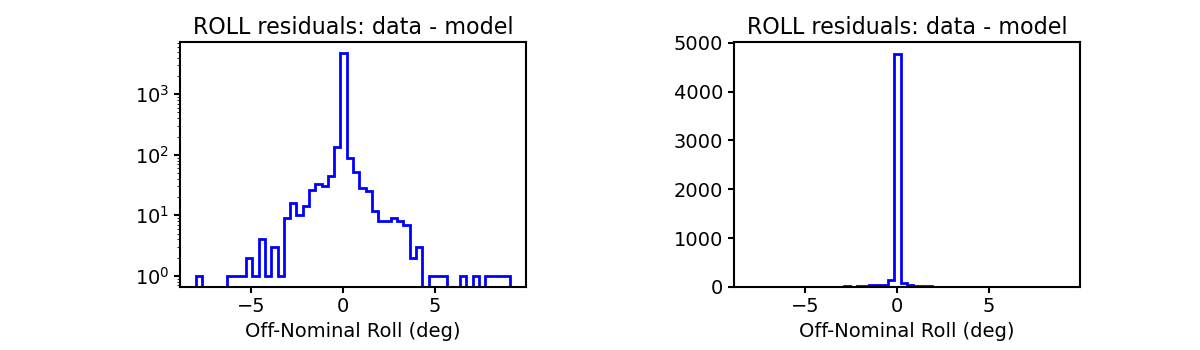

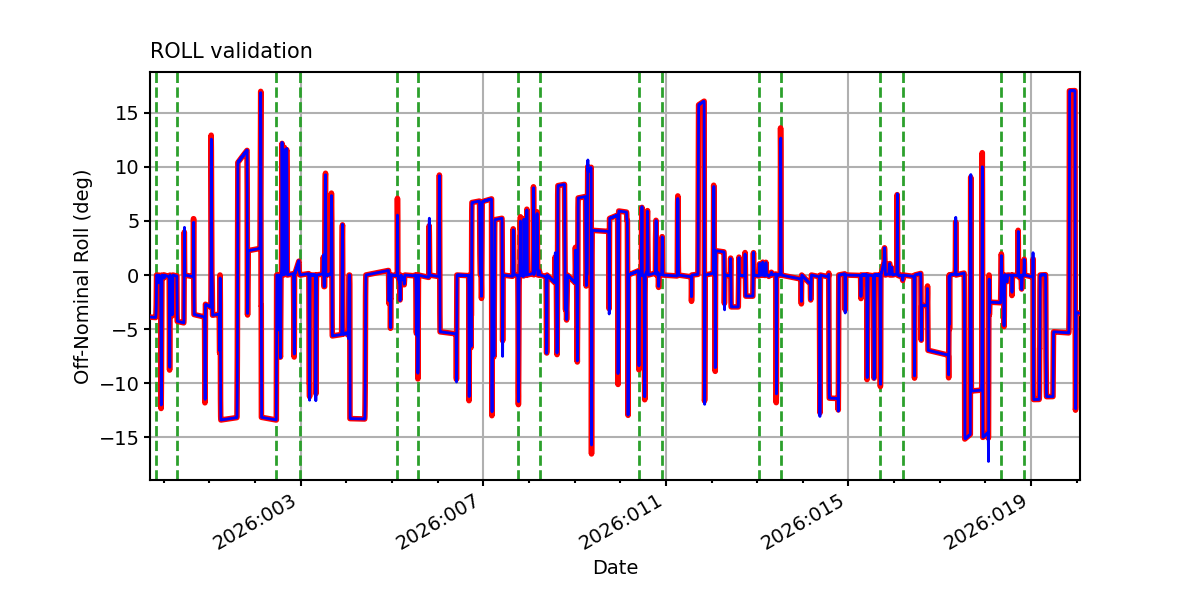

ROLL

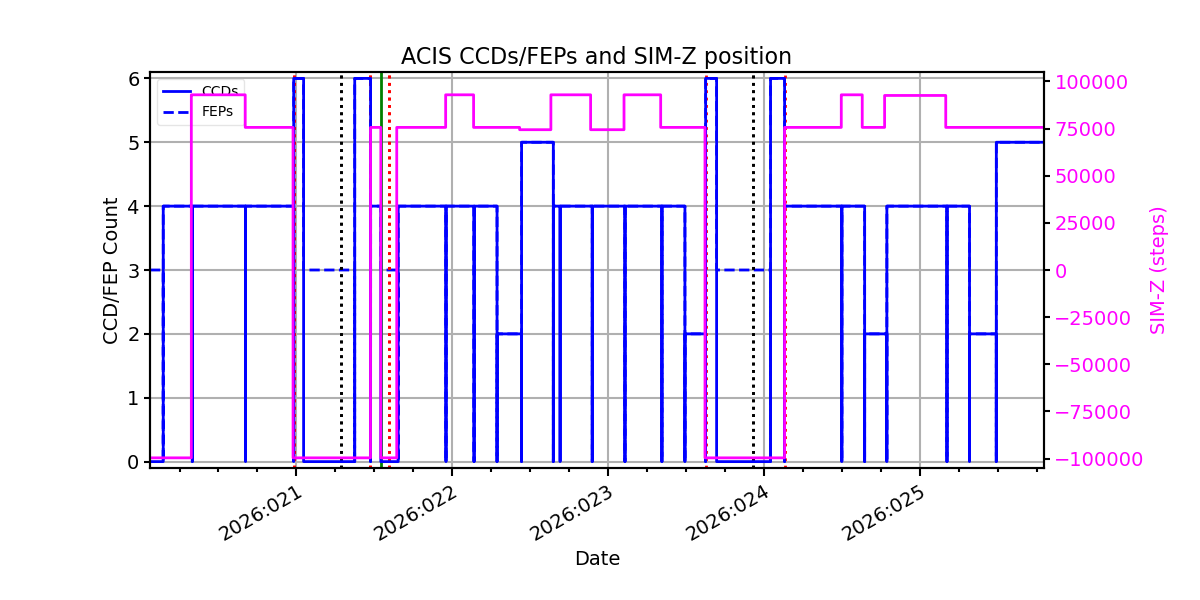

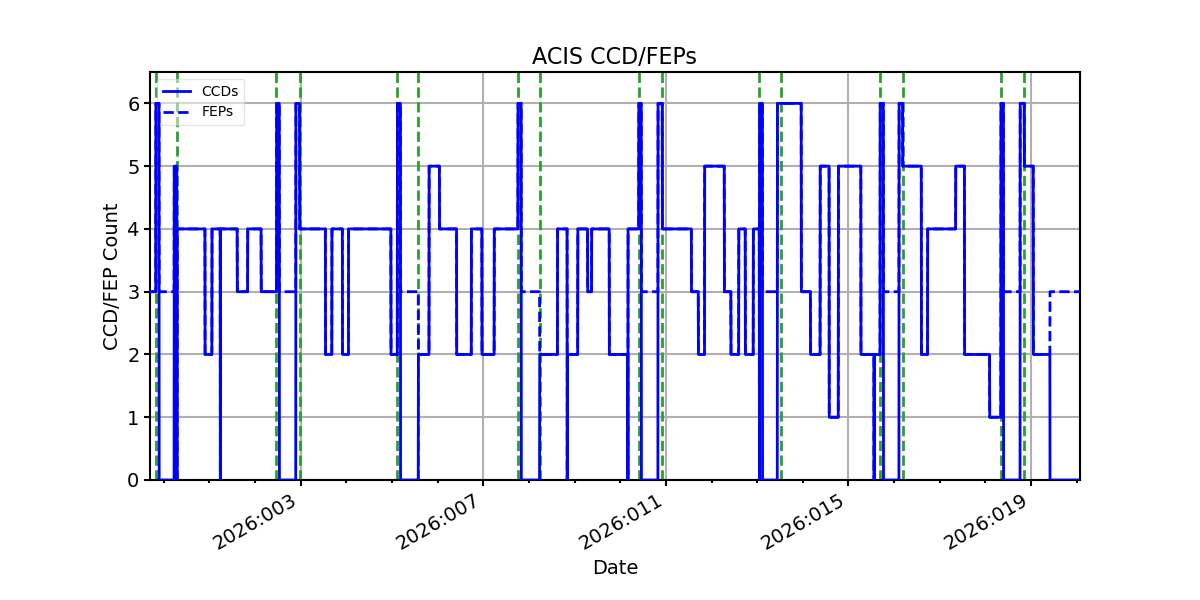

ACIS CCD/FEP Count
