PSMC Temperatures Check
Summary
| Date start | 2026:186:23:47:27.716 |
| Date stop | 2026:193:22:57:34.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/JUL0626/oflsa |
| Run time | Tue Jun 30 18:22:04 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

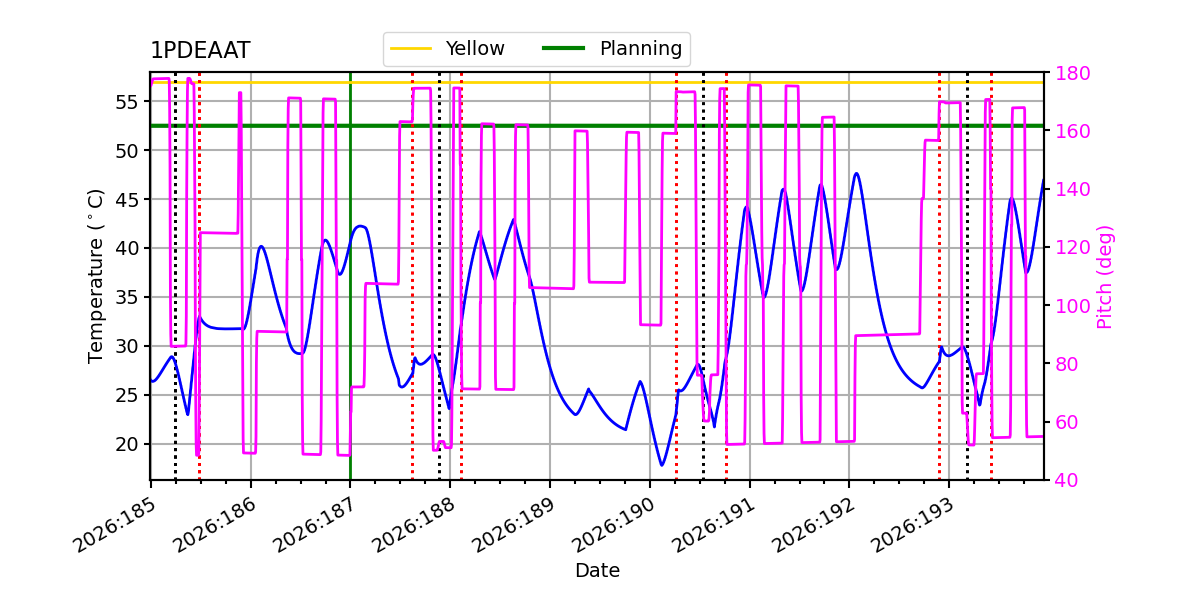

No 1PDEAAT Upper Limit Violations
PSMC Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEAAT >= 30.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeaat | -2.86 | -2.10 | -1.26 | 0.56 | 2.81 | 4.45 | 7.97 |
| pitch | -10.607 | -0.365 | -0.004 | -0.000 | 0.004 | 0.367 | 10.159 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.994 | -0.098 | -0.009 | 0.000 | 0.008 | 0.086 | 1.701 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEAAT | 1 | -2.86 | 2.50 |
| 1PDEAAT | 99 | 7.97 | 5.50 |
| PITCH | 1 | -10.607 | 3.00 |
| PITCH | 99 | 10.159 | 3.00 |

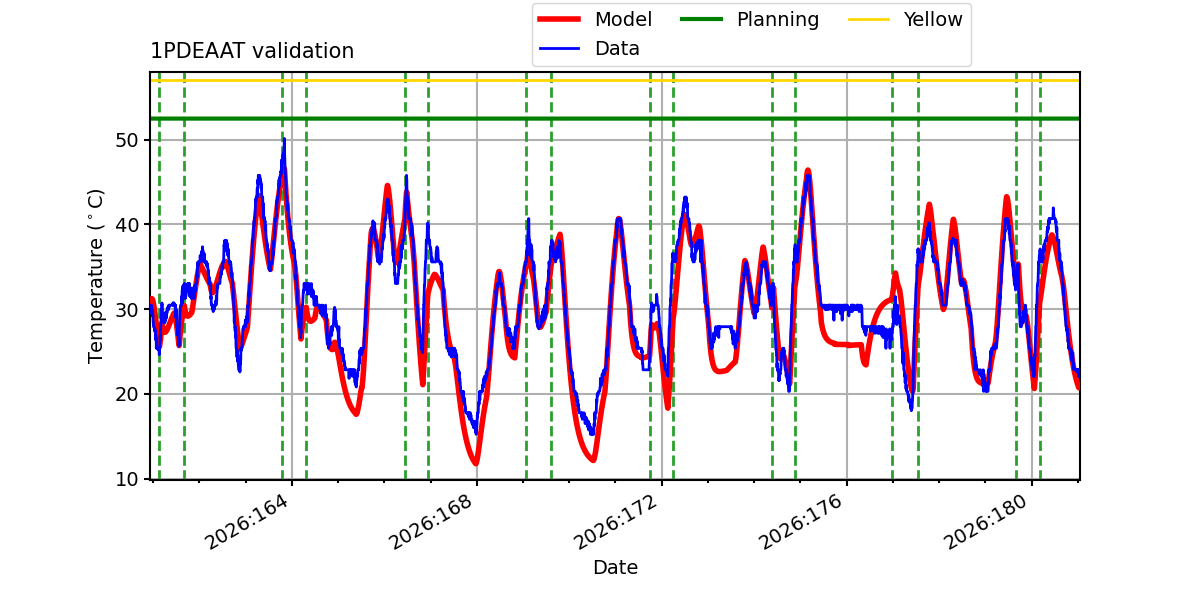

1PDEAAT

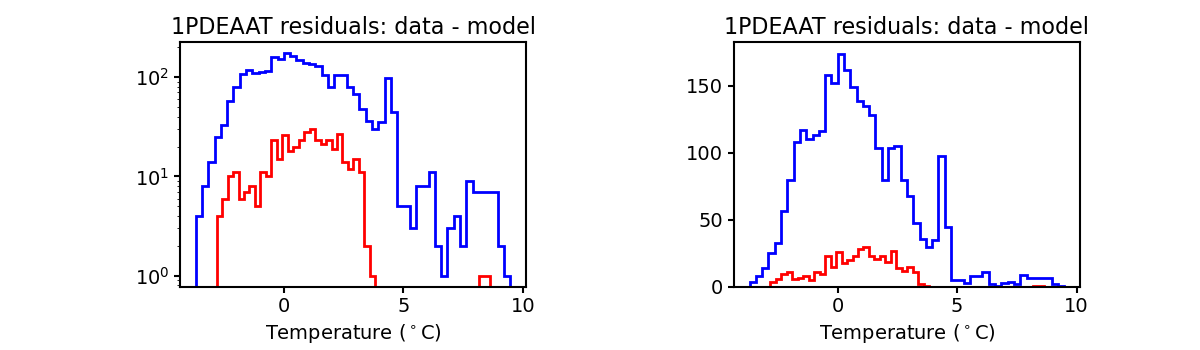

Note: 1PDEAAT residual histograms include only points where 1PDEAAT >= 30.0 C in blue and points where 1PDEAAT >= 40.0 C in red.

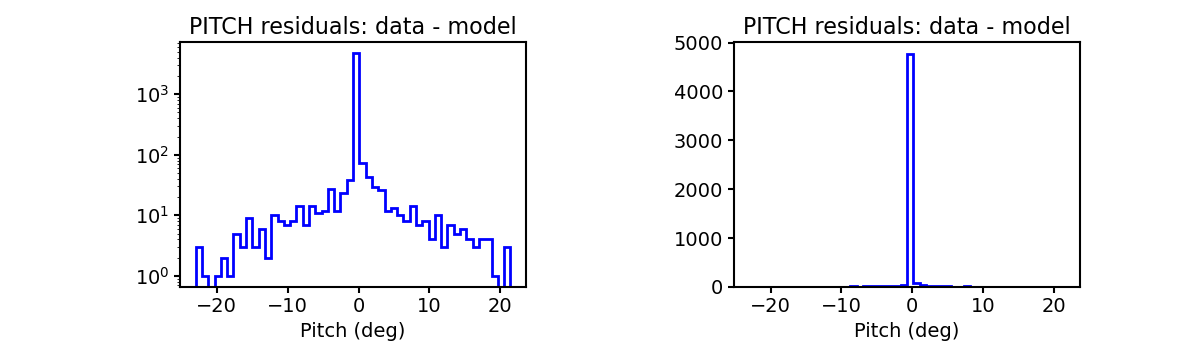

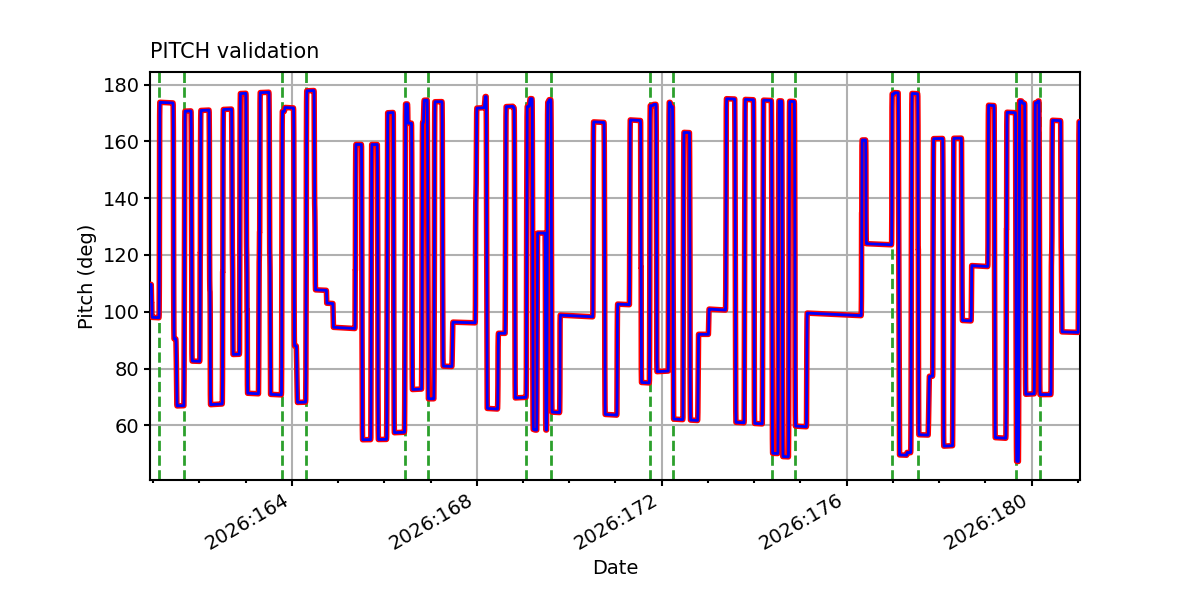

PITCH

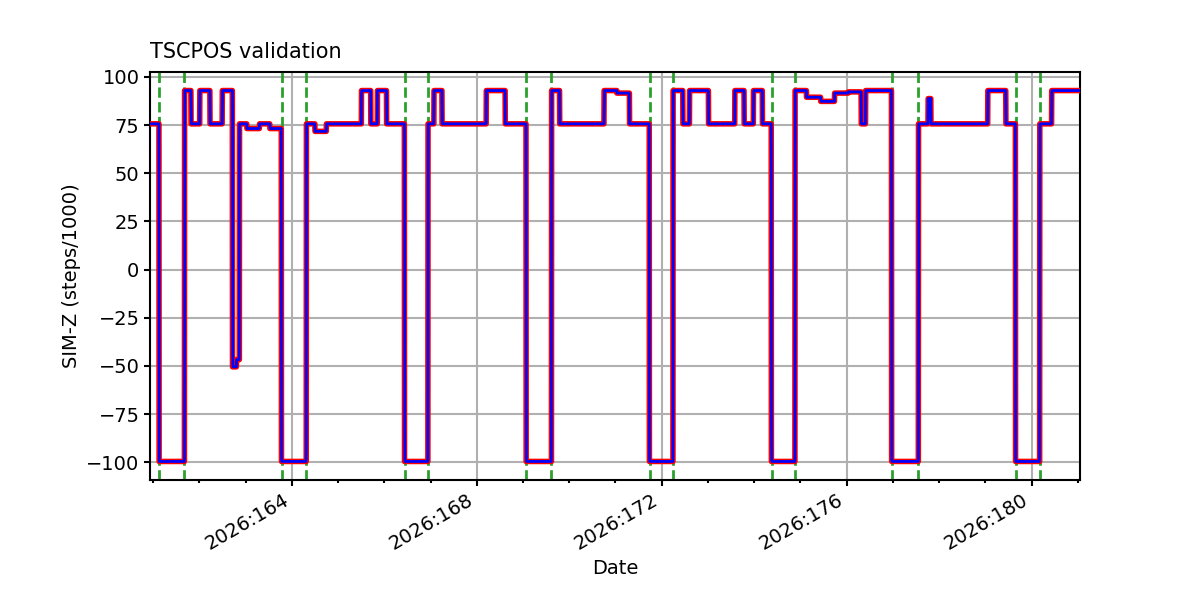

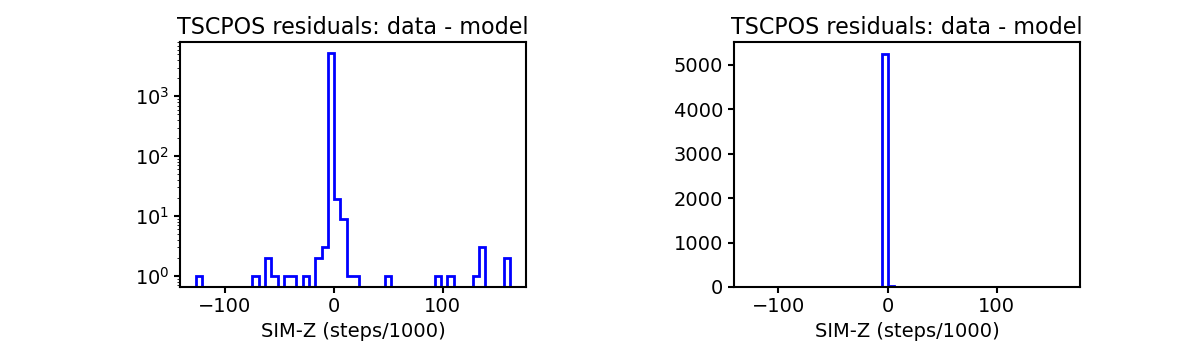

TSCPOS

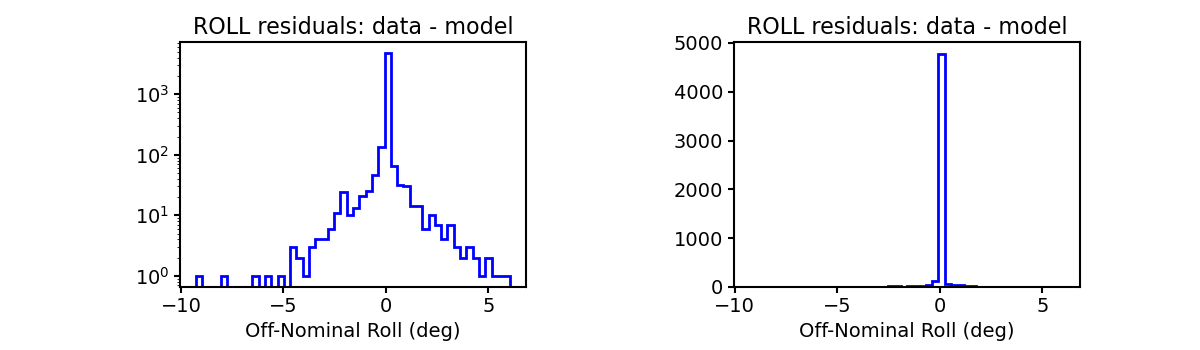

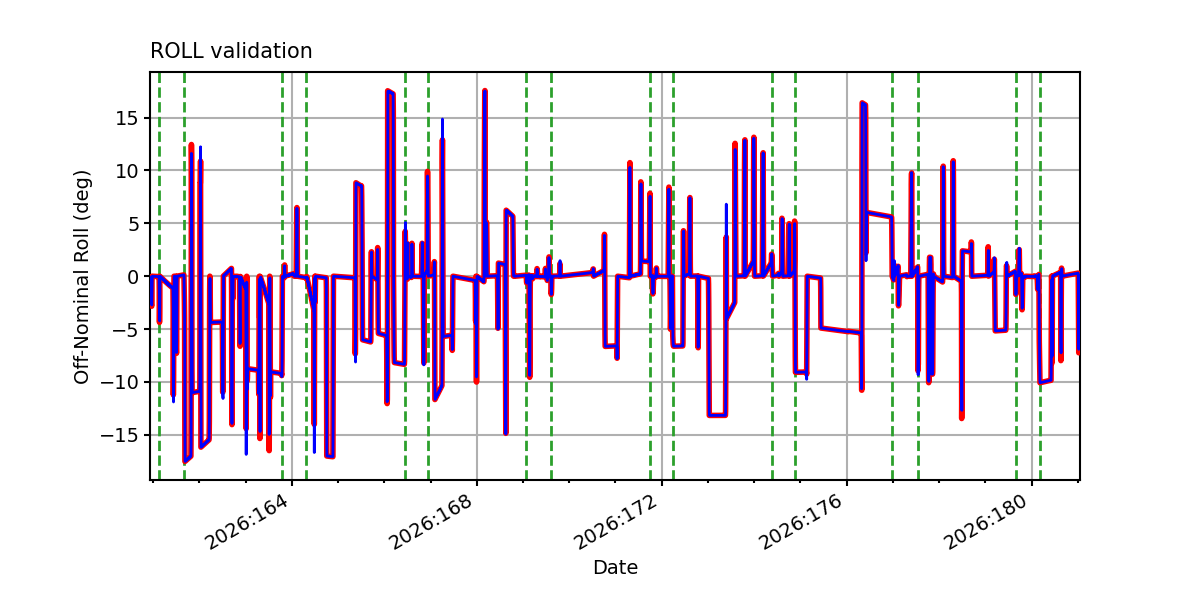

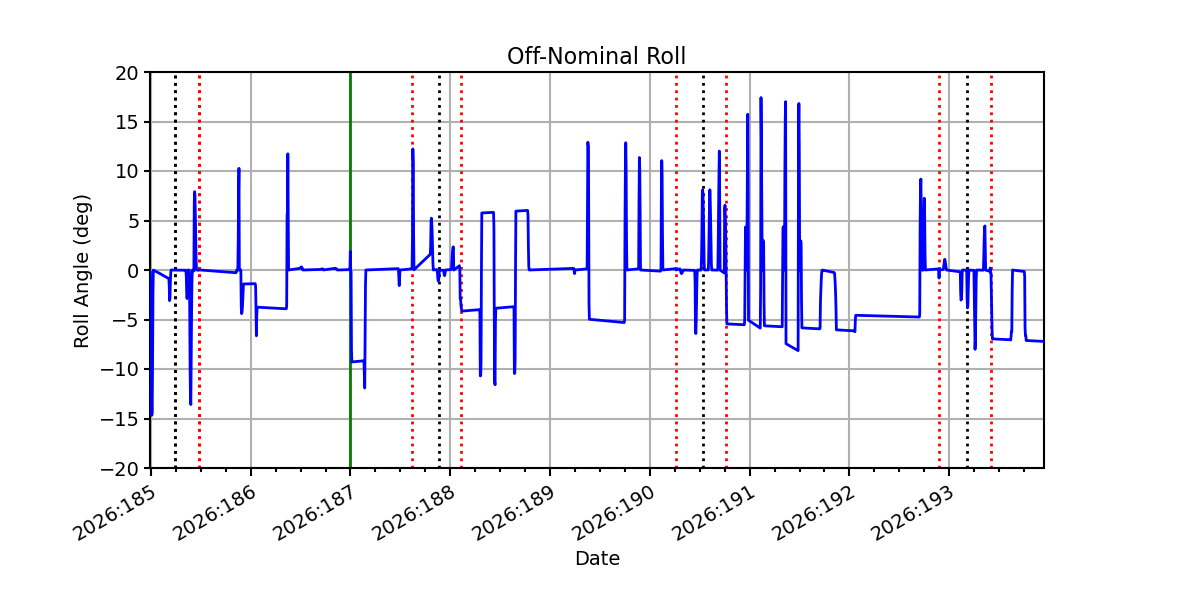

ROLL

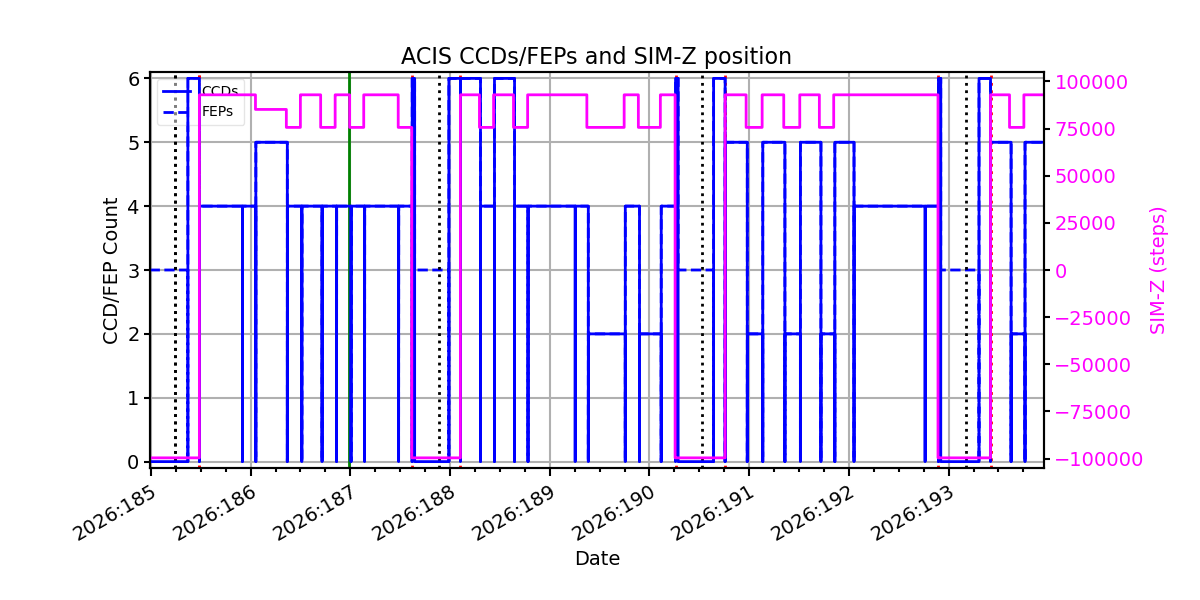

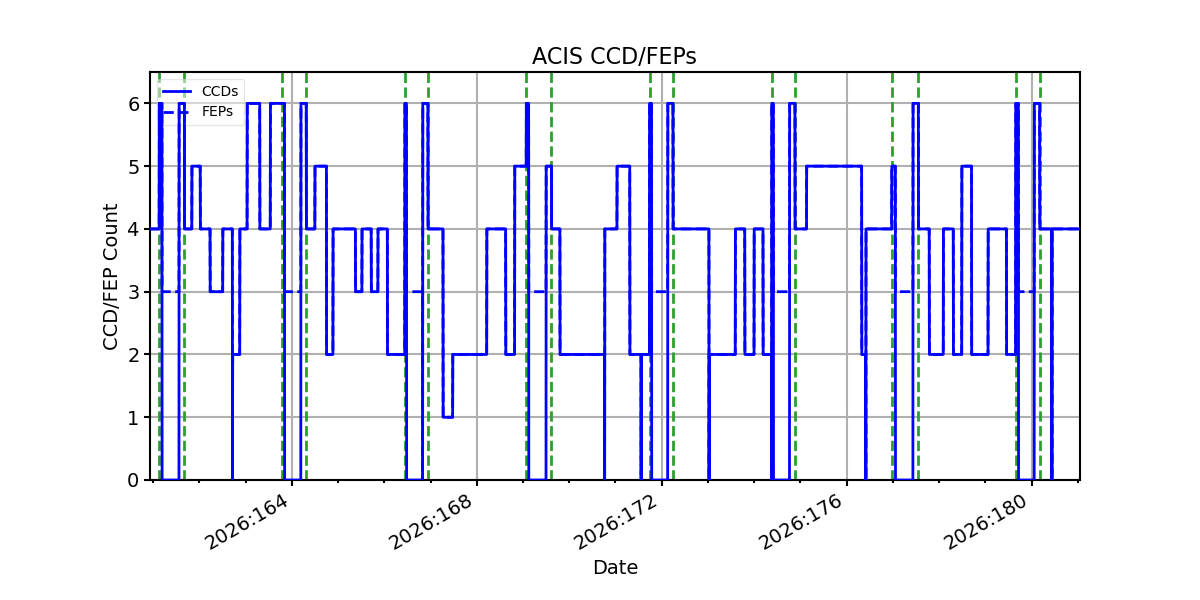

ACIS CCD/FEP Count
