PSMC Temperatures Check
Summary
| Date start | 2026:193:22:54:34.016 |
| Date stop | 2026:200:20:48:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/JUL1326/oflsa |
| Run time | Wed Jul 8 15:59:06 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEAAT Upper Limit Violations
PSMC Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEAAT >= 30.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeaat | -3.20 | -2.23 | -1.42 | 0.31 | 2.71 | 4.45 | 6.97 |
| pitch | -10.563 | -0.398 | -0.004 | -0.000 | 0.004 | 0.123 | 10.807 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -1.788 | -0.074 | -0.006 | 0.000 | 0.006 | 0.072 | 1.559 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEAAT | 1 | -3.2 | 2.50 |
| 1PDEAAT | 99 | 6.97 | 5.50 |
| PITCH | 1 | -10.563 | 3.00 |
| PITCH | 99 | 10.807 | 3.00 |

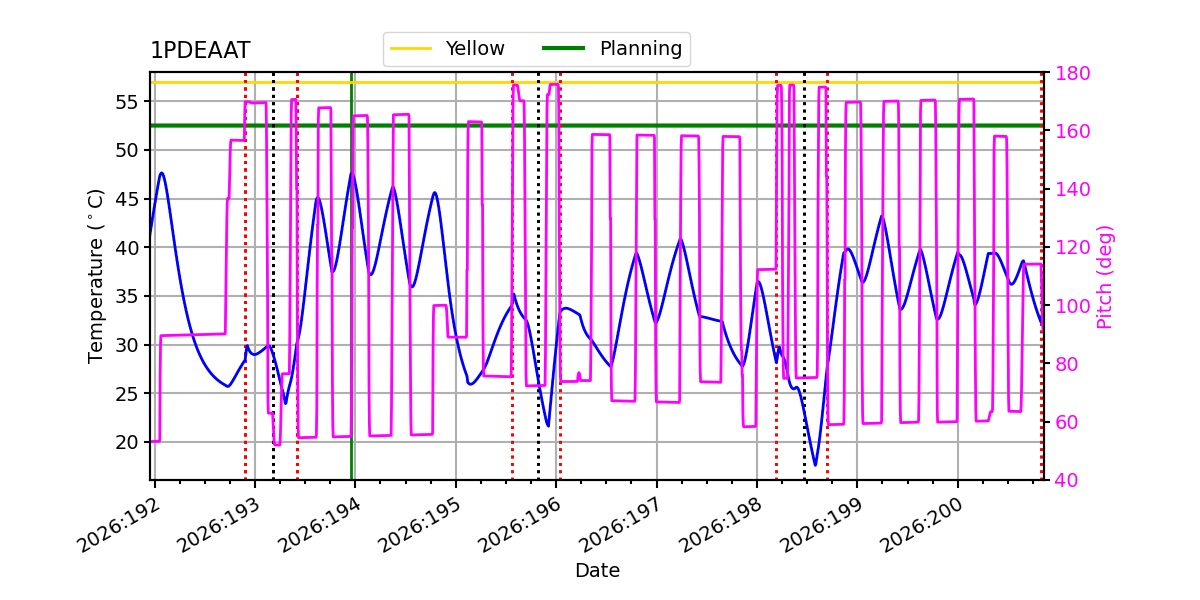

1PDEAAT

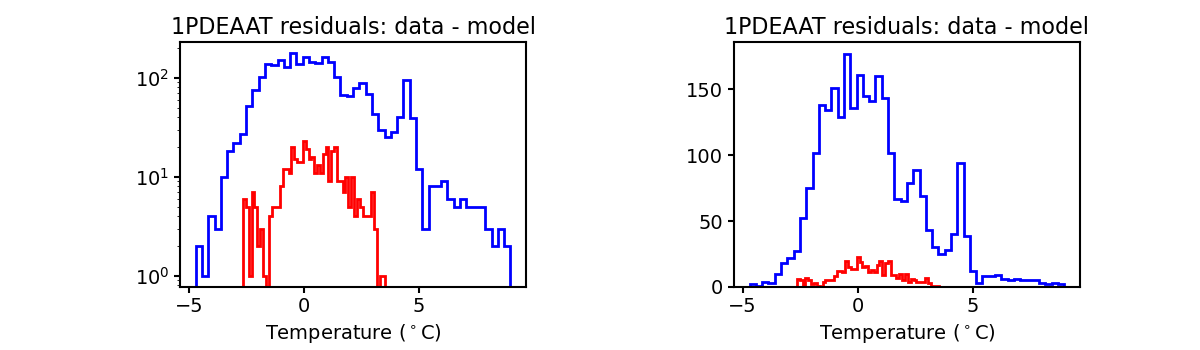

Note: 1PDEAAT residual histograms include only points where 1PDEAAT >= 30.0 C in blue and points where 1PDEAAT >= 40.0 C in red.

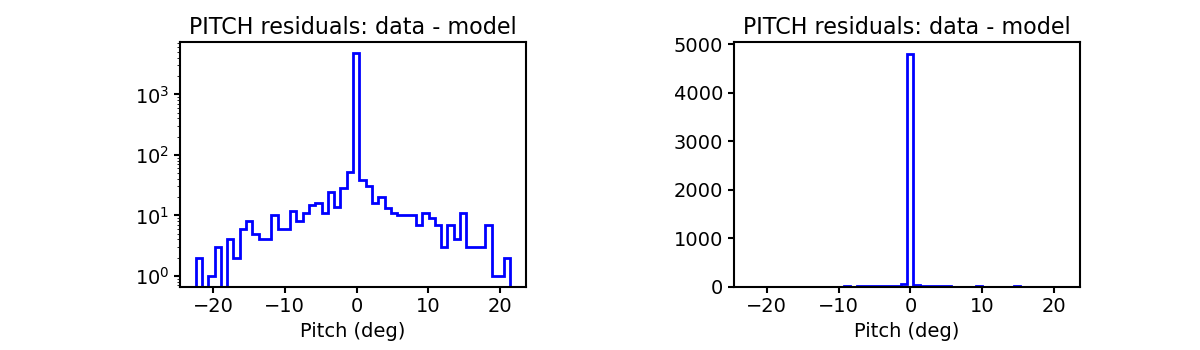

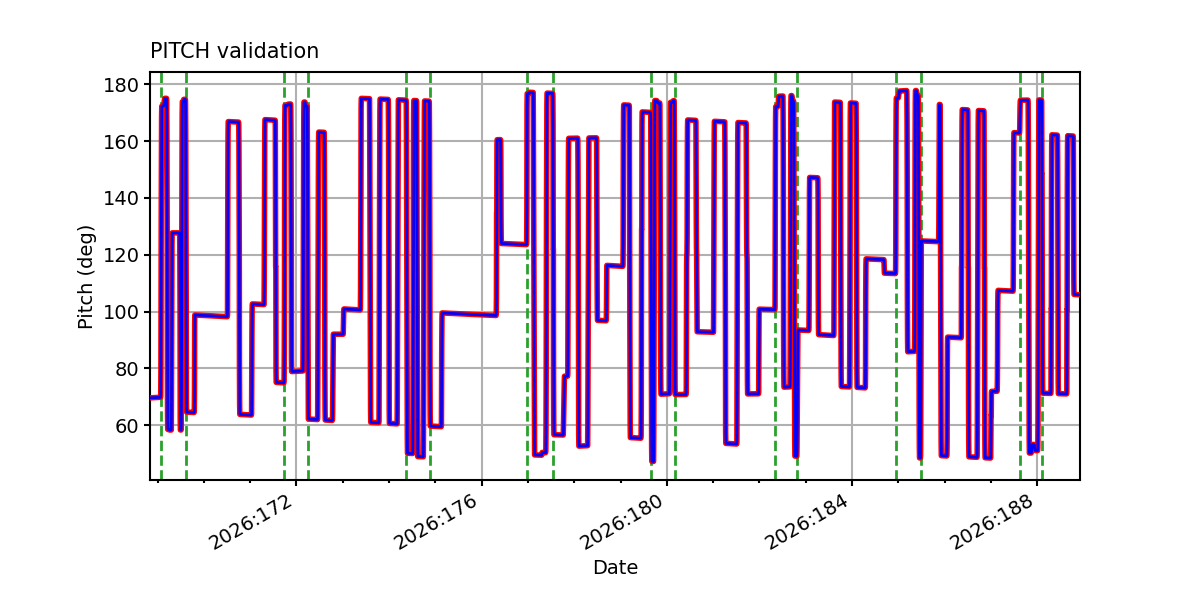

PITCH

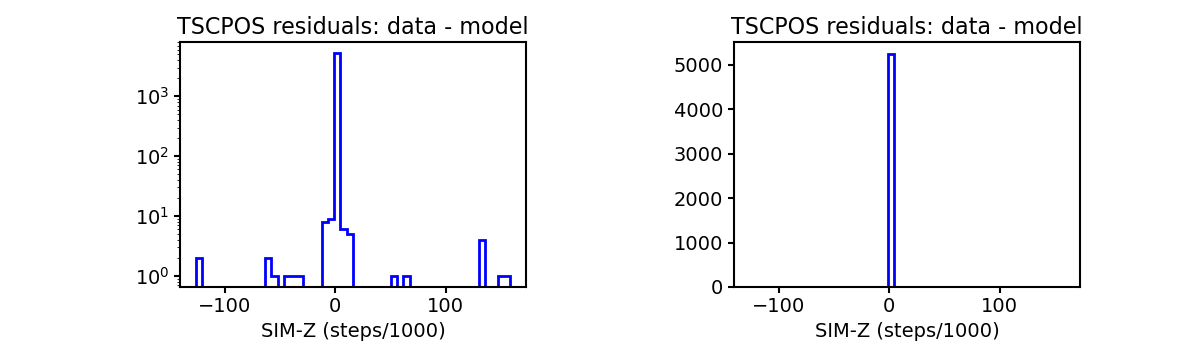

TSCPOS

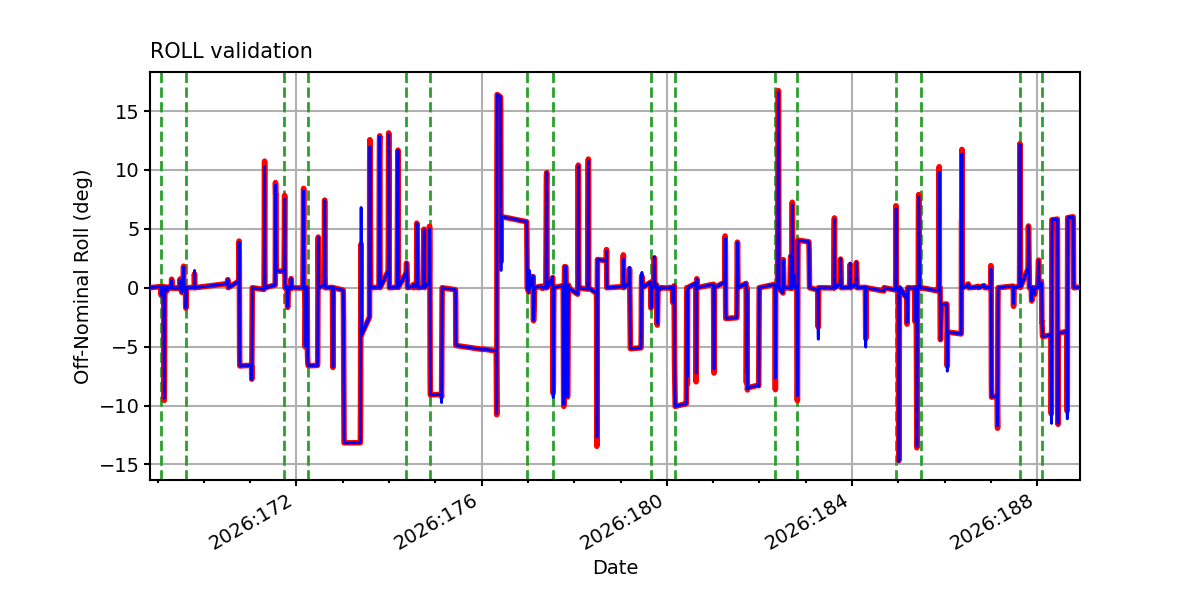

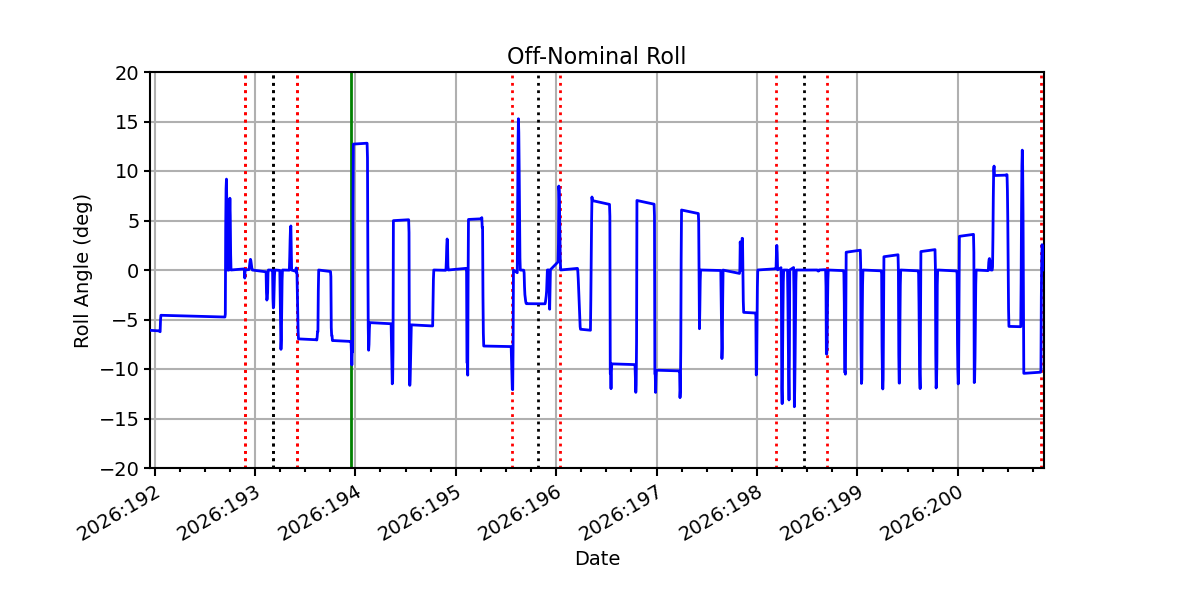

ROLL

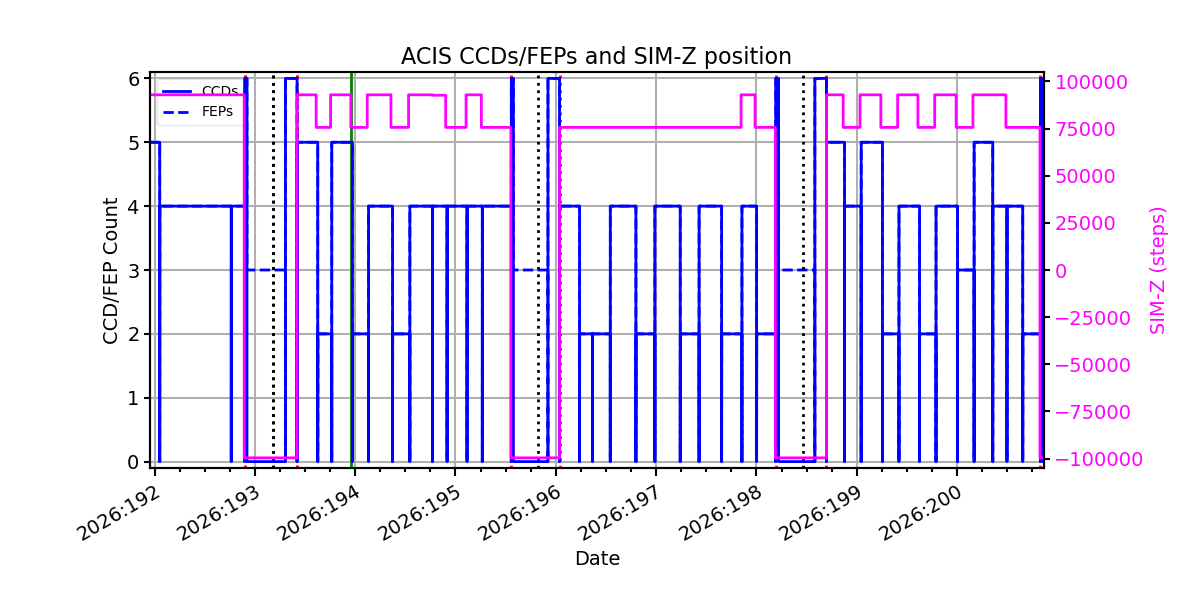

ACIS CCD/FEP Count
