PSMC Temperatures Check
Summary
| Date start | 2026:207:21:51:34.216 |
| Date stop | 2026:215:01:04:13.716 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/JUL2726/oflsa |
| Run time | Wed Jul 22 12:48:11 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

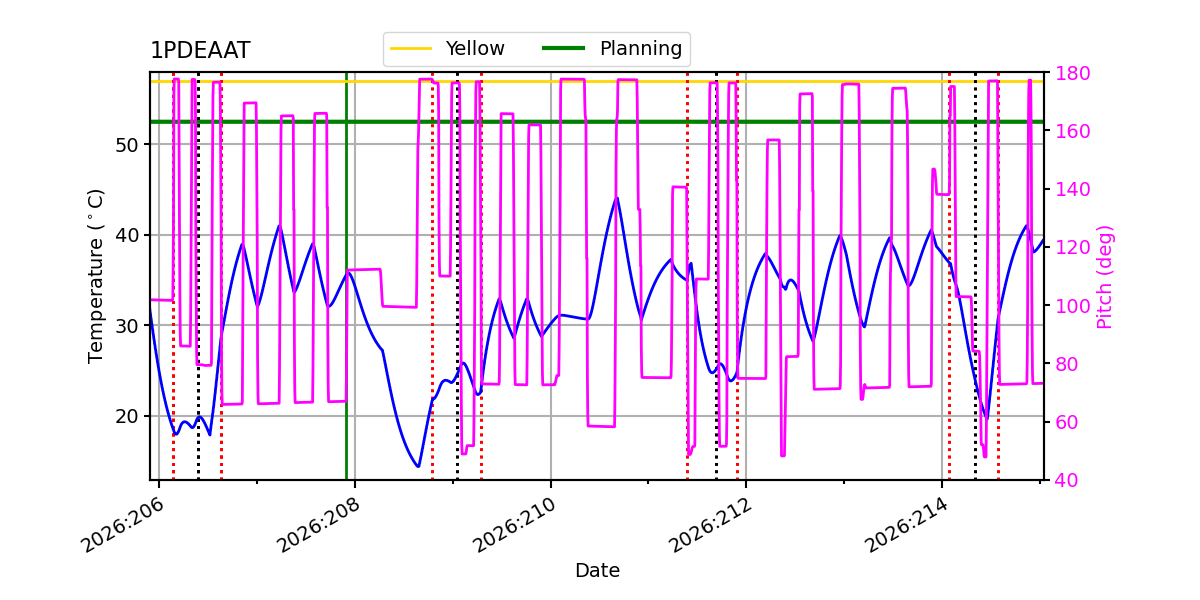

No 1PDEAAT Upper Limit Violations
PSMC Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEAAT >= 30.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeaat | -2.68 | -1.93 | -1.33 | 0.31 | 2.33 | 4.25 | 8.24 |
| pitch | -10.239 | -0.802 | -0.004 | 0.000 | 0.004 | 0.781 | 11.093 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -2.154 | -0.172 | -0.008 | 0.000 | 0.008 | 0.163 | 1.870 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEAAT | 1 | -2.68 | 2.50 |
| 1PDEAAT | 99 | 8.24 | 5.50 |
| PITCH | 1 | -10.239 | 3.00 |
| PITCH | 99 | 11.093 | 3.00 |

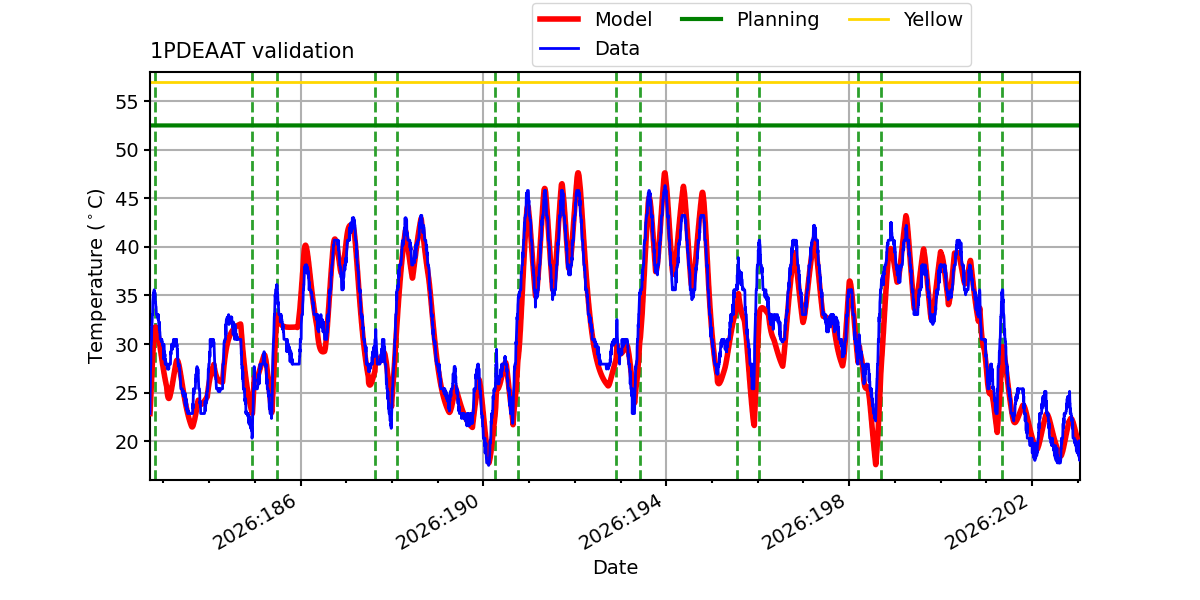

1PDEAAT

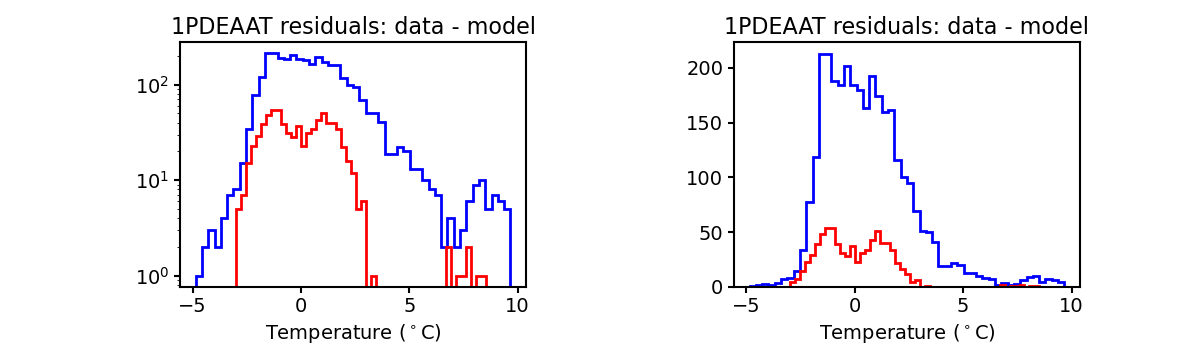

Note: 1PDEAAT residual histograms include only points where 1PDEAAT >= 30.0 C in blue and points where 1PDEAAT >= 40.0 C in red.

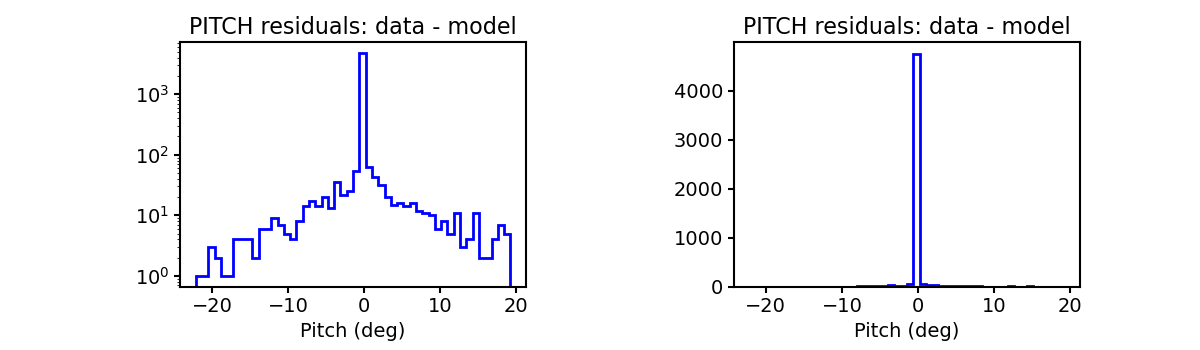

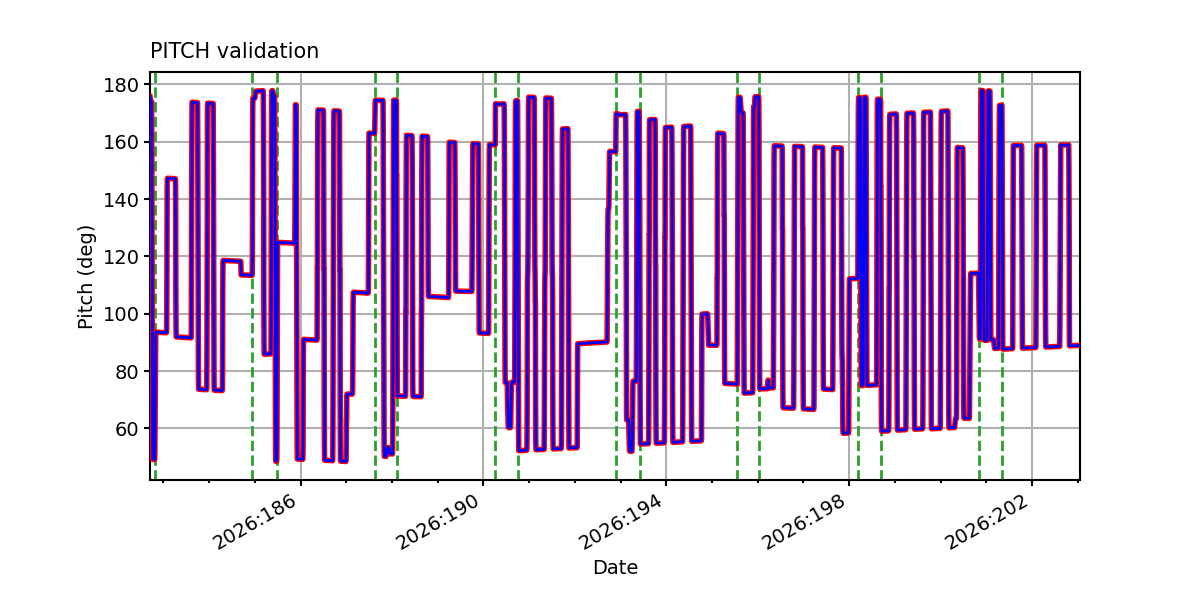

PITCH

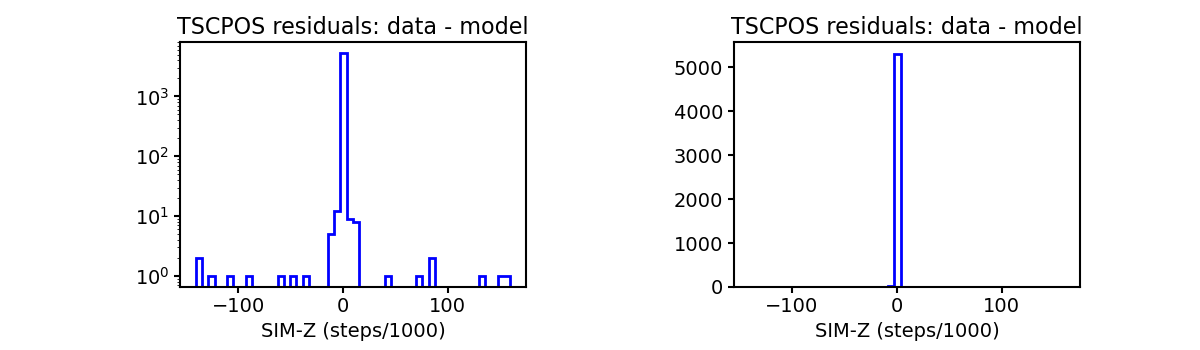

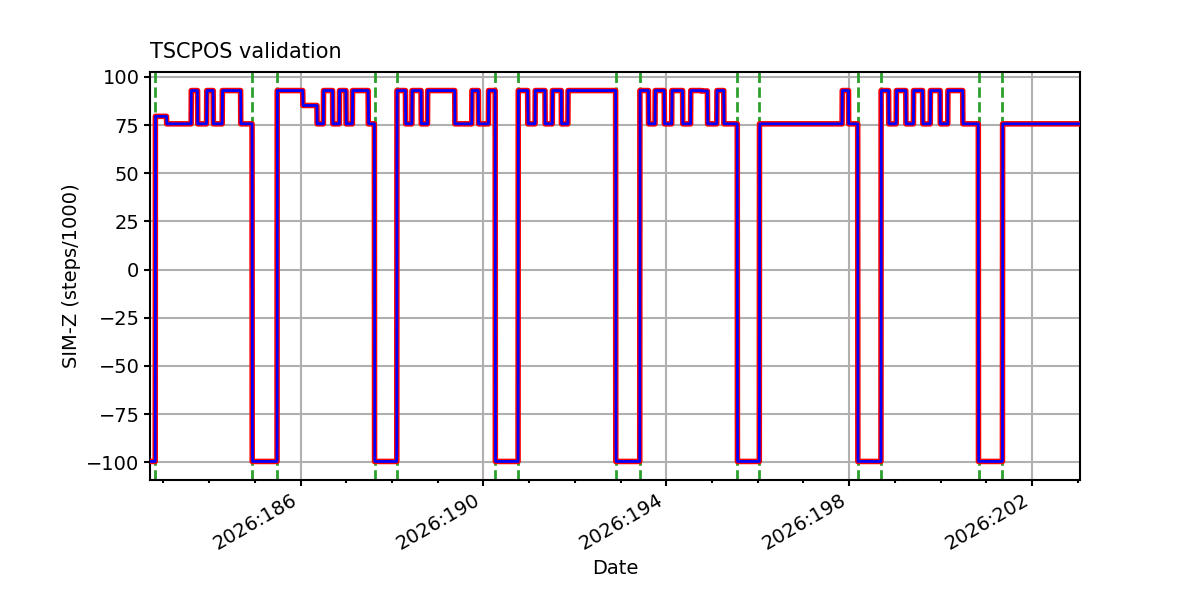

TSCPOS

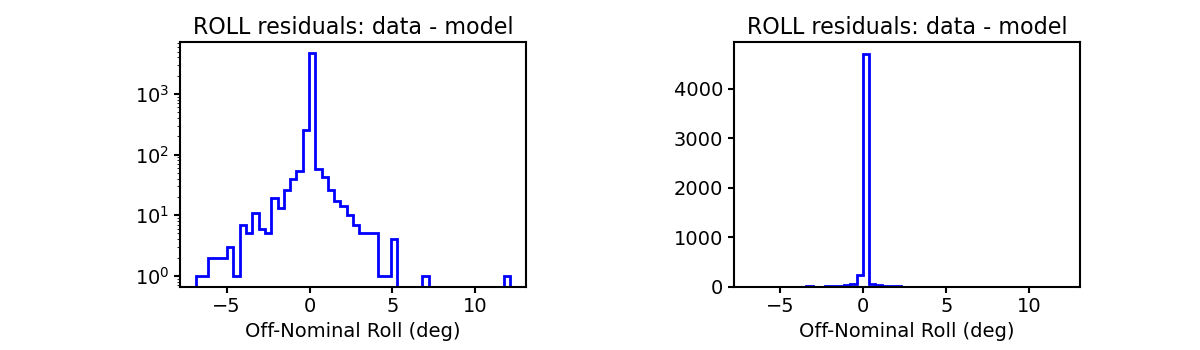

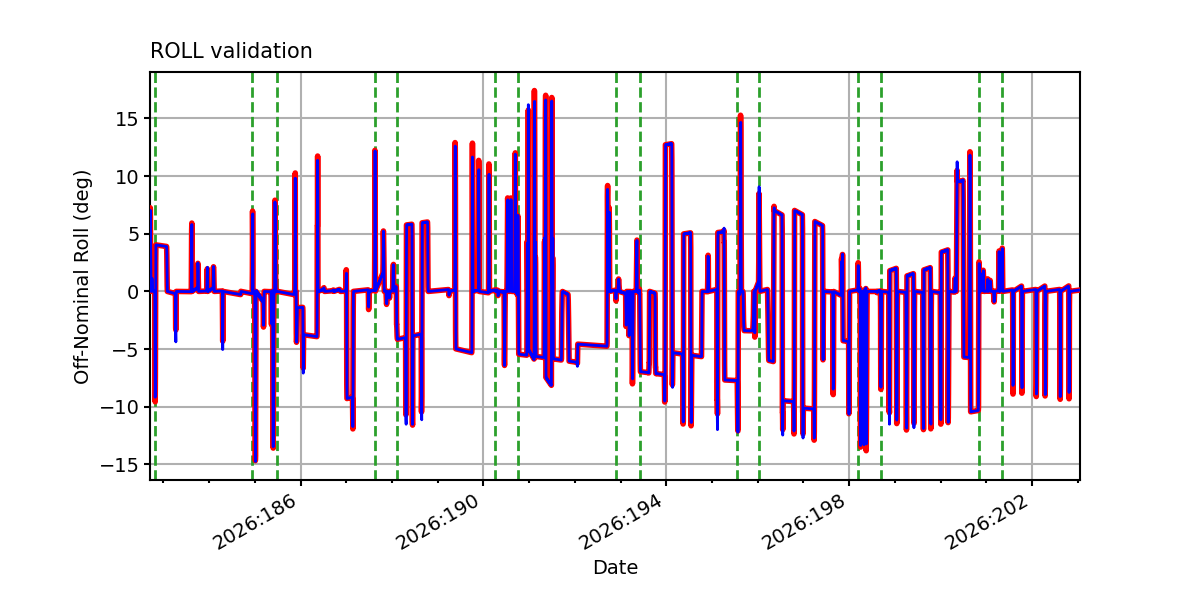

ROLL

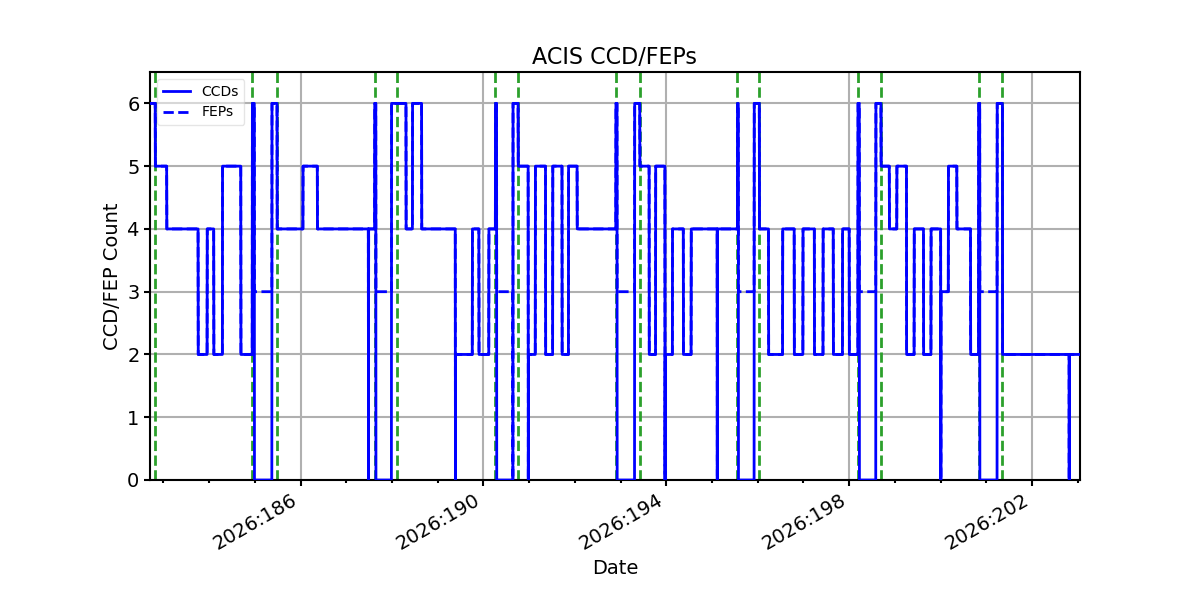

ACIS CCD/FEP Count
