PSMC Temperatures Check
Summary
| Date start | 2025:208:21:28:00.016 |
| Date stop | 2025:216:00:58:48.416 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/JUL2825/ofls |
| Run time | Wed Jul 23 18:19:43 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

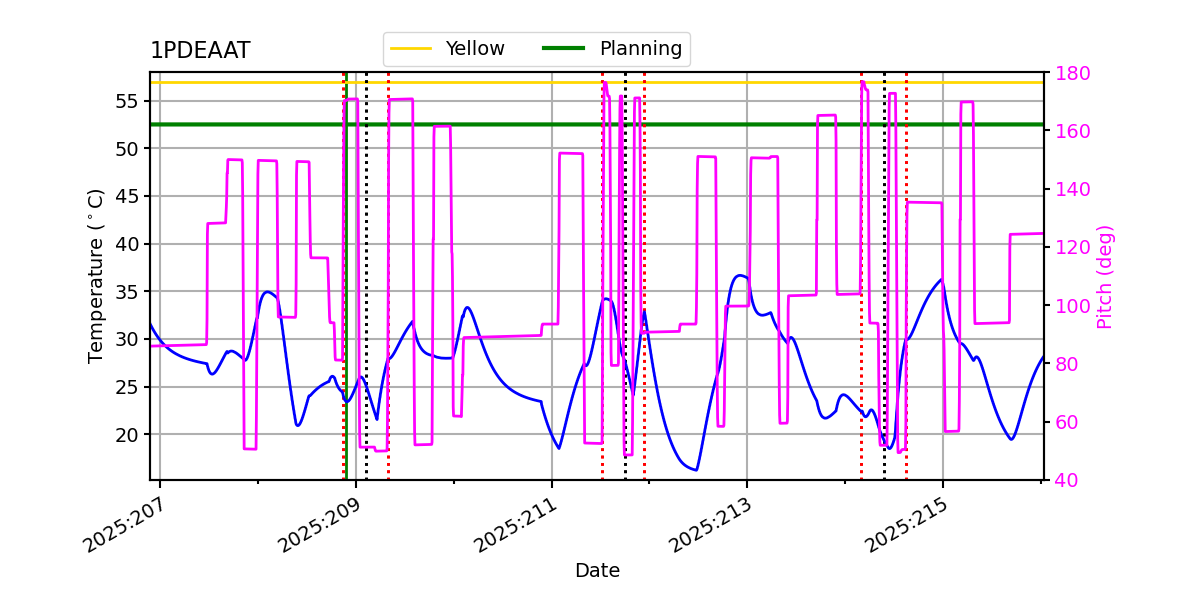

No 1PDEAAT Upper Limit Violations
PSMC Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEAAT >= 30.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeaat | -2.59 | -1.55 | -0.82 | 0.68 | 2.33 | 4.64 | 6.08 |
| pitch | -8.836 | -0.403 | -0.004 | 0.000 | 0.004 | 0.467 | 9.377 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 1 | 1 |
| roll | -2.050 | -0.136 | -0.007 | 0.000 | 0.007 | 0.173 | 1.773 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEAAT | 1 | -2.59 | 2.50 |
| 1PDEAAT | 99 | 6.08 | 5.50 |
| PITCH | 1 | -8.836 | 3.00 |
| PITCH | 99 | 9.377 | 3.00 |

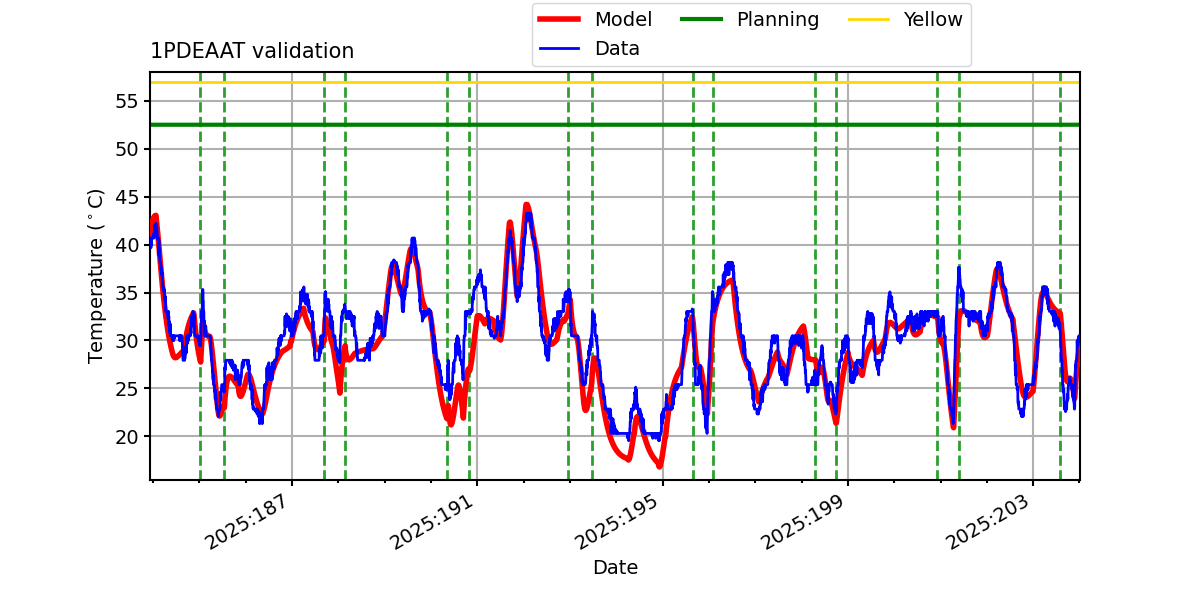

1PDEAAT

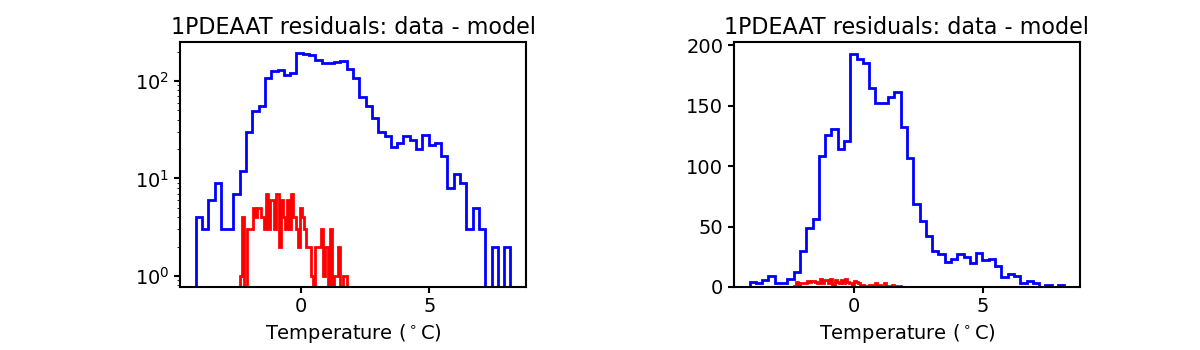

Note: 1PDEAAT residual histograms include only points where 1PDEAAT >= 30.0 C in blue and points where 1PDEAAT >= 40.0 C in red.

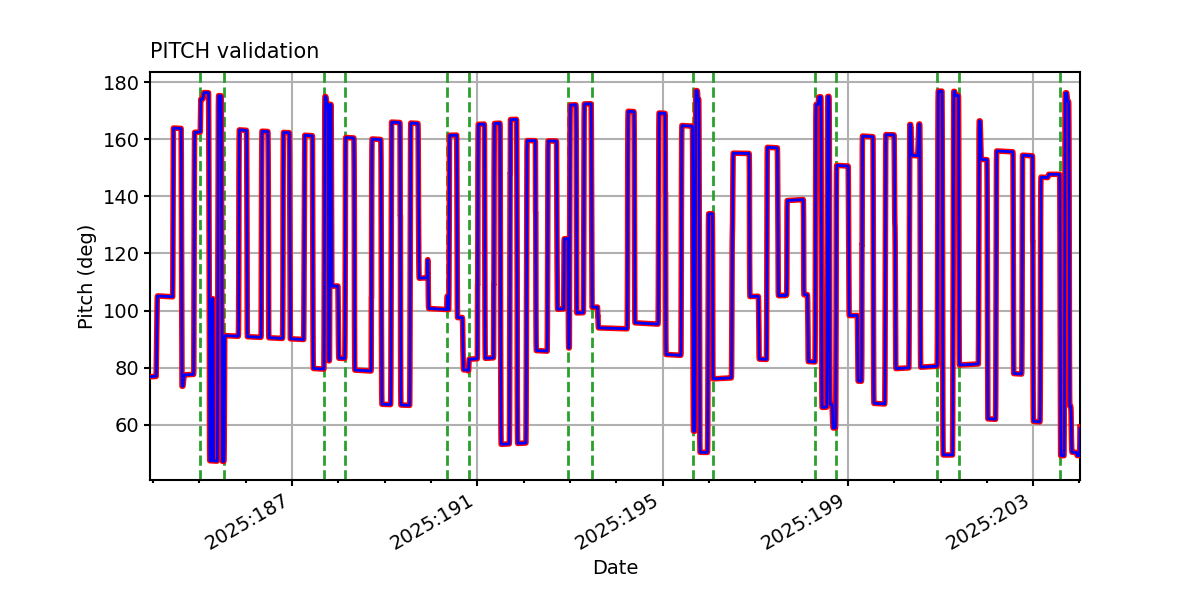

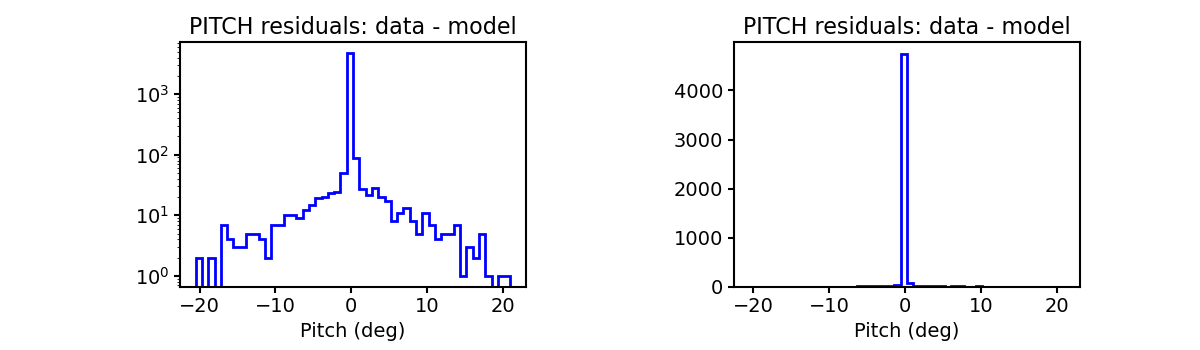

PITCH

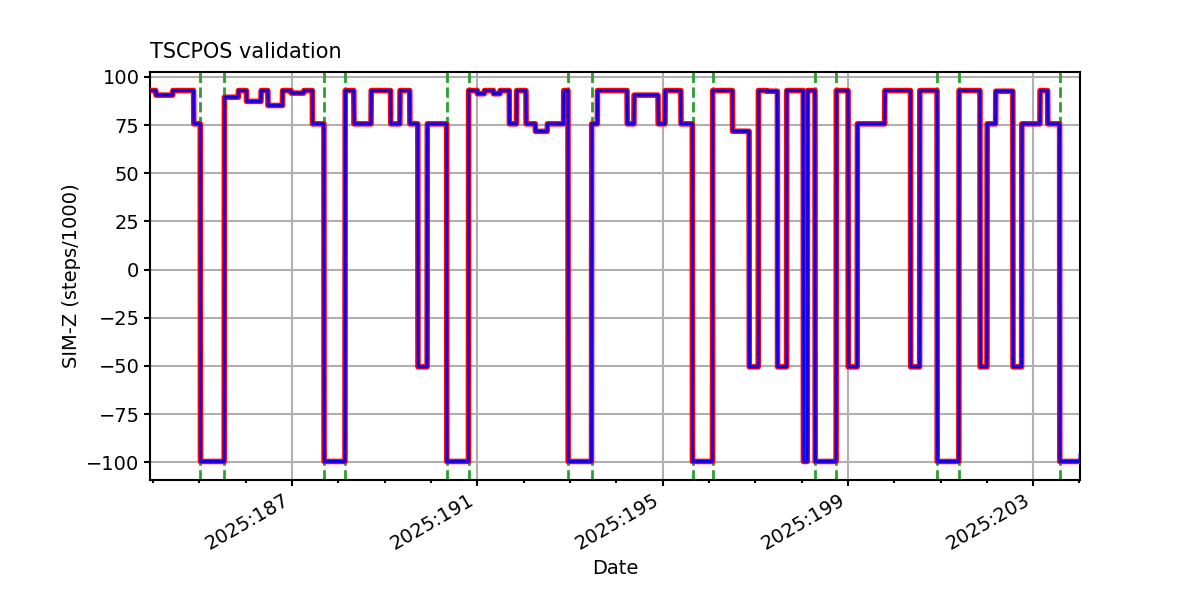

TSCPOS

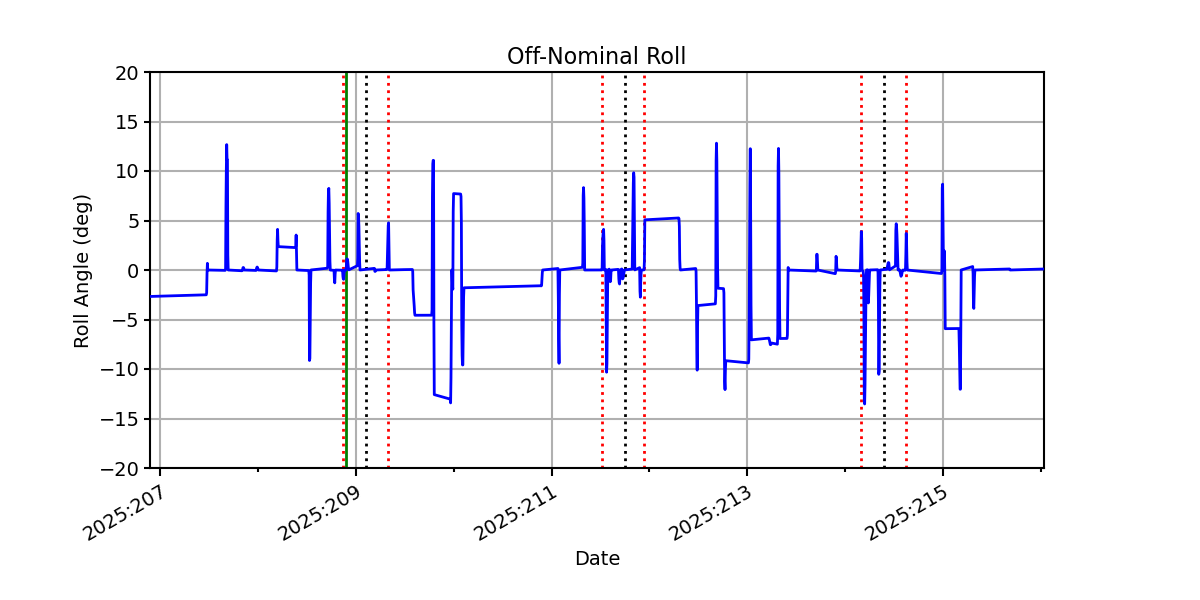

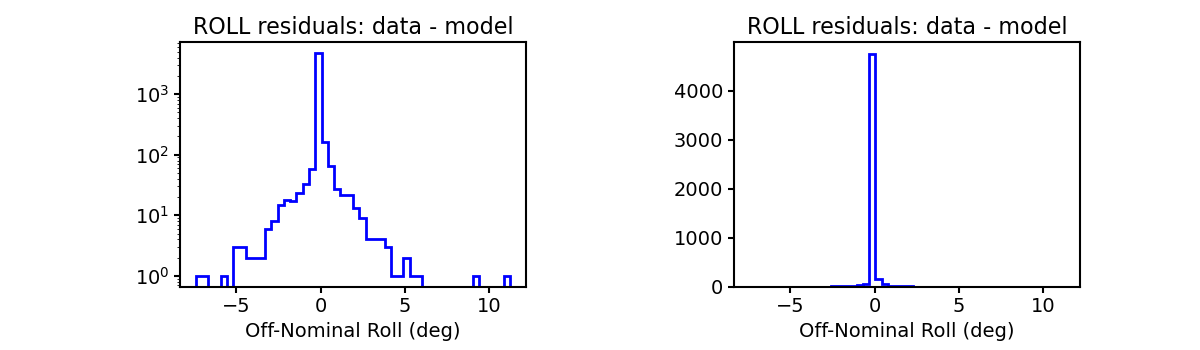

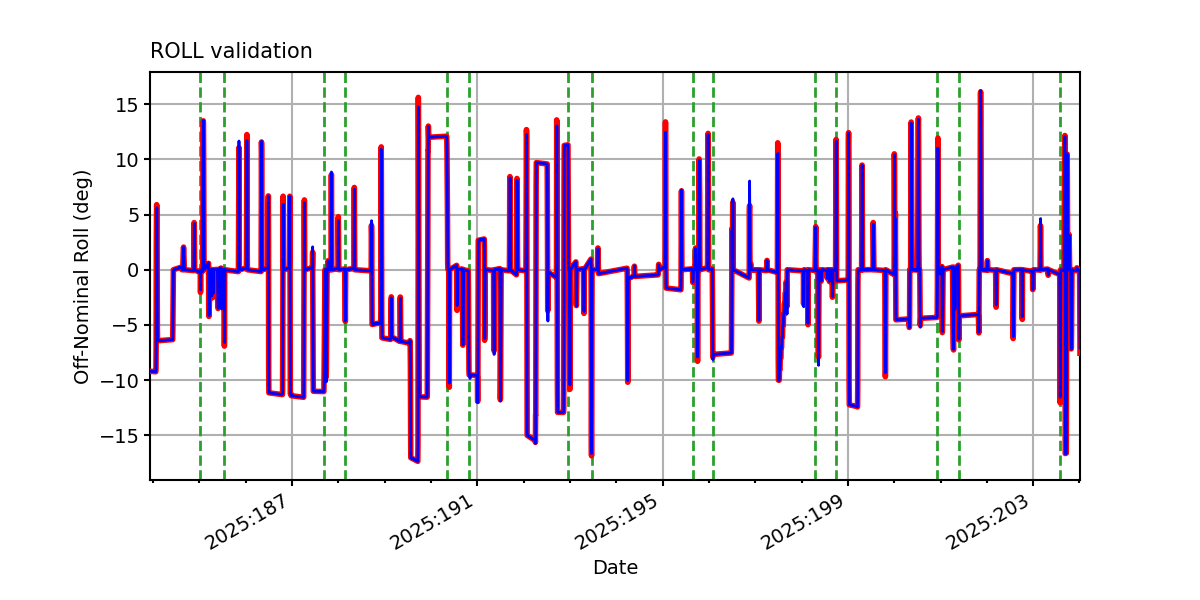

ROLL

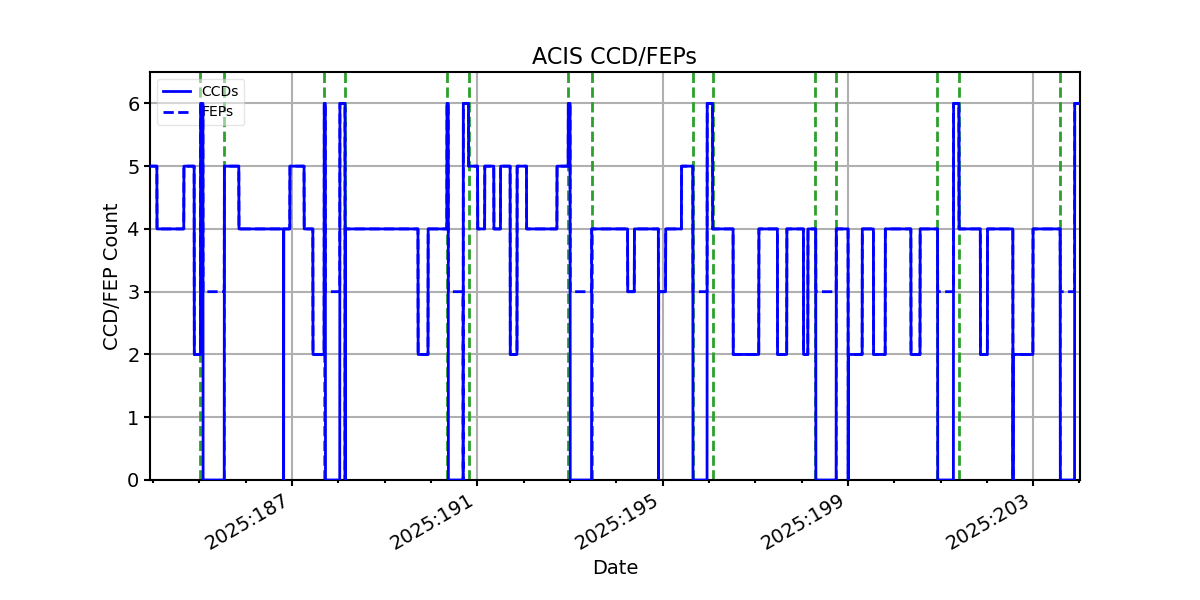

ACIS CCD/FEP Count
