PSMC Temperatures Check
Summary
| Date start | 2026:159:03:15:11.516 |
| Date stop | 2026:166:01:12:48.416 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/JUN0826/oflsb |
| Run time | Fri Jun 5 05:59:10 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEAAT Upper Limit Violations
PSMC Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEAAT >= 30.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeaat | -3.39 | -1.92 | -0.64 | 1.05 | 3.12 | 4.14 | 7.87 |
| pitch | -8.342 | -0.174 | -0.004 | 0.000 | 0.004 | 0.234 | 8.087 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.308 | -0.067 | -0.004 | -0.000 | 0.004 | 0.089 | 1.918 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEAAT | 1 | -3.39 | 2.50 |
| 1PDEAAT | 50 | 1.05 | 1.00 |
| 1PDEAAT | 99 | 7.87 | 5.50 |
| PITCH | 1 | -8.342 | 3.00 |
| PITCH | 99 | 8.087 | 3.00 |

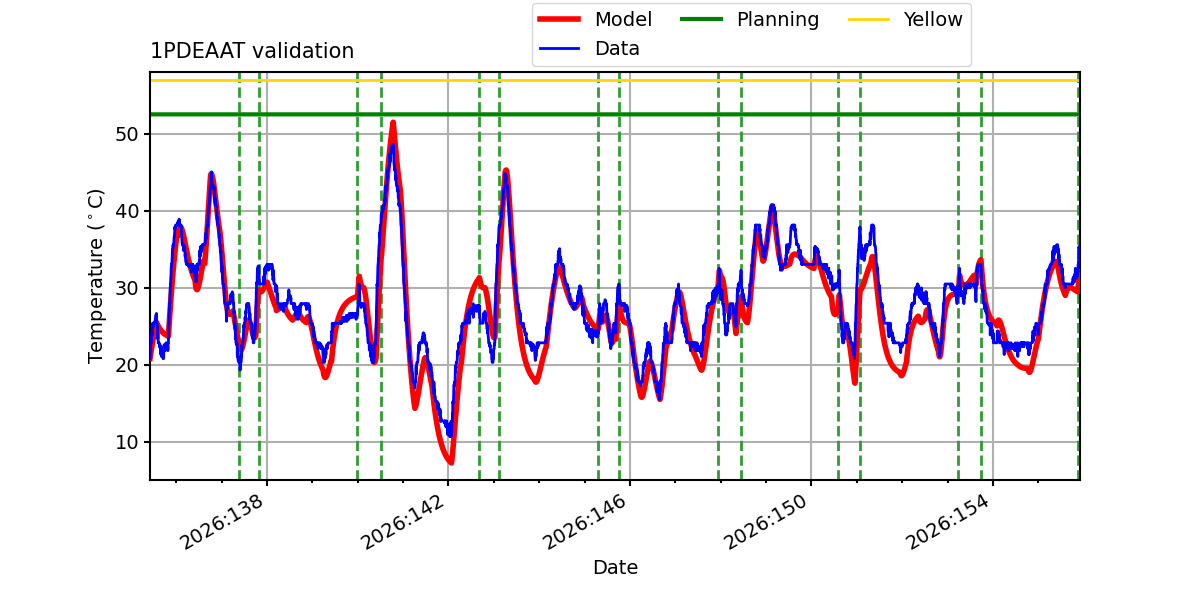

1PDEAAT

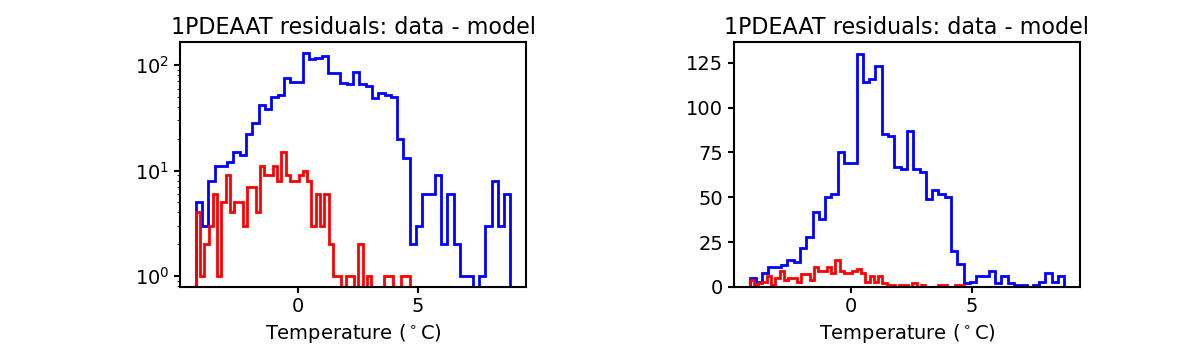

Note: 1PDEAAT residual histograms include only points where 1PDEAAT >= 30.0 C in blue and points where 1PDEAAT >= 40.0 C in red.

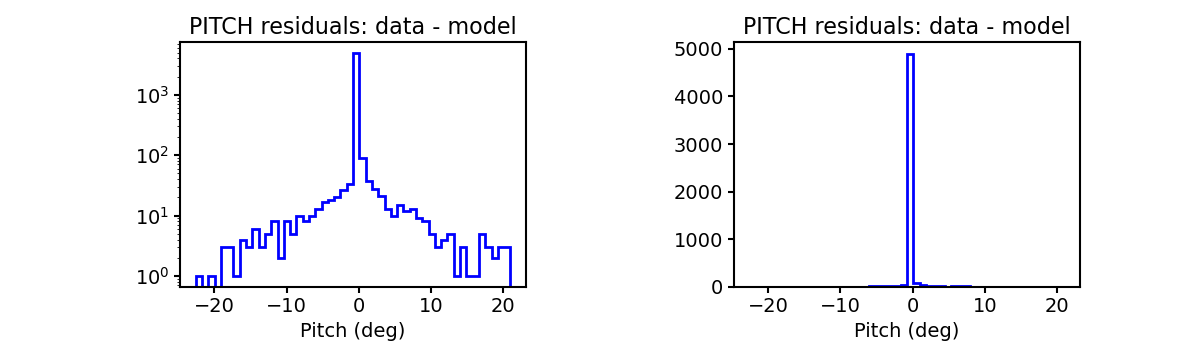

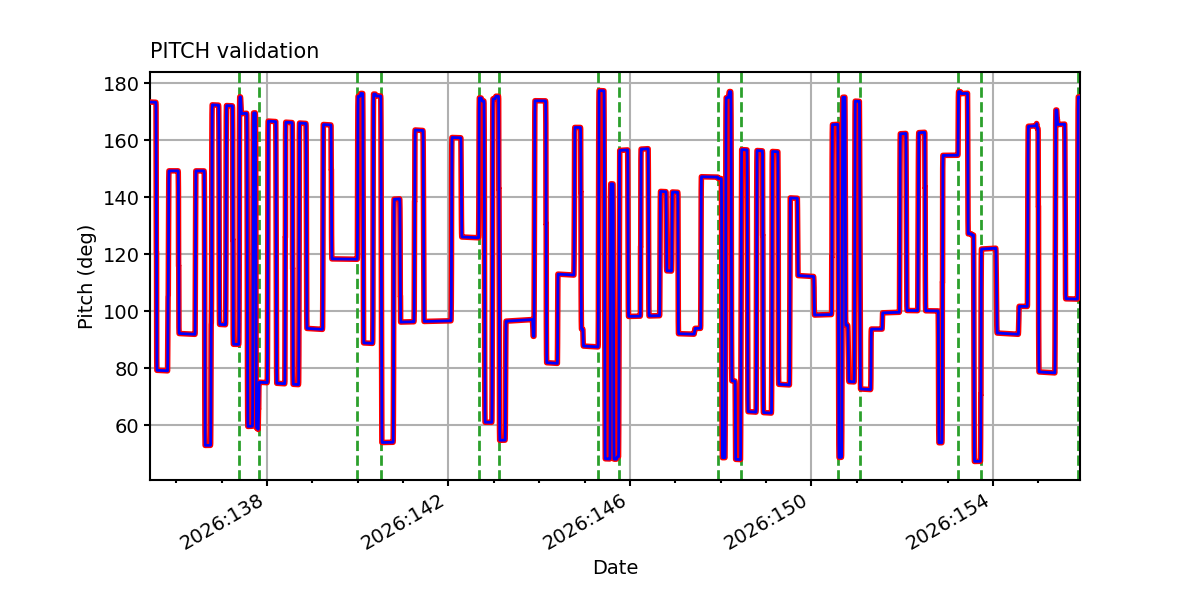

PITCH
TSCPOS

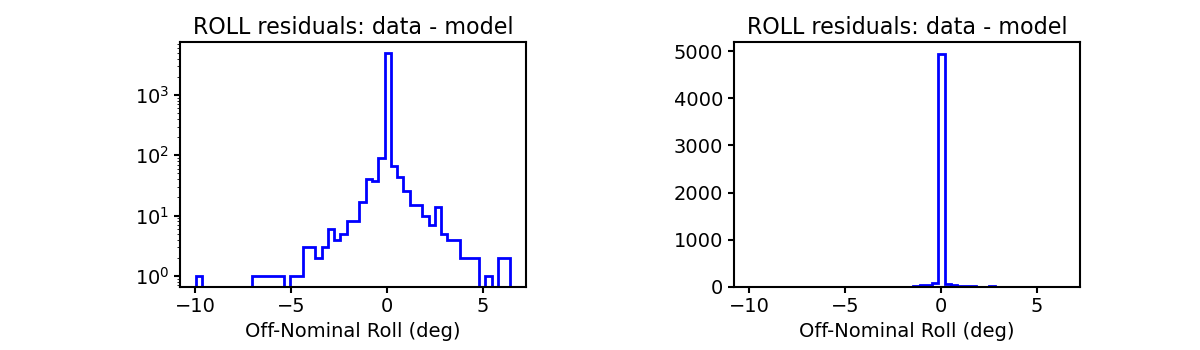

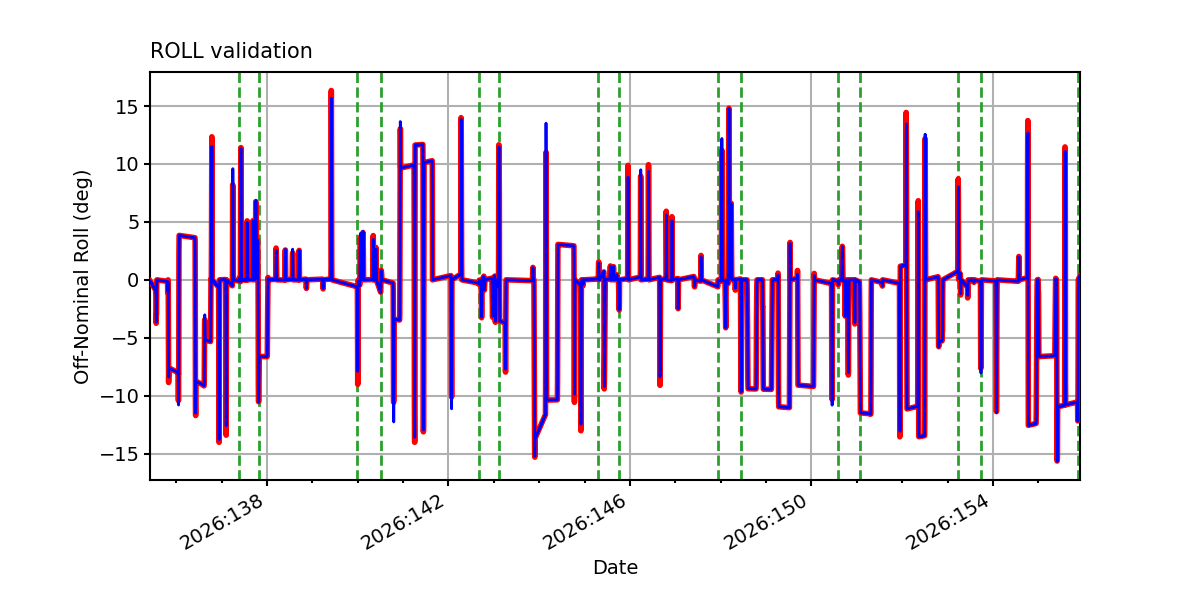

ROLL

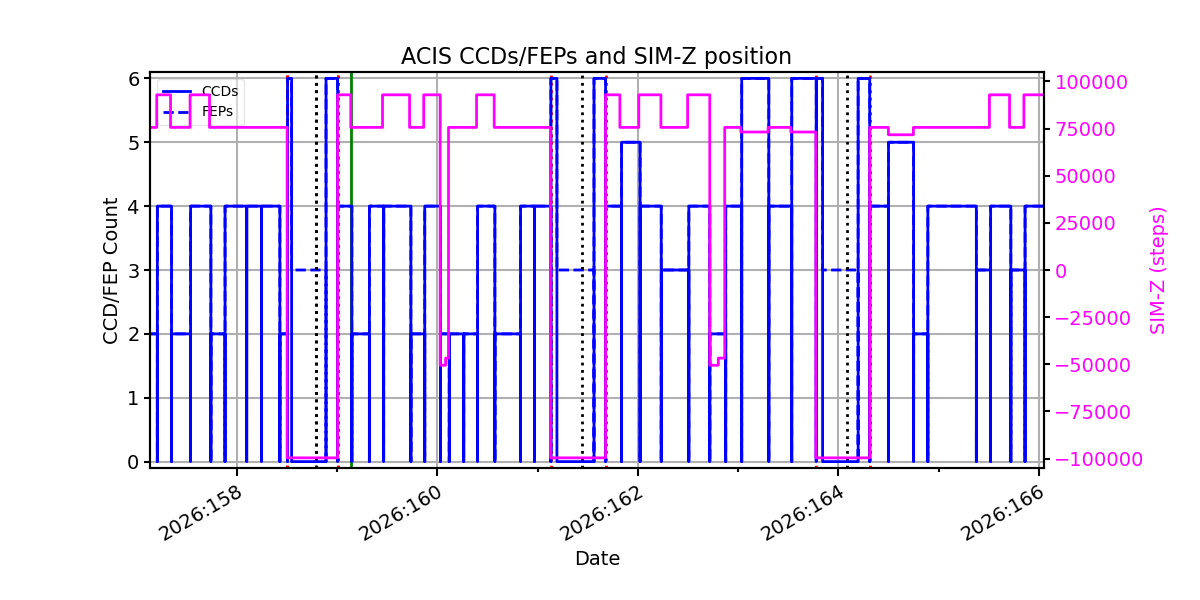

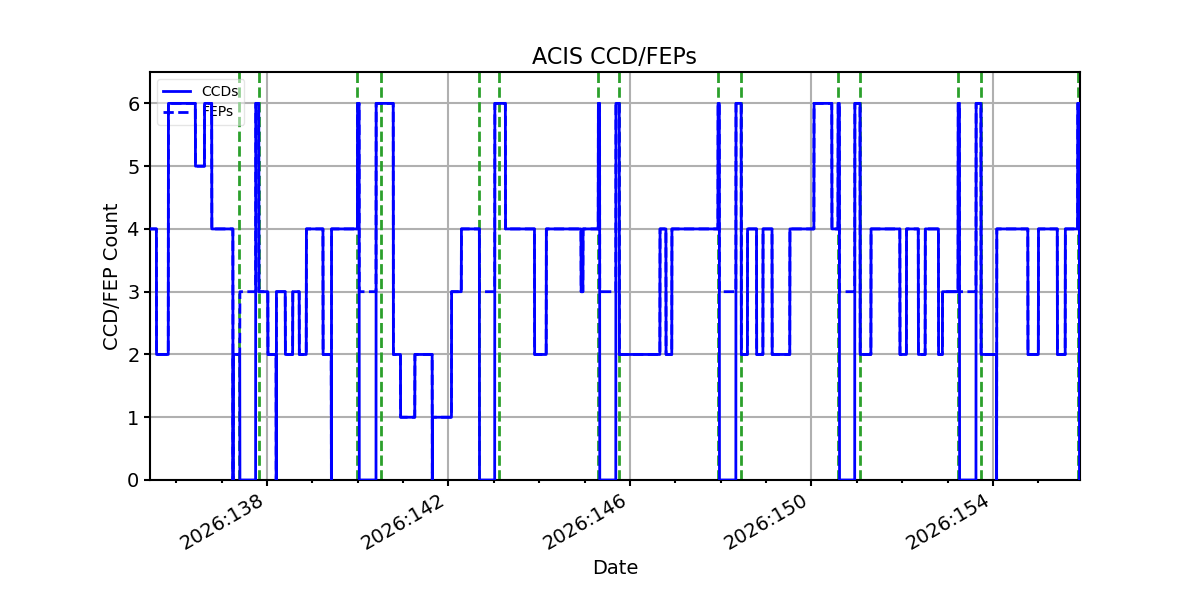

ACIS CCD/FEP Count
