PSMC Temperatures Check
Summary
| Date start | 2025:159:23:40:43.816 |
| Date stop | 2025:166:13:54:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/JUN0925/ofls |
| Run time | Wed Jun 4 13:38:10 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEAAT Upper Limit Violations
PSMC Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEAAT >= 30.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeaat | -3.03 | -2.44 | -1.71 | -0.36 | 2.43 | 4.97 | 6.43 |
| pitch | -5.013 | -0.349 | -0.004 | -0.000 | 0.004 | 0.358 | 5.016 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.277 | -0.128 | -0.006 | -0.000 | 0.005 | 0.126 | 1.353 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEAAT | 1 | -3.03 | 2.50 |
| 1PDEAAT | 99 | 6.43 | 5.50 |
| PITCH | 1 | -5.013 | 3.00 |
| PITCH | 99 | 5.016 | 3.00 |

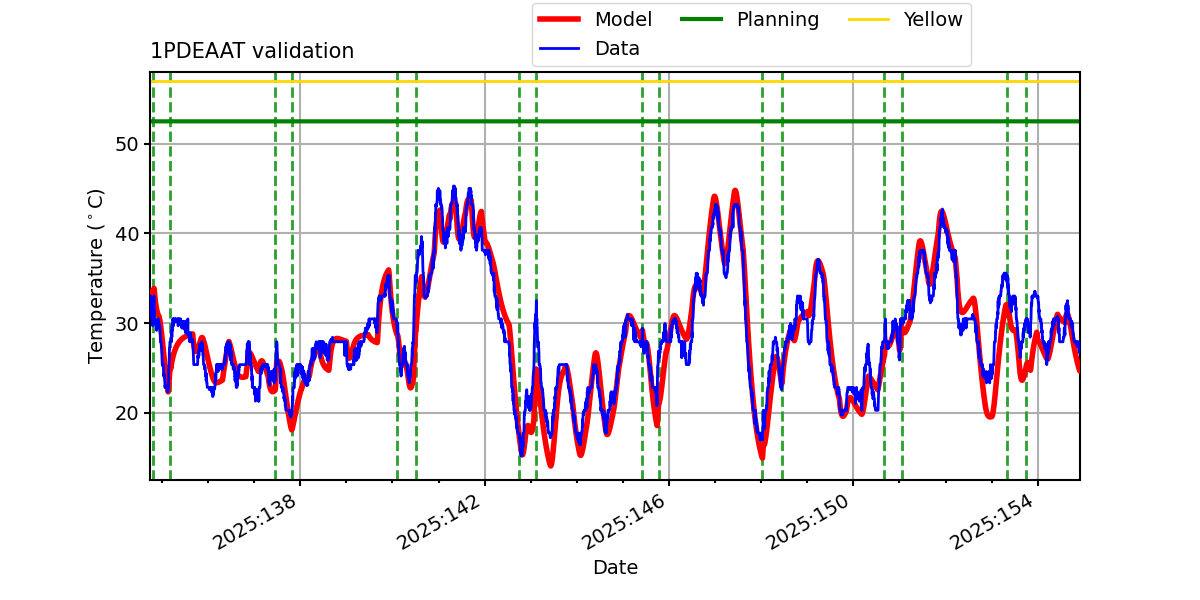

1PDEAAT

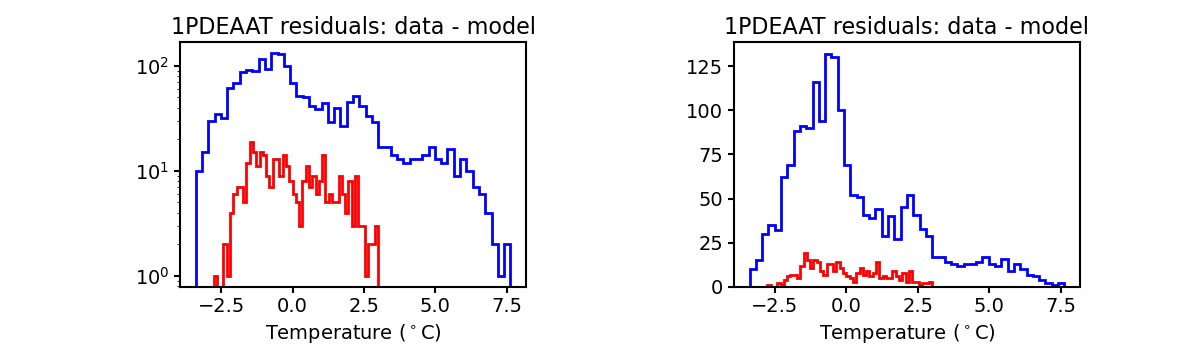

Note: 1PDEAAT residual histograms include only points where 1PDEAAT >= 30.0 C in blue and points where 1PDEAAT >= 40.0 C in red.

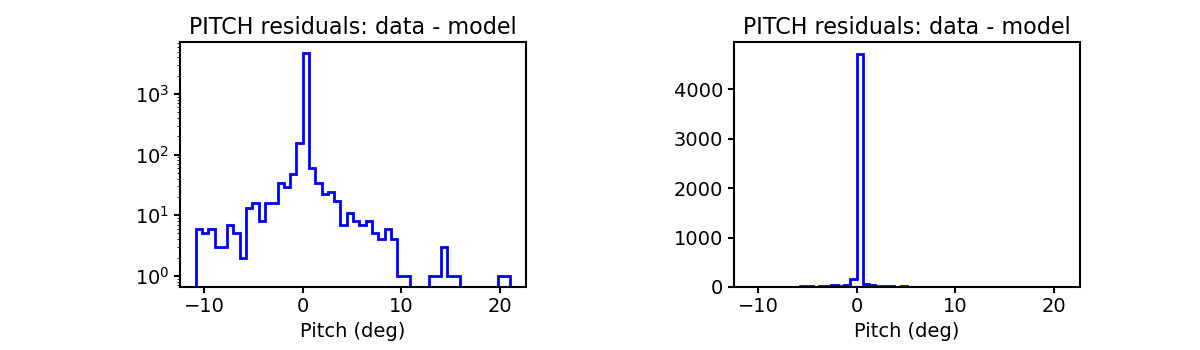

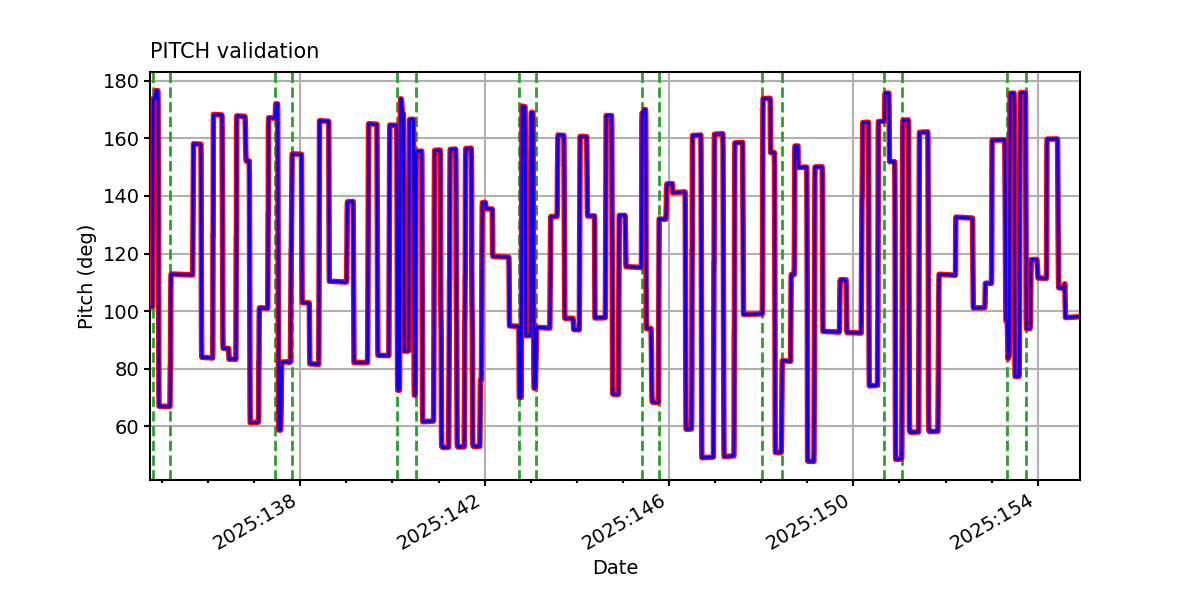

PITCH

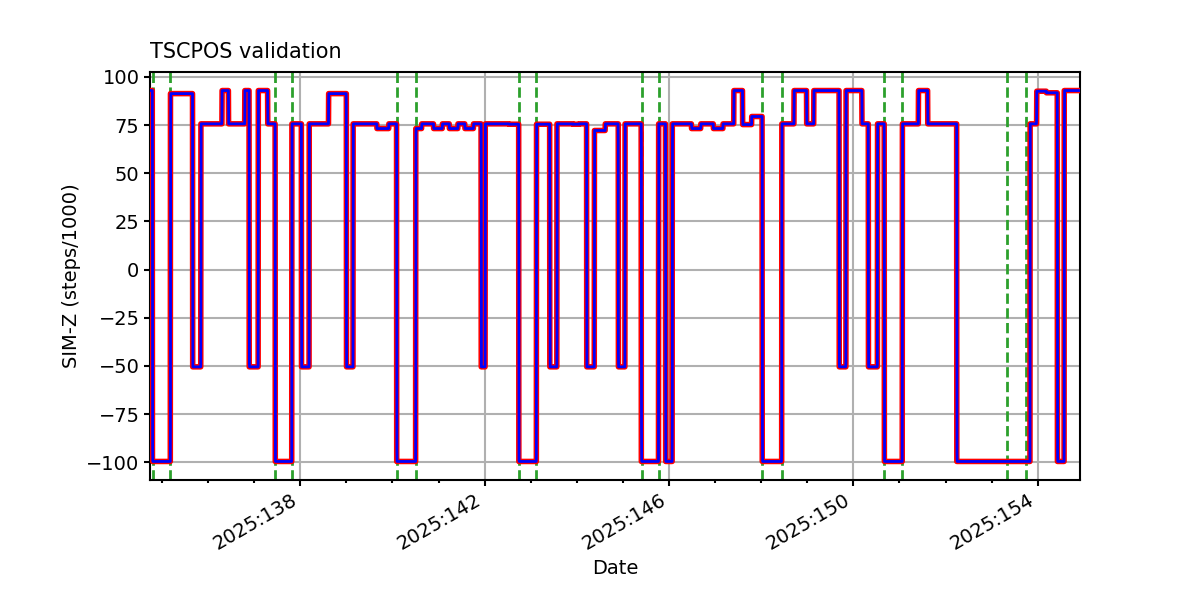

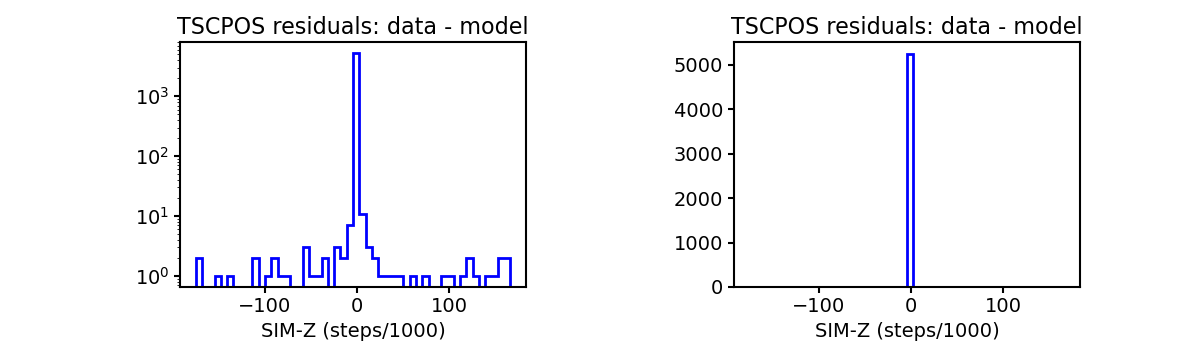

TSCPOS

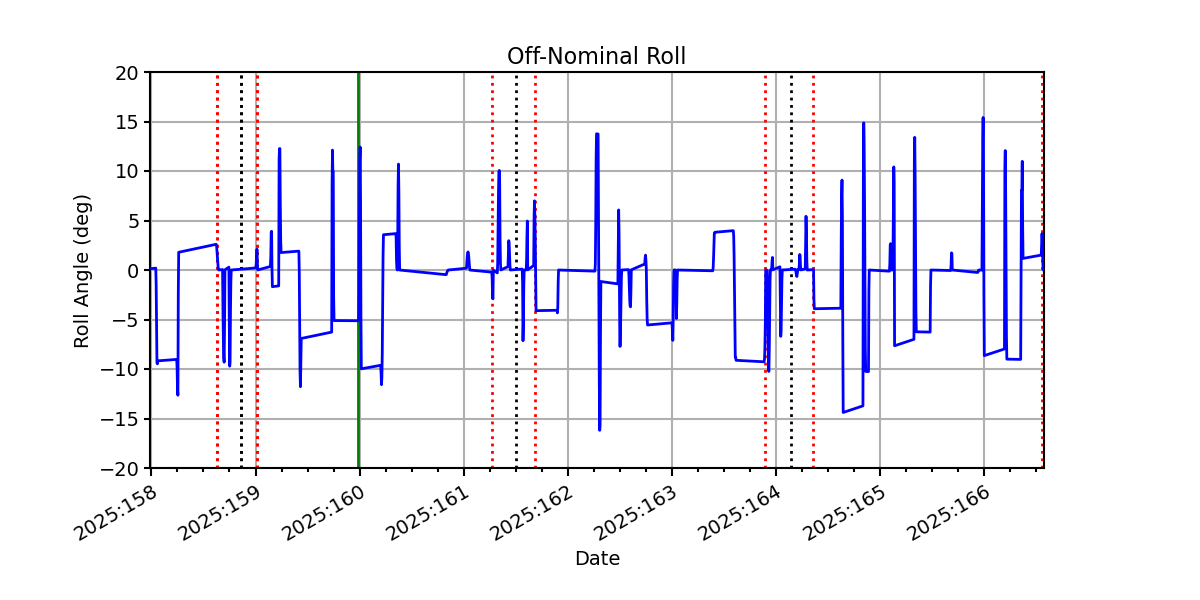

ROLL

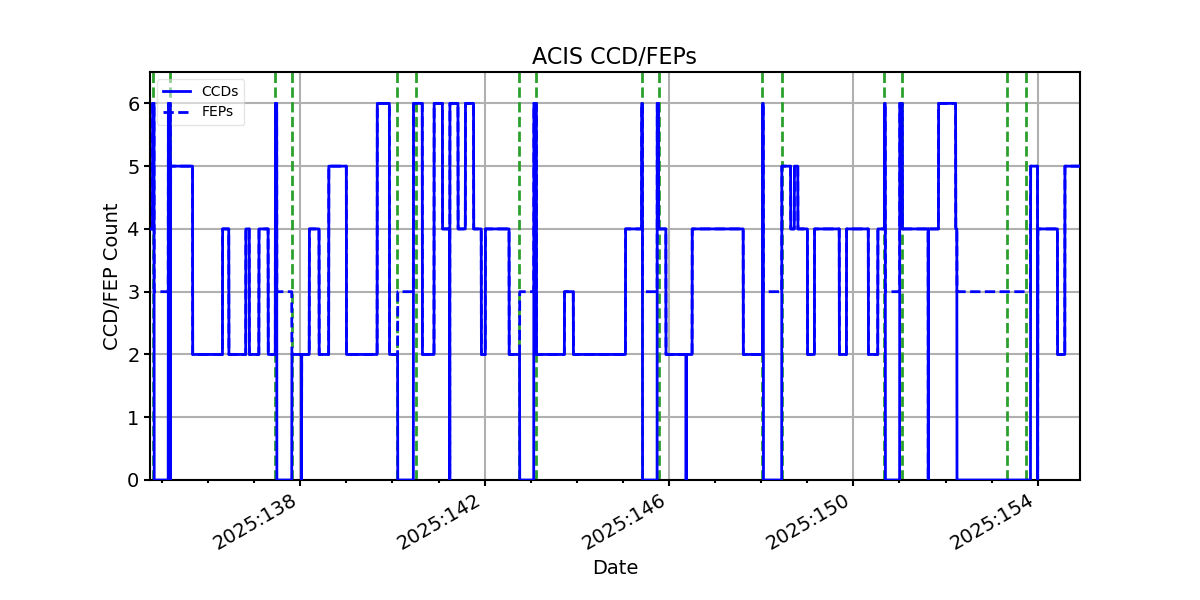

ACIS CCD/FEP Count
