PSMC Temperatures Check
Summary
| Date start | 2025:166:13:51:00.016 |
| Date stop | 2025:174:00:04:24.716 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/JUN1625/ofls |
| Run time | Wed Jun 11 12:14:58 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEAAT Upper Limit Violations
PSMC Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEAAT >= 30.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeaat | -5.08 | -2.95 | -1.96 | -0.46 | 2.32 | 4.66 | 6.43 |
| pitch | -5.124 | -0.233 | -0.004 | 0.000 | 0.004 | 0.311 | 5.162 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.307 | -0.118 | -0.005 | -0.000 | 0.005 | 0.080 | 1.325 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEAAT | 1 | -5.08 | 2.50 |
| 1PDEAAT | 99 | 6.43 | 5.50 |
| PITCH | 1 | -5.124 | 3.00 |
| PITCH | 99 | 5.162 | 3.00 |

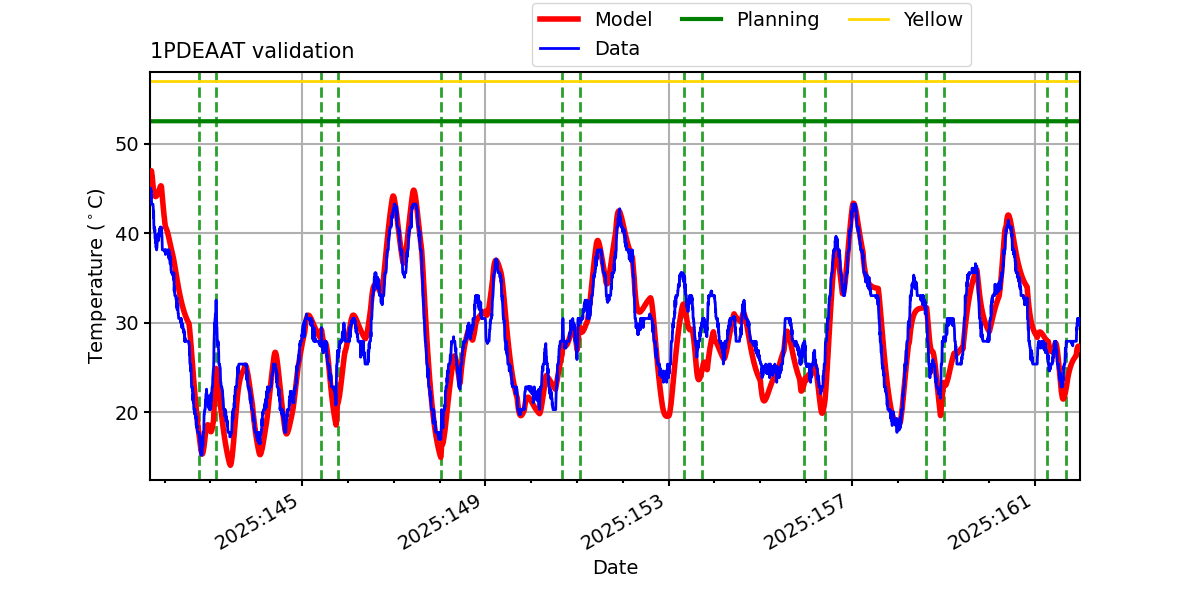

1PDEAAT

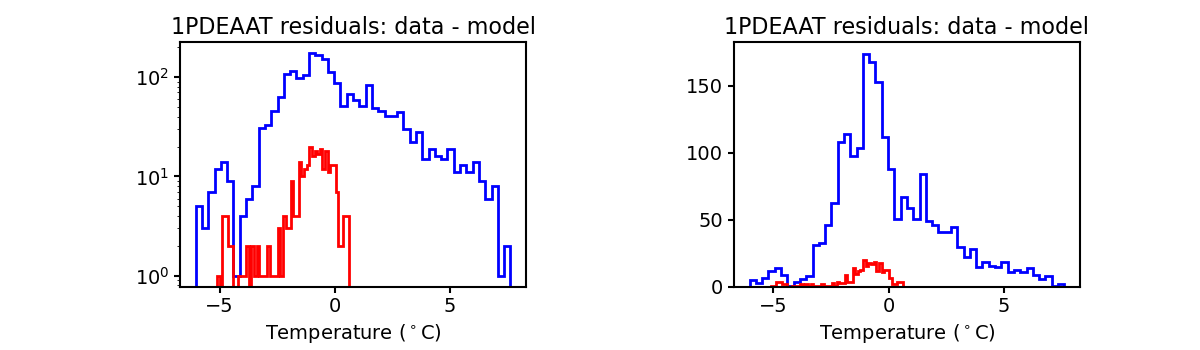

Note: 1PDEAAT residual histograms include only points where 1PDEAAT >= 30.0 C in blue and points where 1PDEAAT >= 40.0 C in red.

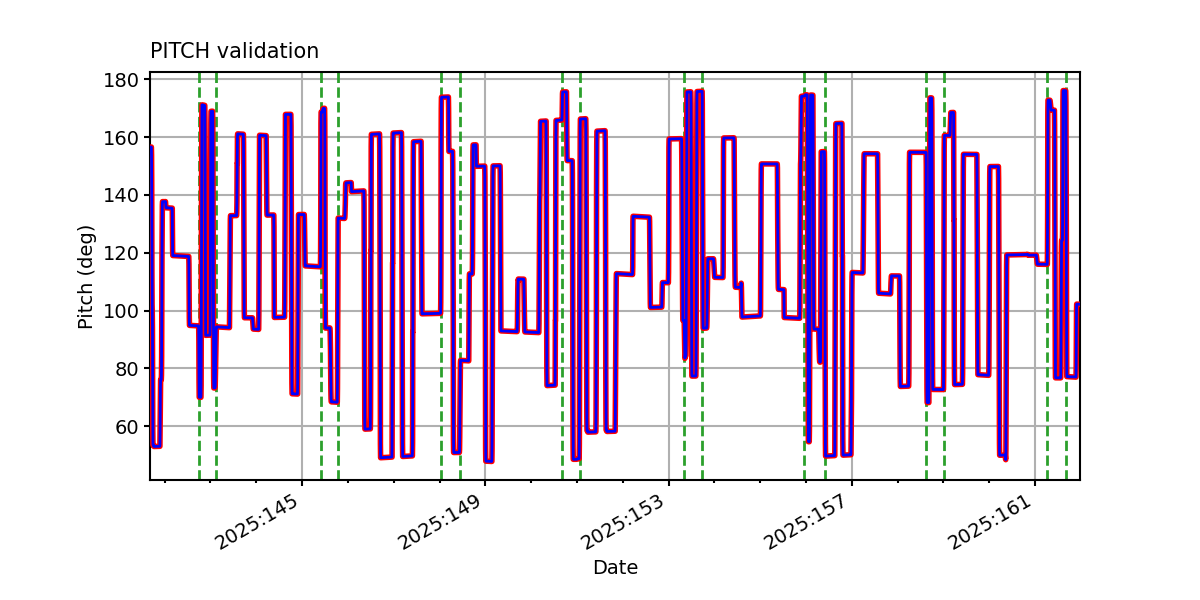

PITCH

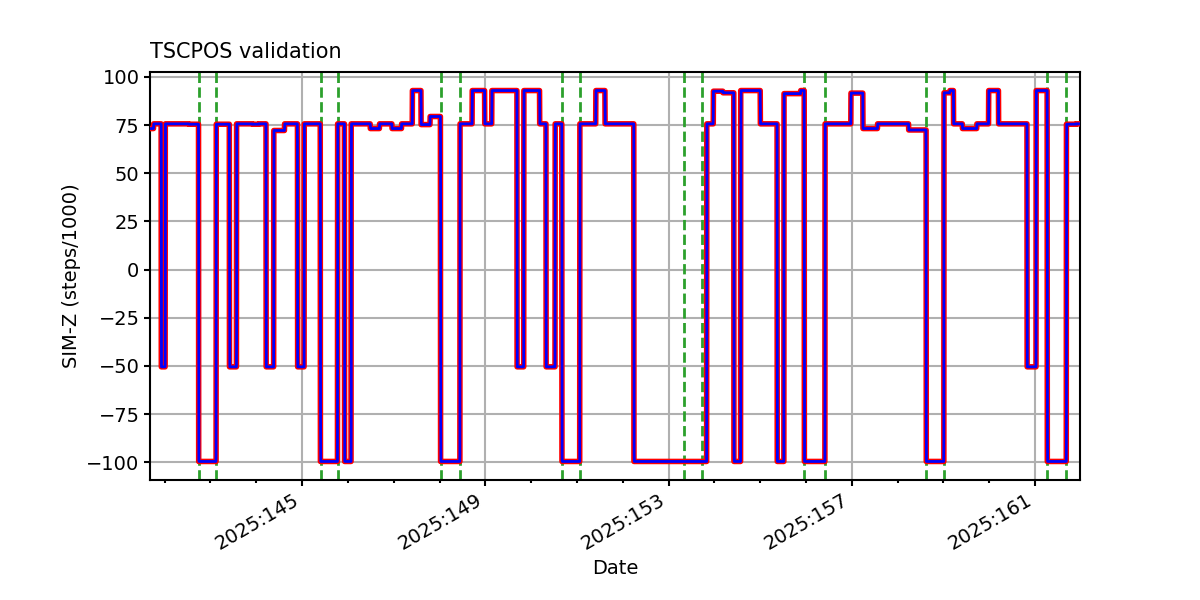

TSCPOS

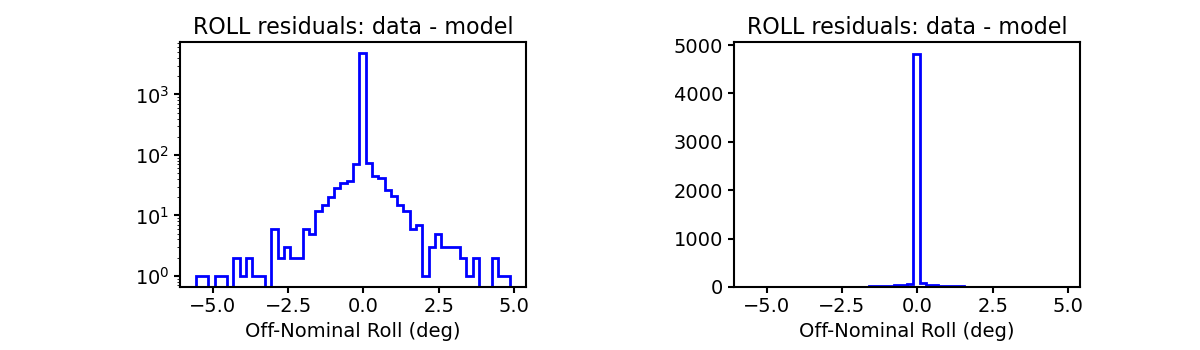

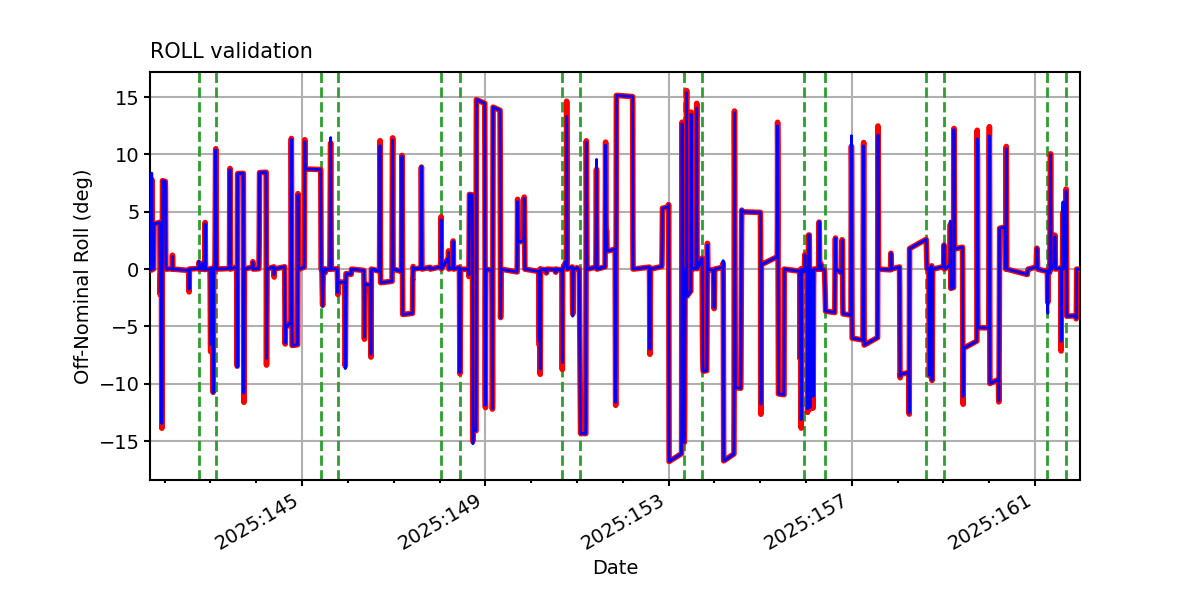

ROLL

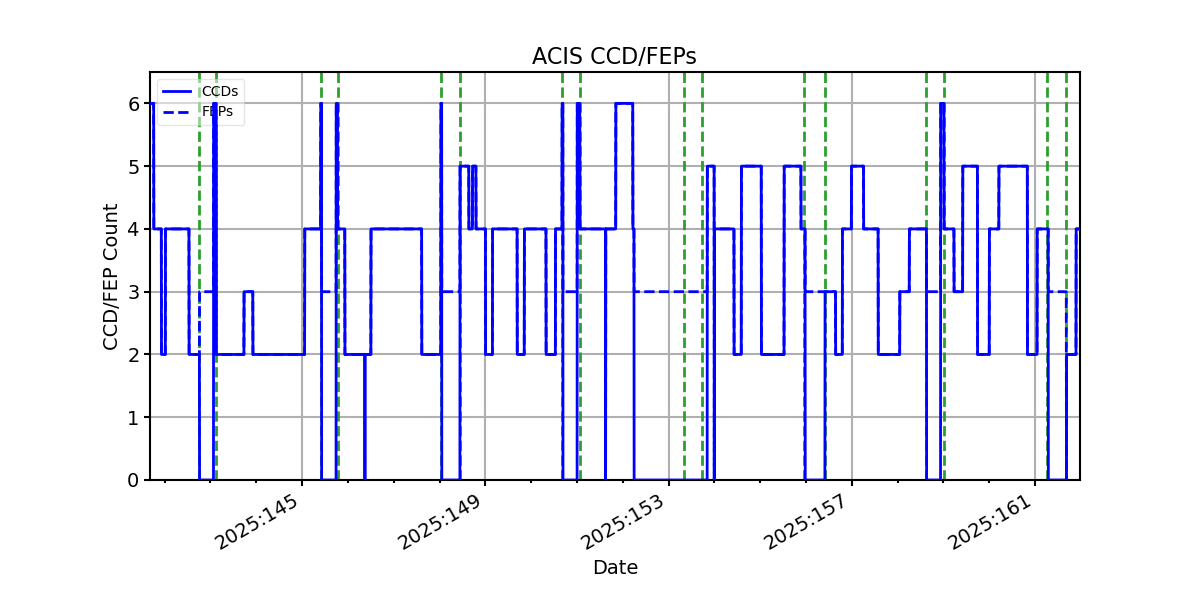

ACIS CCD/FEP Count
