PSMC Temperatures Check
Summary
| Date start | 2026:173:00:11:21.816 |
| Date stop | 2026:179:17:09:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/JUN2226/oflsa |
| Run time | Wed Jun 17 18:32:21 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

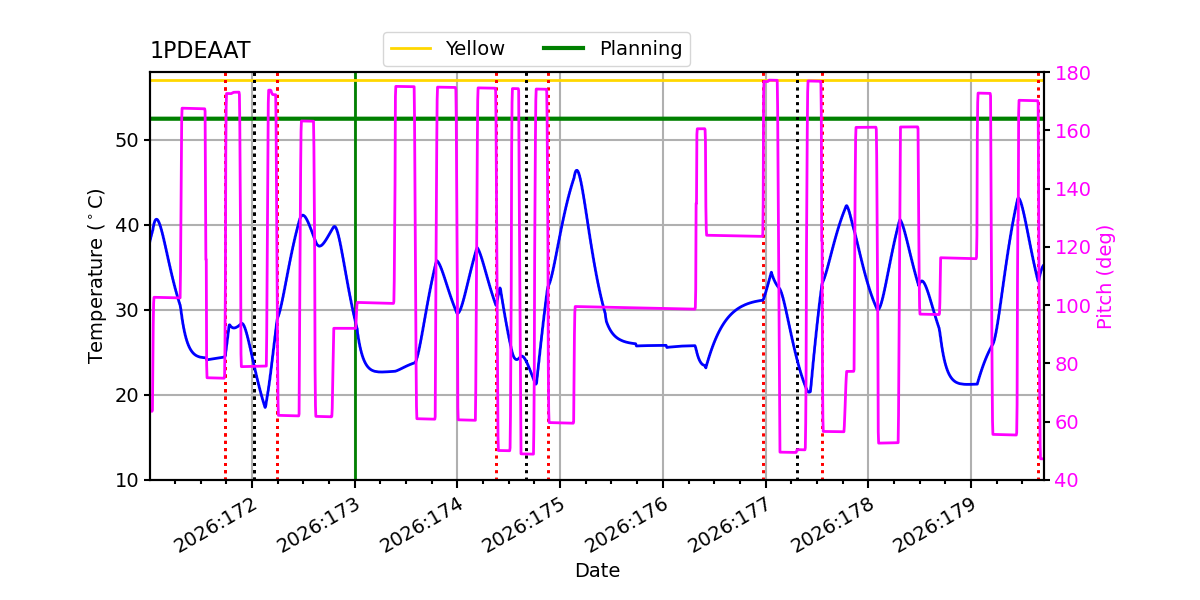

No 1PDEAAT Upper Limit Violations
PSMC Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEAAT >= 30.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeaat | -2.60 | -1.78 | -0.49 | 1.01 | 2.73 | 3.94 | 8.21 |
| pitch | -10.607 | -0.248 | -0.004 | 0.000 | 0.004 | 0.669 | 8.354 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |

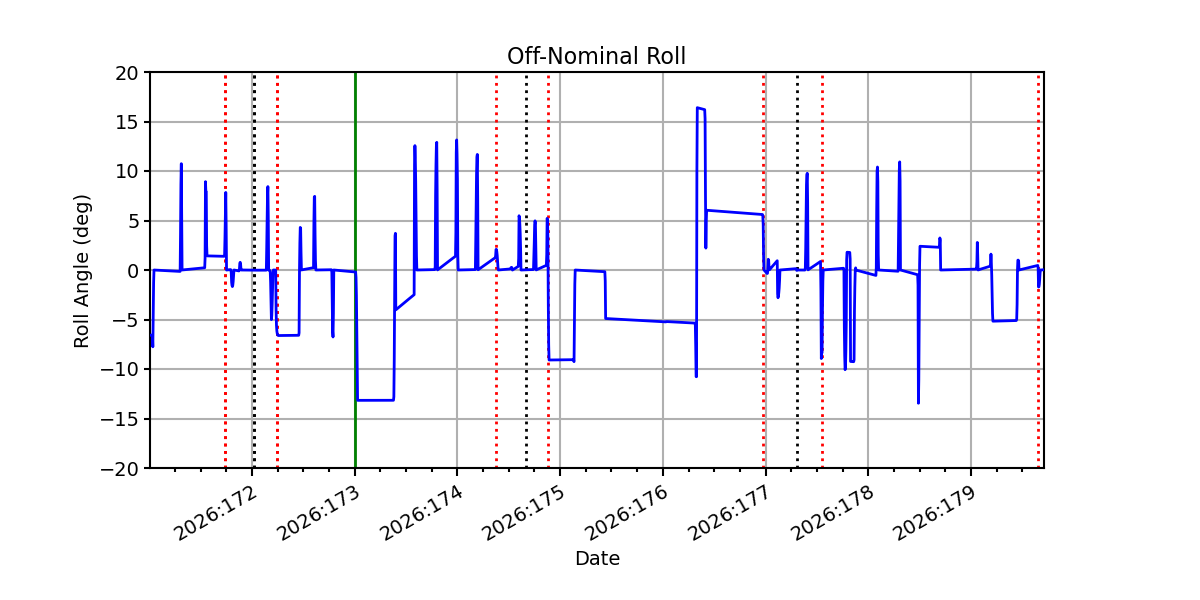

| roll | -2.041 | -0.109 | -0.007 | 0.000 | 0.007 | 0.108 | 1.970 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEAAT | 1 | -2.6 | 2.50 |
| 1PDEAAT | 50 | 1.01 | 1.00 |
| 1PDEAAT | 99 | 8.21 | 5.50 |
| PITCH | 1 | -10.607 | 3.00 |
| PITCH | 99 | 8.354 | 3.00 |

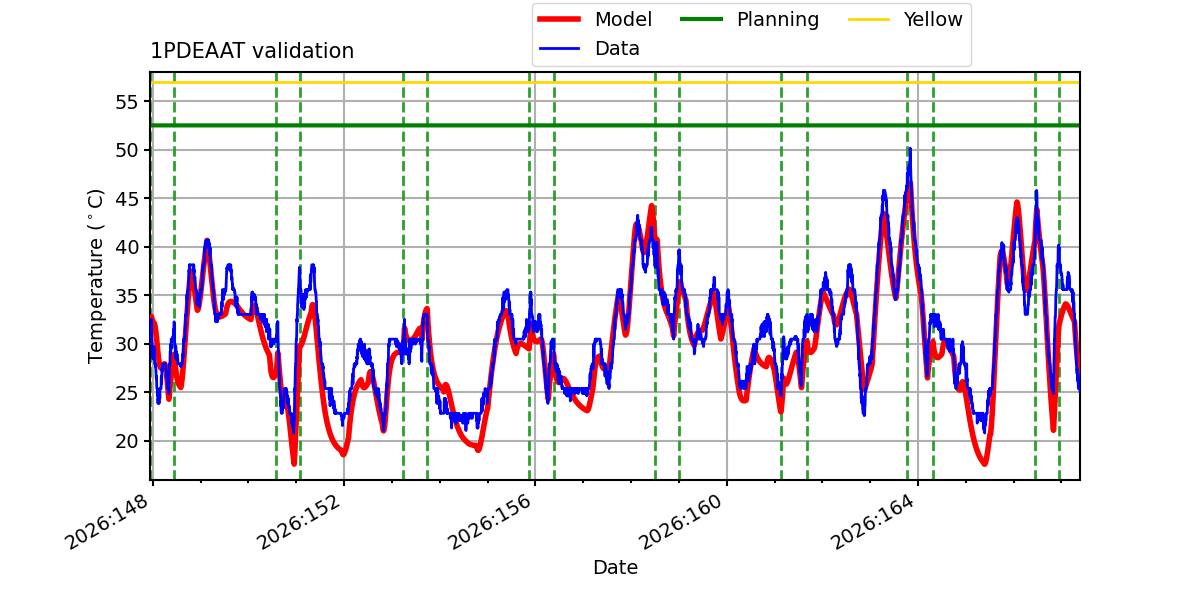

1PDEAAT

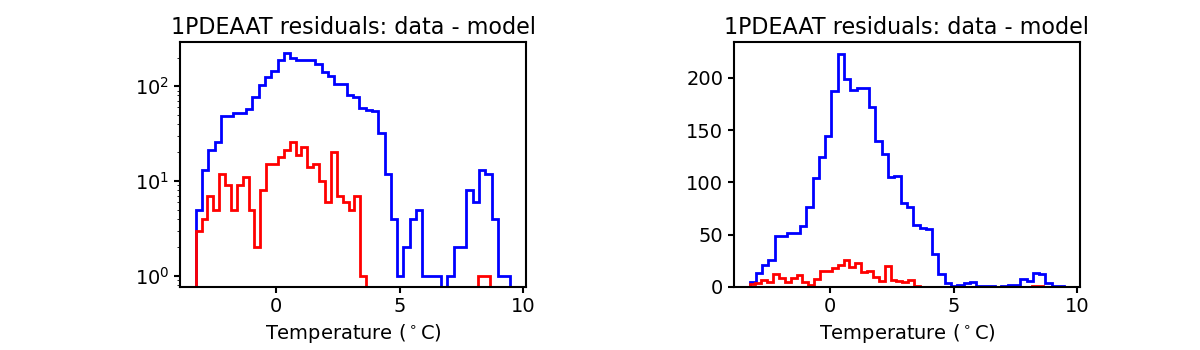

Note: 1PDEAAT residual histograms include only points where 1PDEAAT >= 30.0 C in blue and points where 1PDEAAT >= 40.0 C in red.

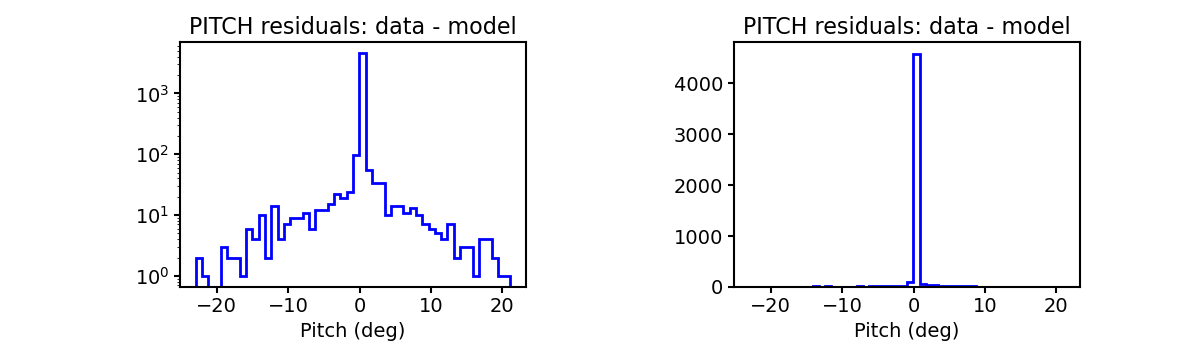

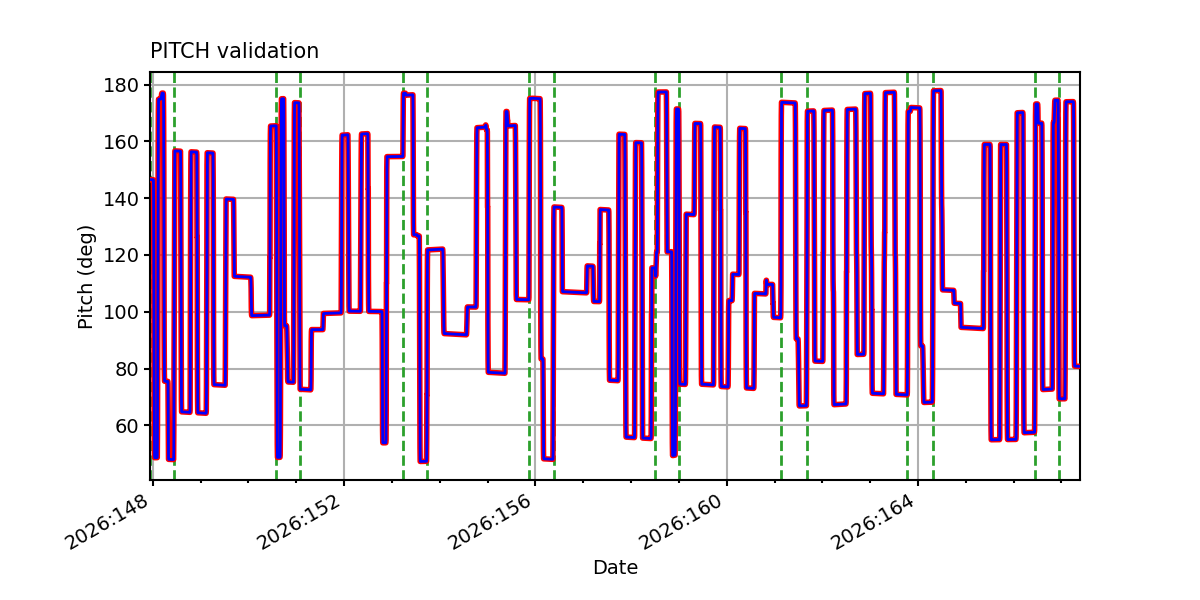

PITCH

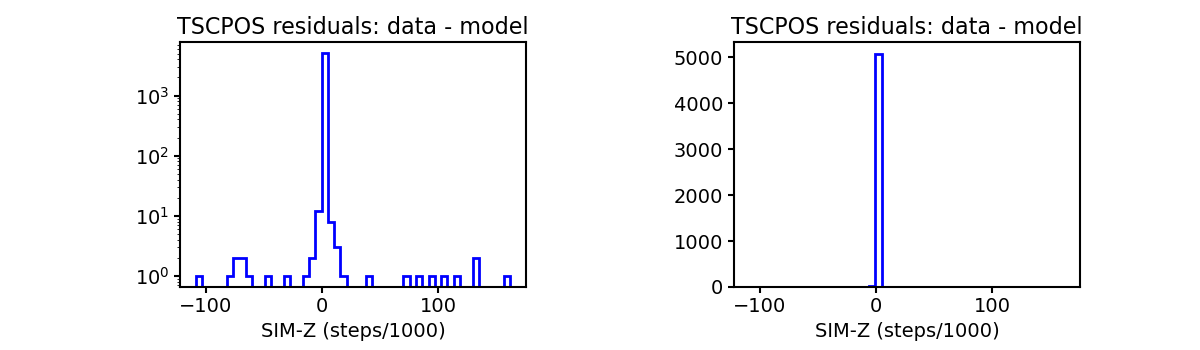

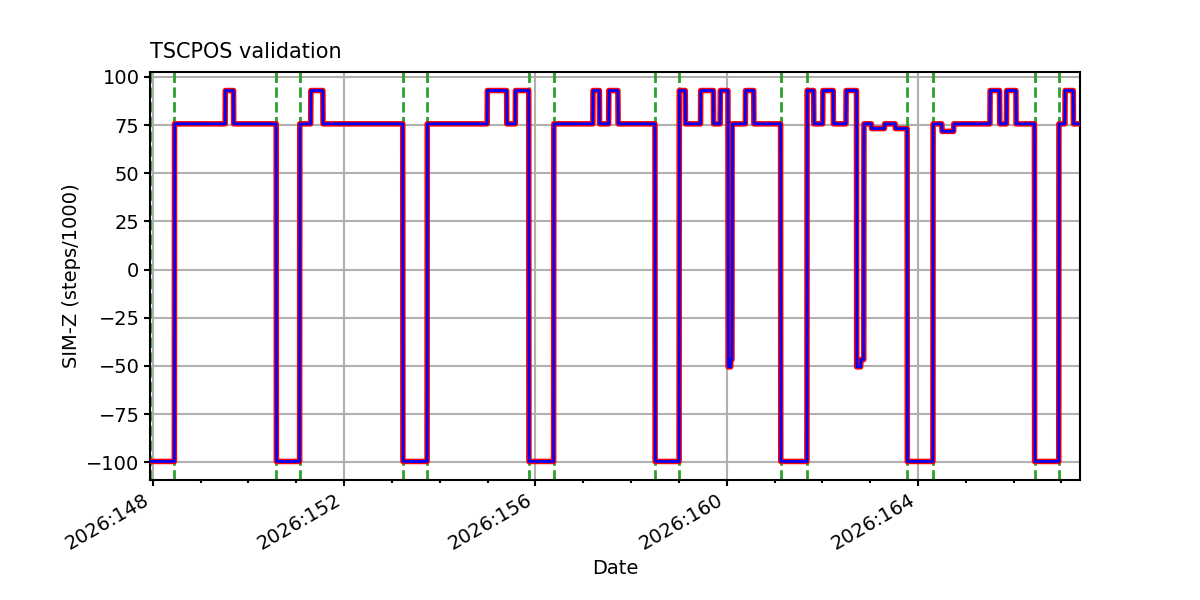

TSCPOS

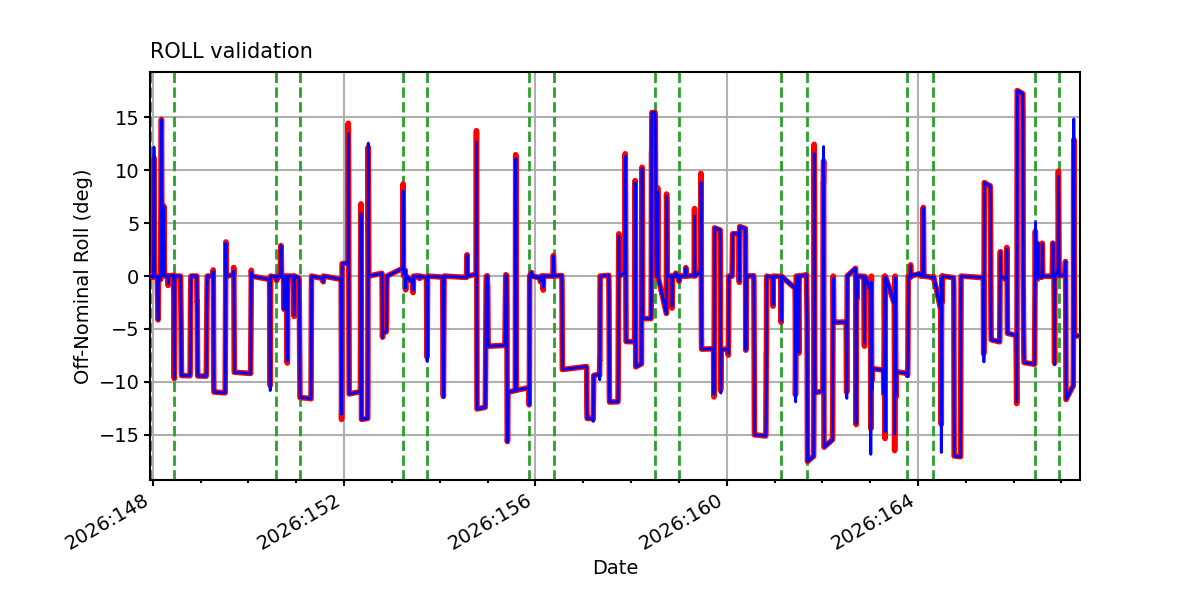

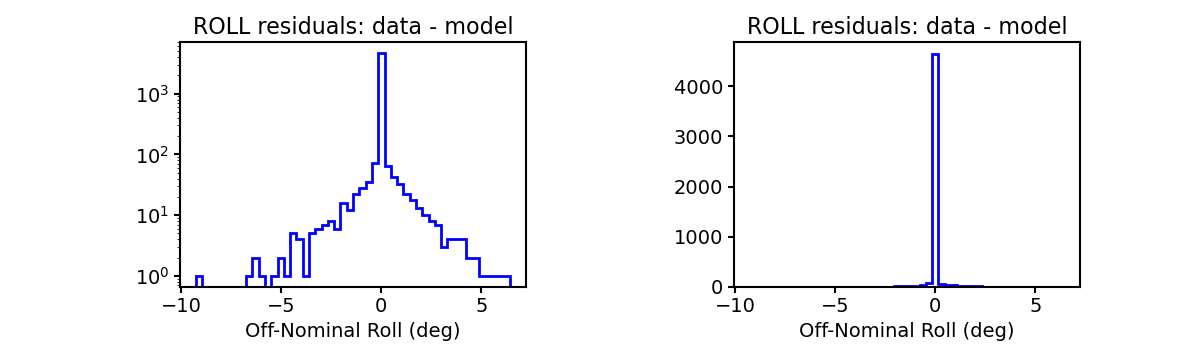

ROLL

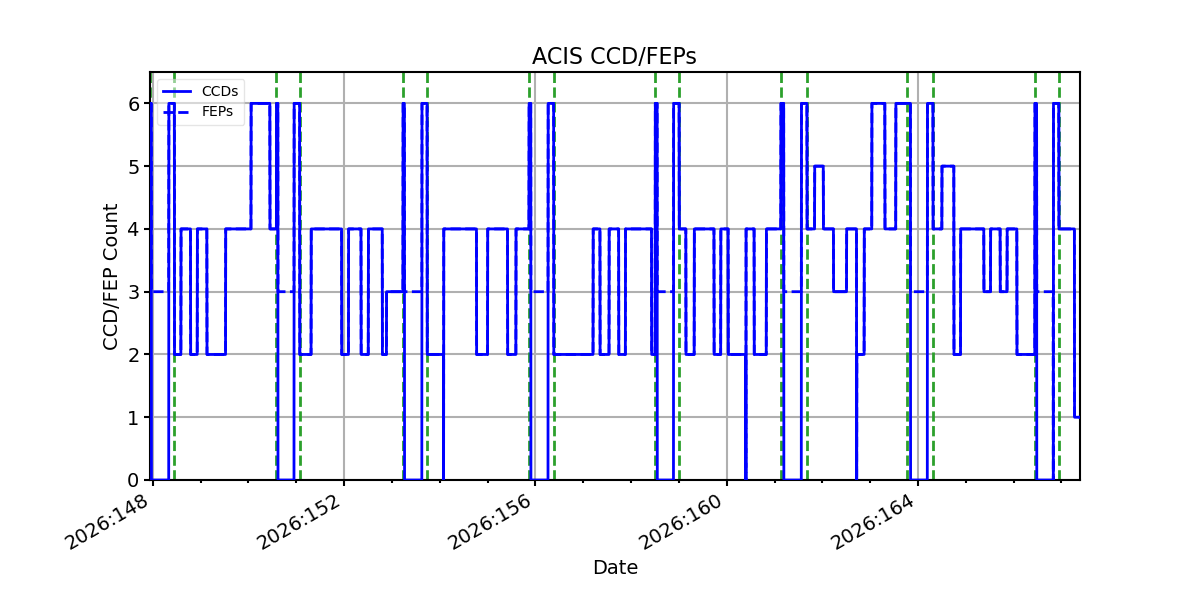

ACIS CCD/FEP Count
