PSMC Temperatures Check
Summary
| Date start | 2026:060:17:08:00.016 |
| Date stop | 2026:067:21:28:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/MAR0226/oflsa |
| Run time | Wed Feb 25 19:53:50 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEAAT Upper Limit Violations
PSMC Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEAAT >= 30.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeaat | -2.39 | -1.72 | -0.89 | 1.10 | 3.49 | 4.80 | 5.73 |
| pitch | -10.014 | -0.697 | -0.004 | -0.000 | 0.004 | 0.440 | 12.490 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.779 | -0.144 | -0.012 | -0.000 | 0.012 | 0.126 | 1.928 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEAAT | 50 | 1.1 | 1.00 |
| 1PDEAAT | 99 | 5.73 | 5.50 |
| PITCH | 1 | -10.014 | 3.00 |
| PITCH | 99 | 12.49 | 3.00 |

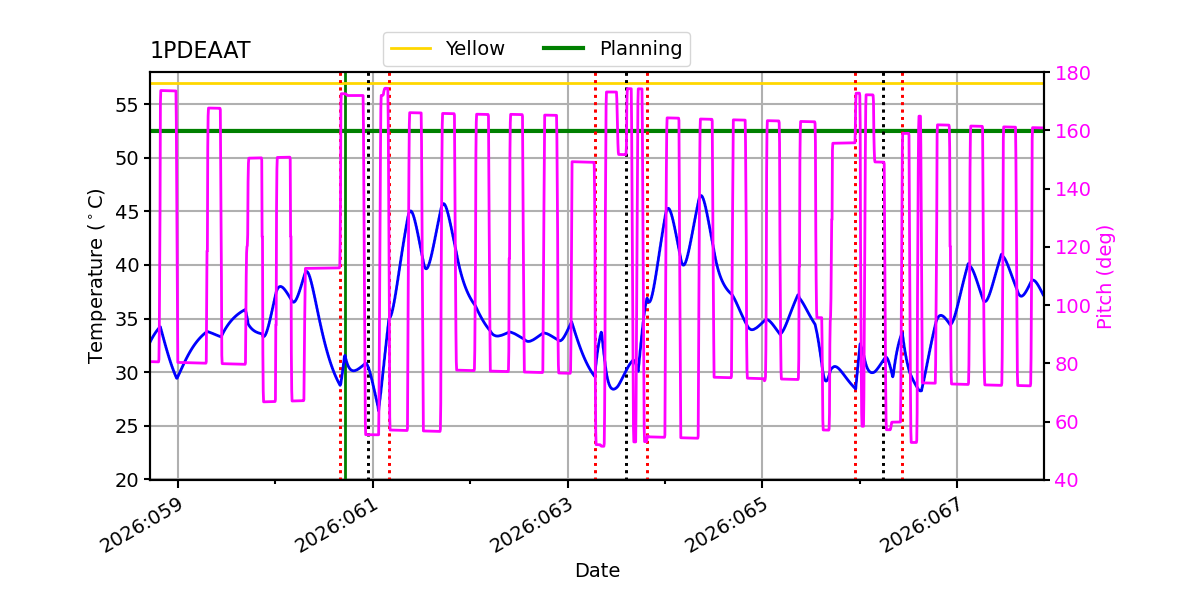

1PDEAAT
Note: 1PDEAAT residual histograms include only points where 1PDEAAT >= 30.0 C in blue and points where 1PDEAAT >= 40.0 C in red.

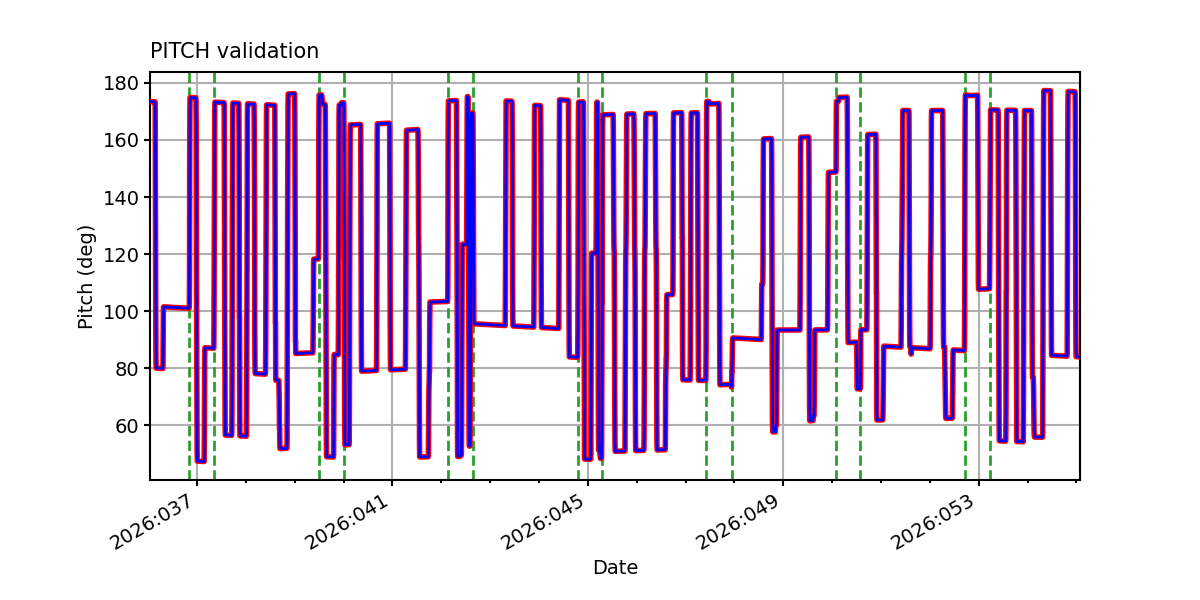

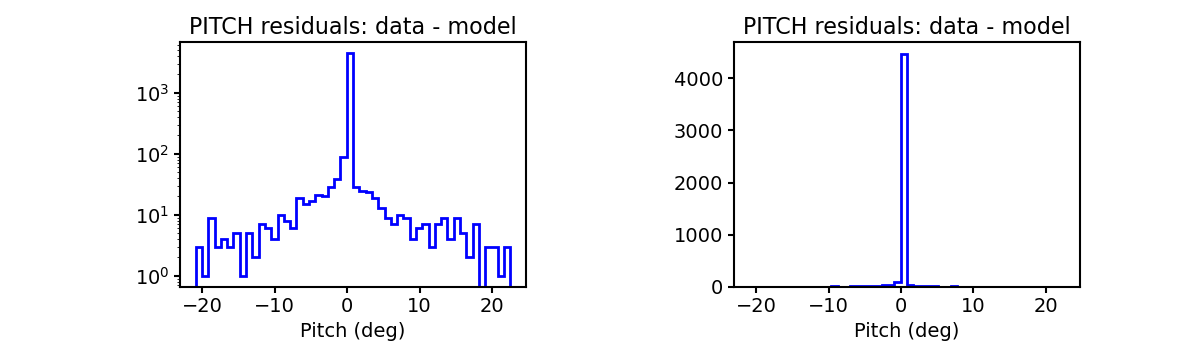

PITCH

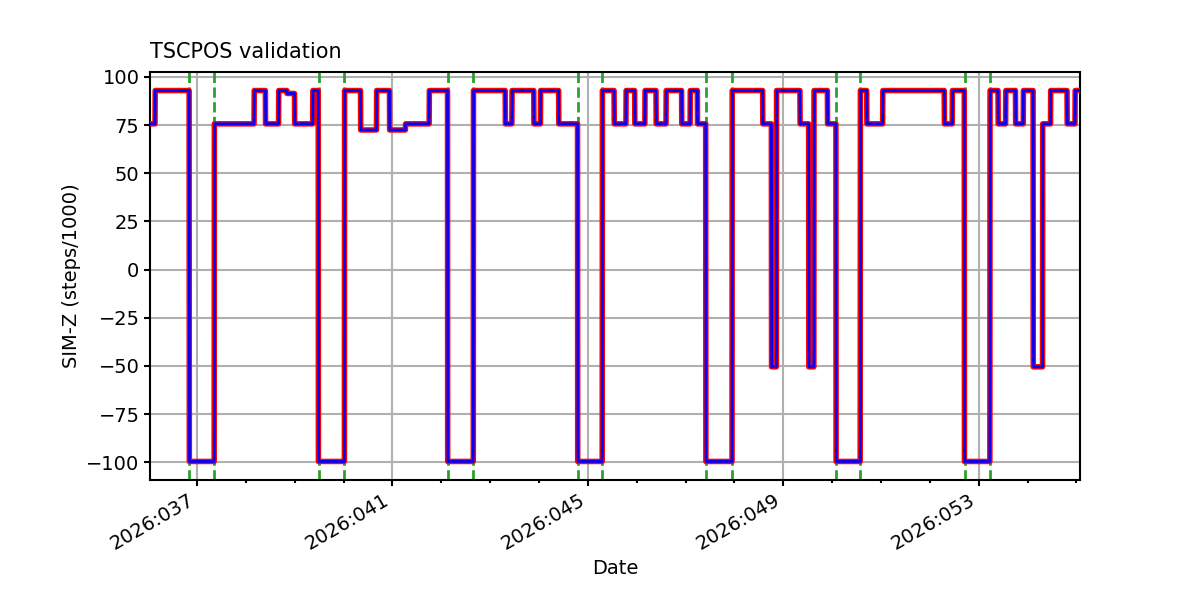

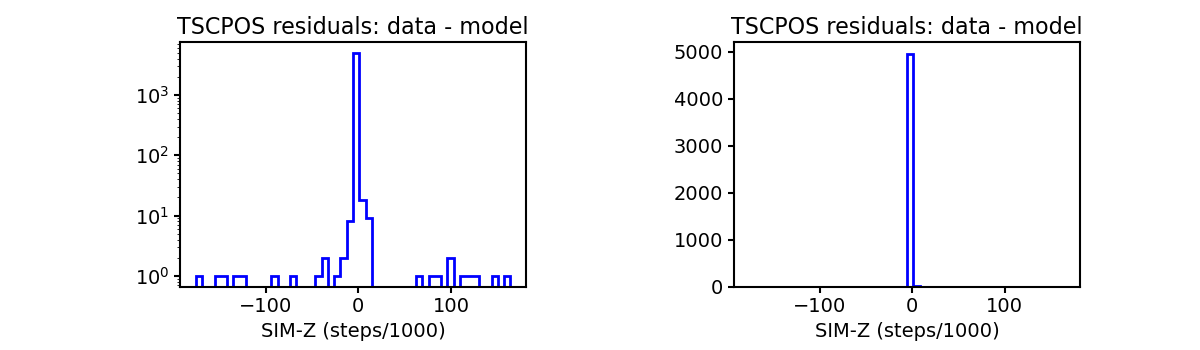

TSCPOS

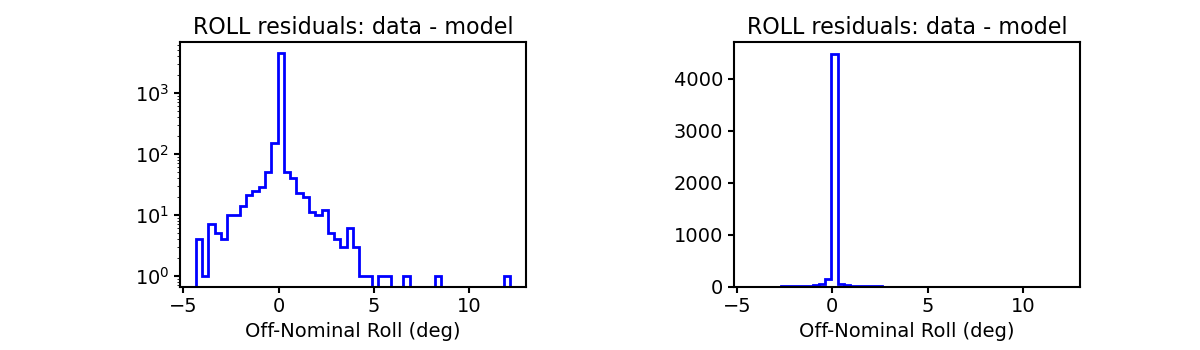

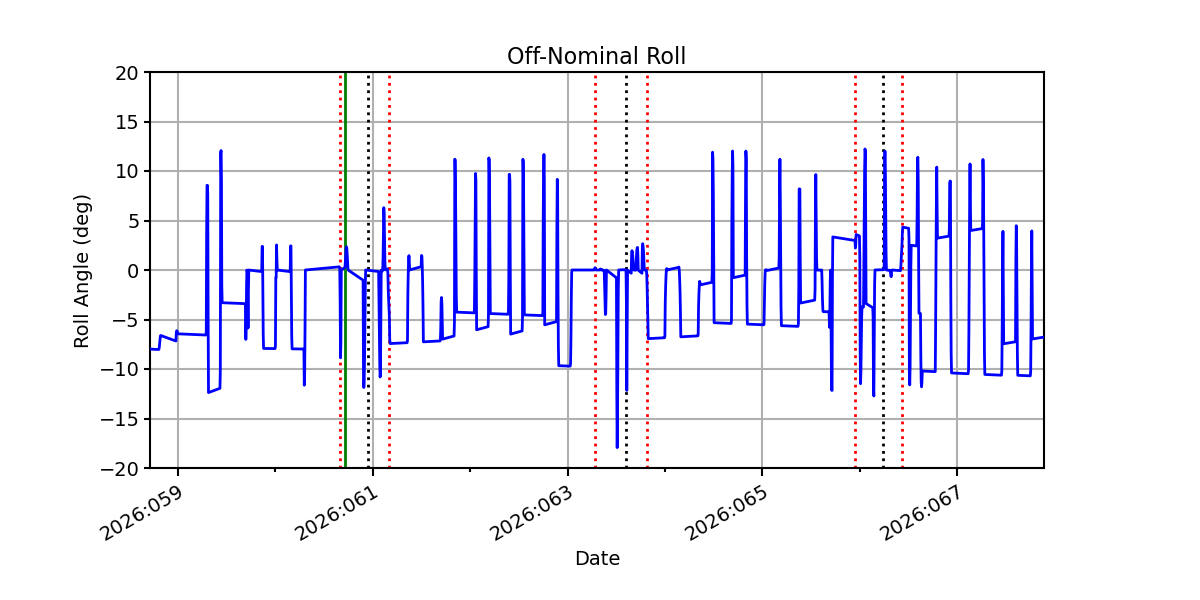

ROLL

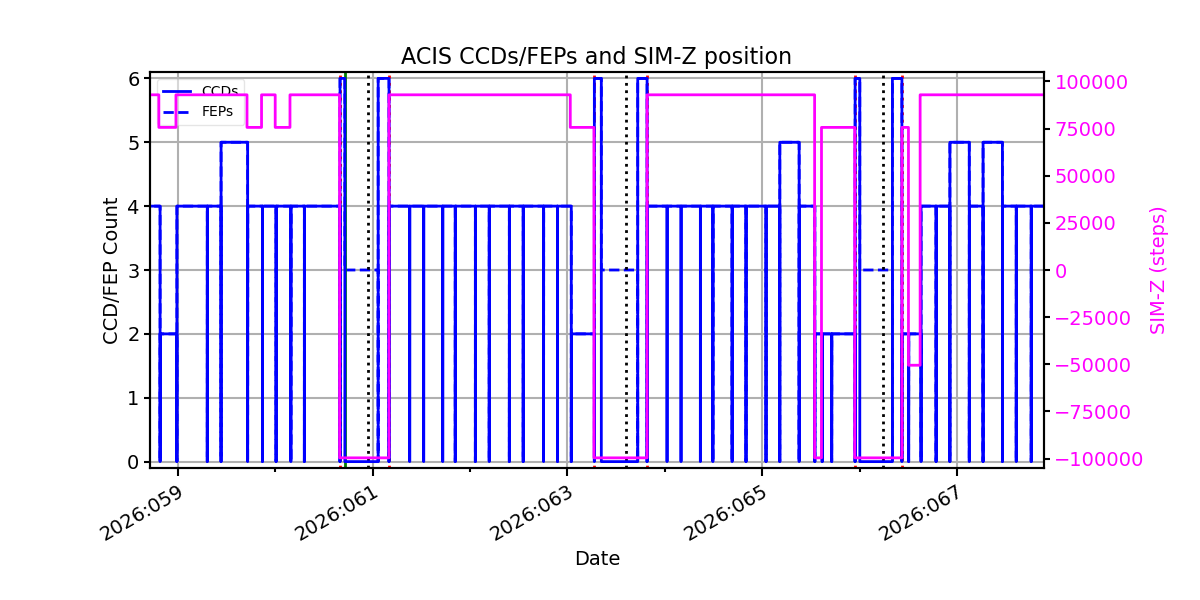

ACIS CCD/FEP Count
