PSMC Temperatures Check
Summary
| Date start | 2026:081:20:41:00.016 |
| Date stop | 2026:088:21:40:04.616 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/MAR2326/oflsa |
| Run time | Thu Mar 19 10:48:04 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

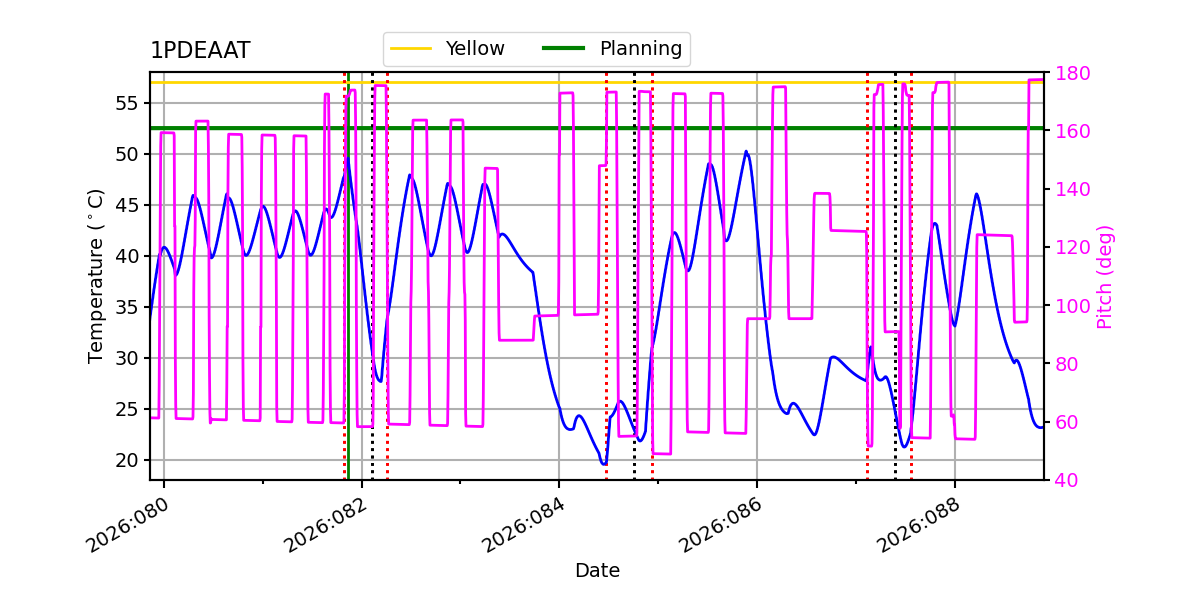

No 1PDEAAT Upper Limit Violations
PSMC Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEAAT >= 30.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeaat | -1.99 | -1.13 | -0.34 | 0.84 | 2.37 | 3.17 | 4.36 |
| pitch | -13.289 | -1.567 | -0.004 | 0.000 | 0.004 | 2.120 | 12.438 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -2.325 | -0.287 | -0.011 | 0.000 | 0.013 | 0.325 | 2.197 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| PITCH | 1 | -13.289 | 3.00 |
| PITCH | 99 | 12.438 | 3.00 |

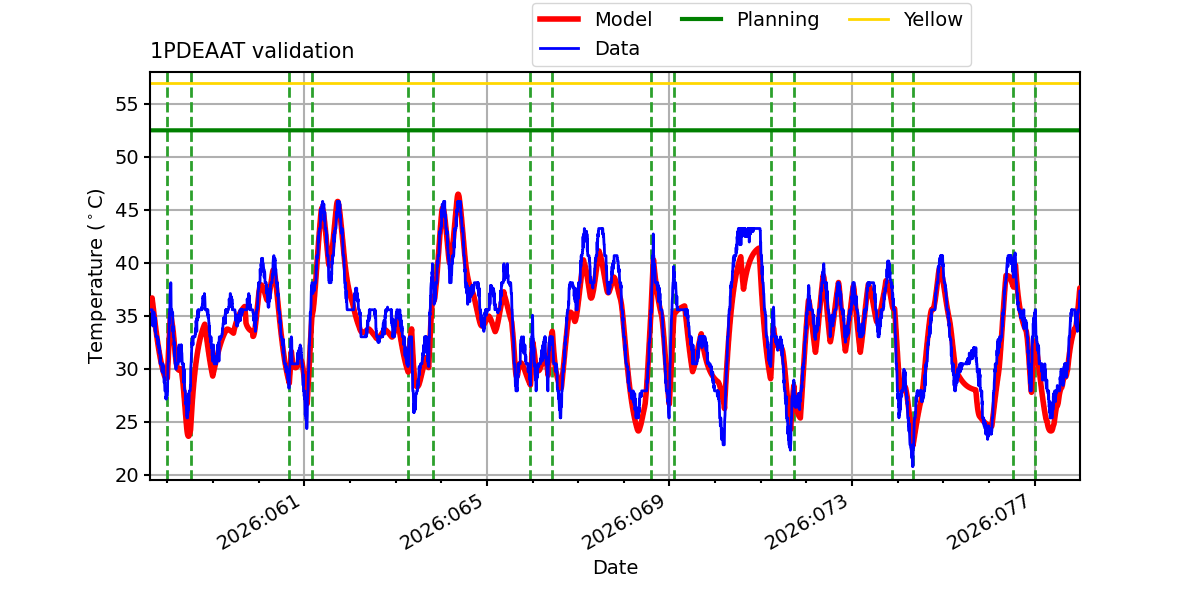

1PDEAAT

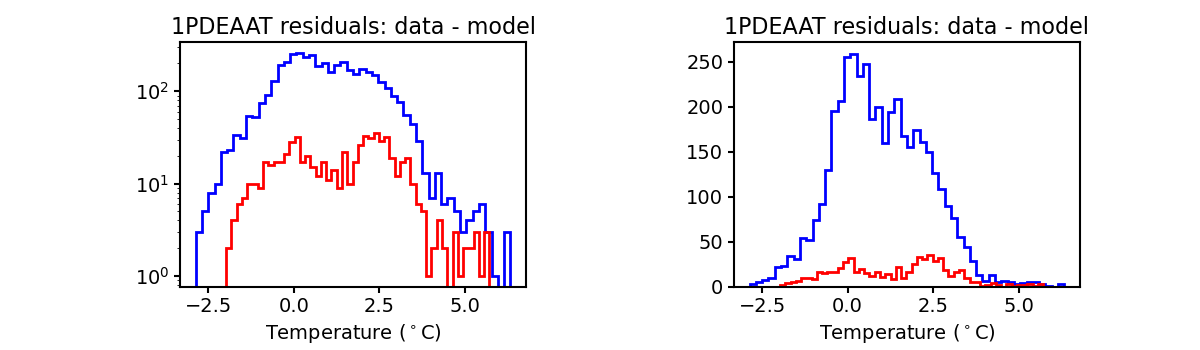

Note: 1PDEAAT residual histograms include only points where 1PDEAAT >= 30.0 C in blue and points where 1PDEAAT >= 40.0 C in red.

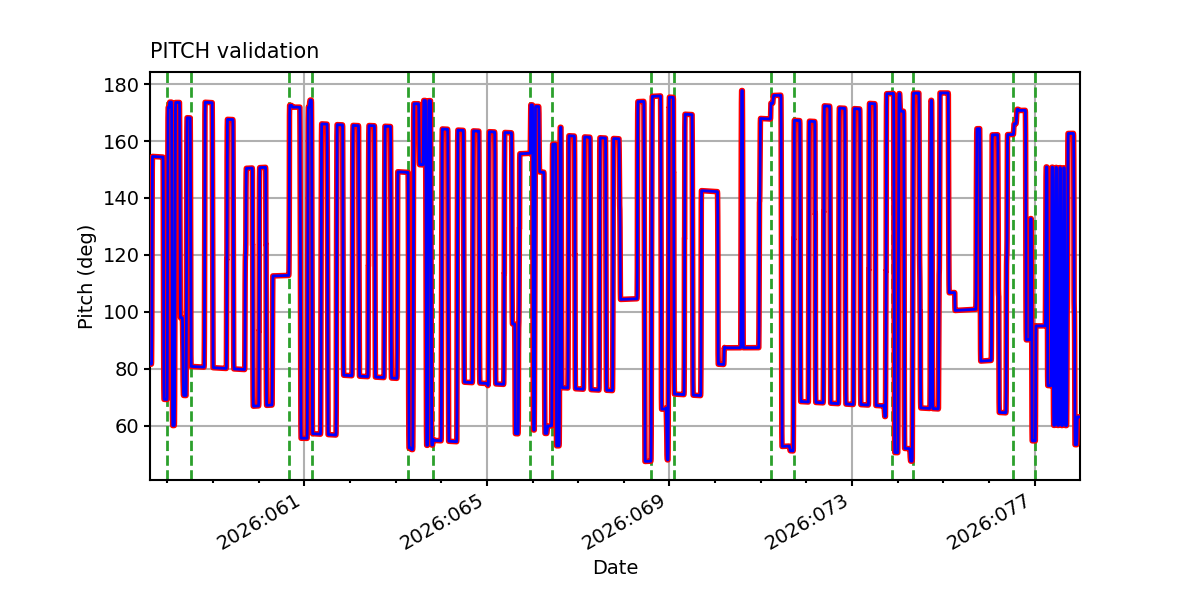

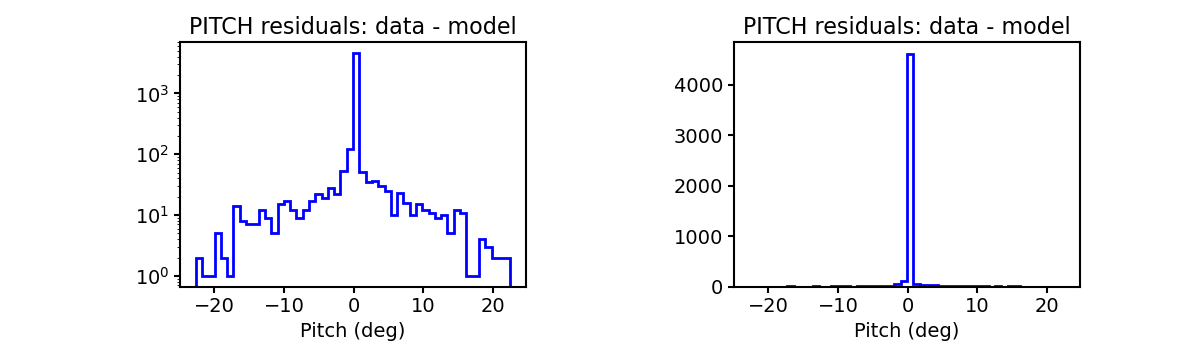

PITCH
TSCPOS

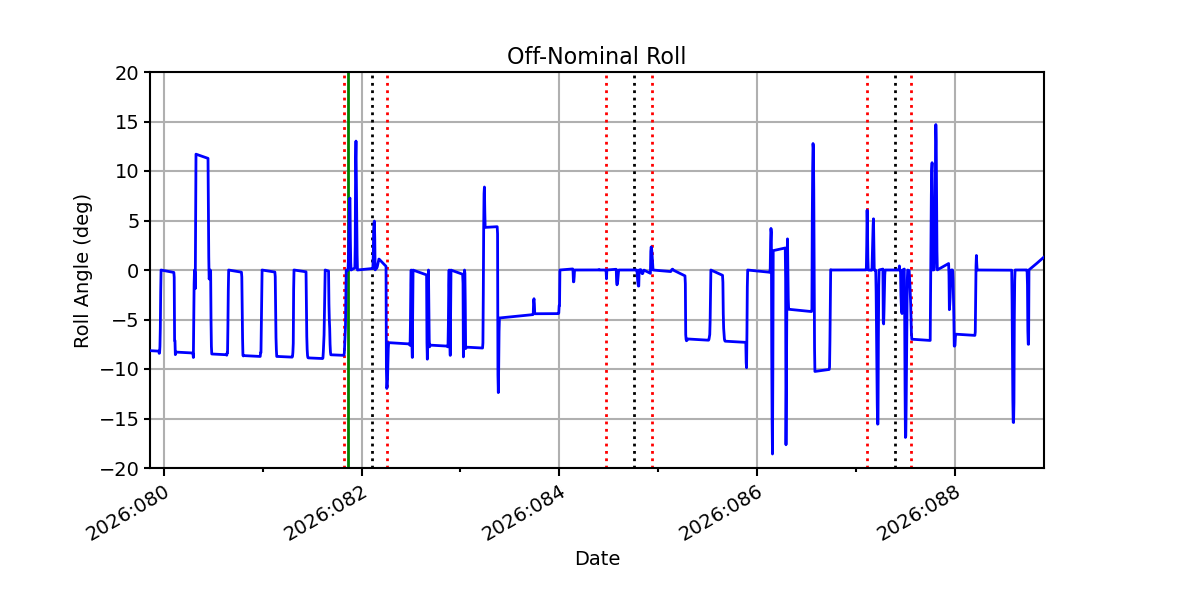

ROLL

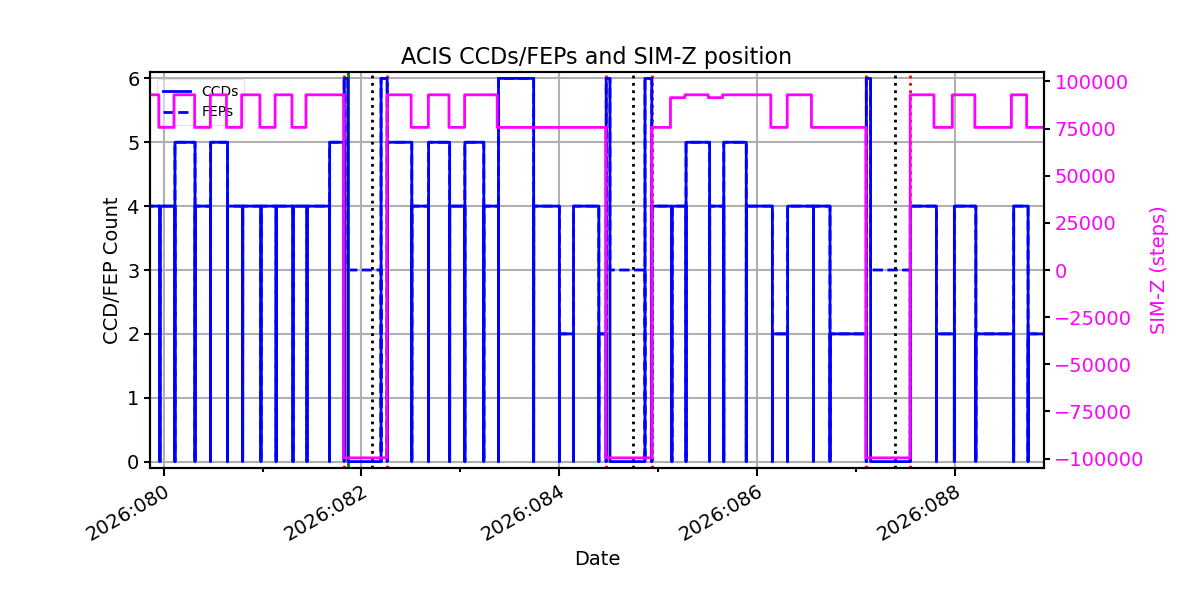

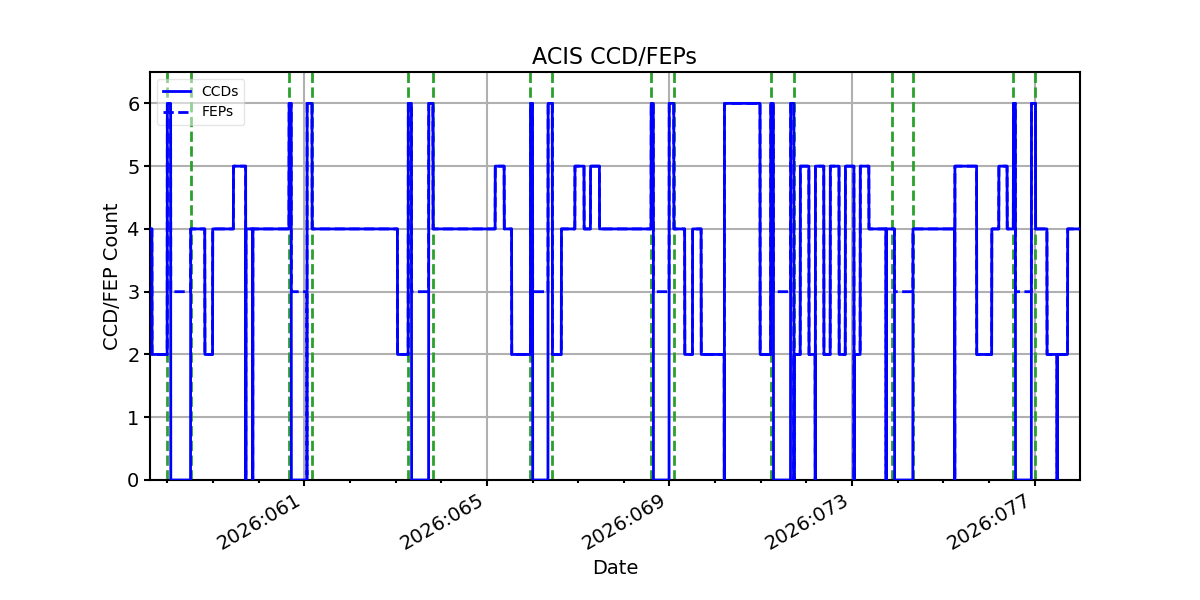

ACIS CCD/FEP Count
