PSMC Temperatures Check
Summary
| Date start | 2026:130:20:55:40.716 |
| Date stop | 2026:137:09:59:04.316 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/MAY1126/oflsa |
| Run time | Wed May 6 15:48:40 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEAAT Upper Limit Violations
PSMC Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEAAT >= 30.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeaat | -3.50 | -2.60 | -1.35 | 0.66 | 2.37 | 3.31 | 4.41 |
| pitch | -10.038 | -0.149 | -0.004 | 0.000 | 0.004 | 0.185 | 10.249 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.812 | -0.077 | -0.004 | -0.000 | 0.004 | 0.098 | 2.103 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEAAT | 1 | -3.5 | 2.50 |
| PITCH | 1 | -10.038 | 3.00 |
| PITCH | 99 | 10.249 | 3.00 |

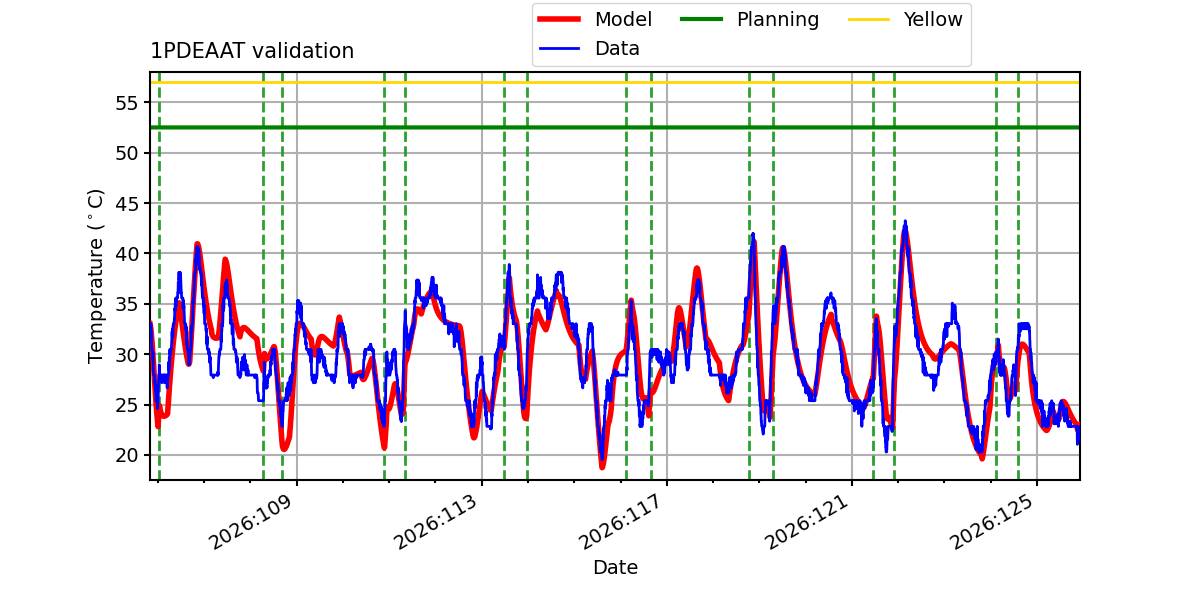

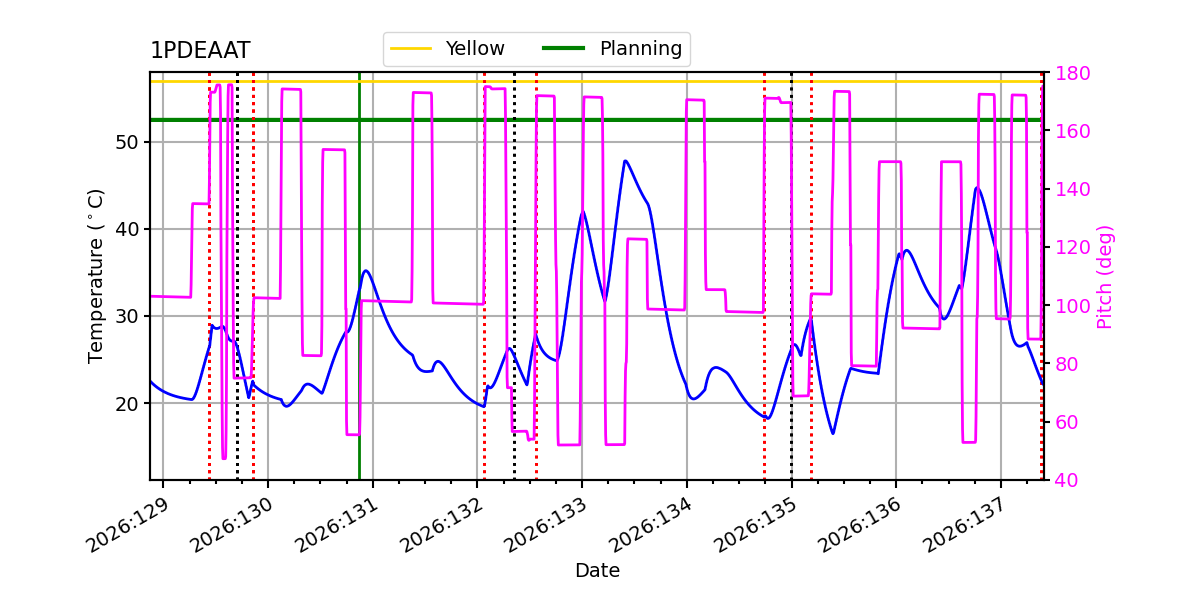

1PDEAAT

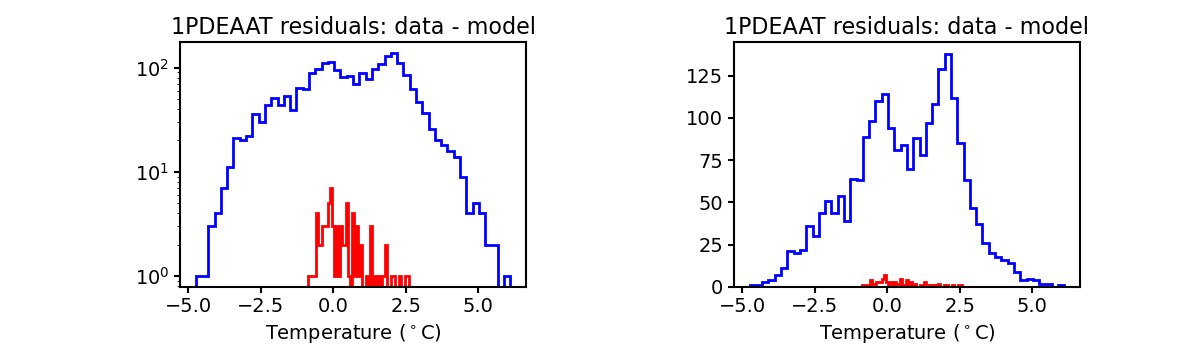

Note: 1PDEAAT residual histograms include only points where 1PDEAAT >= 30.0 C in blue and points where 1PDEAAT >= 40.0 C in red.

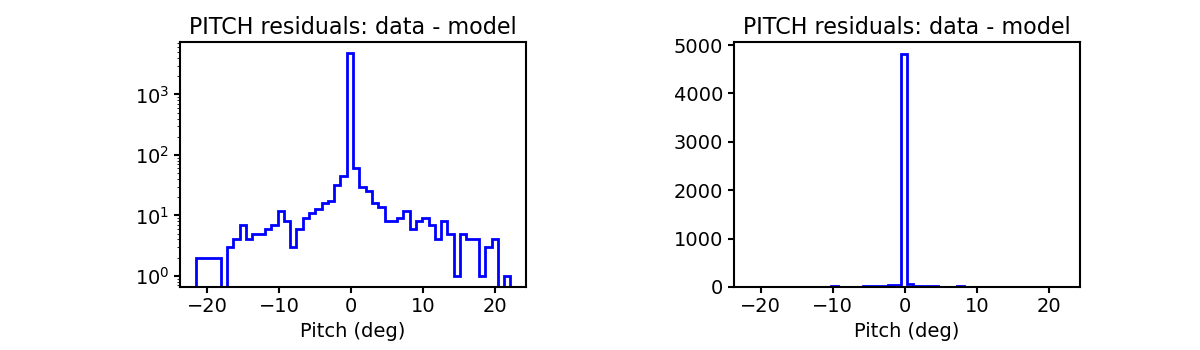

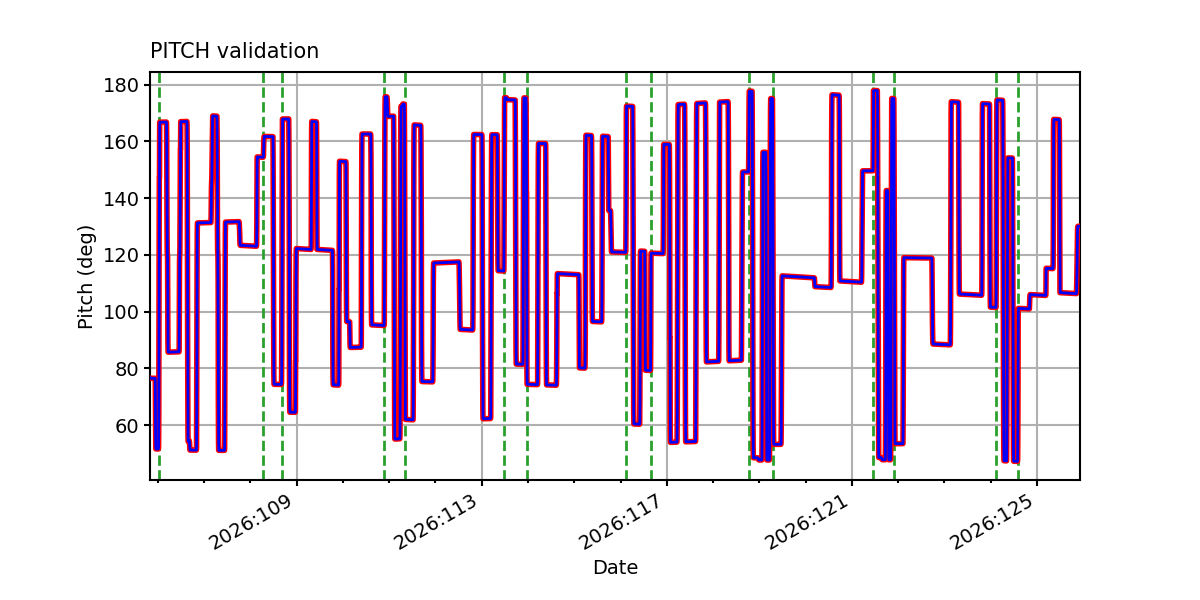

PITCH

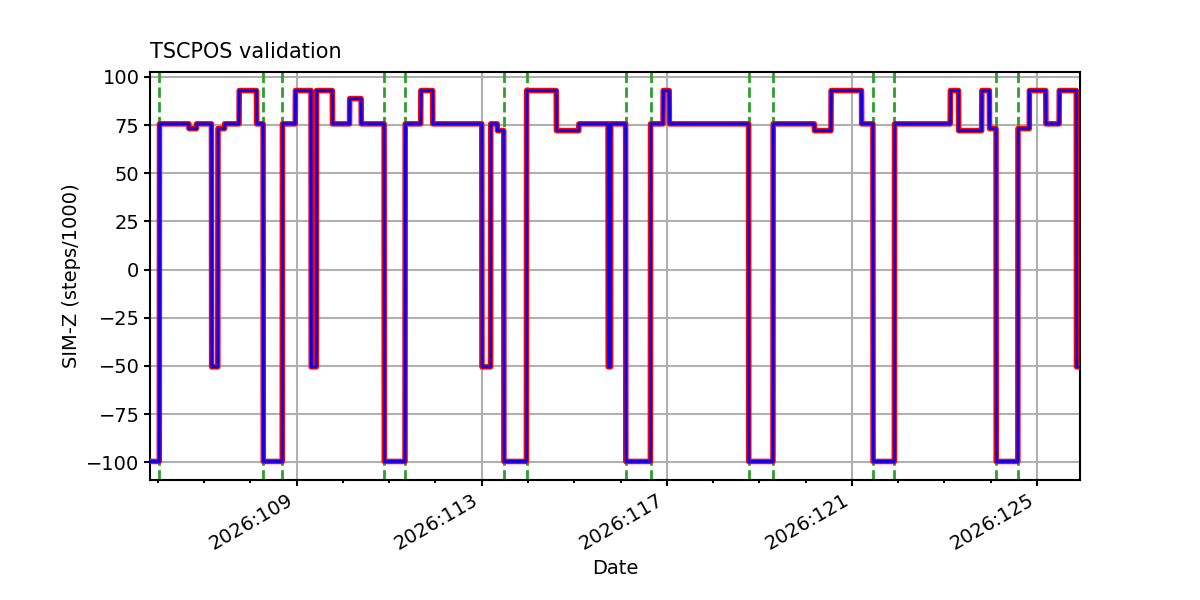

TSCPOS

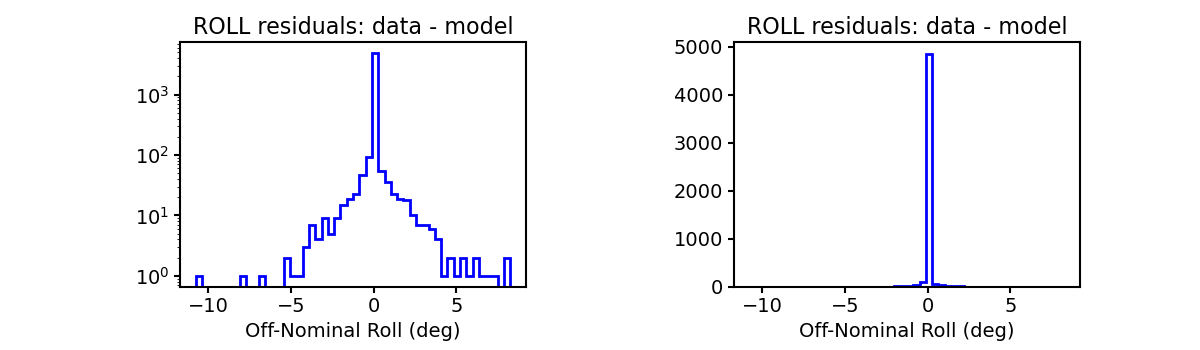

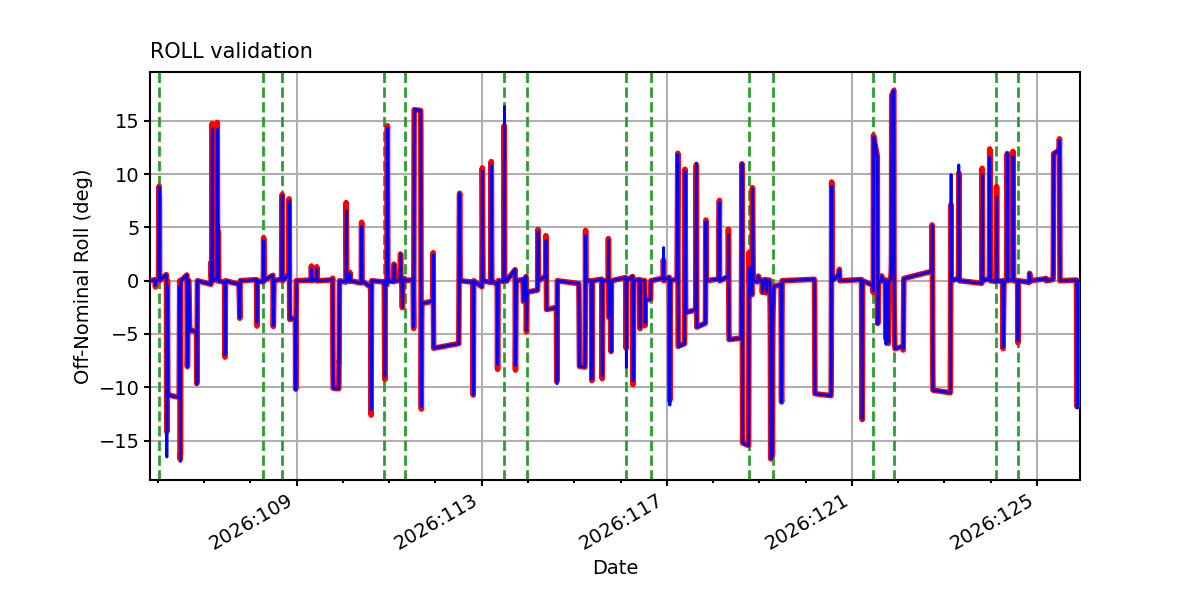

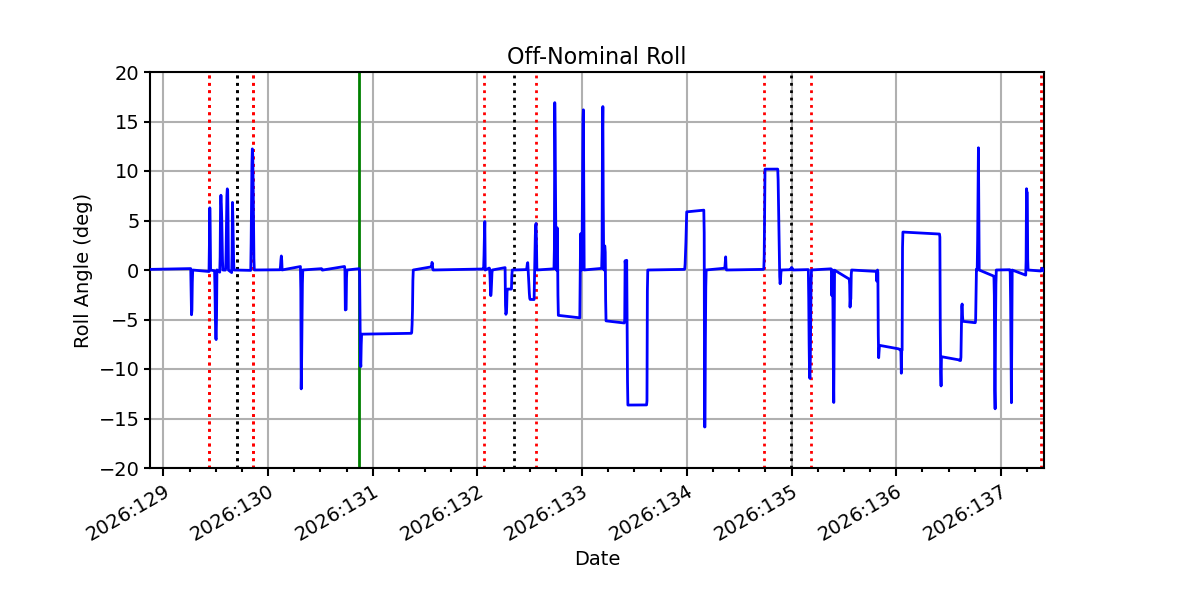

ROLL

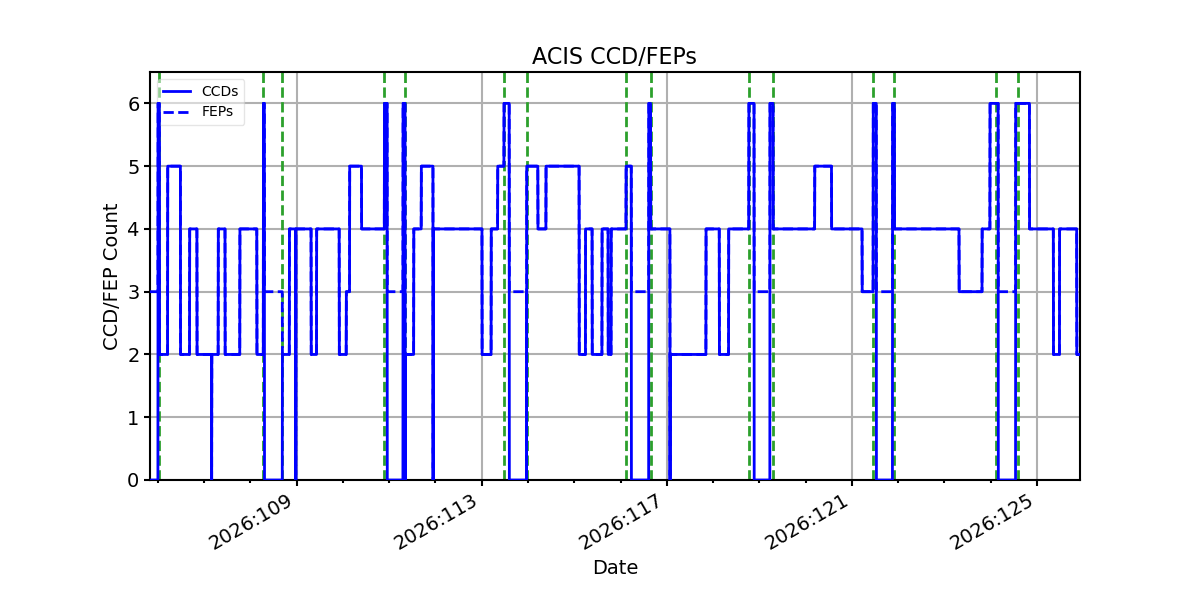

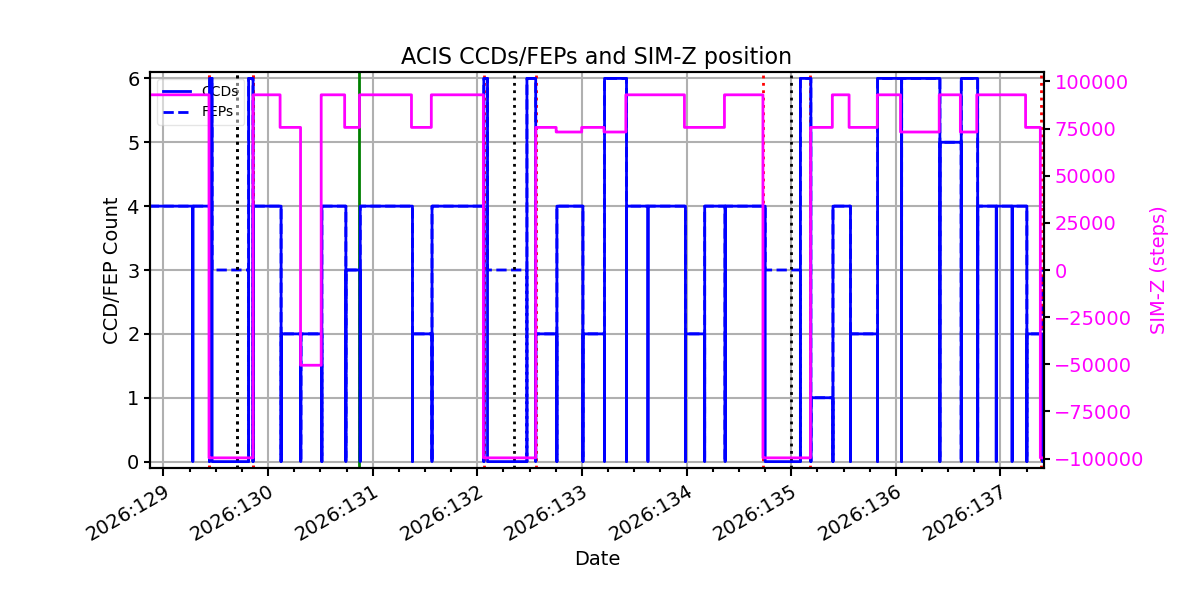

ACIS CCD/FEP Count
