PSMC Temperatures Check
Summary
| Date start | 2025:131:21:12:39.216 |
| Date stop | 2025:139:00:00:00.816 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/MAY1225/ofls |
| Run time | Wed May 7 09:43:41 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEAAT Upper Limit Violations
PSMC Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEAAT >= 30.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeaat | -3.99 | -2.51 | -1.69 | -0.07 | 1.71 | 2.74 | 3.94 |
| pitch | -6.454 | -0.384 | -0.004 | 0.000 | 0.004 | 0.541 | 5.426 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 1 | 1 |
| roll | -1.576 | -0.104 | -0.004 | 0.000 | 0.005 | 0.131 | 1.195 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEAAT | 1 | -3.99 | 2.50 |
| PITCH | 1 | -6.454 | 3.00 |
| PITCH | 99 | 5.426 | 3.00 |

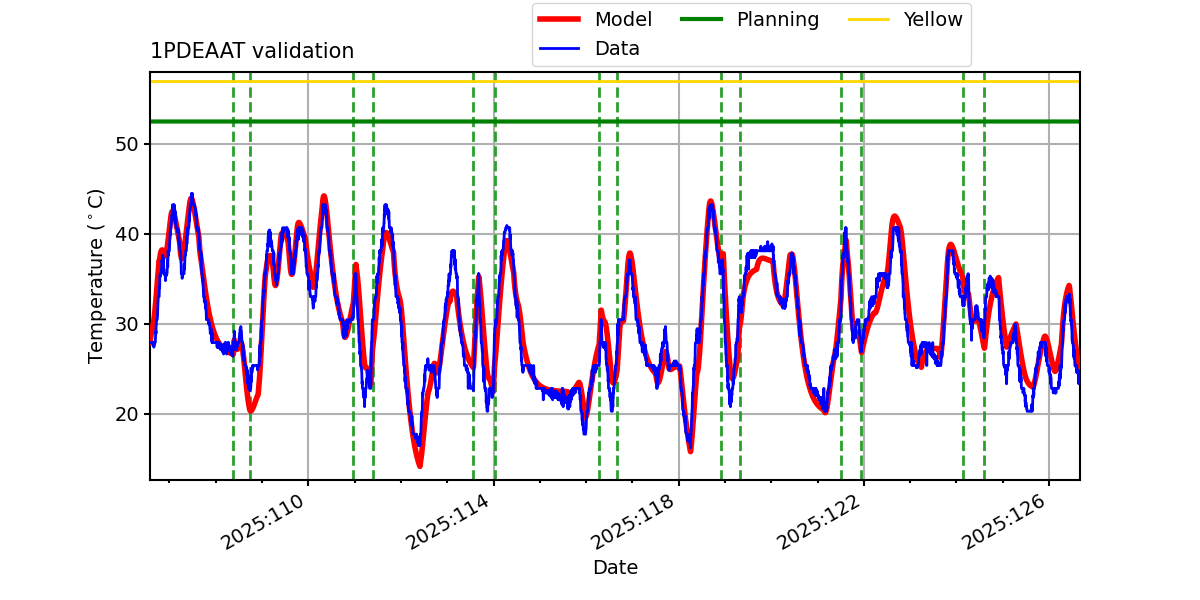

1PDEAAT

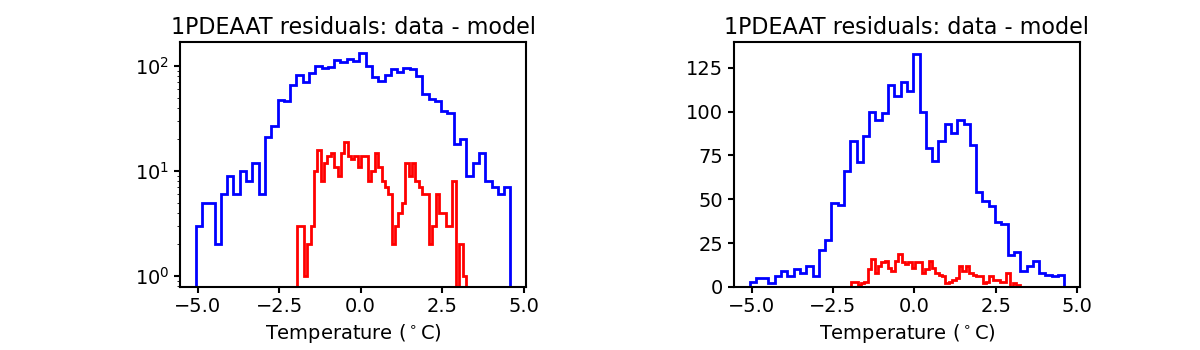

Note: 1PDEAAT residual histograms include only points where 1PDEAAT >= 30.0 C in blue and points where 1PDEAAT >= 40.0 C in red.
PITCH

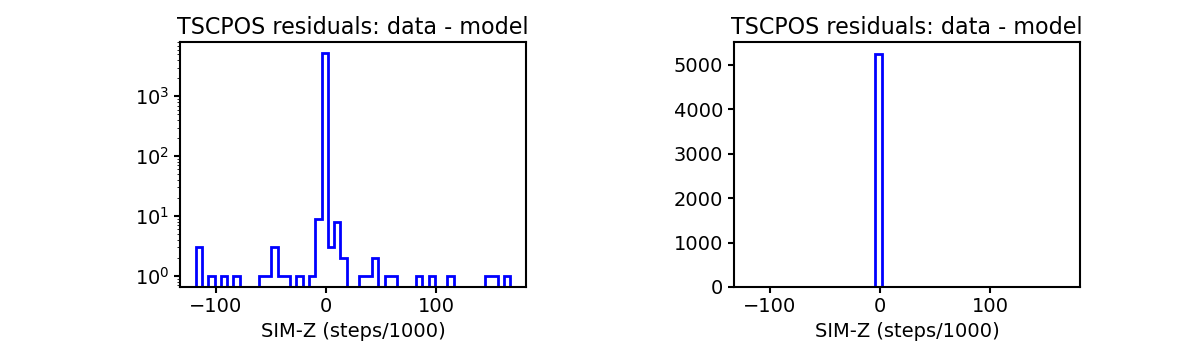

TSCPOS

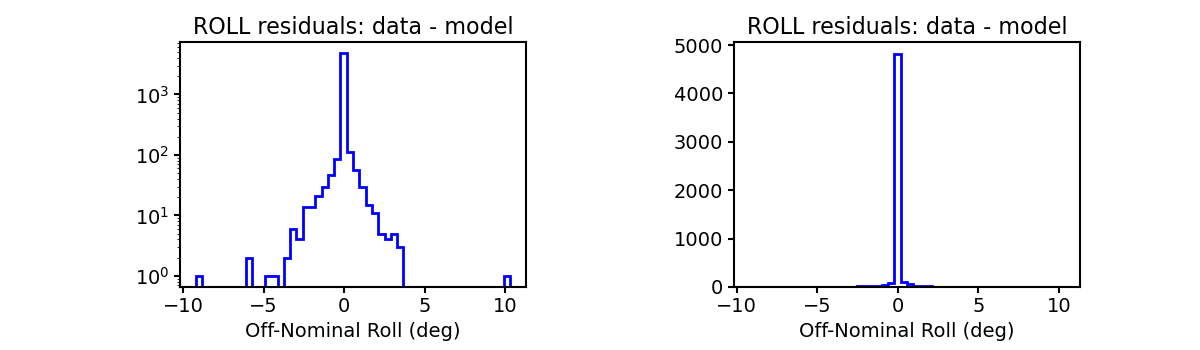

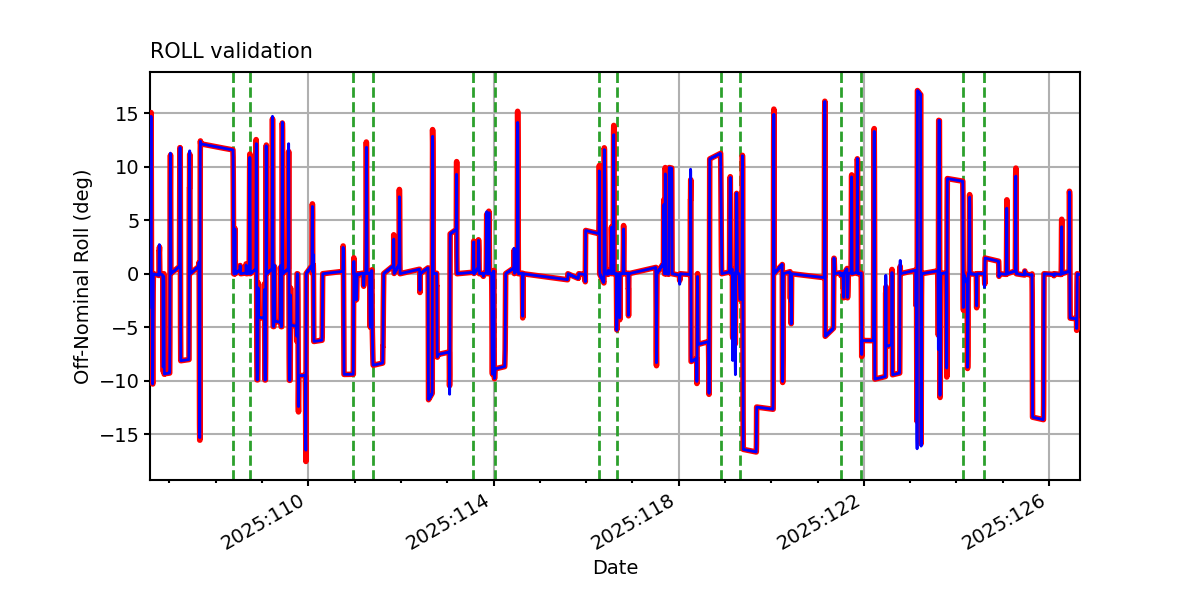

ROLL

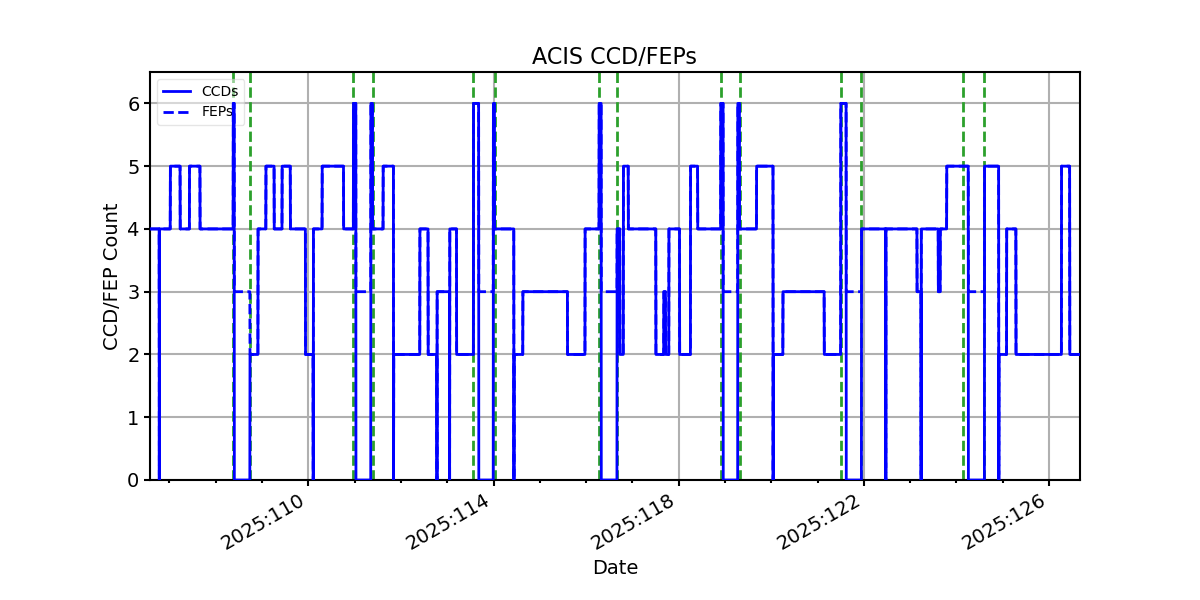

ACIS CCD/FEP Count
