PSMC Temperatures Check
Summary
| Date start | 2026:137:09:56:04.316 |
| Date stop | 2026:144:21:52:00.916 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/MAY1826/oflsa |
| Run time | Wed May 13 12:08:44 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEAAT Upper Limit Violations
PSMC Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEAAT >= 30.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeaat | -2.99 | -2.11 | -1.05 | 0.84 | 2.44 | 3.48 | 4.70 |
| pitch | -9.288 | -0.364 | -0.004 | -0.000 | 0.004 | 0.134 | 11.773 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.789 | -0.087 | -0.005 | -0.000 | 0.005 | 0.095 | 1.896 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEAAT | 1 | -2.99 | 2.50 |
| PITCH | 1 | -9.288 | 3.00 |
| PITCH | 99 | 11.773 | 3.00 |

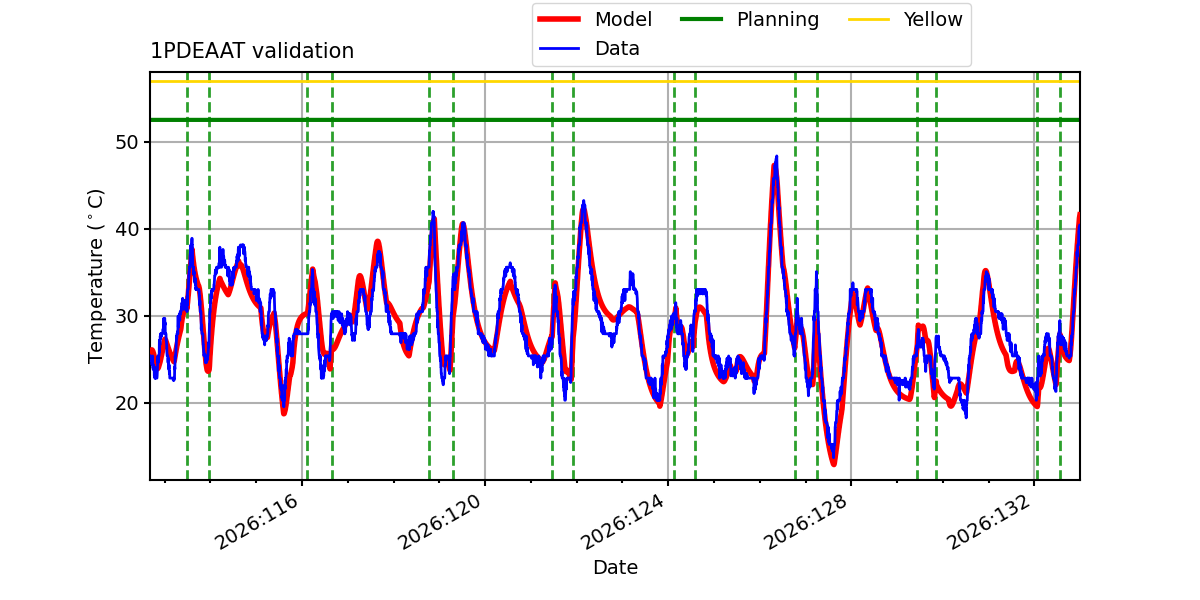

1PDEAAT

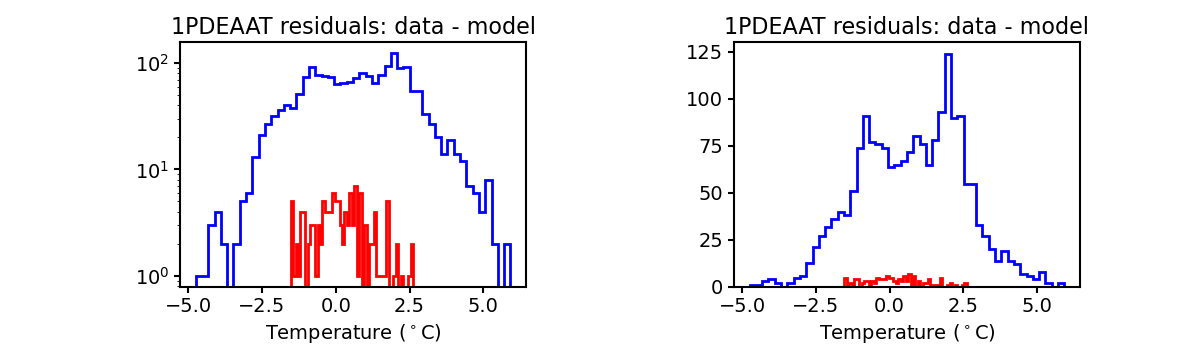

Note: 1PDEAAT residual histograms include only points where 1PDEAAT >= 30.0 C in blue and points where 1PDEAAT >= 40.0 C in red.

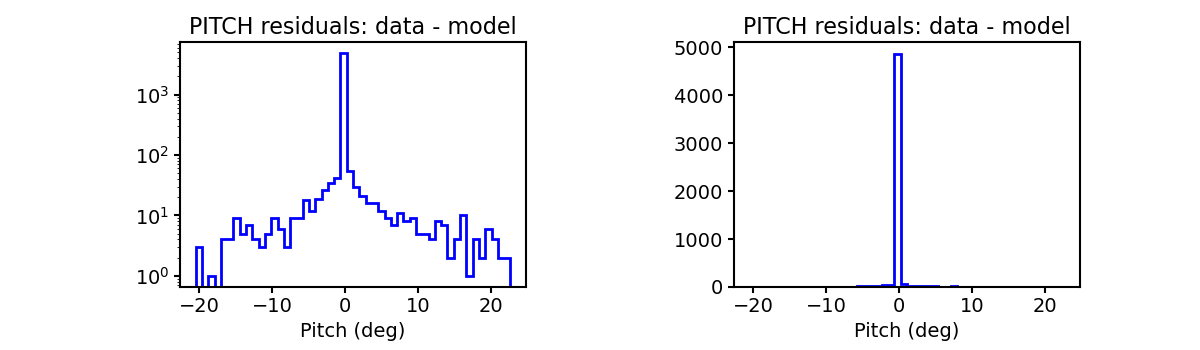

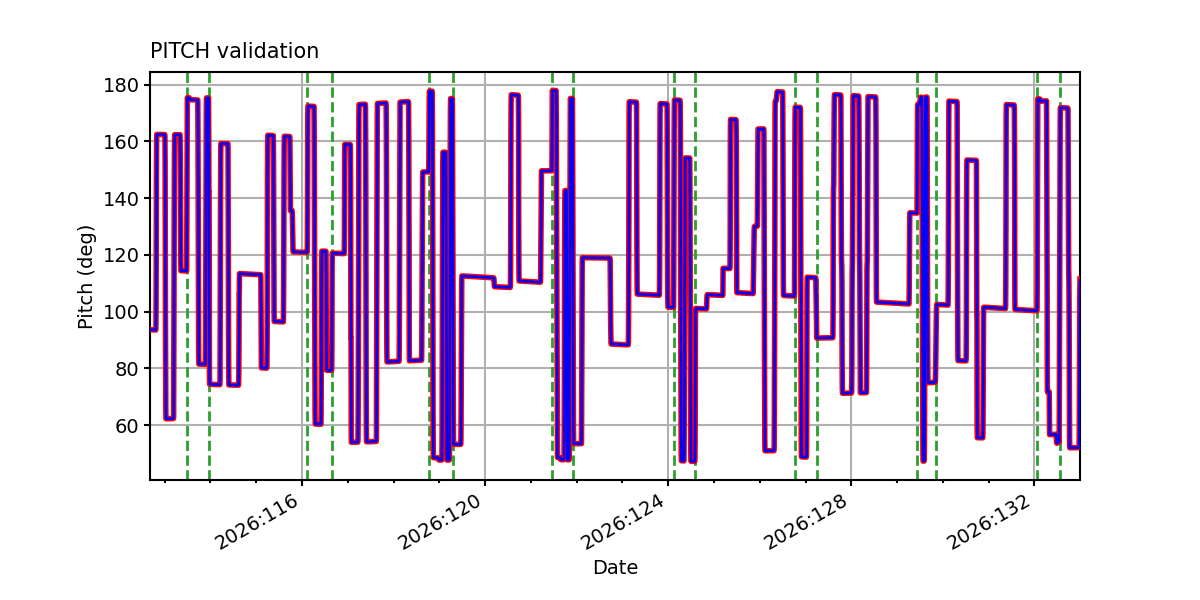

PITCH

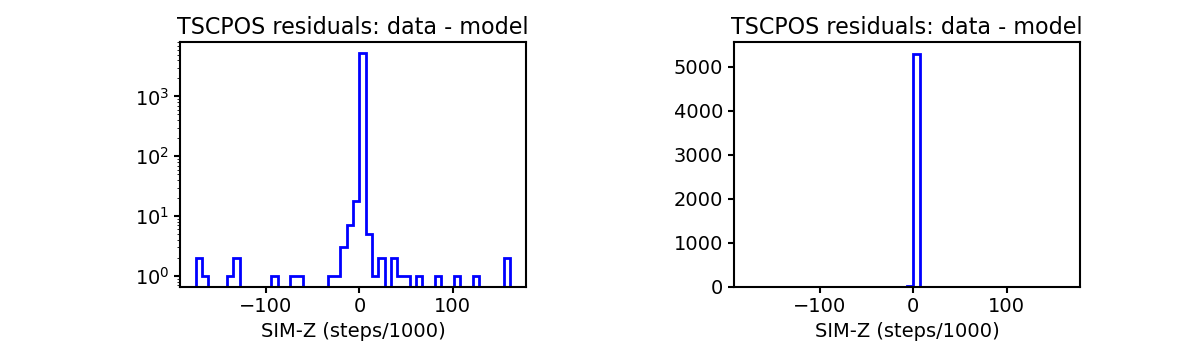

TSCPOS

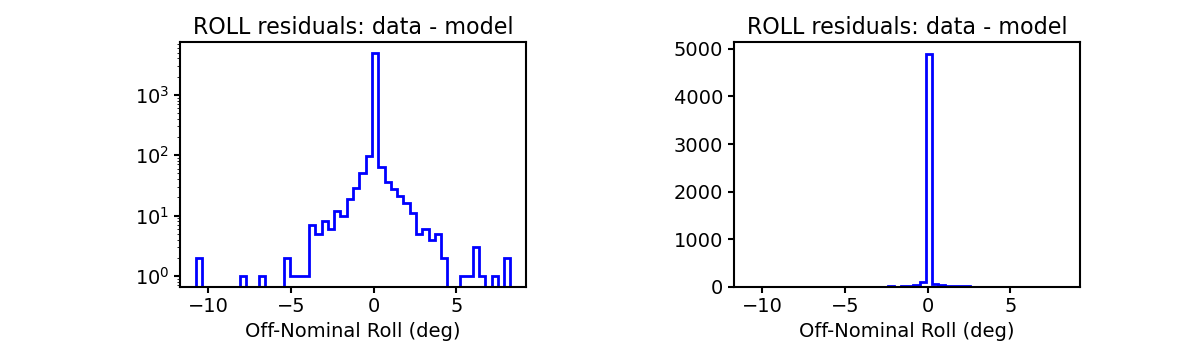

ROLL

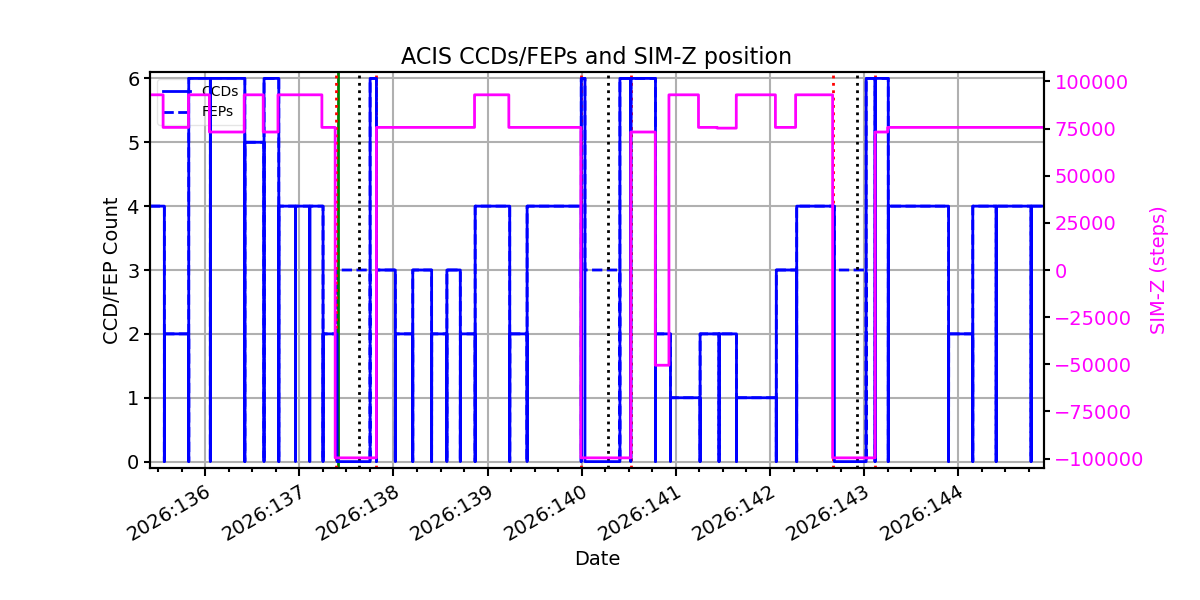

ACIS CCD/FEP Count
