PSMC Temperatures Check
Summary
| Date start | 2025:306:16:59:00.016 |
| Date stop | 2025:314:01:32:52.416 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/NOV0325/oflsa |
| Run time | Thu Oct 30 14:30:44 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEAAT Upper Limit Violations
PSMC Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEAAT >= 30.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeaat | -3.37 | -2.43 | -1.42 | 0.03 | 1.81 | 3.07 | 4.31 |
| pitch | -13.315 | -1.019 | -0.004 | 0.000 | 0.004 | 1.013 | 12.770 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.769 | -0.151 | -0.009 | -0.000 | 0.009 | 0.163 | 1.625 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEAAT | 1 | -3.37 | 2.50 |
| PITCH | 1 | -13.315 | 3.00 |
| PITCH | 99 | 12.77 | 3.00 |

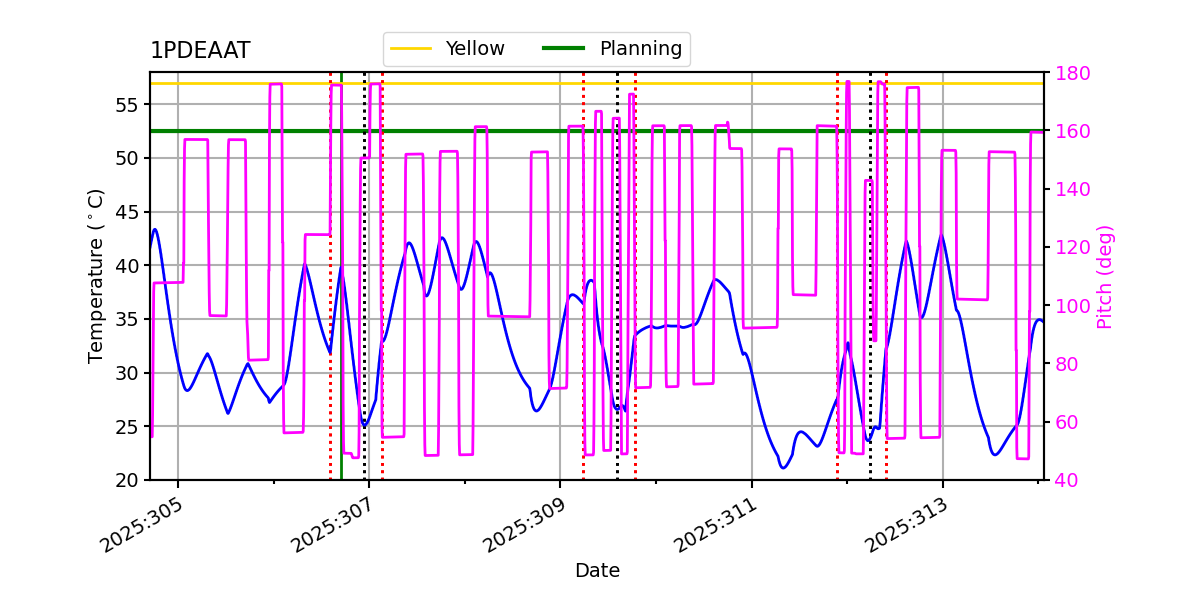

1PDEAAT

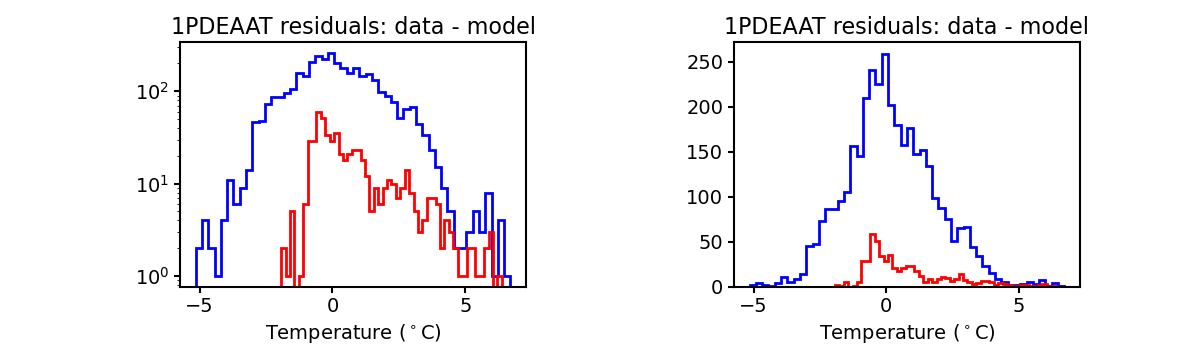

Note: 1PDEAAT residual histograms include only points where 1PDEAAT >= 30.0 C in blue and points where 1PDEAAT >= 40.0 C in red.

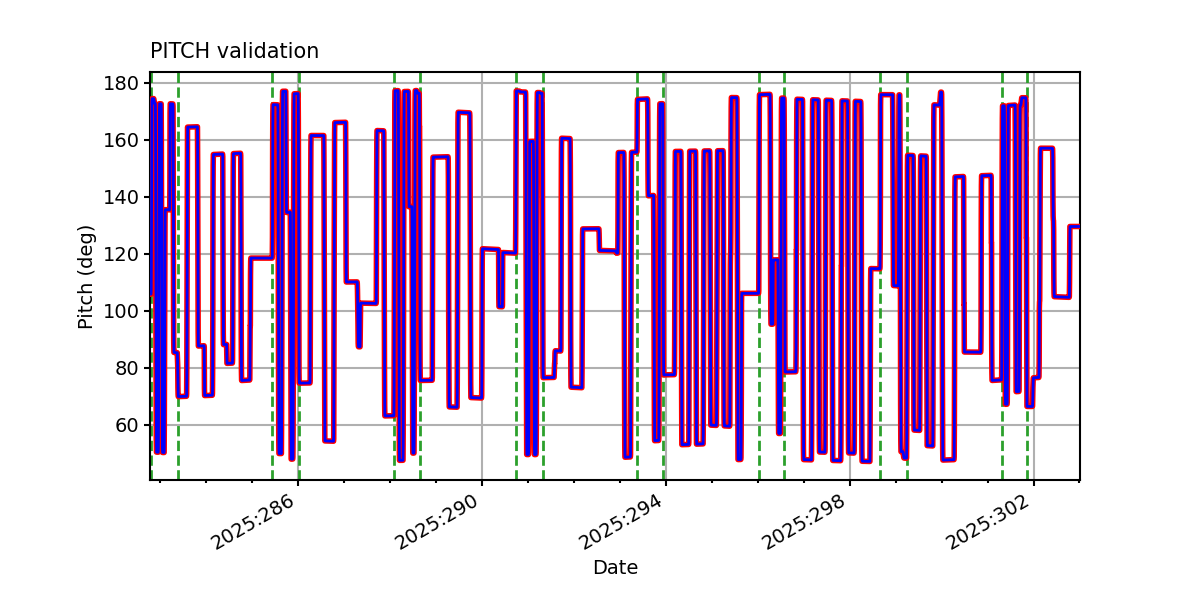

PITCH

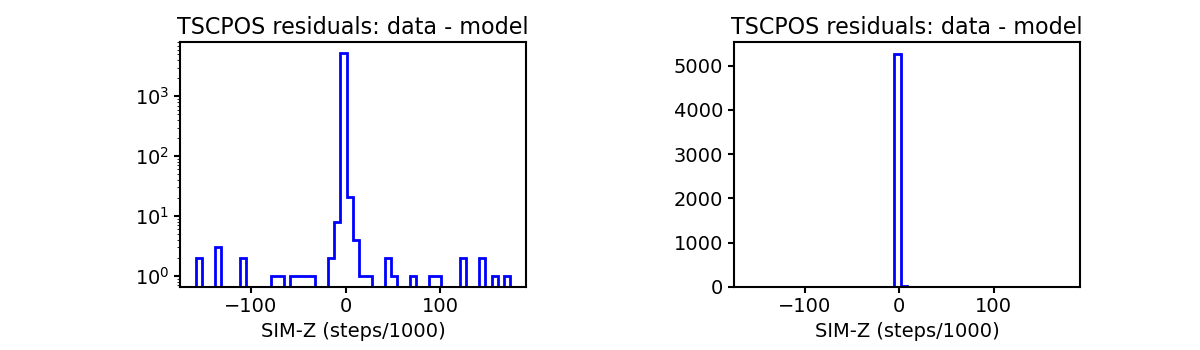

TSCPOS

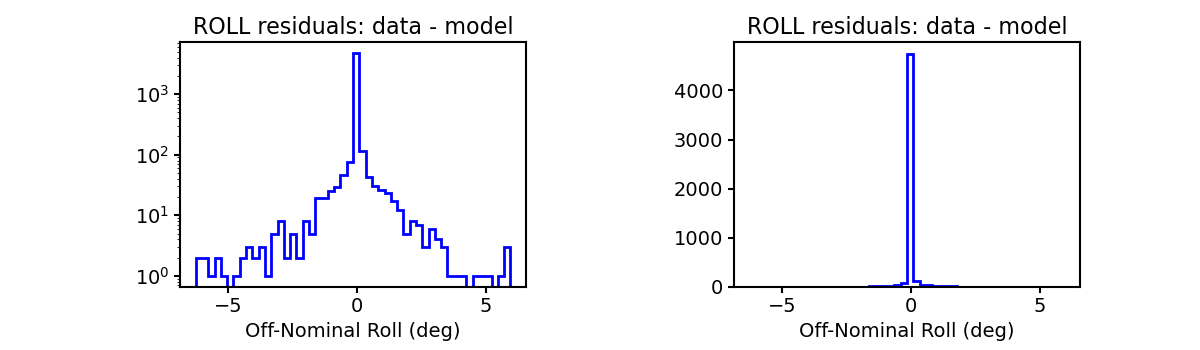

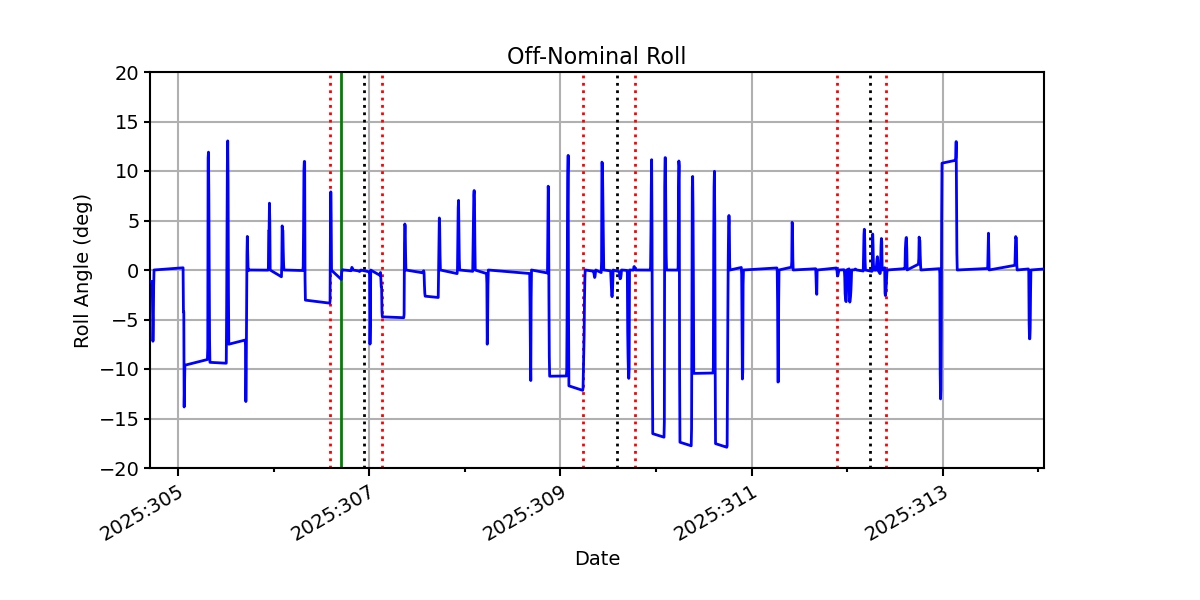

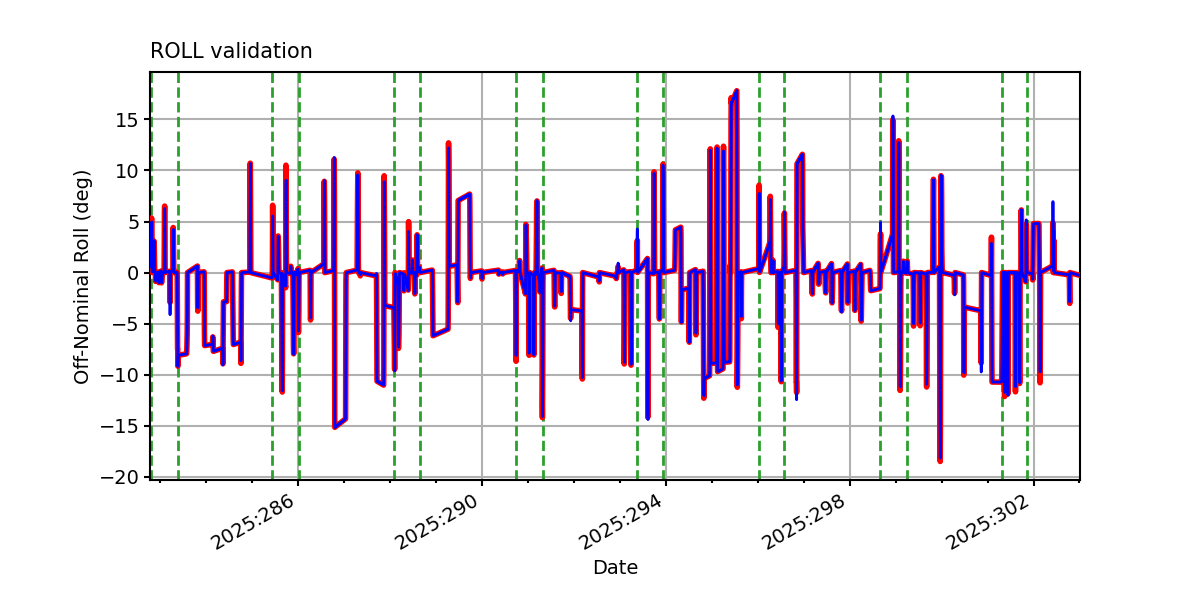

ROLL

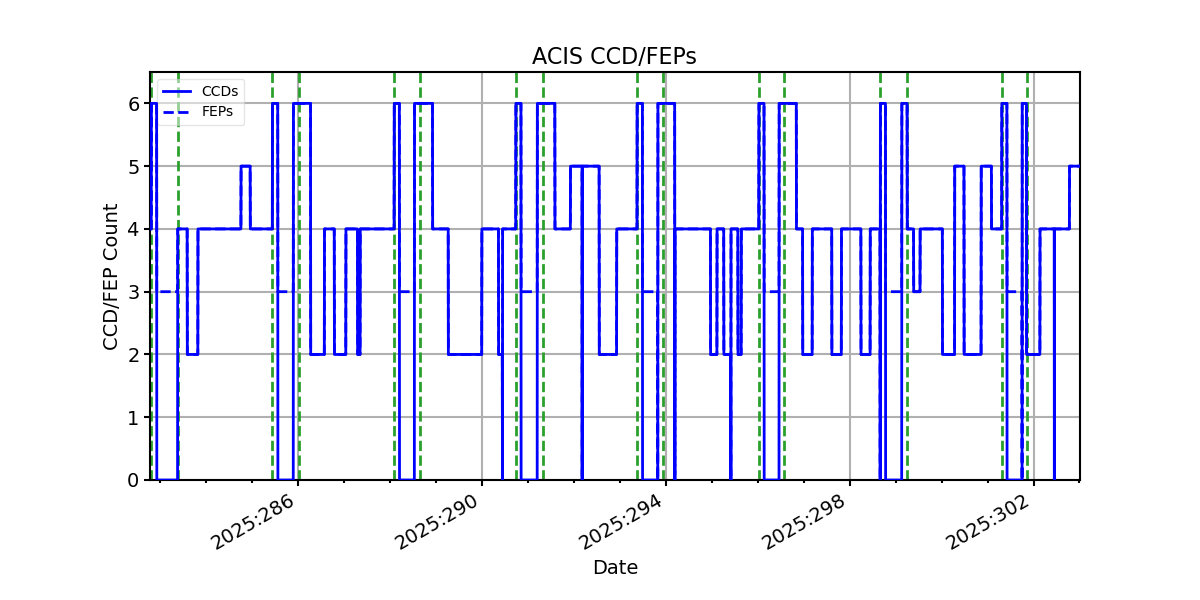

ACIS CCD/FEP Count
