PSMC Temperatures Check
Summary
| Date start | 2025:309:16:43:00.016 |
| Date stop | 2025:314:01:32:52.516 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/NOV0525/oflsa |
| Run time | Mon Nov 3 18:50:36 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |

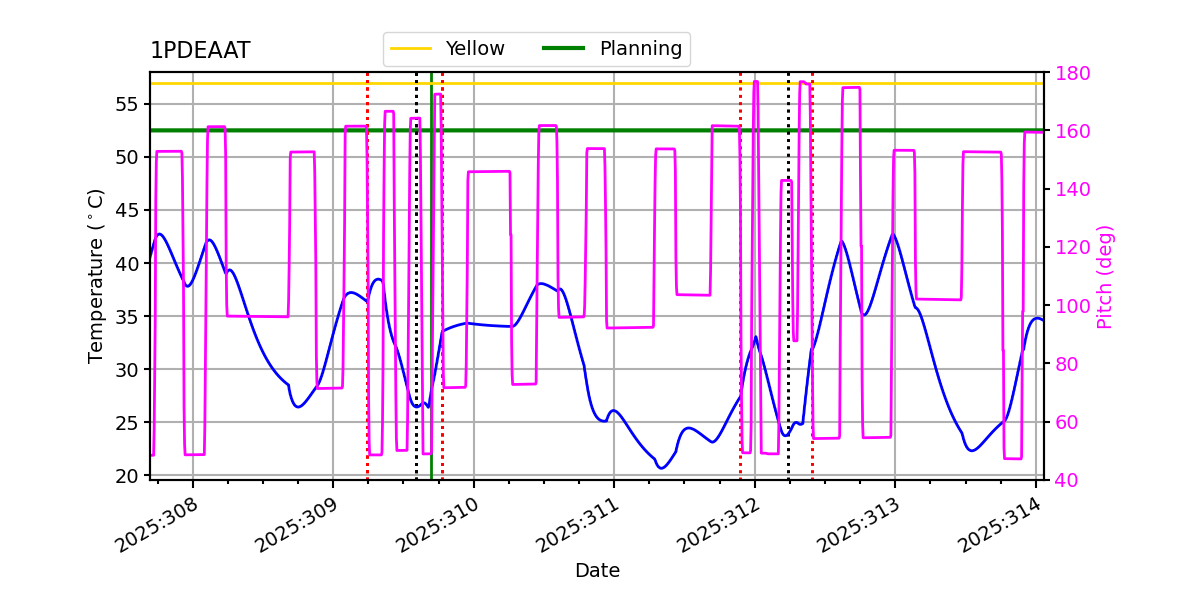

No 1PDEAAT Upper Limit Violations
PSMC Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEAAT >= 30.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeaat | -3.83 | -2.60 | -1.68 | -0.06 | 1.82 | 3.45 | 5.71 |
| pitch | -12.599 | -0.915 | -0.004 | 0.000 | 0.004 | 0.813 | 11.277 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.909 | -0.151 | -0.008 | -0.000 | 0.008 | 0.143 | 1.781 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEAAT | 1 | -3.83 | 2.50 |
| 1PDEAAT | 99 | 5.71 | 5.50 |
| PITCH | 1 | -12.599 | 3.00 |
| PITCH | 99 | 11.277 | 3.00 |

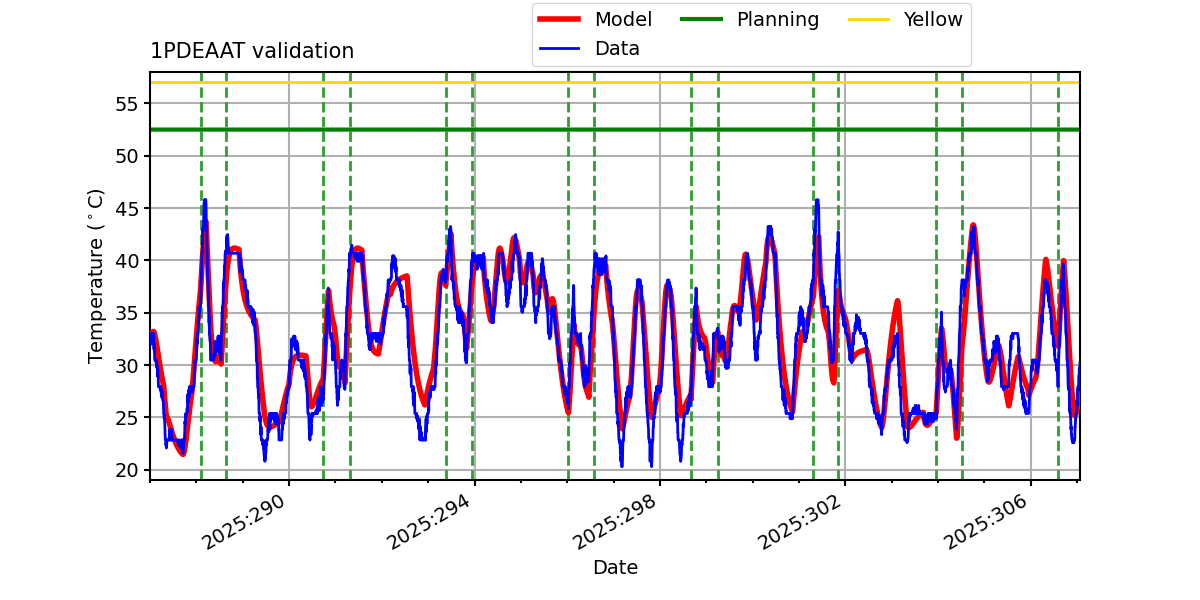

1PDEAAT

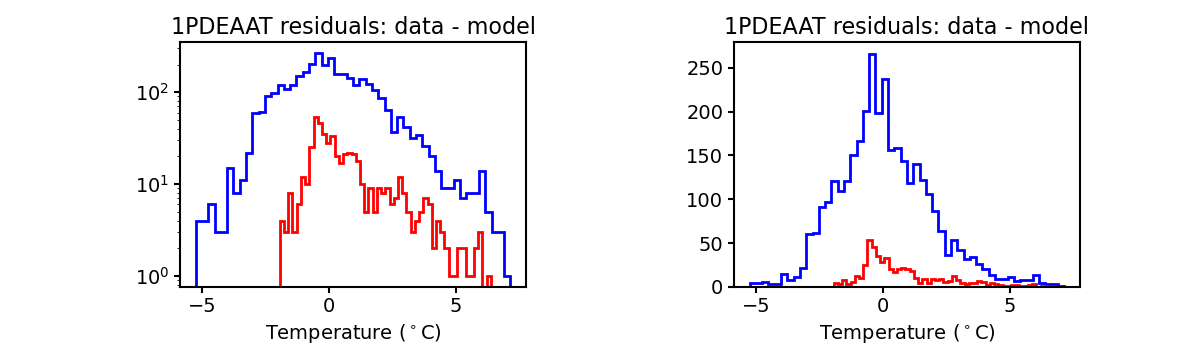

Note: 1PDEAAT residual histograms include only points where 1PDEAAT >= 30.0 C in blue and points where 1PDEAAT >= 40.0 C in red.

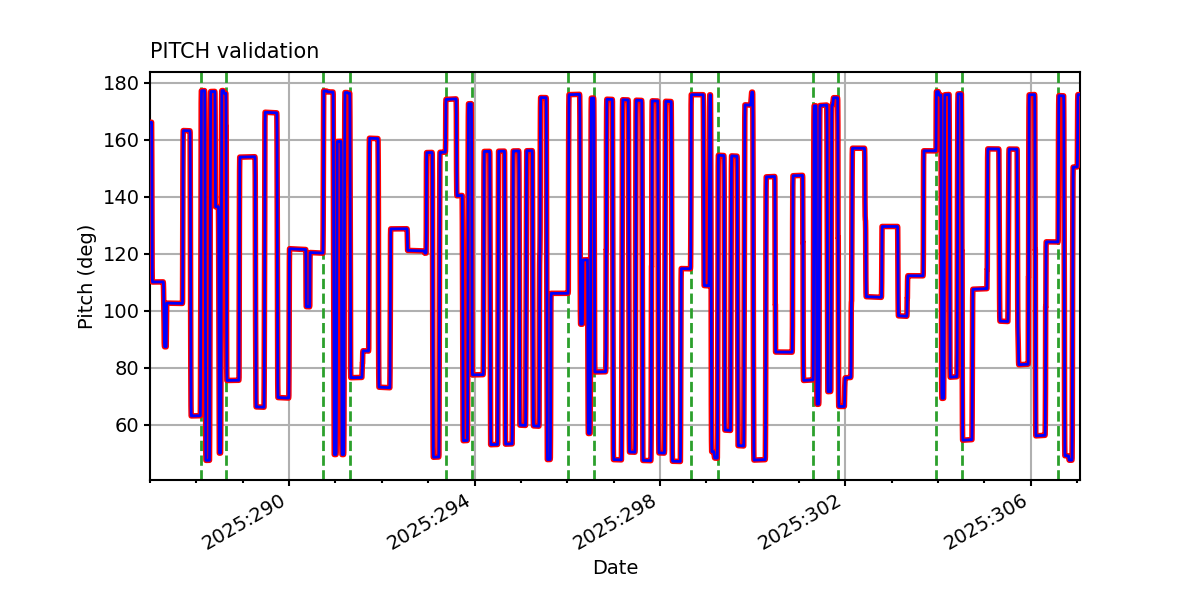

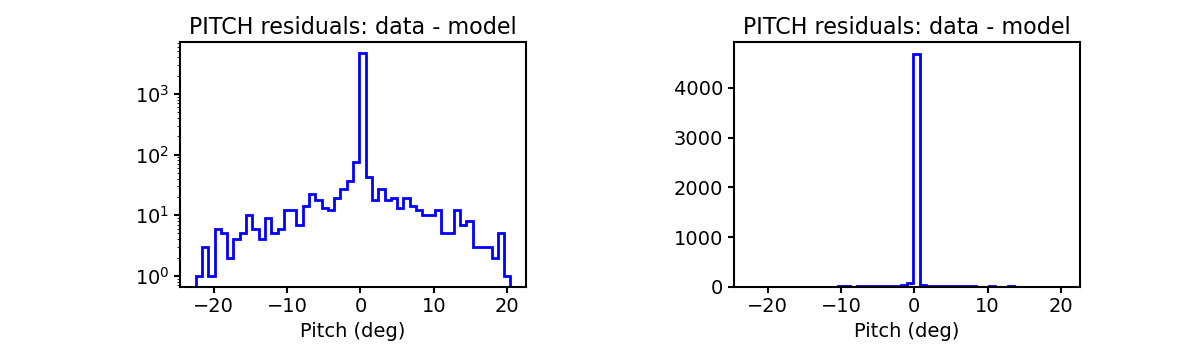

PITCH

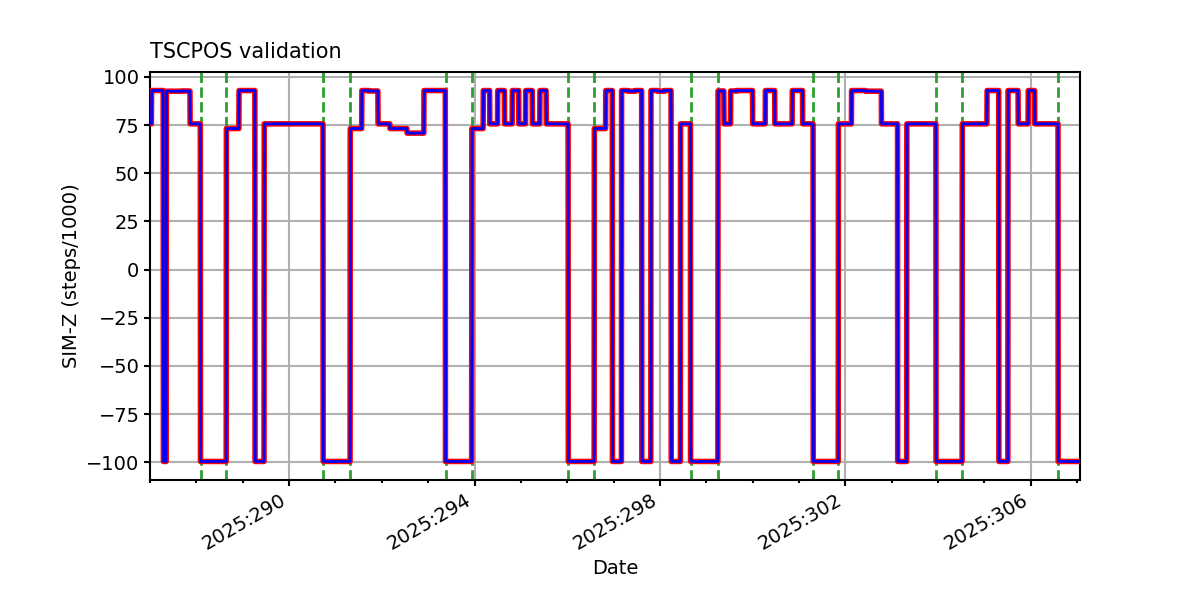

TSCPOS

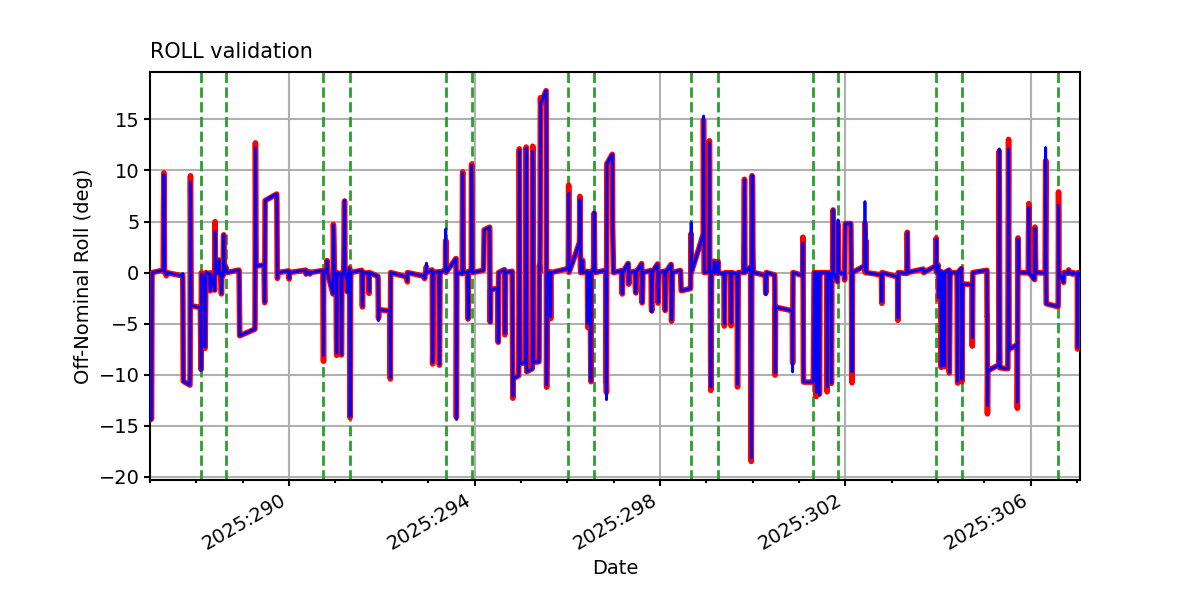

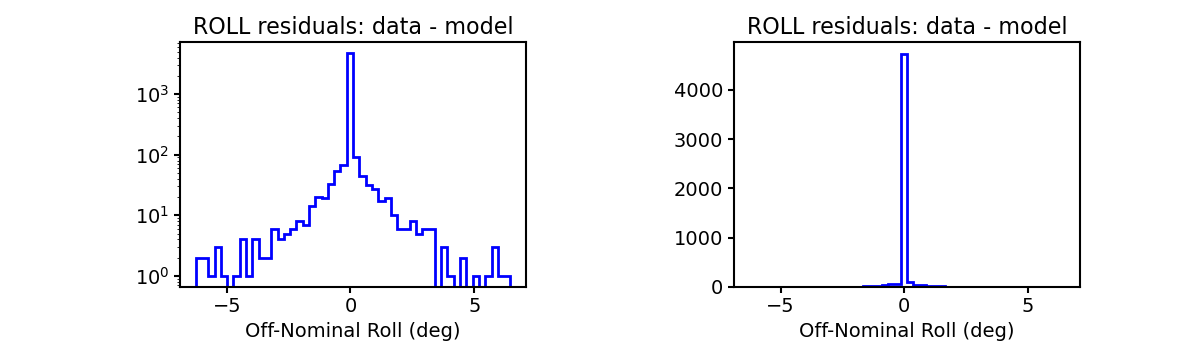

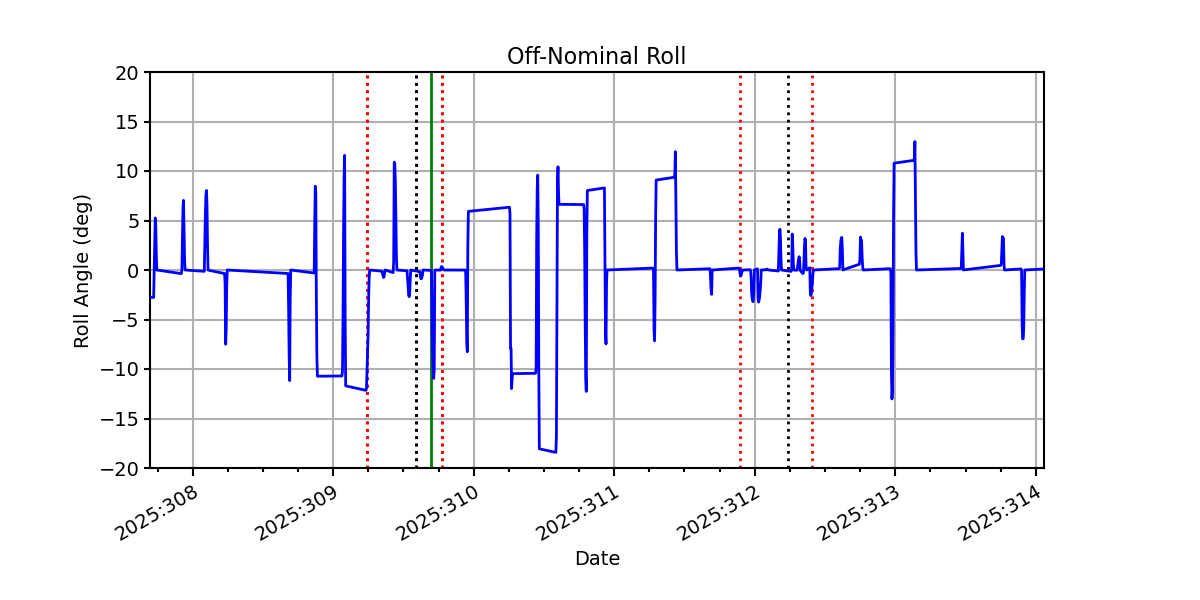

ROLL

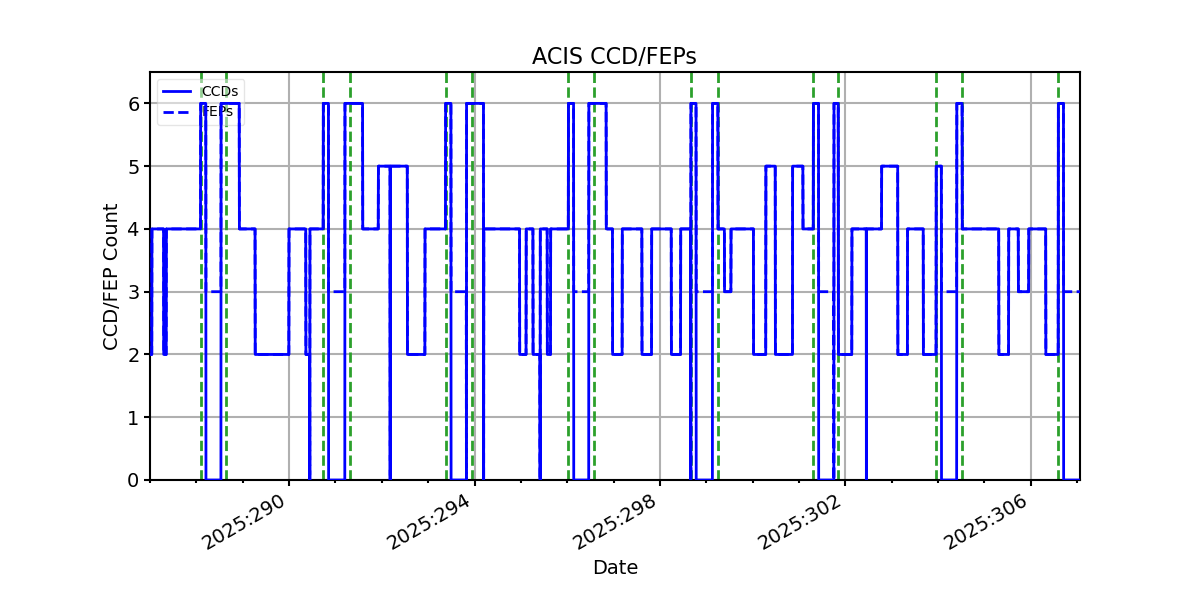

ACIS CCD/FEP Count
