PSMC Temperatures Check
Summary
| Date start | 2025:278:23:10:04.316 |
| Date stop | 2025:285:13:23:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/OCT0625/oflsa |
| Run time | Thu Oct 2 10:48:02 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEAAT Upper Limit Violations
PSMC Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEAAT >= 30.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeaat | -3.68 | -2.48 | -1.54 | -0.16 | 1.85 | 3.57 | 5.08 |
| pitch | -10.078 | -0.824 | -0.004 | 0.000 | 0.004 | 0.944 | 10.915 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.093 | -0.241 | -0.007 | 0.000 | 0.007 | 0.207 | 1.933 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEAAT | 1 | -3.68 | 2.50 |
| PITCH | 1 | -10.078 | 3.00 |
| PITCH | 99 | 10.915 | 3.00 |

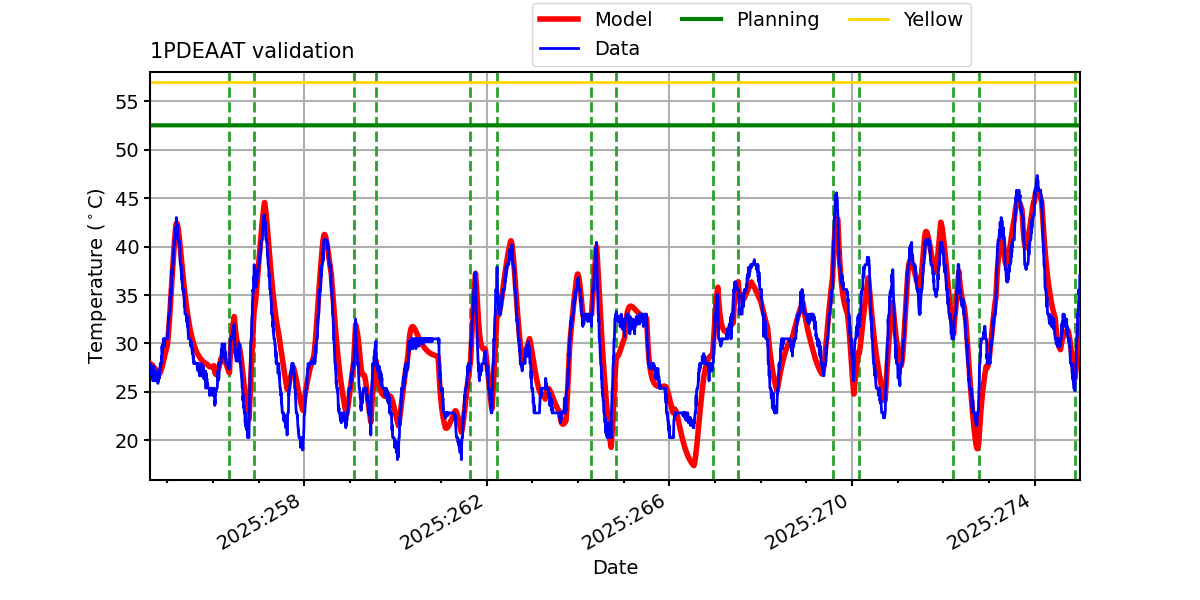

1PDEAAT
Note: 1PDEAAT residual histograms include only points where 1PDEAAT >= 30.0 C in blue and points where 1PDEAAT >= 40.0 C in red.

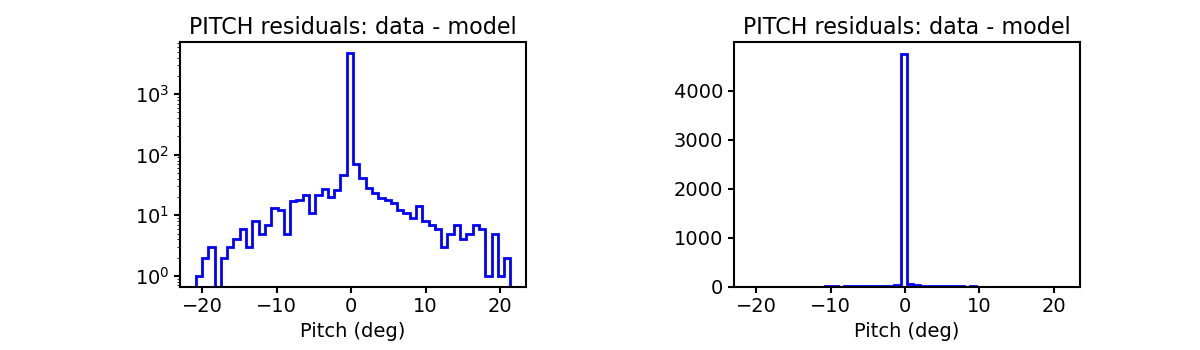

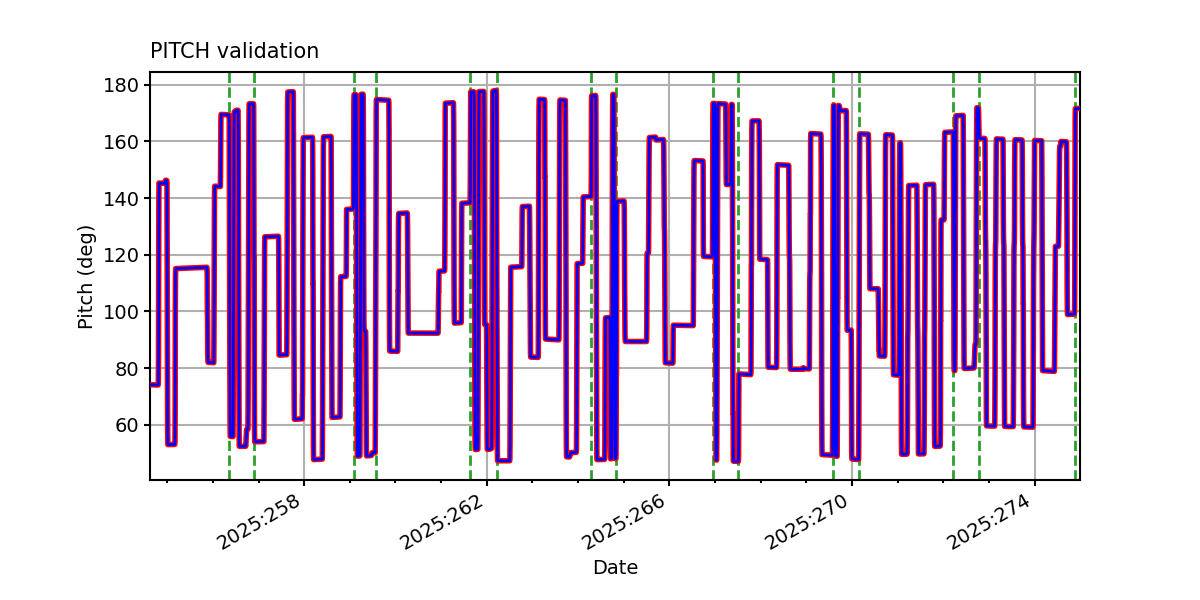

PITCH

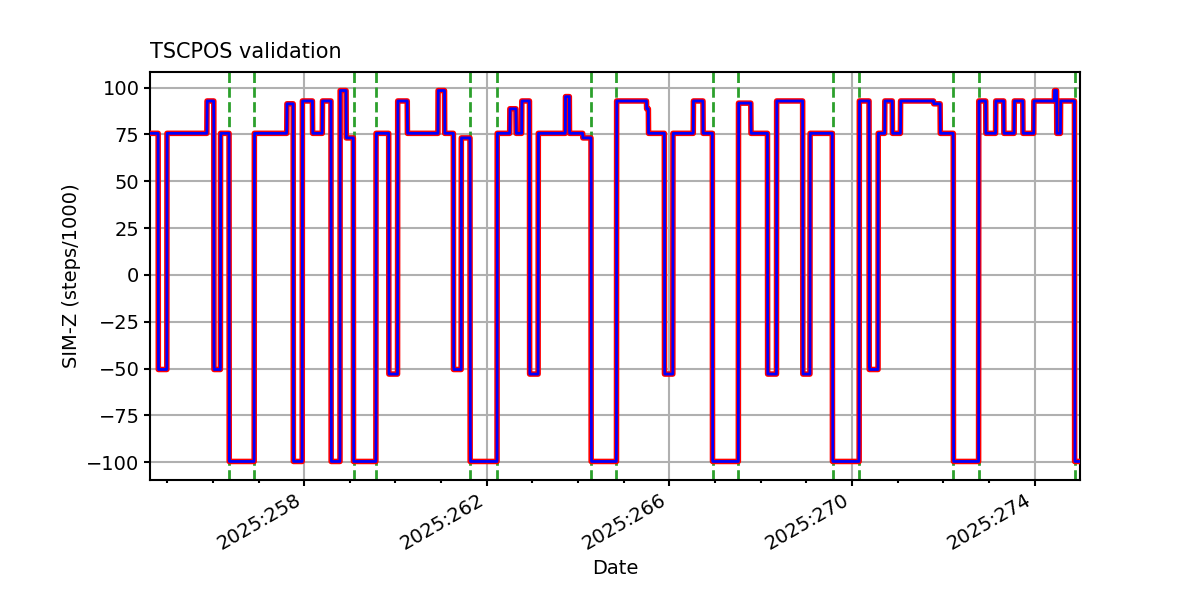

TSCPOS

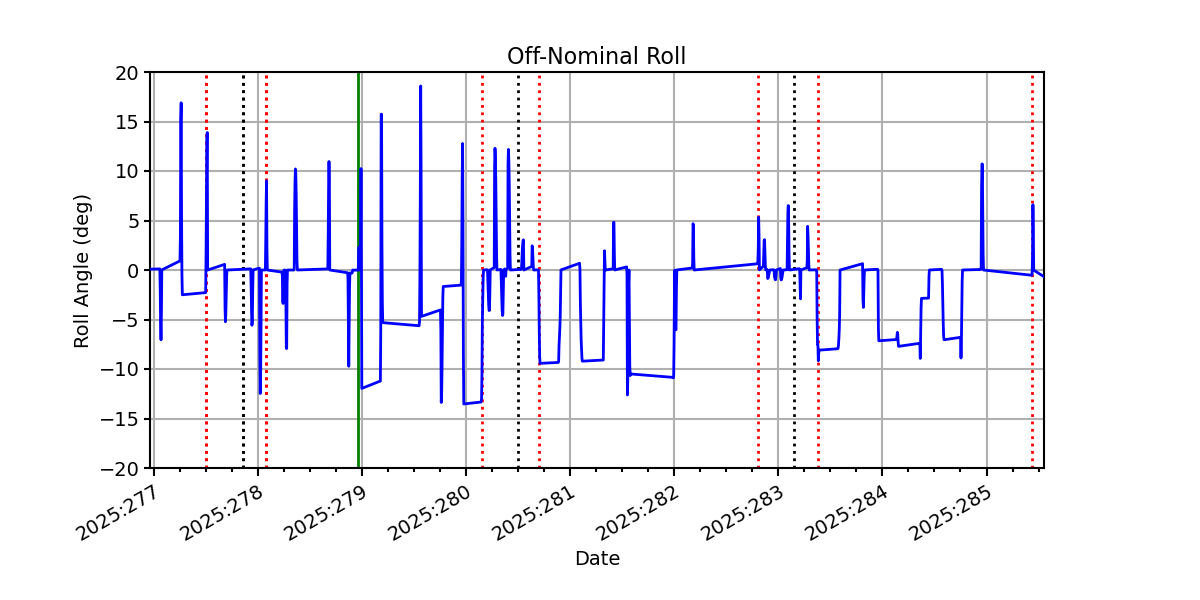

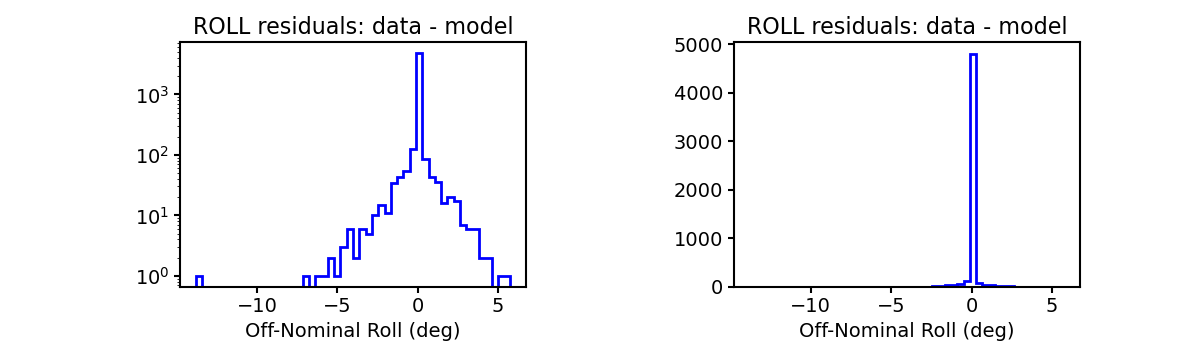

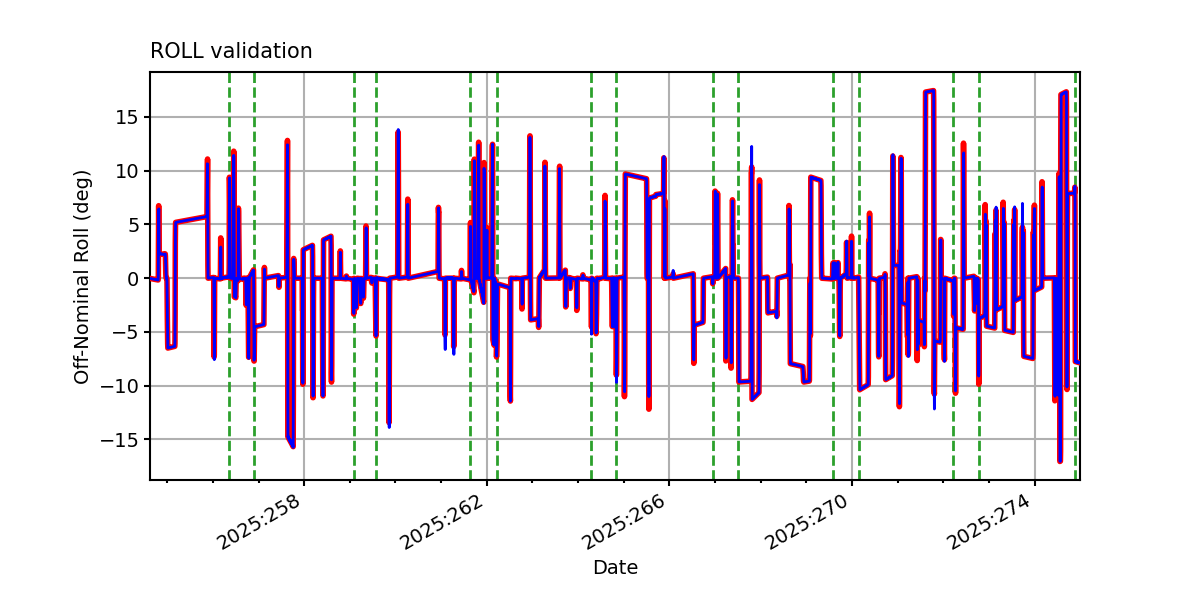

ROLL

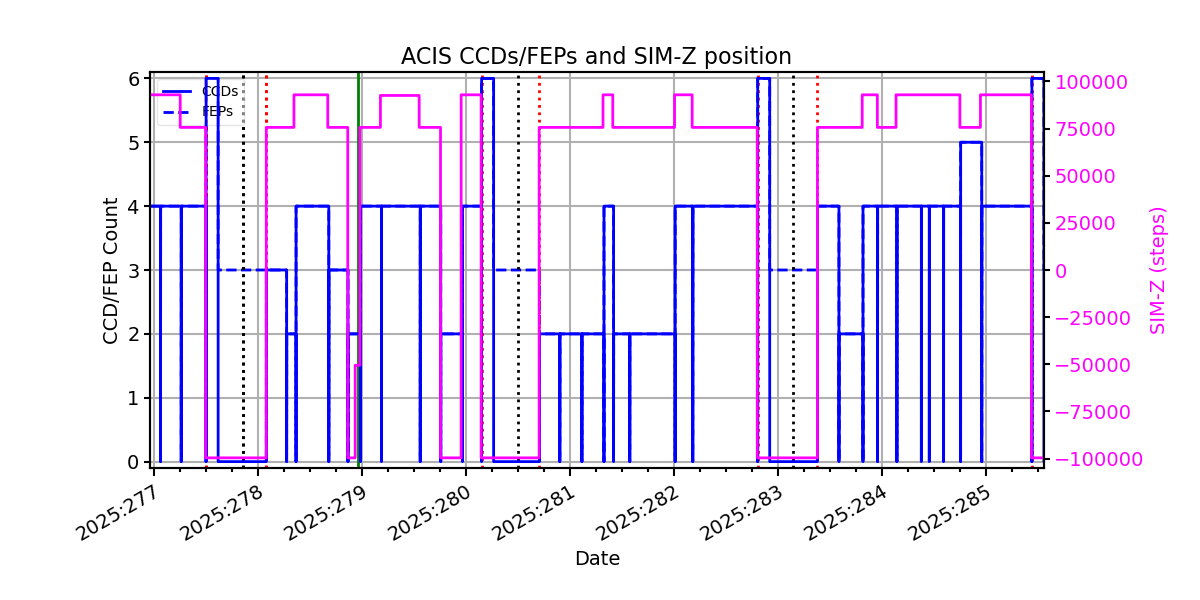

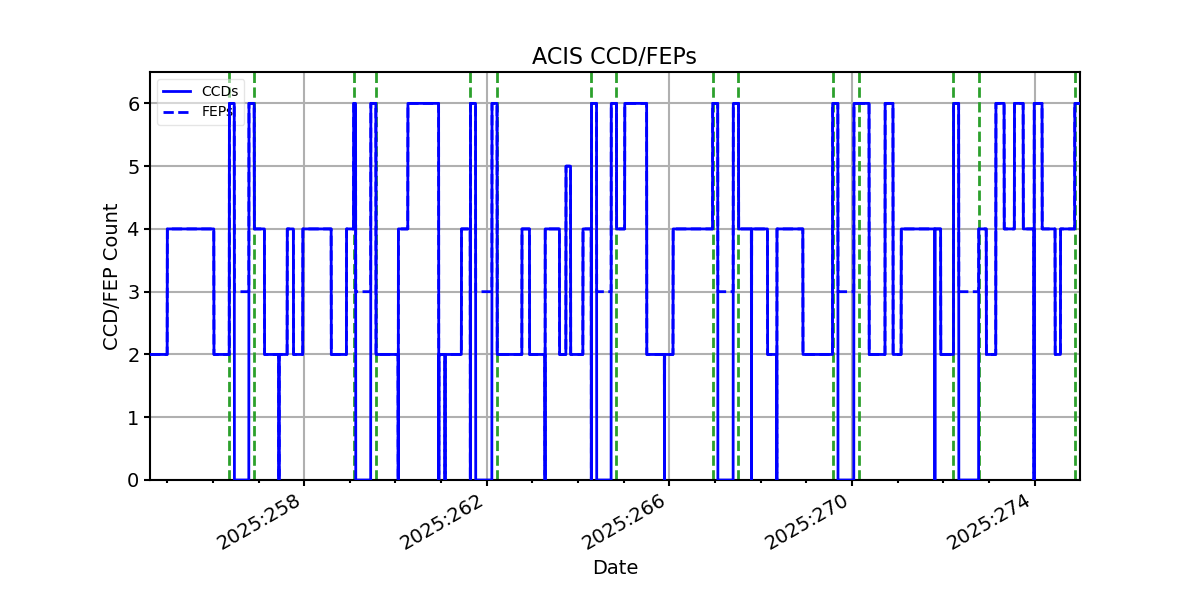

ACIS CCD/FEP Count
