PSMC Temperatures Check
Summary
| Date start | 2026:291:23:49:06.416 |
| Date stop | 2026:298:16:38:00.016 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/OCT1926/oflsa |
| Run time | Thu Oct 15 08:39:05 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEAAT Upper Limit Violations
PSMC Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEAAT >= 30.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeaat | -2.93 | -2.00 | -1.10 | 0.74 | 2.67 | 4.33 | 8.67 |
| pitch | -12.491 | -1.529 | -0.004 | 0.000 | 0.004 | 1.790 | 12.943 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.276 | -0.289 | -0.011 | -0.000 | 0.011 | 0.224 | 2.275 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEAAT | 1 | -2.93 | 2.50 |
| 1PDEAAT | 99 | 8.67 | 5.50 |
| PITCH | 1 | -12.491 | 3.00 |
| PITCH | 99 | 12.943 | 3.00 |

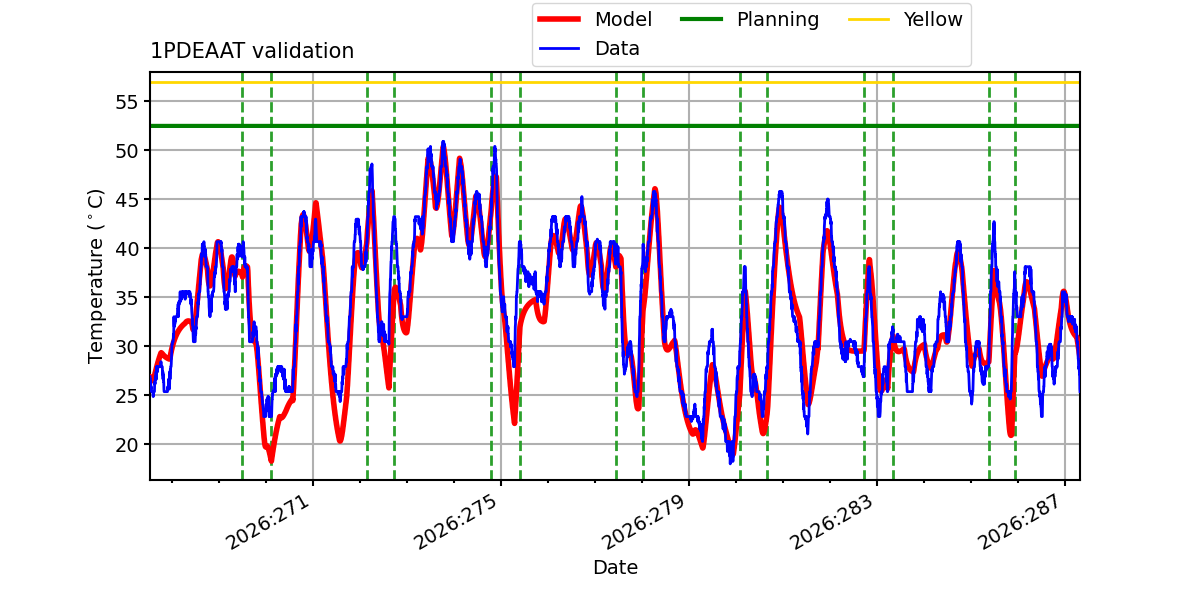

1PDEAAT

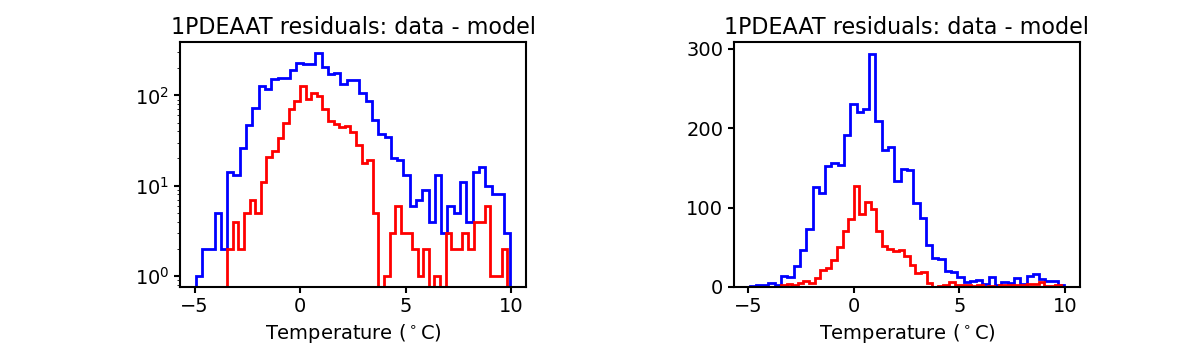

Note: 1PDEAAT residual histograms include only points where 1PDEAAT >= 30.0 C in blue and points where 1PDEAAT >= 40.0 C in red.

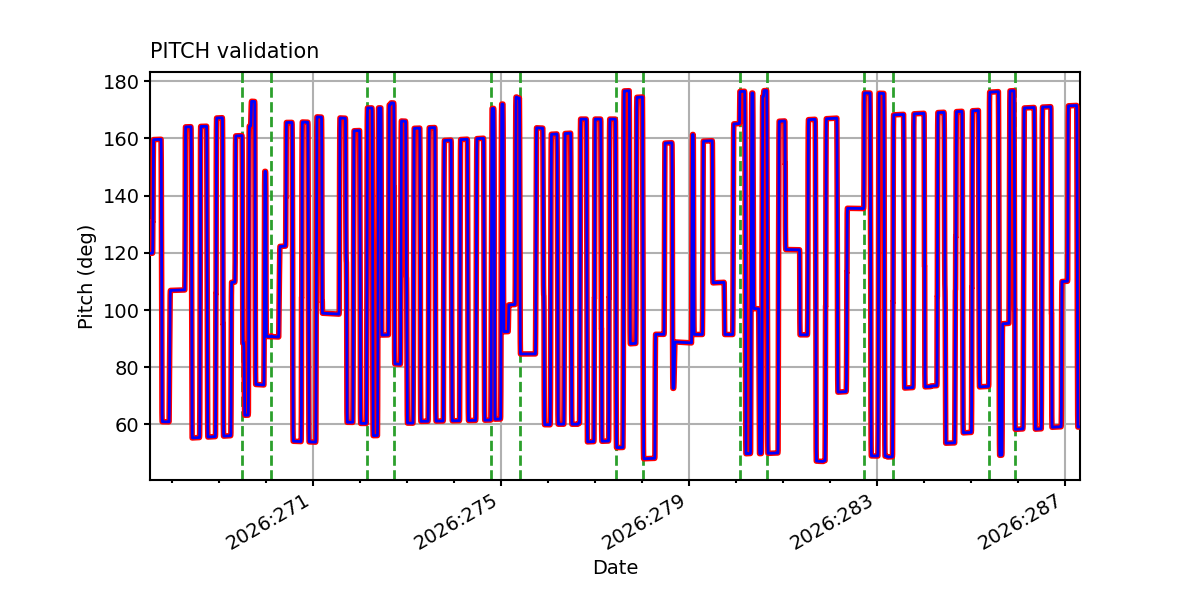

PITCH

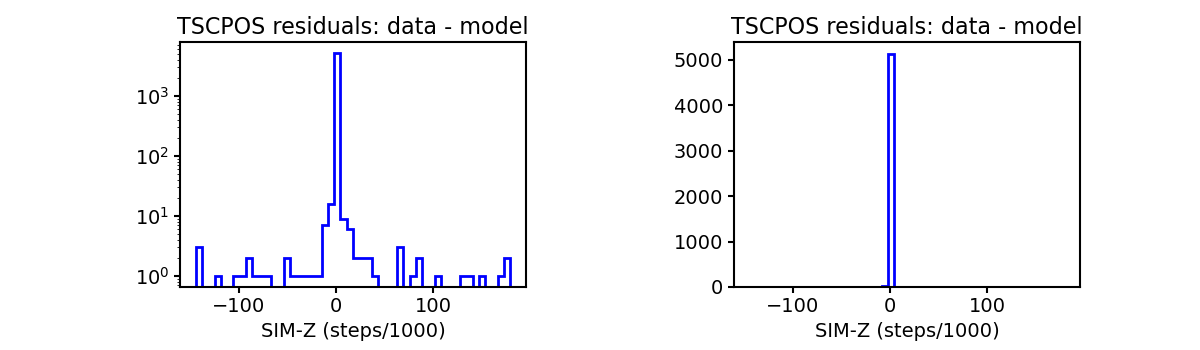

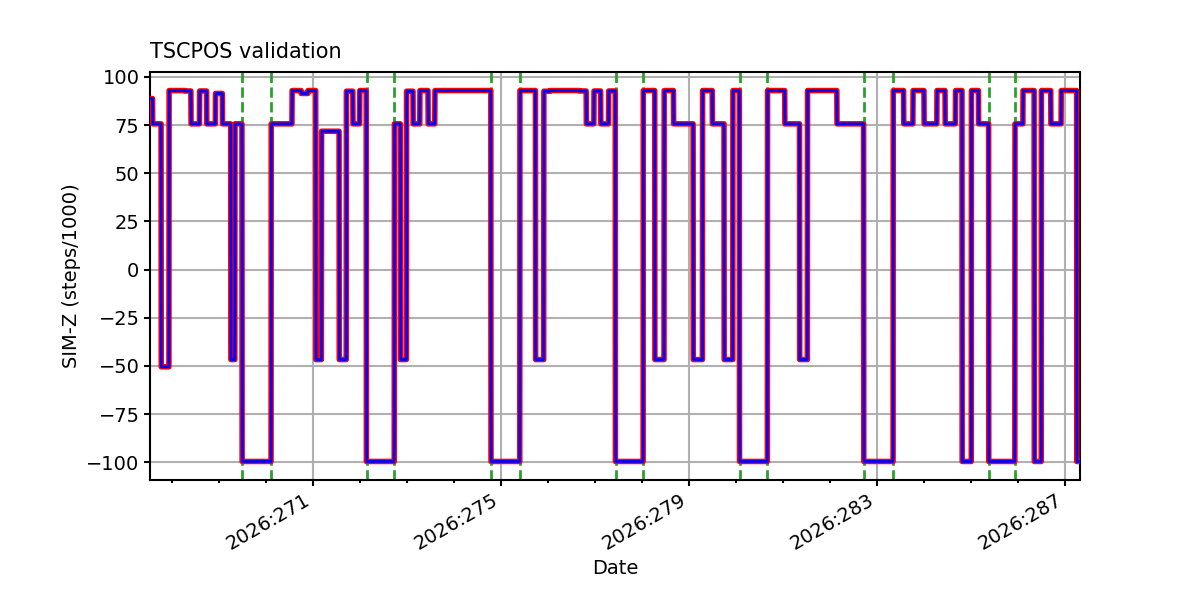

TSCPOS

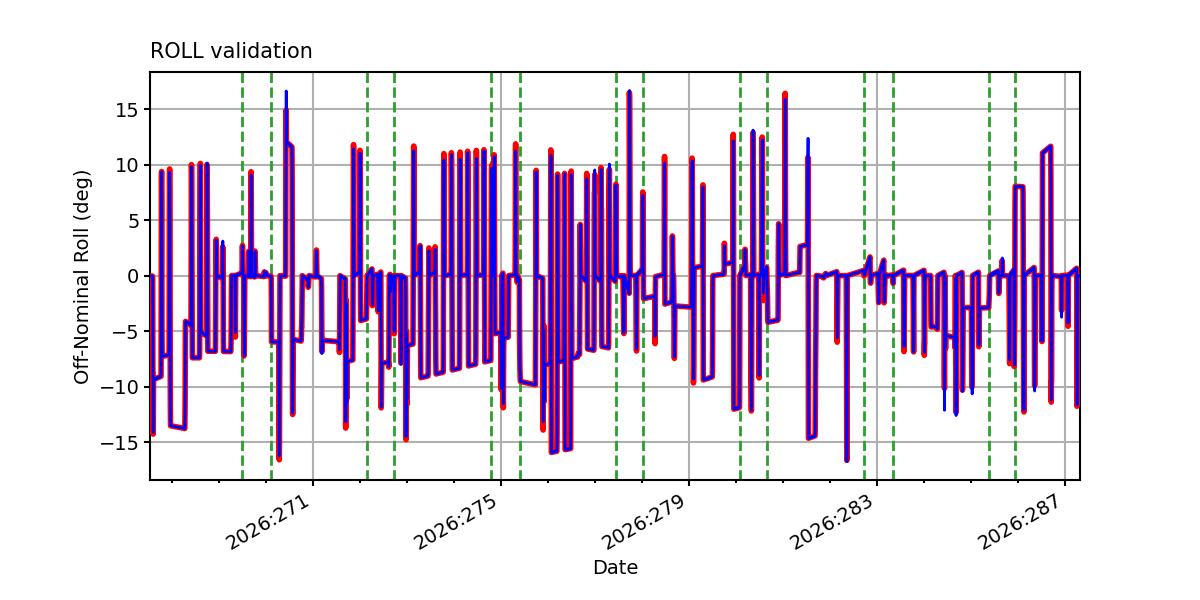

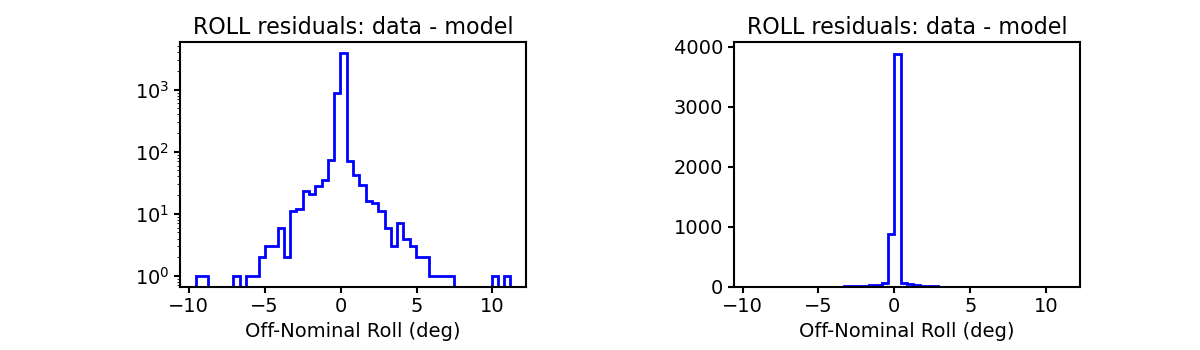

ROLL
ACIS CCD/FEP Count
