PSMC Temperatures Check
Summary
| Date start | 2025:292:21:44:50.716 |
| Date stop | 2025:299:22:52:08.316 |
| Model status | NOT OK |
| Load directory | /data/acis/LoadReviews/2025/OCT2025/oflsa |
| Run time | Thu Oct 16 19:19:35 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
1PDEAAT Upper Limit Violations
| Date start | Date stop | Duration (ks) | Max Temperature / Limit |
|---|---|---|---|
| 2025:298:15:45:50.816 | 2025:298:15:51:18.816 | 0.33 | 52.64 / 52.50 |
| 2025:298:17:02:22.816 | 2025:298:17:40:38.816 | 2.30 | 52.52 / 52.50 |
PSMC Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEAAT >= 30.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeaat | -3.12 | -2.20 | -1.34 | 0.33 | 2.27 | 3.30 | 4.41 |
| pitch | -11.396 | -1.347 | -0.004 | -0.000 | 0.004 | 1.227 | 11.847 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -2.089 | -0.196 | -0.008 | 0.000 | 0.009 | 0.338 | 2.337 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEAAT | 1 | -3.12 | 2.50 |
| PITCH | 1 | -11.396 | 3.00 |
| PITCH | 99 | 11.847 | 3.00 |

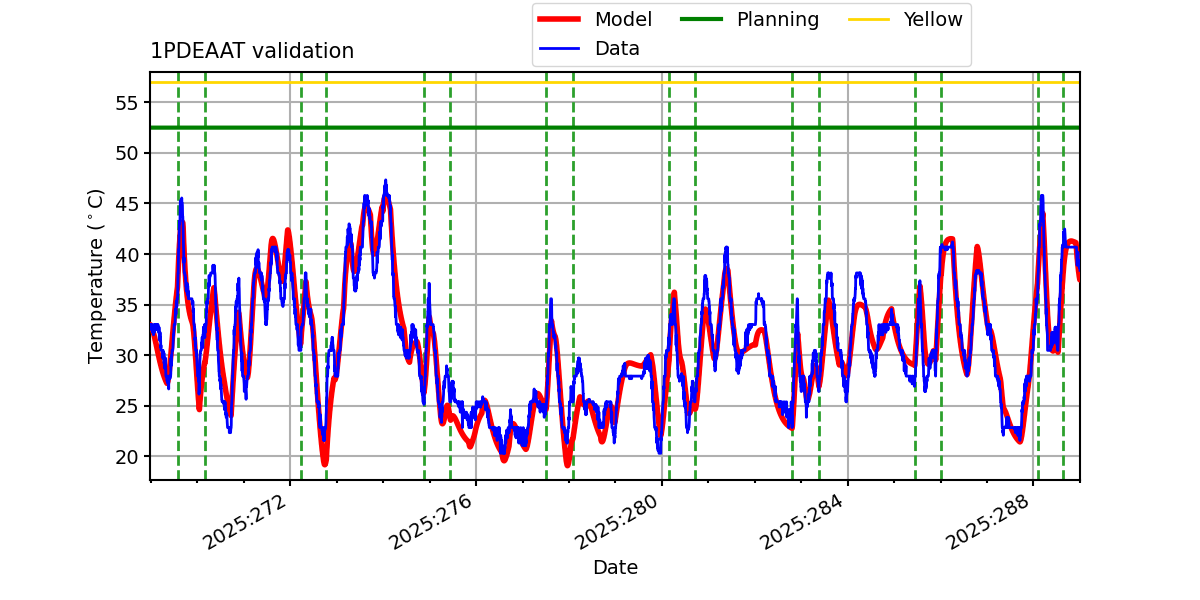

1PDEAAT

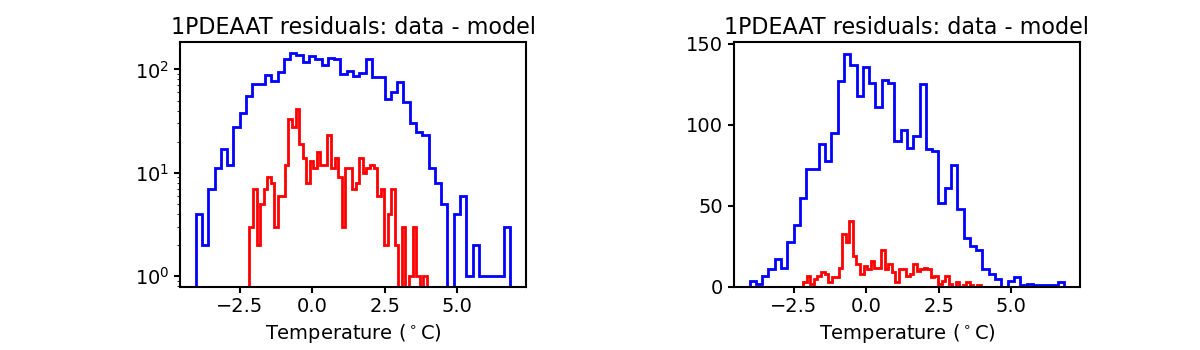

Note: 1PDEAAT residual histograms include only points where 1PDEAAT >= 30.0 C in blue and points where 1PDEAAT >= 40.0 C in red.

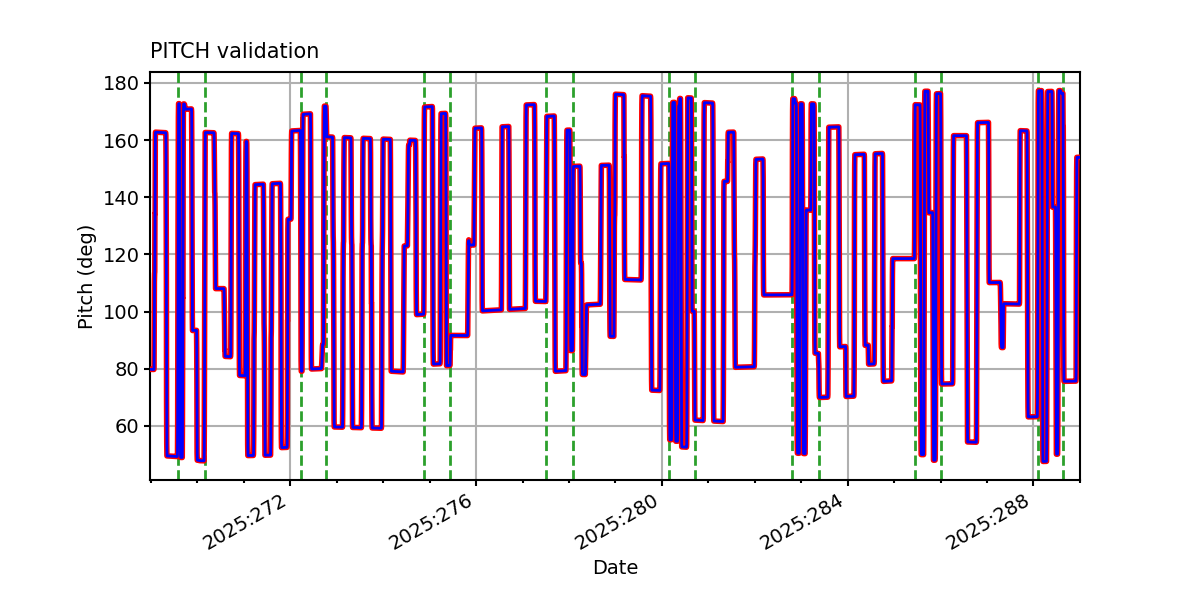

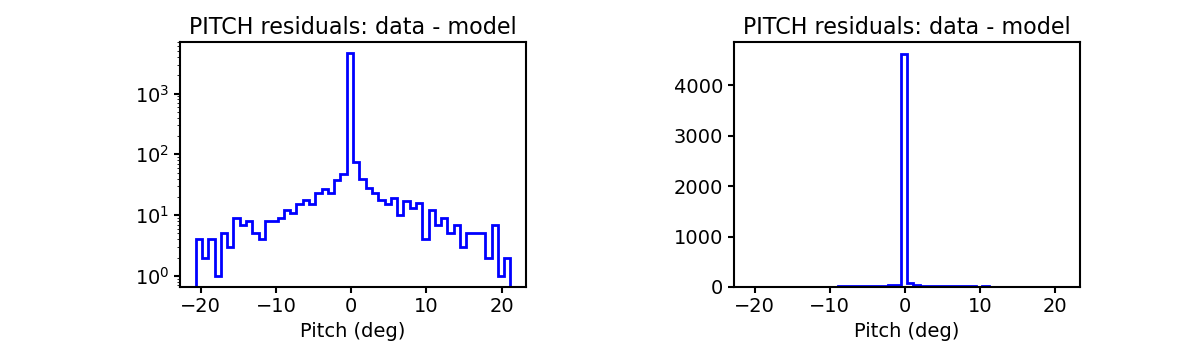

PITCH

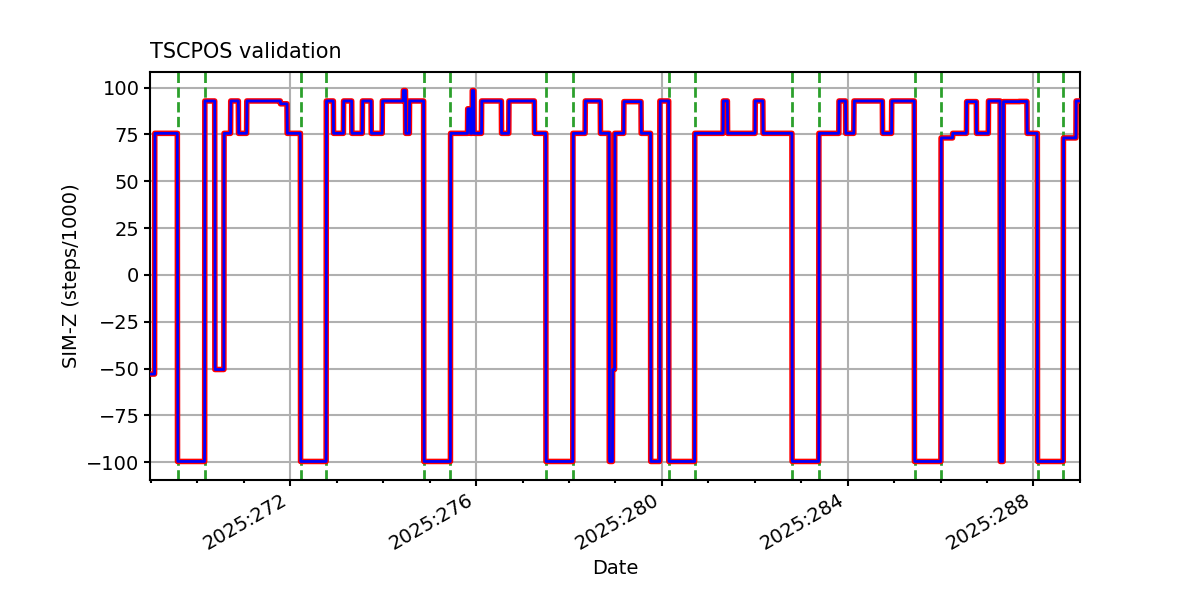

TSCPOS

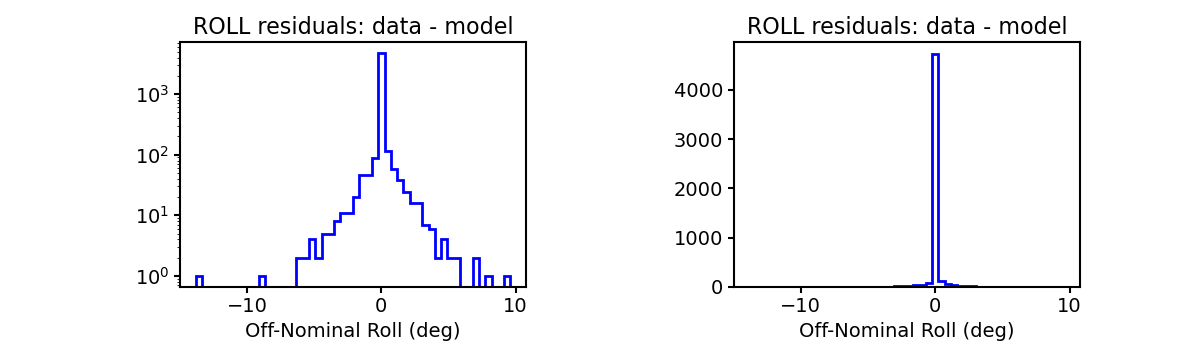

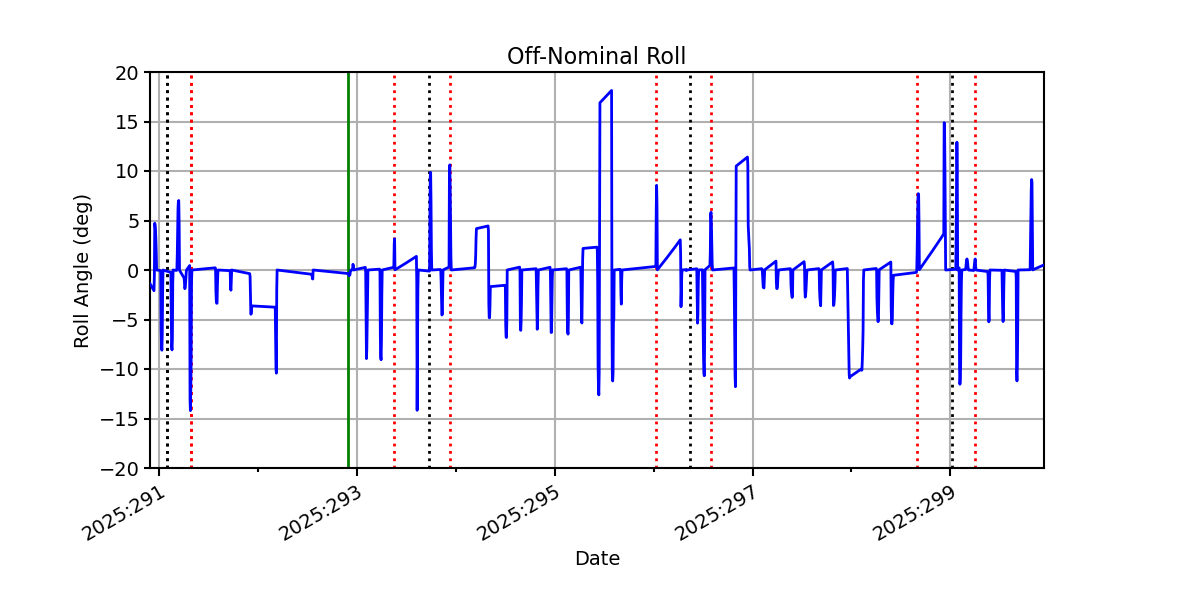

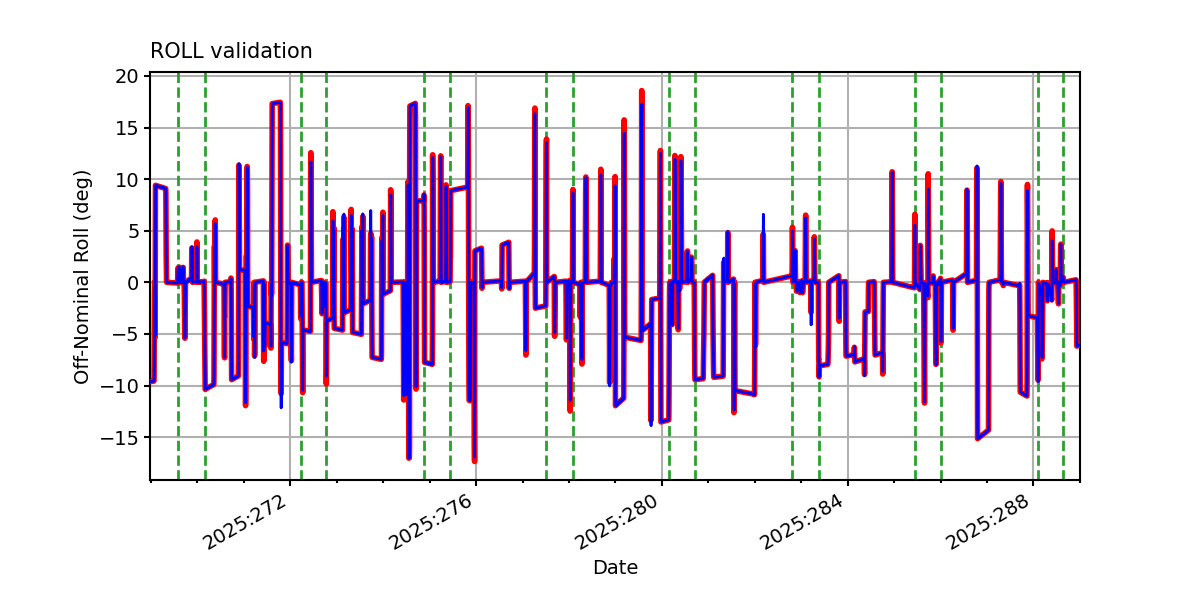

ROLL

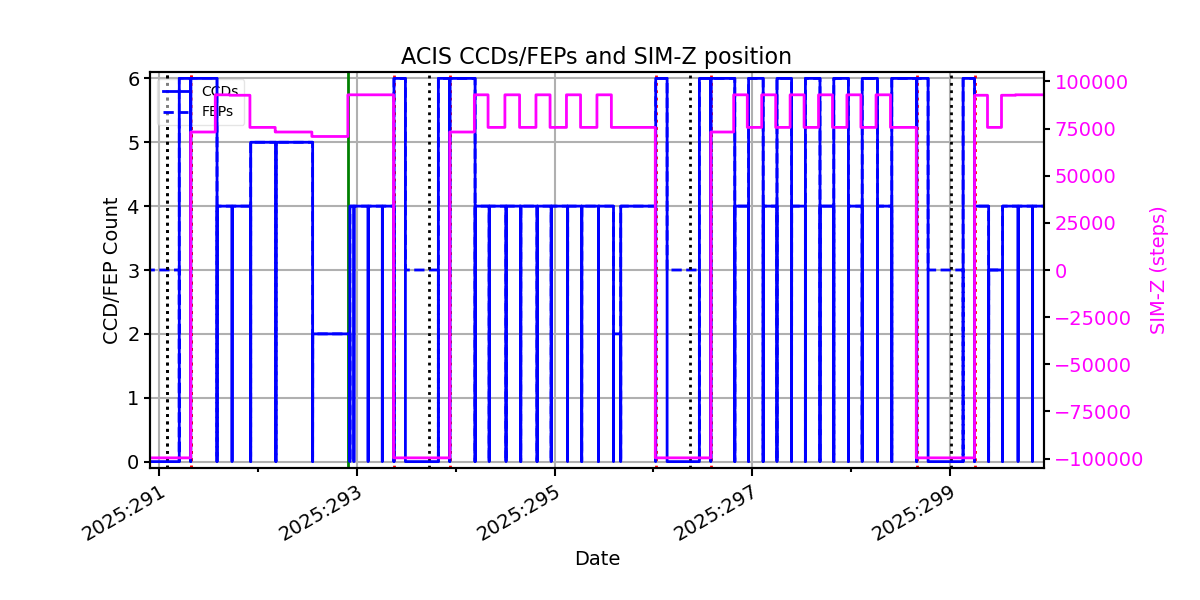

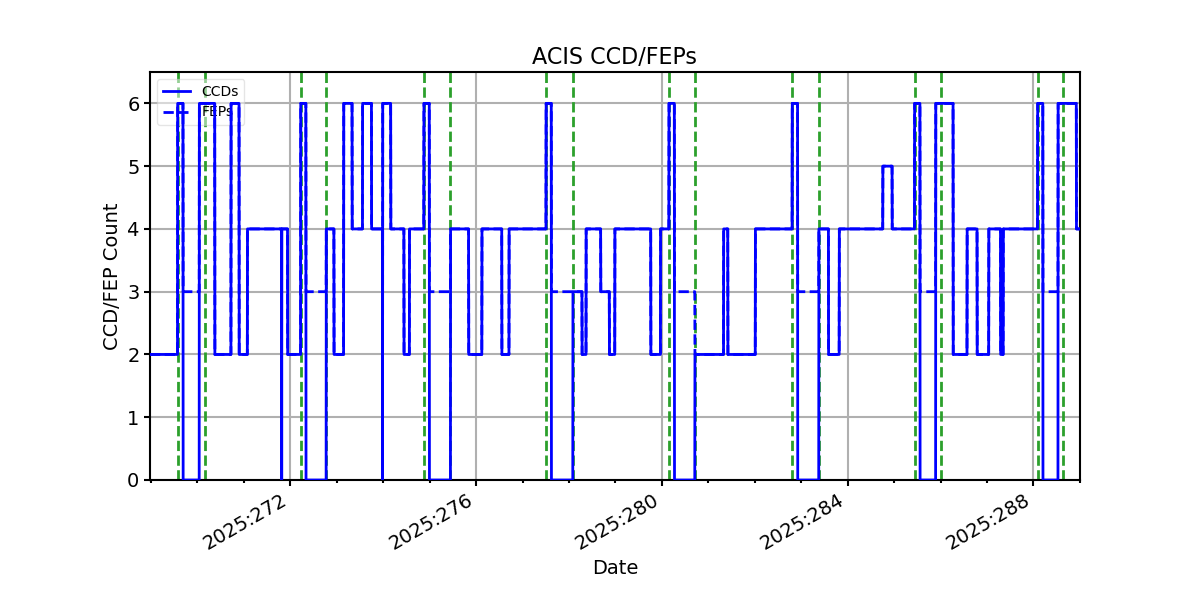

ACIS CCD/FEP Count
