PSMC Temperatures Check

Summary

Date start 2025:244:00:20:40.116
Date stop 2025:250:21:18:18.716
Model status OK
Load directory /data/acis/LoadReviews/2025/SEP0125/oflsa
Run time Thu Aug 28 10:23:24 2025 by acisdude
Run log run.dat
Temperatures temperatures.dat
States states.dat

No 1PDEAAT Upper Limit Violations

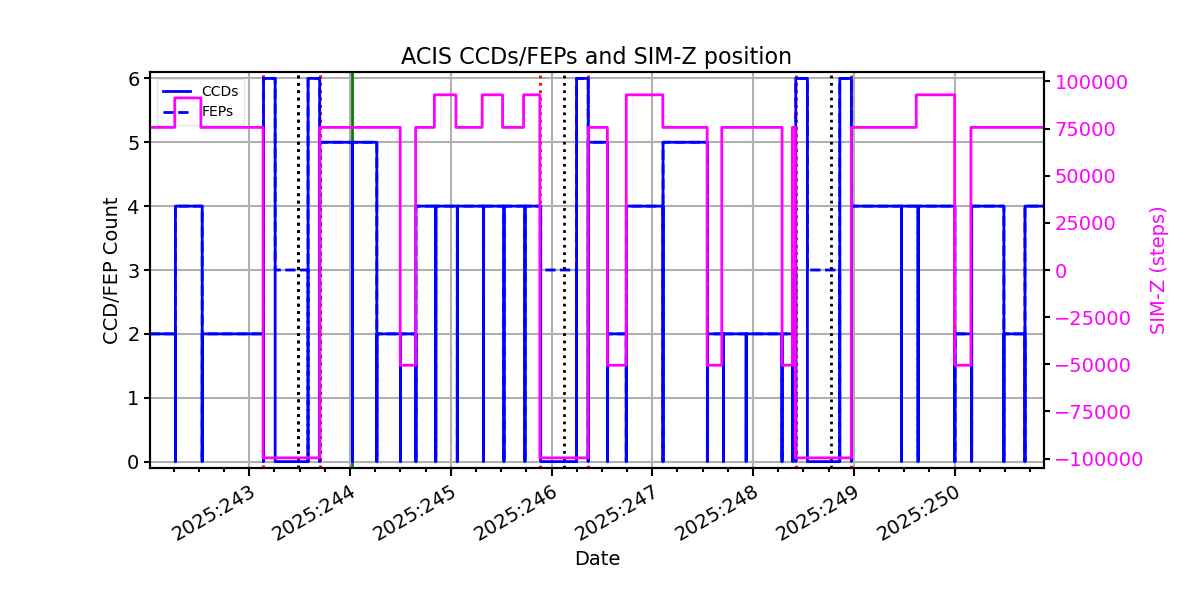

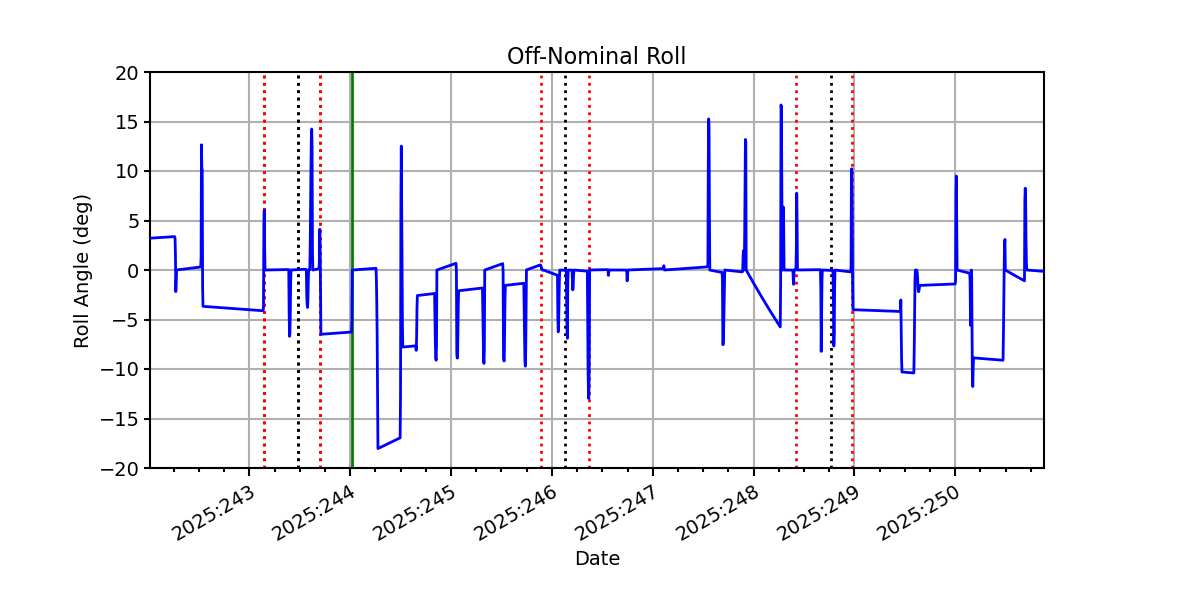

1pdeaat.png pow_sim.png roll.png

PSMC Model Validation

MSID quantiles

Note: Quantiles are calculated using only points where 1PDEAAT >= 30.0 C.

MSID 1% 5% 16% 50% 84% 95% 99%
1pdeaat -3.93 -2.99 -1.72 0.33 2.65 4.74 6.78
pitch -8.642 -0.195 -0.004 -0.000 0.004 0.035 9.308
tscpos -1 -1 -1 0 0 1 1
roll -1.290 -0.058 -0.005 0.000 0.005 0.066 1.640

Validation Violations

MSID Quantile Value Limit
1PDEAAT 1 -3.93 2.50
1PDEAAT 99 6.78 5.50
PITCH 1 -8.642 3.00
PITCH 99 9.308 3.00

1PDEAAT

Note: 1PDEAAT residual histograms include only points where 1PDEAAT >= 30.0 C in blue and points where 1PDEAAT >= 40.0 C in red.

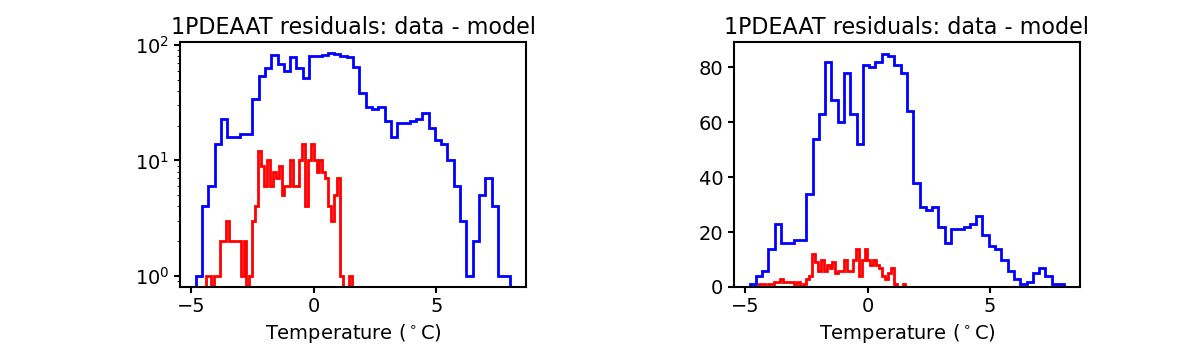

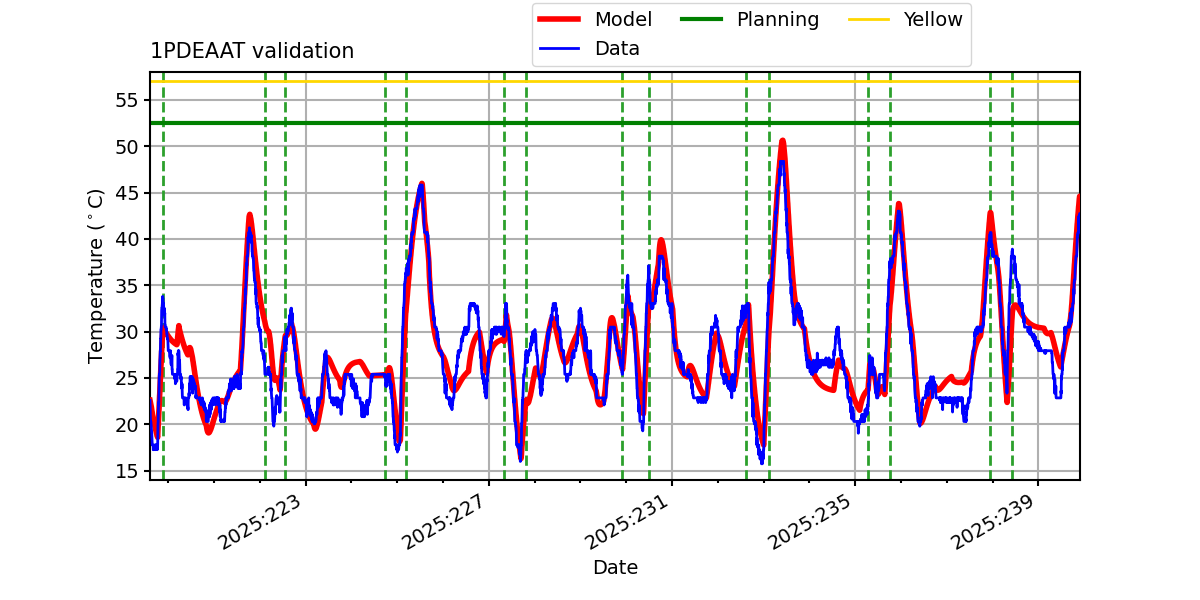

1pdeaat_valid.png 1pdeaat_valid_hist.png

PITCH

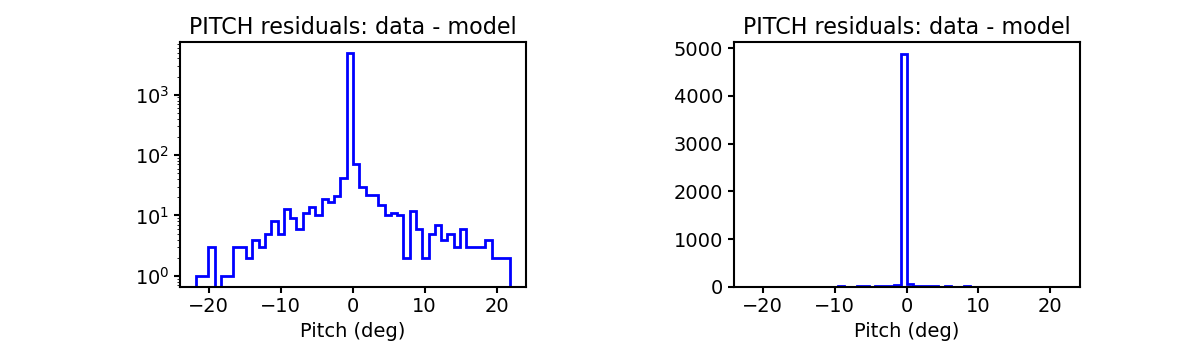

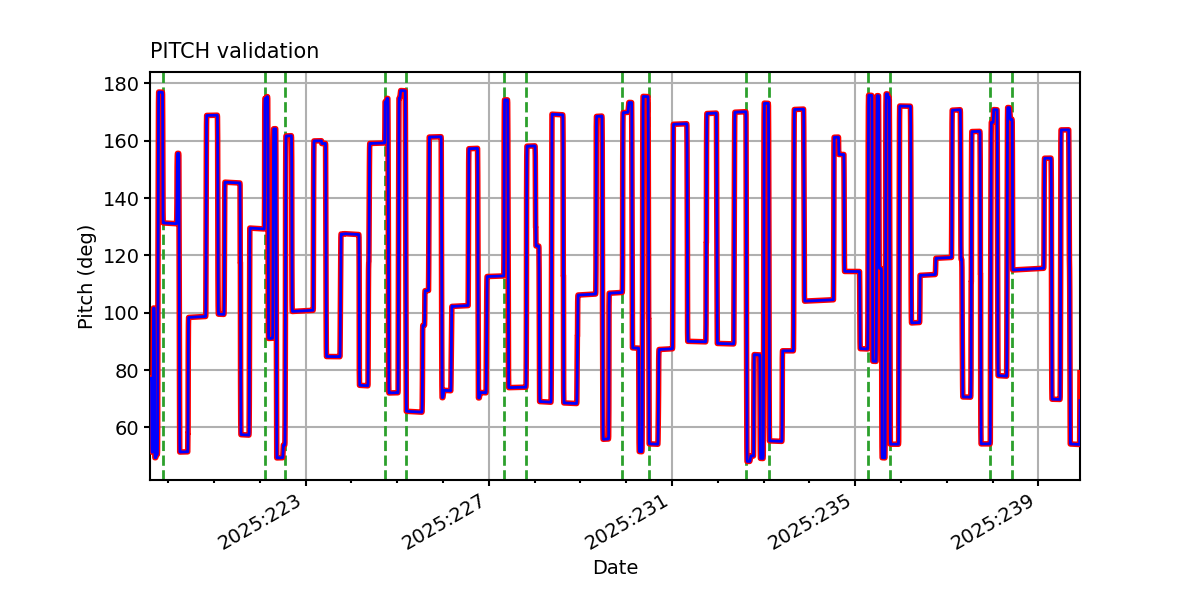

pitch_valid.png pitch_valid_hist.png

TSCPOS

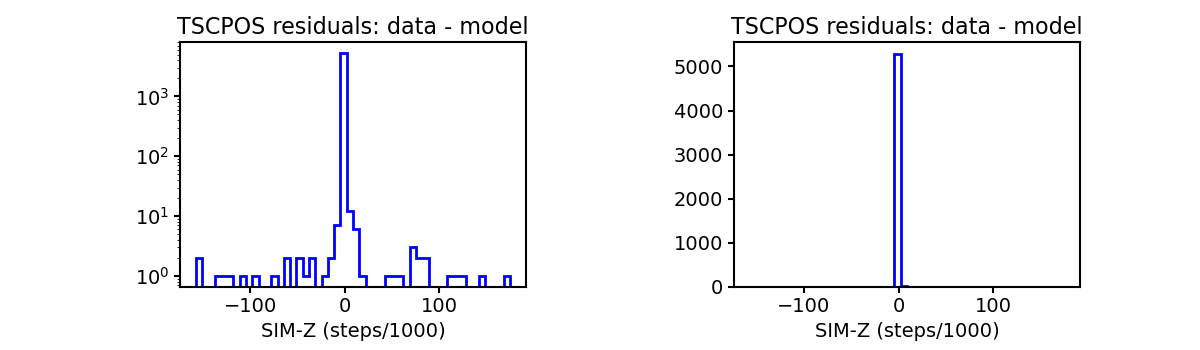

tscpos_valid.png tscpos_valid_hist.png

ROLL

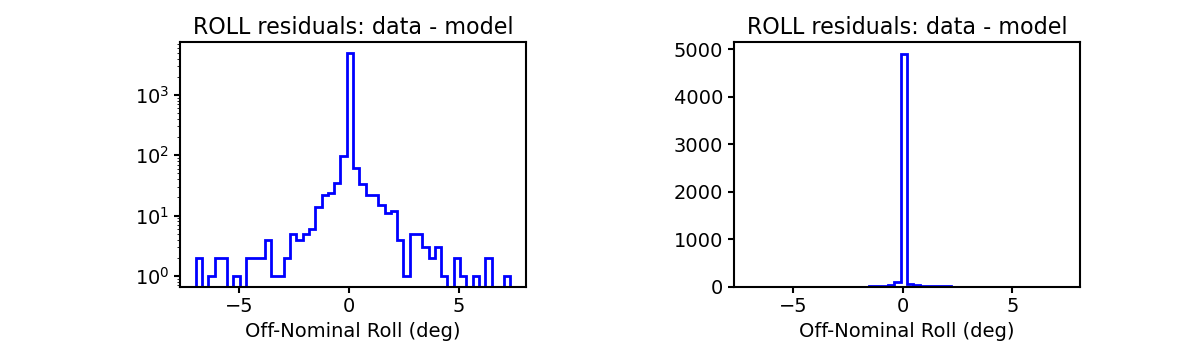

roll_valid.png roll_valid_hist.png

ACIS CCD/FEP Count
