PSMC Temperatures Check
Summary
| Date start | 2025:246:00:40:00.016 |
| Date stop | 2025:250:21:18:18.716 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/SEP0325/oflsa |
| Run time | Mon Sep 1 23:19:02 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEAAT Upper Limit Violations
PSMC Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEAAT >= 30.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeaat | -3.90 | -2.42 | -1.48 | 0.51 | 2.66 | 4.79 | 6.70 |
| pitch | -8.760 | -0.107 | -0.004 | -0.000 | 0.004 | 0.045 | 8.420 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 1 |
| roll | -1.357 | -0.050 | -0.005 | -0.000 | 0.005 | 0.051 | 1.516 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEAAT | 1 | -3.9 | 2.50 |
| 1PDEAAT | 99 | 6.7 | 5.50 |
| PITCH | 1 | -8.76 | 3.00 |
| PITCH | 99 | 8.42 | 3.00 |
1PDEAAT

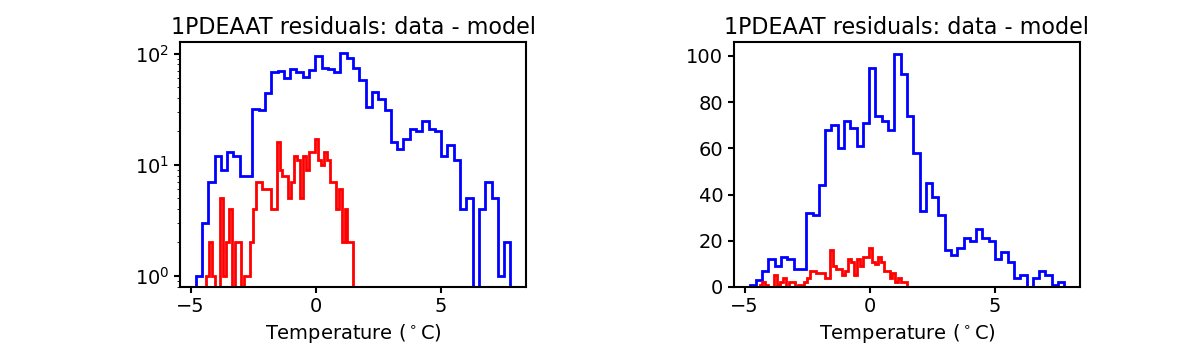

Note: 1PDEAAT residual histograms include only points where 1PDEAAT >= 30.0 C in blue and points where 1PDEAAT >= 40.0 C in red.

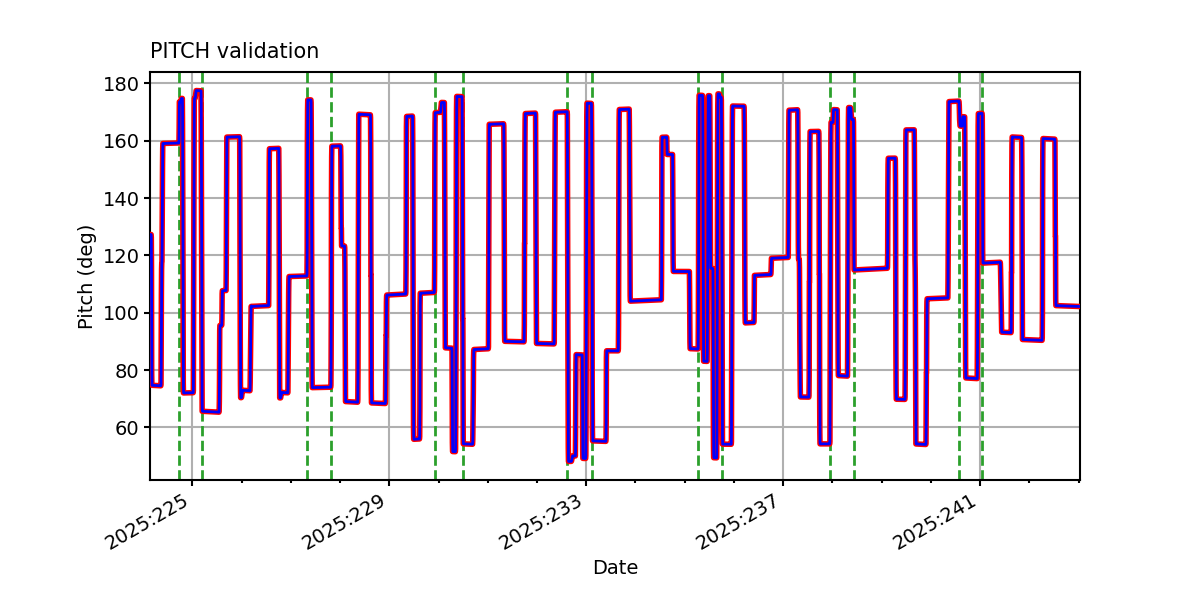

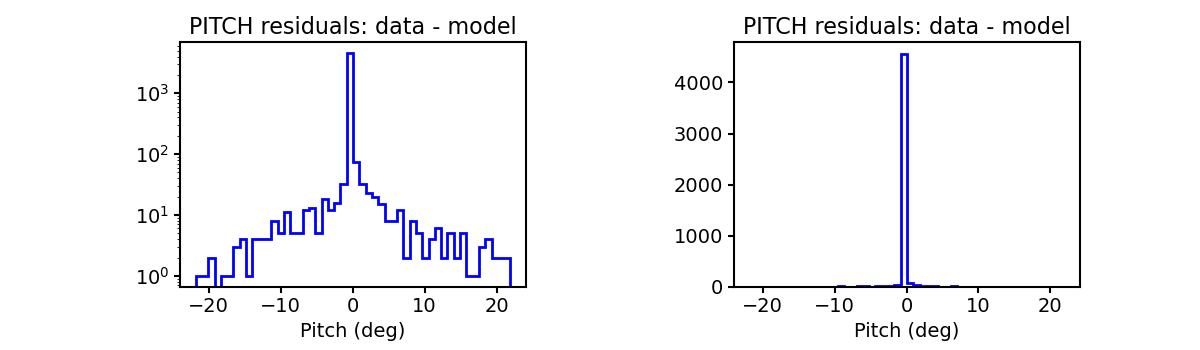

PITCH

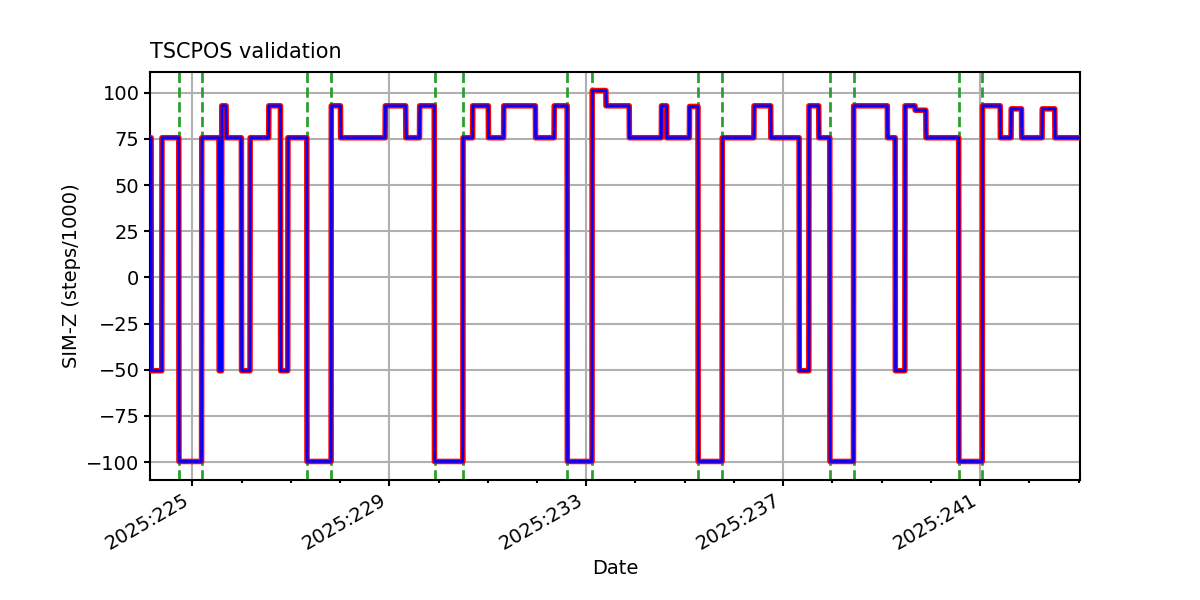

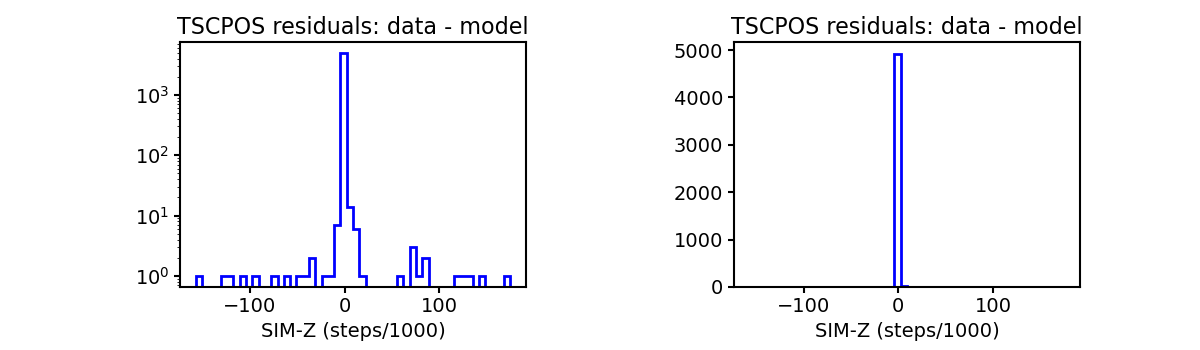

TSCPOS

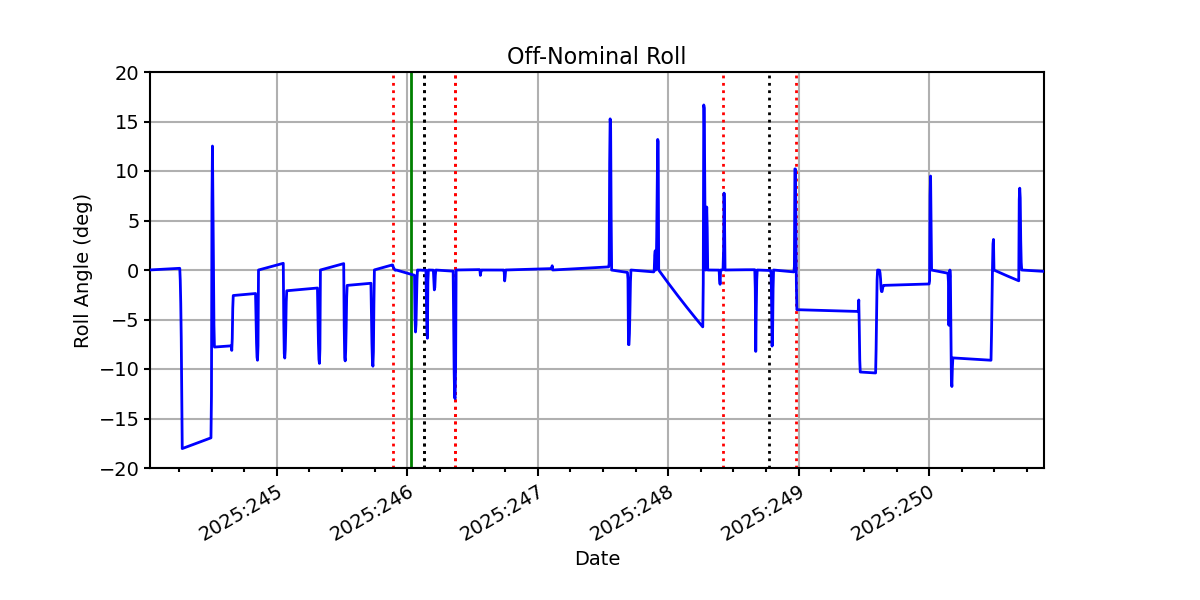

ROLL

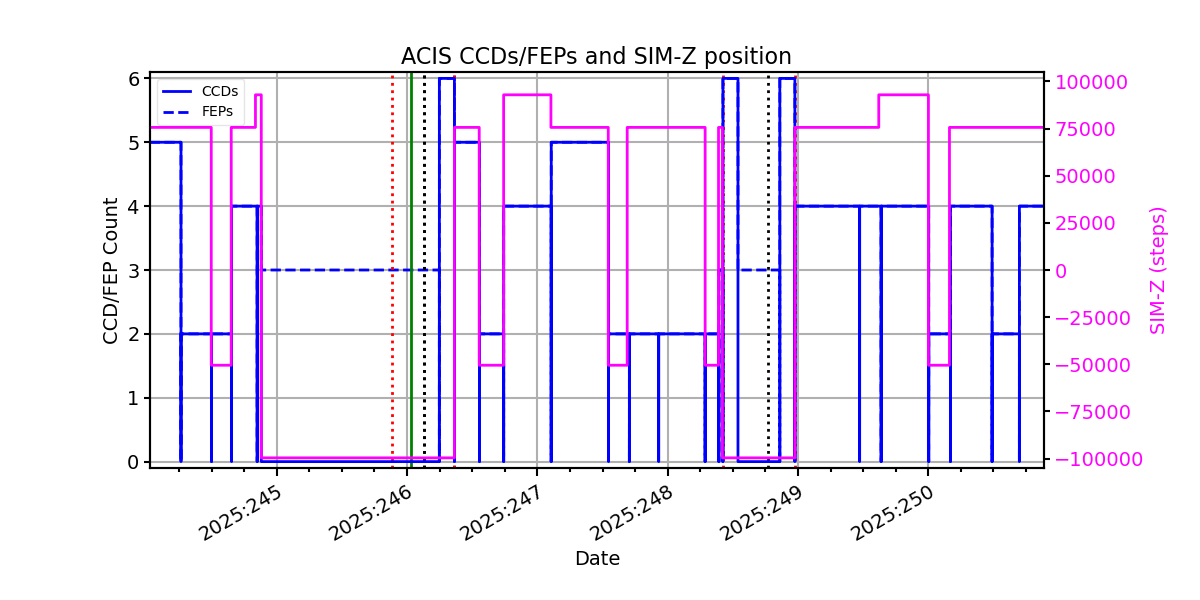

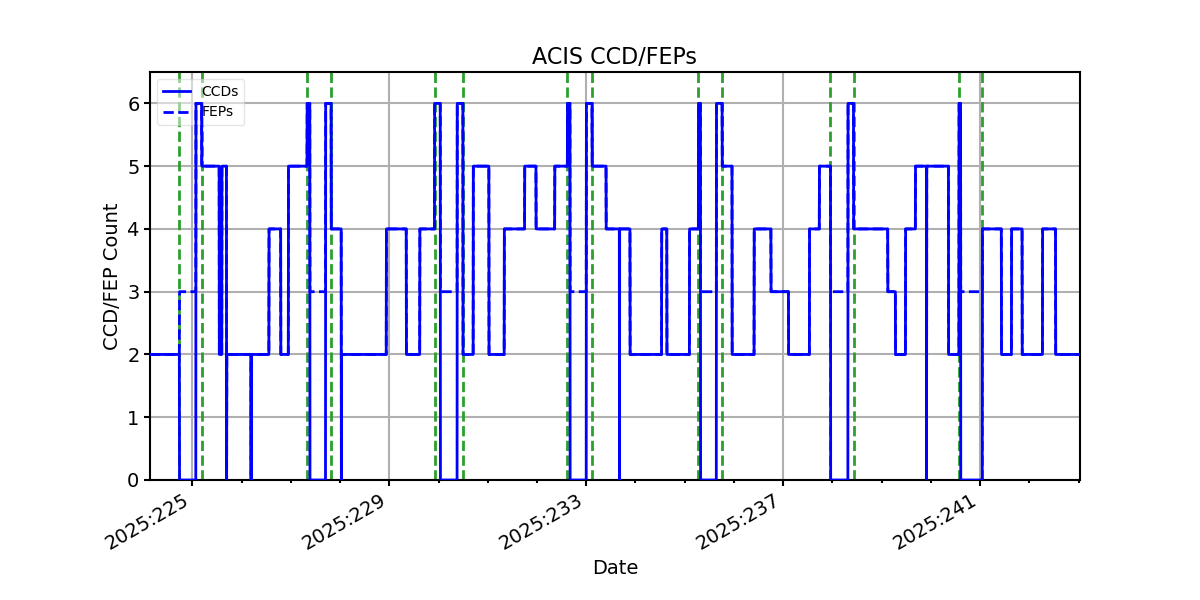

ACIS CCD/FEP Count
