PSMC Temperatures Check
Summary
| Date start | 2025:257:22:57:15.016 |
| Date stop | 2025:265:00:07:59.816 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2025/SEP1525/oflsa |
| Run time | Thu Sep 11 09:36:26 2025 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEAAT Upper Limit Violations
PSMC Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEAAT >= 30.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeaat | -4.05 | -2.85 | -1.61 | -0.05 | 1.82 | 3.30 | 6.40 |
| pitch | -8.255 | -0.056 | -0.004 | 0.000 | 0.004 | 0.170 | 9.071 |
| tscpos | -1 | -1 | -1 | 0 | 0 | 0 | 0 |
| roll | -1.475 | -0.074 | -0.006 | -0.000 | 0.007 | 0.082 | 1.516 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEAAT | 1 | -4.05 | 2.50 |
| 1PDEAAT | 99 | 6.4 | 5.50 |
| PITCH | 1 | -8.255 | 3.00 |
| PITCH | 99 | 9.071 | 3.00 |

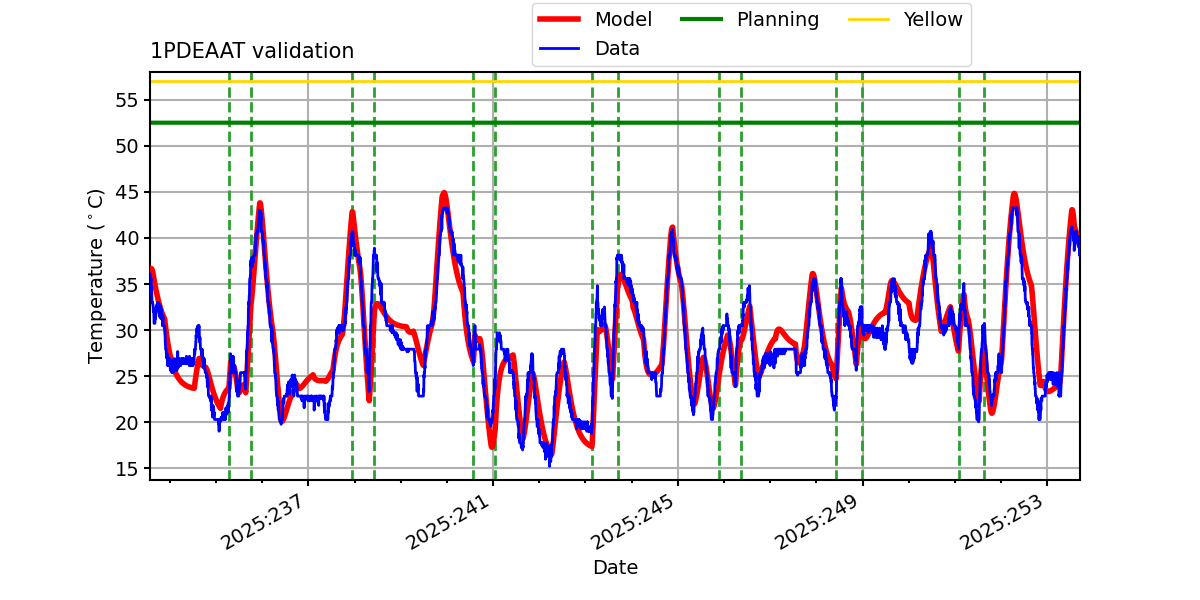

1PDEAAT

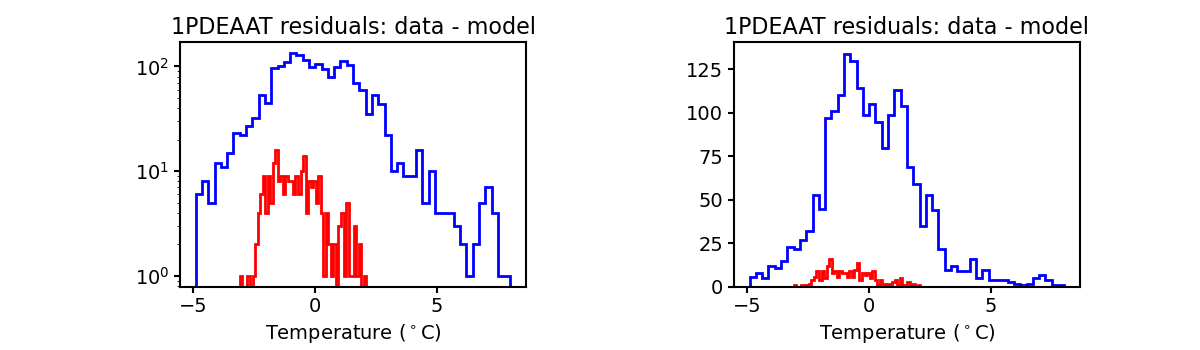

Note: 1PDEAAT residual histograms include only points where 1PDEAAT >= 30.0 C in blue and points where 1PDEAAT >= 40.0 C in red.

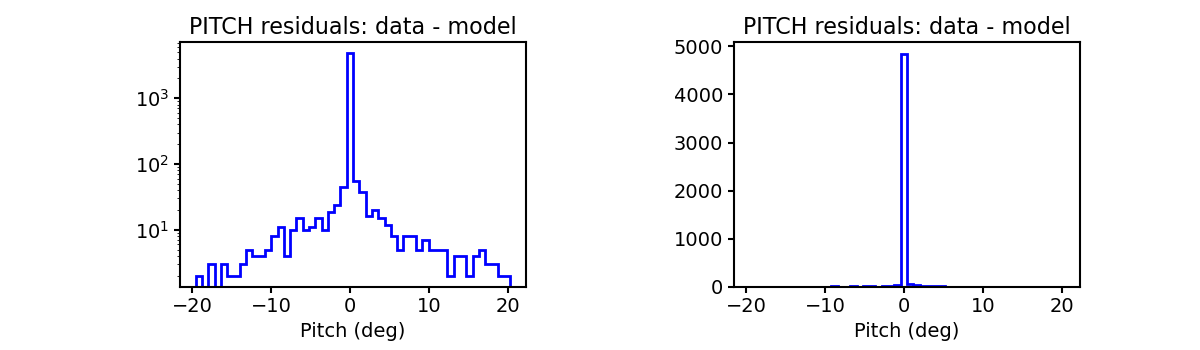

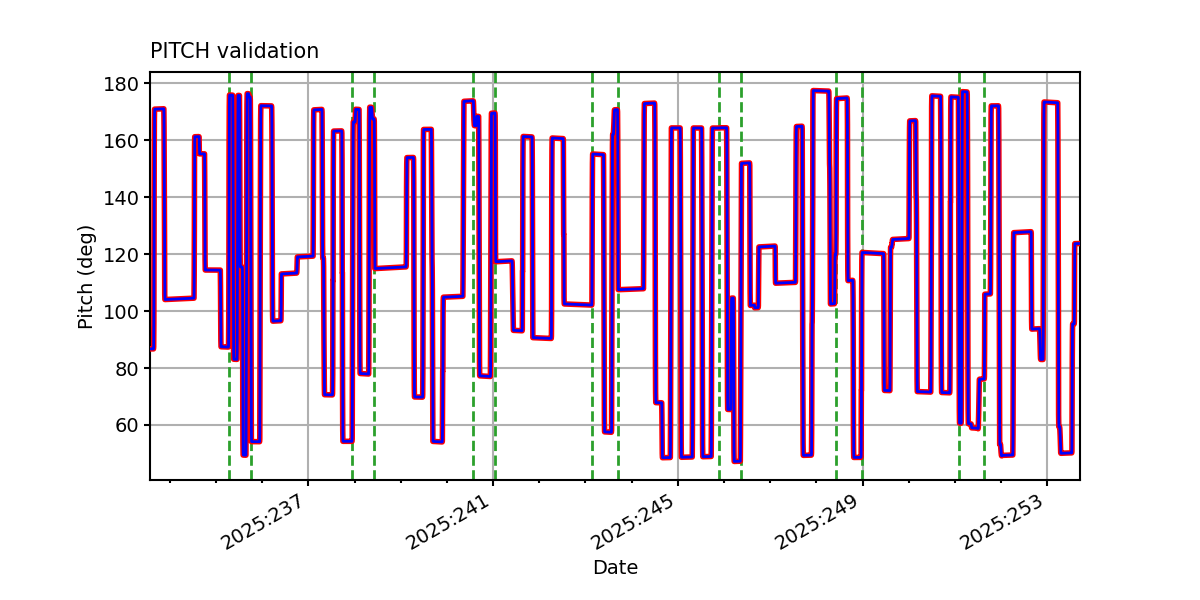

PITCH

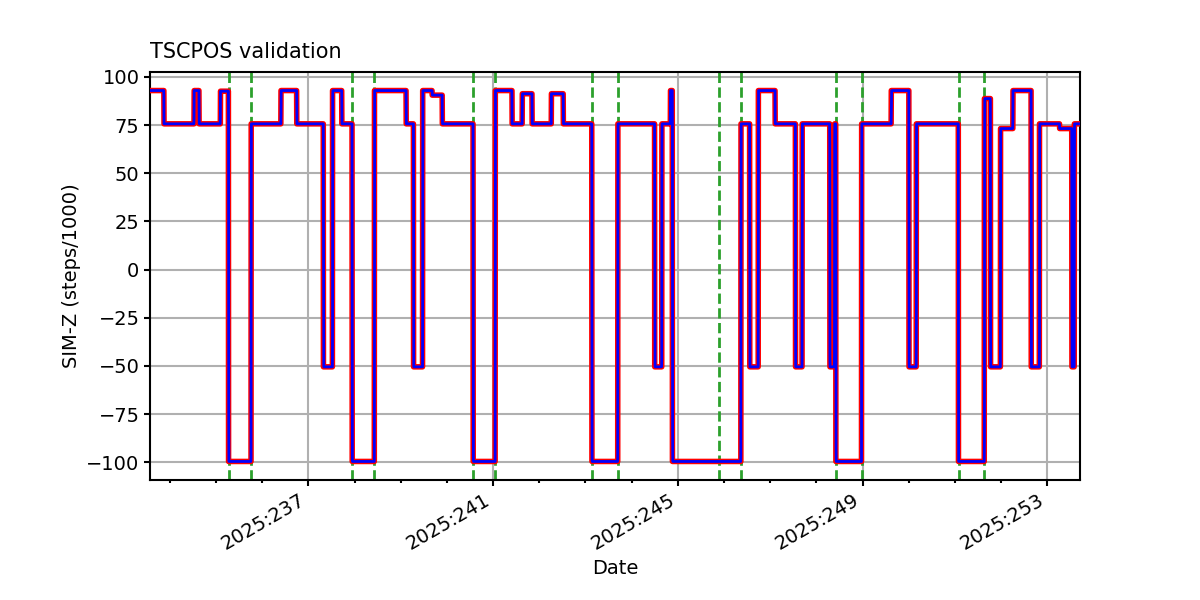

TSCPOS

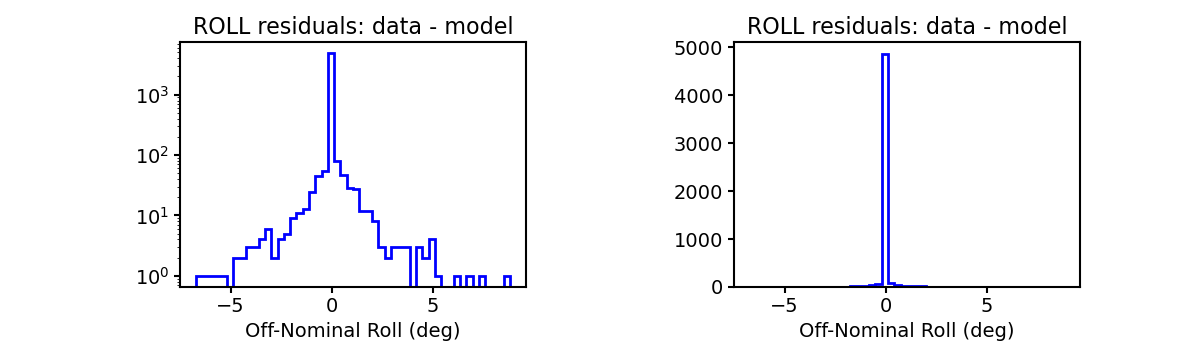

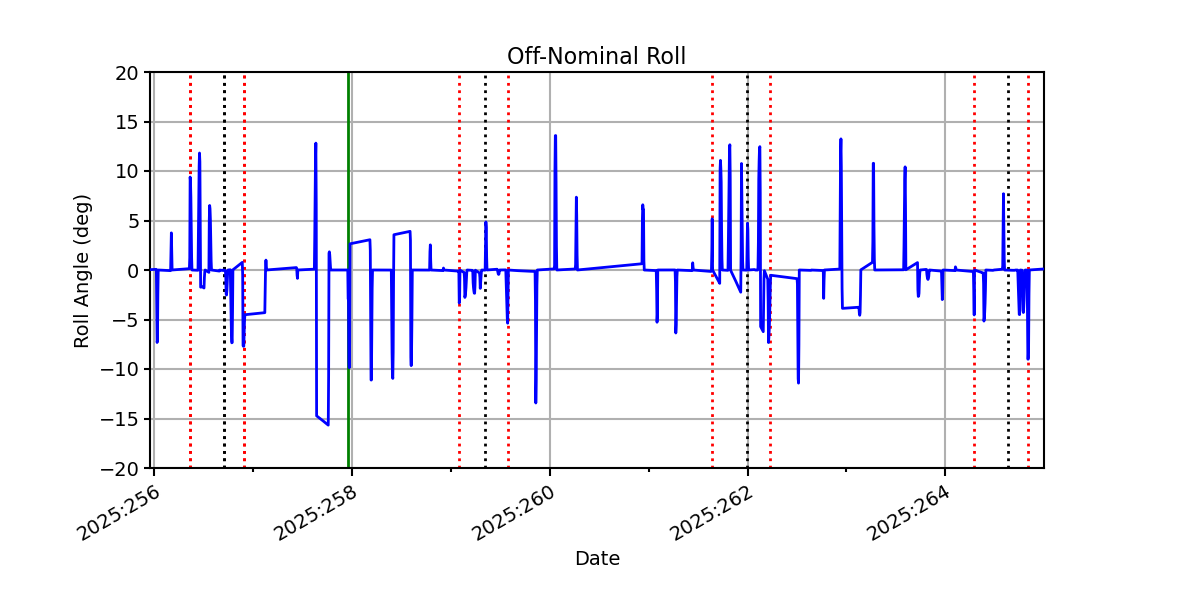

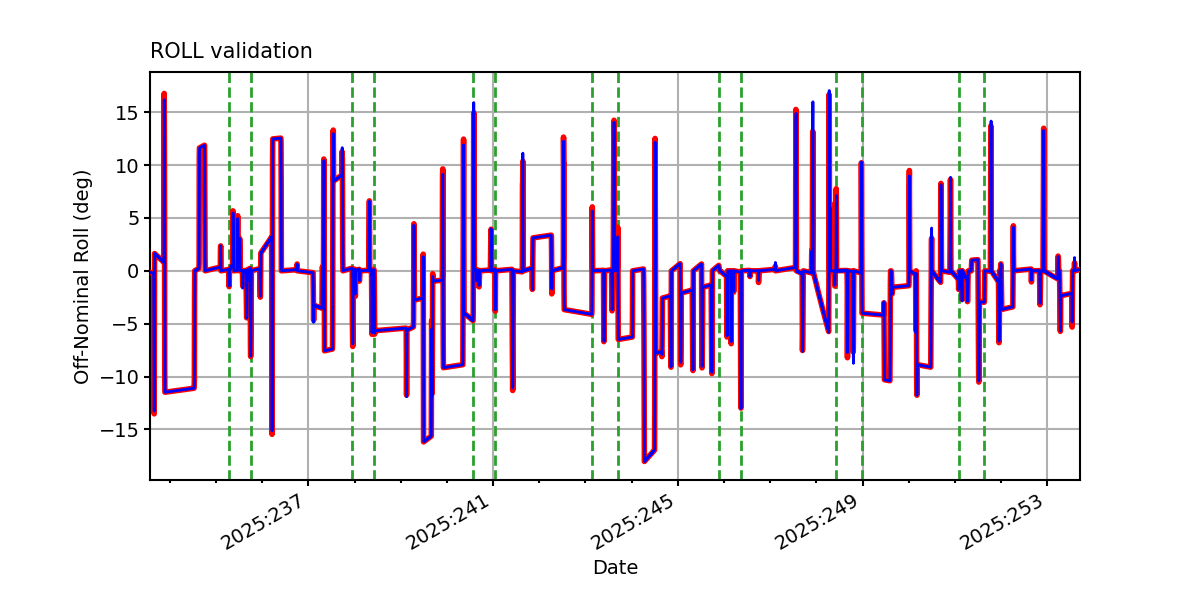

ROLL

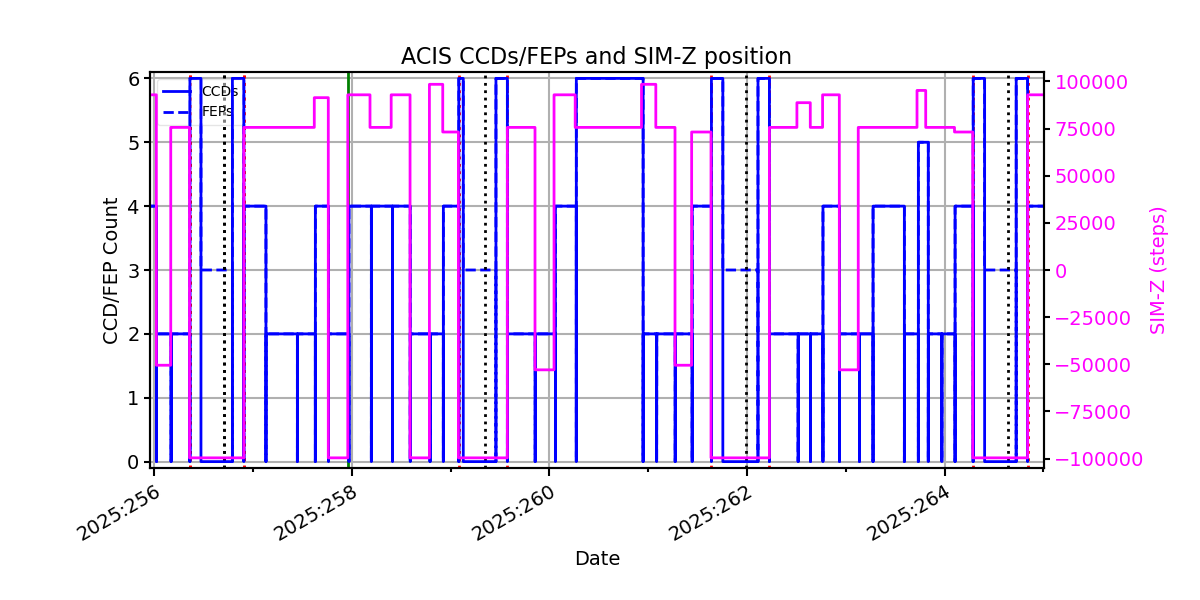

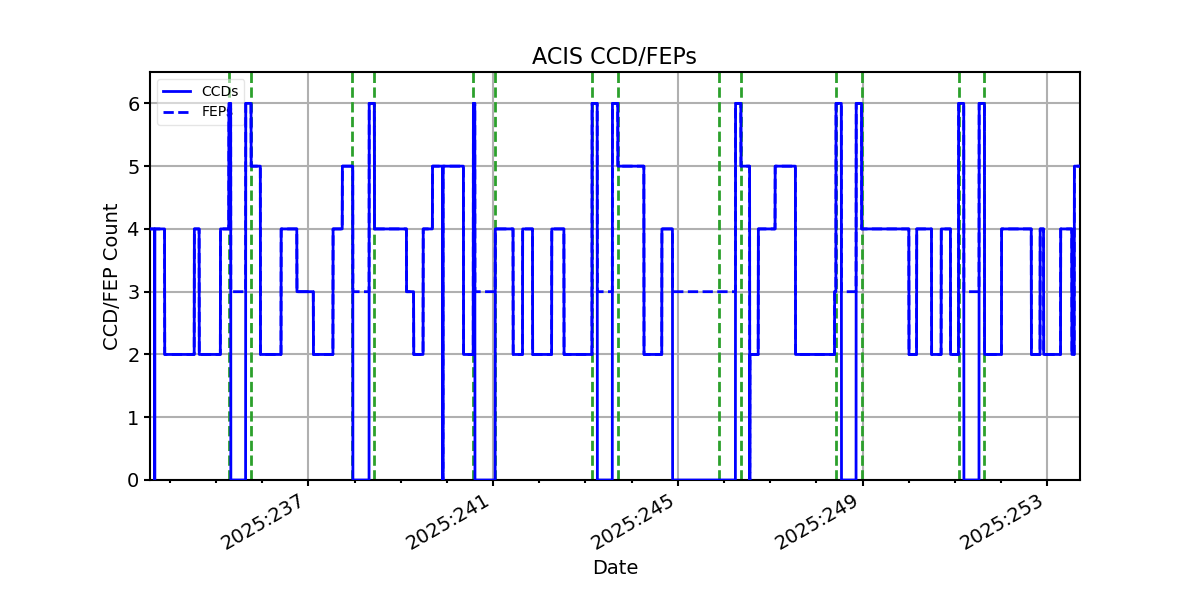

ACIS CCD/FEP Count
