PSMC Temperatures Check
Summary
| Date start | 2026:264:01:02:49.516 |
| Date stop | 2026:271:01:24:07.416 |
| Model status | OK |
| Load directory | /data/acis/LoadReviews/2026/SEP2126/oflsa |
| Run time | Wed Sep 16 11:12:55 2026 by acisdude |
| Run log | run.dat |
| Temperatures | temperatures.dat |
| States | states.dat |
No 1PDEAAT Upper Limit Violations
PSMC Model Validation
MSID quantiles
Note: Quantiles are calculated using only points where 1PDEAAT >= 30.0 C.
| MSID | 1% | 5% | 16% | 50% | 84% | 95% | 99% |
|---|---|---|---|---|---|---|---|
| 1pdeaat | -3.44 | -2.35 | -1.17 | 0.27 | 2.04 | 3.44 | 4.32 |
| pitch | -11.697 | -1.341 | -0.004 | -0.000 | 0.004 | 1.014 | 11.528 |
| tscpos | -1 | -1 | -1 | -1 | 0 | 0 | 1 |
| roll | -1.913 | -0.147 | -0.007 | 0.000 | 0.007 | 0.180 | 1.662 |
Validation Violations
| MSID | Quantile | Value | Limit |
|---|---|---|---|
| 1PDEAAT | 1 | -3.44 | 2.50 |
| PITCH | 1 | -11.697 | 3.00 |
| PITCH | 99 | 11.528 | 3.00 |

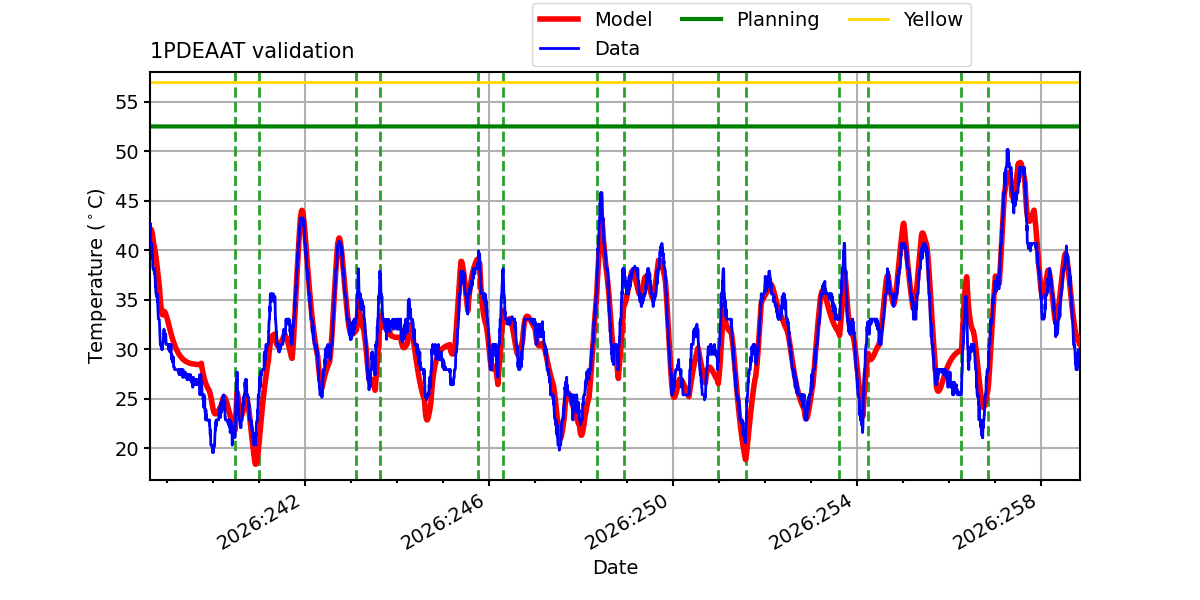

1PDEAAT

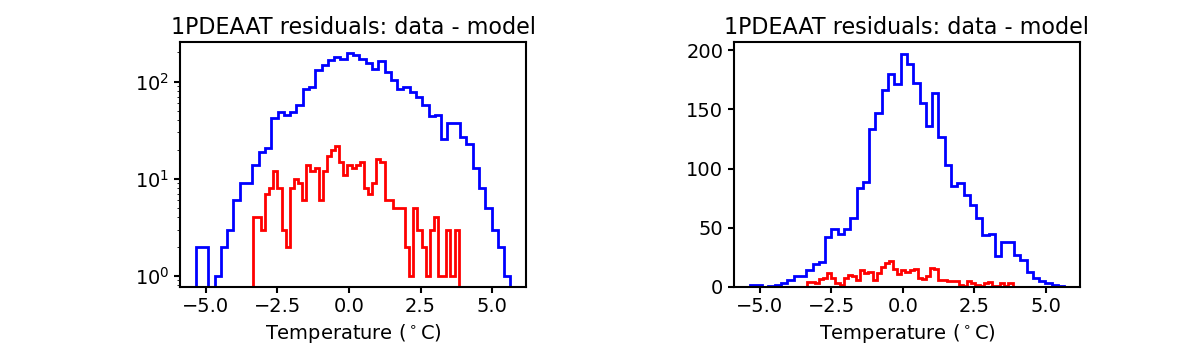

Note: 1PDEAAT residual histograms include only points where 1PDEAAT >= 30.0 C in blue and points where 1PDEAAT >= 40.0 C in red.

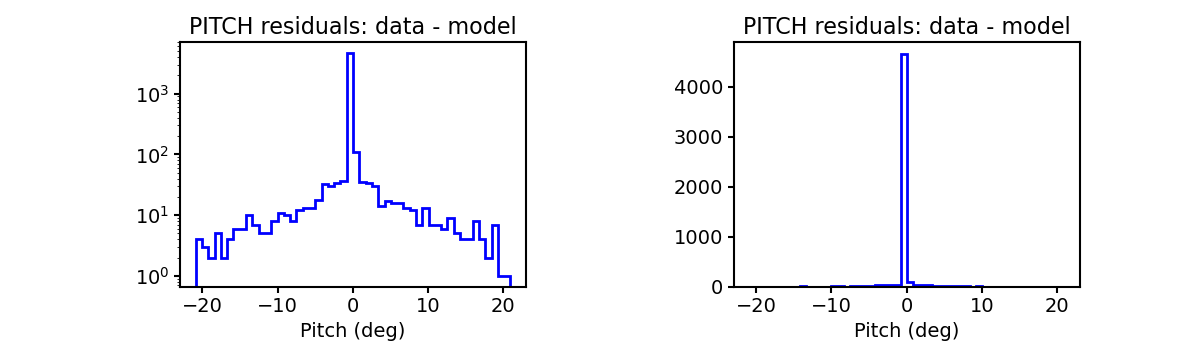

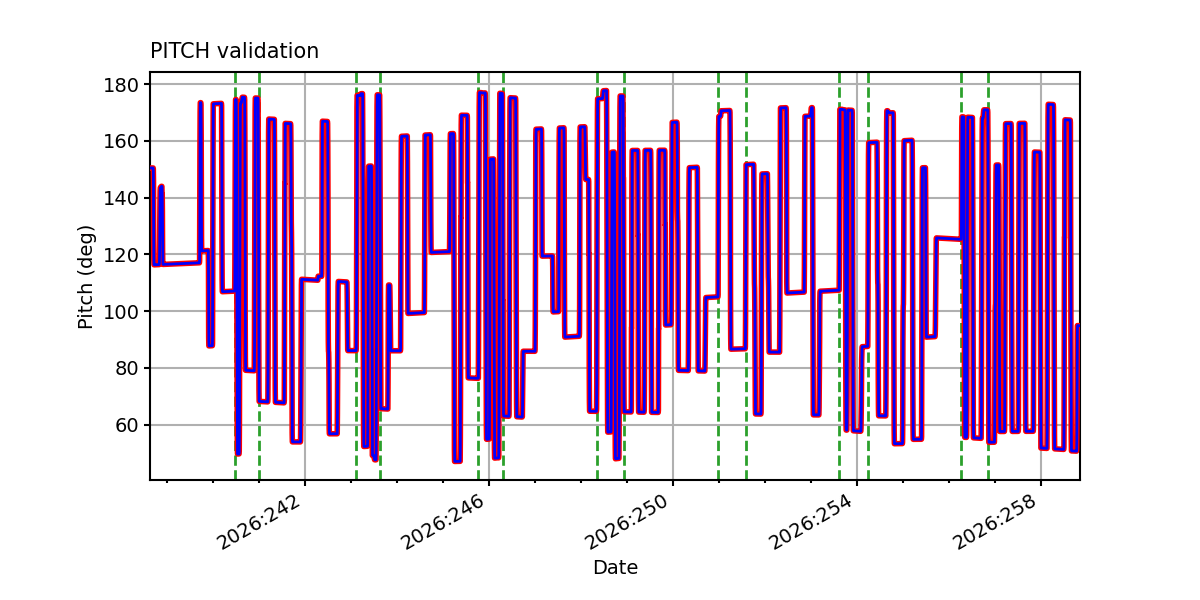

PITCH

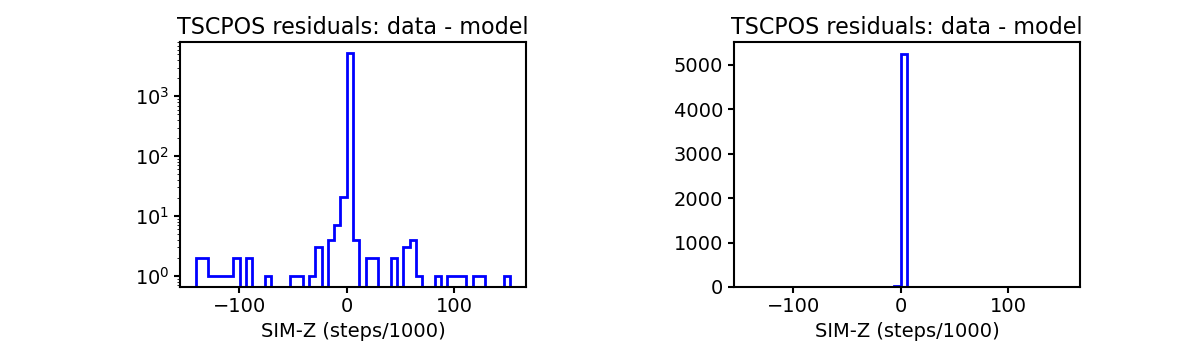

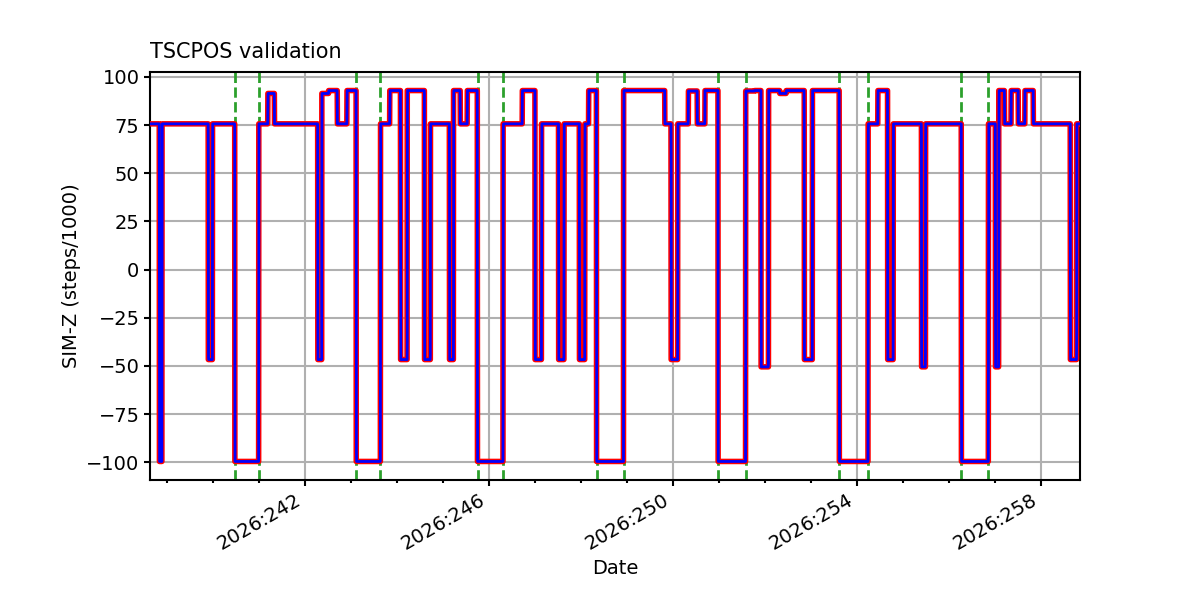

TSCPOS

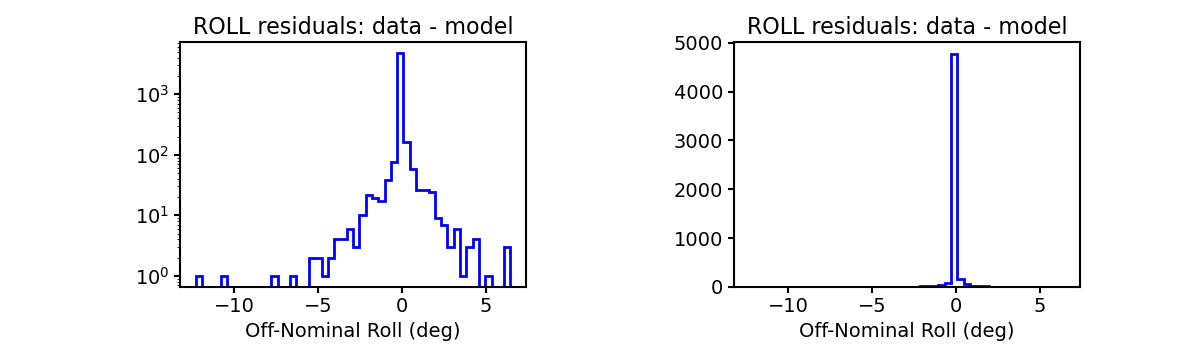

ROLL

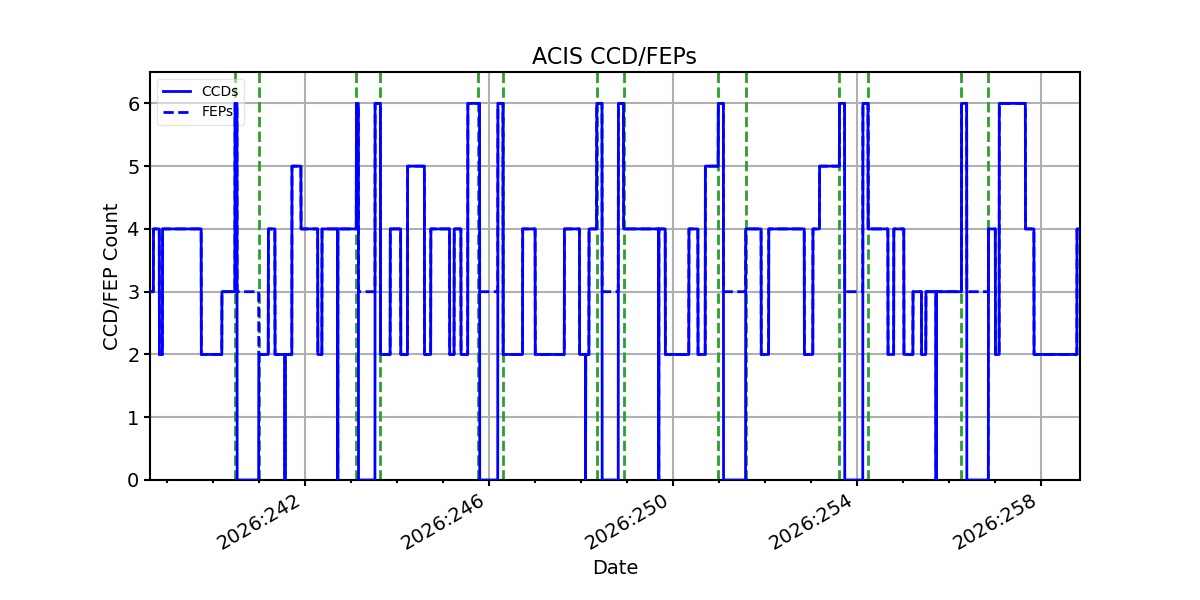

ACIS CCD/FEP Count
