AGASC ID 1446568

Info

Last Obs. 2025:039:16:47
magcatalog 9.38 ± 0.02
mag3 arcsec 9.40 ± 0.01
mag5 arcsec 9.40 ± 0.01
Nobs 10 (0 bad)
fok 99.0%
f3 arcsec 99.9%
f5 arcsec 100.0%

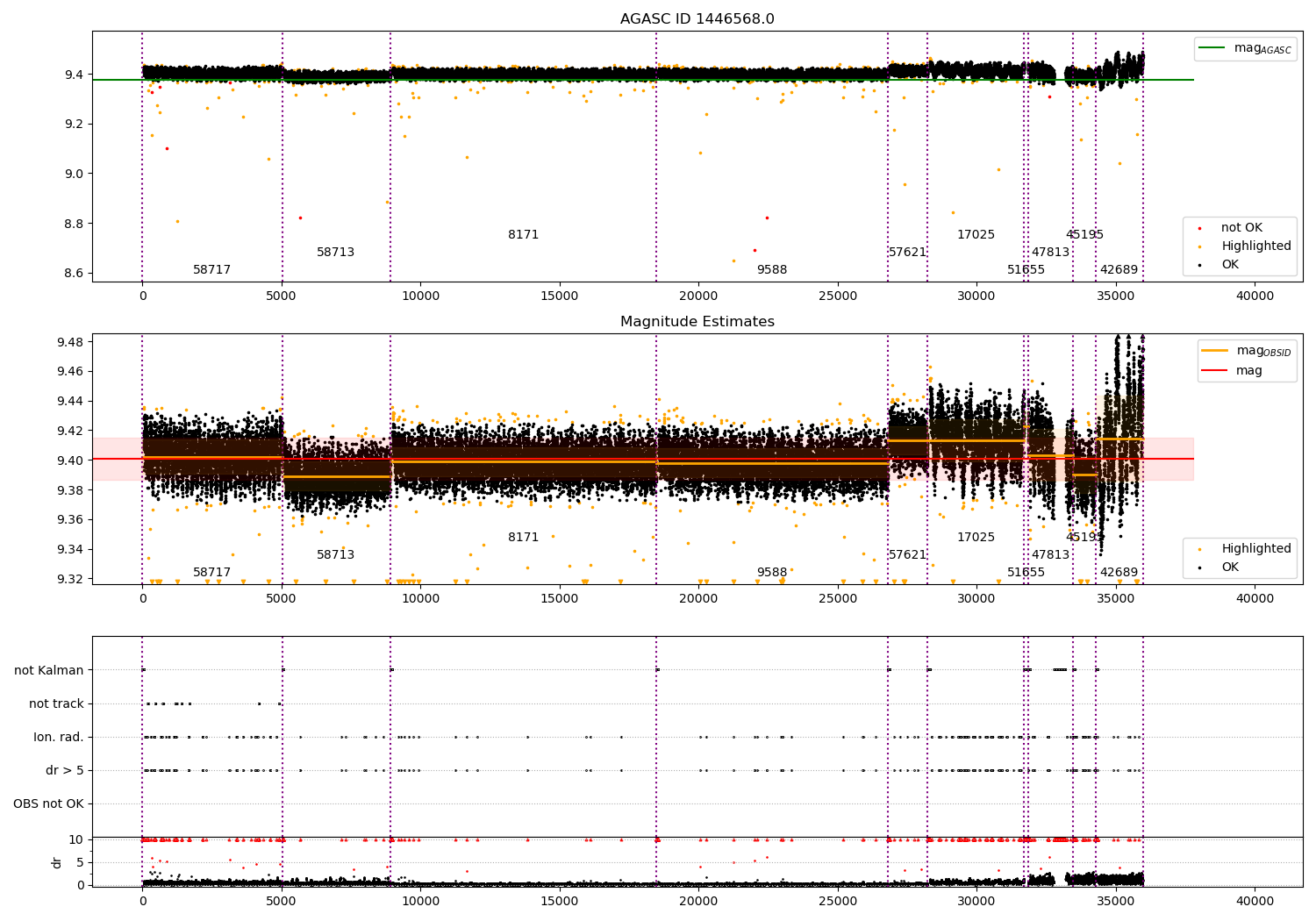

Timeline

Observation Info

OBSID Time Slot Row Col N Nmag est ok Nout fmag est ok fdr3 fdbox5 fmag est ok 3 ⟨ δ mag ⟩ 100s ⟨ mag ⟩ σmag Comments
58717 2006:305:07:37:04.846 5 327.3 479.5 5035 4866 11 97.6% 99.8% 100.0% 97.4% 0.04 9.40 0.00 --
58713 2006:310:03:48:52.093 5 336.5 473.1 3881 3827 5 99.8% 99.9% 100.0% 99.7% 0.03 9.39 0.00 --
8171 2007:256:22:10:12.213 6 209.7 -301.4 9559 9465 22 99.9% 100.0% 100.0% 99.9% 0.03 9.40 0.00 --
9588 2007:259:00:52:13.253 6 209.7 -301.4 8341 8244 17 99.8% 100.0% 100.0% 99.8% 0.02 9.40 0.00 --
57621 2008:249:10:40:27.764 2 279.6 -172.6 1423 1367 3 99.6% 99.9% 100.0% 99.5% 0.02 9.41 0.00 --
17025 2015:246:18:53:44.359 4 254.0 -70.3 3467 3269 3 96.5% 100.0% 100.0% 96.5% 0.06 9.41 0.00 --
51655 2015:246:21:27:14.890 3 254.0 -70.3 160 22 0 91.7% 100.0% 100.0% 91.7% 0.01 9.42 0.00 --
47813 2019:288:01:24:39.622 3 324.9 -475.5 1607 1130 1 98.4% 99.8% 100.0% 98.3% 0.05 9.40 0.00 --
45195 2022:279:05:51:19.127 6 -304.9 -94.4 821 744 3 97.0% 100.0% 100.0% 97.0% 0.03 9.39 0.00 --
42689 2025:039:16:47:26.362 4 -278.0 165.6 1681 1617 2 99.6% 99.9% 100.0% 99.5% 0.12 9.41 0.00 --

  • sample: One sample of ACA image telemetry. This could be a real image readout or it could be a null 4x4 image when the ACA is not tracking. Be aware that the sample period is faster for null 4x4 images (1.025 sec) than for typical 6x6 or 8x8 tracked images (2.05 or 4.1 sec respectively).
  • Kalman samples: Subset of samples when ACA could be tracking stars (AOPCADMD == NPNT & AOACASEQ == KALM)
  • dr3: Subset of tracked Kalman samples with radial centroid residual < 3 arcsec. This corresponds to "high quality" readouts. This effectively includes the track subset (AOACFCT == TRAK) because readouts with no TRAK are assigned an infinite centroid residual.
  • dbox5: Subset of tracked Kalman samples with centroid residual within a 5 arcsec box. This corresponds to spatial filter used by the OBC for inclusion in Kalman filter. This effectively includes the track subset (AOACFCT == TRAK) because readouts with no TRAK are assigned an infinite centroid residual.
  • track: Subset of Kalman samples where the image is being tracked (AOACFCT == TRAK)
  • sat_pix: Subset of Kalman samples with saturated pixel flag OK (AOACISP == OK)
  • ion_rad: Subset of Kalman samples with ionizing radiation flag OK (AOACIIR == OK)
  • mag_est_ok: Subset of Kalman samples that have a magnitude estimate (track & ion_rad)
  • n_total: Total number of sample regardless of OBC PCAD status
  • n: Synonym for n_total
  • n_kalman: Number of Kalman samples
  • n_dr3: Number of dr3 samples.
  • n_dbox5: Number of dbox5 samples.
  • n_track: Number of track samples.
  • n_ok_3: Number of (track & sat_pix & ion_rad & dr3) samples
  • n_ok_5: Number of (track & sat_pix & ion_rad & dbox5) samples
  • n_mag_est_ok: Number of (track & ion_rad) samples
  • n_mag_est_ok_3: Number of (track & ion_rad & dr3) samples
  • n_mag_est_ok_5: Number of (track & ion_rad & dbox5) samples
  • f_dr3: Fraction of mag-est-ok samples with centroid residual < 3 arcsec((mag_est_ok & n_dr3)/n_mag_est_ok)
  • f_dbox5: Fraction of mag-est-ok samples with centroid within 5 arcsec box((mag_est_ok & n_dbox5)/n_mag_est_ok)
  • f_mag_est_ok: n_mag_est_ok_3/n_kalman. This is a measure of the fraction of time during an observation that a magnitude estimate is available.
  • f_mag_est_ok_3: n_mag_est_ok_3/n_kalman.
  • f_mag_est_ok_5: n_mag_est_ok_5/n_kalman.
  • f_ok: n_ok_5 / n_kalman. Same as f_ok_5
  • f_ok_3: n_ok_3 / n_kalman. This is a measure of the fraction of time during an observation that the Kalman filter is getting high-quality star centroids.
  • f_ok_5: n_ok_5 / n_kalman. This is a measure of the fraction of time during an observation that the Kalman filter is getting any star centroid at all. This includes measurements out to 5 arcsec box halfwidth, so potentially 7 arcsec radial offset.
