AGASC ID 124653552

Info

Last Obs. 2025:007:16:04
magcatalog 8.56 ± 0.02
mag3 arcsec 8.57 ± 0.01
mag5 arcsec 8.57 ± 0.01
Nobs 11 (0 bad)
fok 99.8%
f3 arcsec 100.0%
f5 arcsec 100.0%

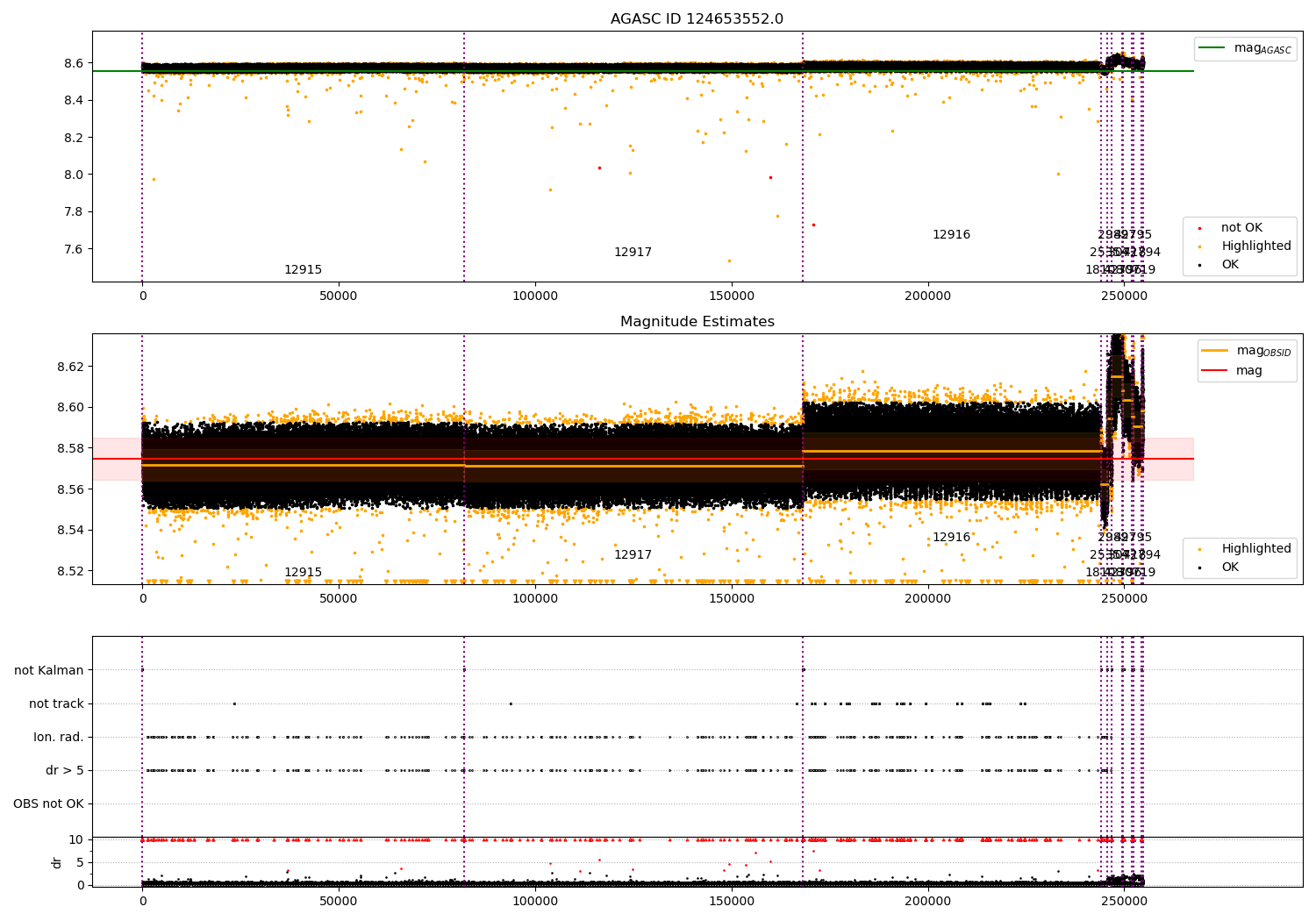

Timeline

Observation Info

OBSID Time Slot Row Col N Nmag est ok Nout fmag est ok fdr3 fdbox5 fmag est ok 3 ⟨ δ mag ⟩ 100s ⟨ mag ⟩ σmag Comments
12915 2011:124:08:33:03.262 5 -357.6 -292.0 81872 81714 76 99.9% 100.0% 100.0% 99.9% 0.03 8.57 0.00 --
12917 2011:126:22:28:47.129 5 -357.6 -292.0 86344 86211 91 99.9% 100.0% 100.0% 99.9% 0.03 8.57 0.00 --
12916 2011:169:05:33:35.086 4 154.8 -420.1 75823 75495 77 99.6% 100.0% 100.0% 99.6% 0.04 8.58 0.00 --
18108 2016:132:12:03:14.358 4 -341.6 -172.1 1603 1535 1 99.2% 100.0% 100.0% 99.2% 0.02 8.56 0.00 --
25354 2023:199:11:11:34.707 5 427.9 -157.3 1079 1006 0 99.9% 100.0% 100.0% 99.9% 0.05 8.59 0.00 --
29897 2025:006:12:11:44.865 6 -257.6 400.3 2742 2692 2 100.0% 100.0% 100.0% 100.0% 0.04 8.62 0.00 --
42796 2025:006:15:53:13.747 3 -405.5 423.1 311 278 0 100.0% 100.0% 100.0% 100.0% 0.05 8.61 0.00 --
30718 2025:007:05:26:47.845 6 -249.8 404.1 2254 2208 6 100.0% 100.0% 100.0% 100.0% 0.04 8.60 0.00 --
42795 2025:007:08:32:33.531 3 -398.1 430.2 310 279 0 100.0% 100.0% 100.0% 100.0% 0.04 8.60 0.00 --
30719 2025:007:13:10:49.561 6 -250.2 404.3 2085 2036 3 100.0% 100.0% 100.0% 100.0% 0.03 8.59 0.00 --
42794 2025:007:16:04:55.165 3 -398.1 430.2 310 279 0 100.0% 100.0% 100.0% 100.0% 0.04 8.60 0.00 --

  • sample: One sample of ACA image telemetry. This could be a real image readout or it could be a null 4x4 image when the ACA is not tracking. Be aware that the sample period is faster for null 4x4 images (1.025 sec) than for typical 6x6 or 8x8 tracked images (2.05 or 4.1 sec respectively).
  • Kalman samples: Subset of samples when ACA could be tracking stars (AOPCADMD == NPNT & AOACASEQ == KALM)
  • dr3: Subset of tracked Kalman samples with radial centroid residual < 3 arcsec. This corresponds to "high quality" readouts. This effectively includes the track subset (AOACFCT == TRAK) because readouts with no TRAK are assigned an infinite centroid residual.
  • dbox5: Subset of tracked Kalman samples with centroid residual within a 5 arcsec box. This corresponds to spatial filter used by the OBC for inclusion in Kalman filter. This effectively includes the track subset (AOACFCT == TRAK) because readouts with no TRAK are assigned an infinite centroid residual.
  • track: Subset of Kalman samples where the image is being tracked (AOACFCT == TRAK)
  • sat_pix: Subset of Kalman samples with saturated pixel flag OK (AOACISP == OK)
  • ion_rad: Subset of Kalman samples with ionizing radiation flag OK (AOACIIR == OK)
  • mag_est_ok: Subset of Kalman samples that have a magnitude estimate (track & ion_rad)
  • n_total: Total number of sample regardless of OBC PCAD status
  • n: Synonym for n_total
  • n_kalman: Number of Kalman samples
  • n_dr3: Number of dr3 samples.
  • n_dbox5: Number of dbox5 samples.
  • n_track: Number of track samples.
  • n_ok_3: Number of (track & sat_pix & ion_rad & dr3) samples
  • n_ok_5: Number of (track & sat_pix & ion_rad & dbox5) samples
  • n_mag_est_ok: Number of (track & ion_rad) samples
  • n_mag_est_ok_3: Number of (track & ion_rad & dr3) samples
  • n_mag_est_ok_5: Number of (track & ion_rad & dbox5) samples
  • f_dr3: Fraction of mag-est-ok samples with centroid residual < 3 arcsec((mag_est_ok & n_dr3)/n_mag_est_ok)
  • f_dbox5: Fraction of mag-est-ok samples with centroid within 5 arcsec box((mag_est_ok & n_dbox5)/n_mag_est_ok)
  • f_mag_est_ok: n_mag_est_ok_3/n_kalman. This is a measure of the fraction of time during an observation that a magnitude estimate is available.
  • f_mag_est_ok_3: n_mag_est_ok_3/n_kalman.
  • f_mag_est_ok_5: n_mag_est_ok_5/n_kalman.
  • f_ok: n_ok_5 / n_kalman. Same as f_ok_5
  • f_ok_3: n_ok_3 / n_kalman. This is a measure of the fraction of time during an observation that the Kalman filter is getting high-quality star centroids.
  • f_ok_5: n_ok_5 / n_kalman. This is a measure of the fraction of time during an observation that the Kalman filter is getting any star centroid at all. This includes measurements out to 5 arcsec box halfwidth, so potentially 7 arcsec radial offset.
