AGASC ID 1091702440

Info

Last Obs. 2025:158:05:48
magcatalog 8.72 ± 0.02
mag3 arcsec 8.73 ± 0.02
mag5 arcsec 8.73 ± 0.02
Nobs 41 (2 bad)
fok 99.6%
f3 arcsec 100.0%
f5 arcsec 100.0%

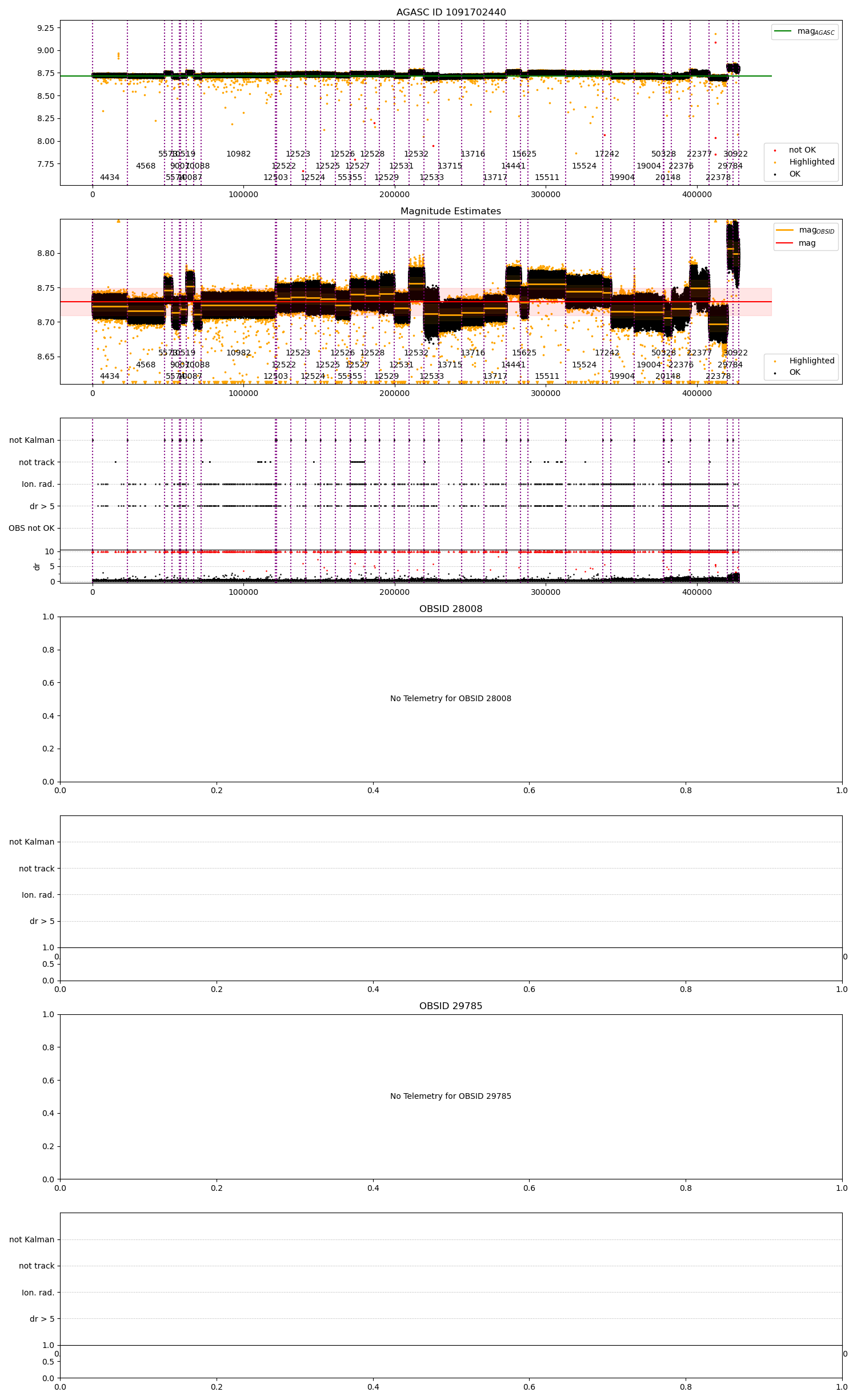

Timeline

Observation Info

OBSID Time Slot Row Col N Nmag est ok Nout fmag est ok fdr3 fdbox5 fmag est ok 3 ⟨ δ mag ⟩ 100s ⟨ mag ⟩ σmag Comments
4434 2003:111:03:20:10.850 4 332.1 191.9 23024 22951 23 100.0% 100.0% 100.0% 99.9% 0.02 8.72 0.00 --
4568 2004:217:13:07:13.347 4 -210.6 -102.9 24530 24471 23 100.0% 100.0% 100.0% 100.0% 0.02 8.72 0.00 --
5573 2005:179:04:46:11.224 5 139.0 -284.6 5039 4981 5 99.9% 100.0% 100.0% 99.9% 0.02 8.75 0.00 --
5574 2005:298:10:53:40.874 4 -250.3 -214.7 5021 4947 5 99.9% 100.0% 100.0% 99.9% 0.02 8.71 0.00 --
9007 2008:148:12:43:55.814 3 371.2 180.9 635 575 0 99.8% 100.0% 100.0% 99.8% 0.01 8.72 0.00 --
10519 2009:025:19:18:45.209 5 97.8 306.2 3786 3733 2 99.8% 100.0% 100.0% 99.8% 0.01 8.72 0.00 --
10087 2009:173:13:01:05.268 4 25.2 -412.5 5026 4957 4 100.0% 100.0% 100.0% 100.0% 0.03 8.75 0.00 --
10088 2009:173:16:23:43.158 4 -19.0 170.3 5024 4969 5 99.9% 100.0% 100.0% 99.9% 0.02 8.71 0.00 --
10982 2010:156:11:46:15.349 3 130.0 302.3 48943 48701 91 99.6% 100.0% 100.0% 99.6% 0.03 8.72 0.00 --
12503 2011:036:05:26:06.051 4 156.0 358.3 636 564 0 100.0% 100.0% 100.0% 100.0% 0.02 8.74 0.00 --
12522 2011:164:21:16:55.037 4 376.1 -409.7 9659 9596 14 99.9% 100.0% 100.0% 99.9% 0.02 8.73 0.00 --
12523 2011:165:02:50:25.037 5 236.9 -446.0 9657 9602 6 100.0% 100.0% 100.0% 99.9% 0.02 8.74 0.00 --
12524 2011:165:08:23:55.037 7 98.2 -483.5 9898 9837 7 99.9% 100.0% 100.0% 99.9% 0.03 8.74 0.00 --
12525 2011:165:14:05:45.037 5 338.4 -267.7 9902 9842 13 99.9% 100.0% 100.0% 99.9% 0.03 8.73 0.00 --
12526 2011:165:19:47:35.037 4 199.3 -304.5 9660 9598 17 99.9% 100.0% 100.0% 99.9% 0.02 8.72 0.00 --
55355 2011:166:01:21:11.650 2 199.3 -304.5 91 48 0 100.0% 100.0% 100.0% 100.0% 0.01 8.73 0.00 --
12527 2011:166:19:19:15.054 4 60.7 -342.4 9700 9472 17 98.2% 100.0% 100.0% 98.2% 0.03 8.74 0.00 --
12528 2011:167:01:21:21.290 5 300.5 -126.9 9658 9594 11 99.9% 100.0% 100.0% 99.9% 0.03 8.74 0.00 --
12529 2011:167:06:54:51.290 5 161.4 -164.3 9661 9600 8 99.9% 100.0% 100.0% 99.9% 0.04 8.74 0.00 --
12531 2011:167:18:06:01.290 3 262.2 13.2 9904 9838 14 99.9% 100.0% 100.0% 99.9% 0.03 8.72 0.00 --
12532 2011:167:23:47:51.290 3 123.0 -24.8 9905 9835 13 99.9% 100.0% 100.0% 99.9% 0.04 8.76 0.00 --
12533 2011:168:05:29:41.290 4 -15.7 -63.5 9905 9832 5 99.8% 100.0% 100.0% 99.8% 0.05 8.71 0.00 --
13715 2012:020:23:36:30.458 4 171.9 160.0 14892 14835 9 100.0% 100.0% 100.0% 100.0% 0.03 8.71 0.00 --
13716 2012:026:12:40:26.506 4 181.1 147.9 14780 14717 20 99.9% 100.0% 100.0% 99.9% 0.02 8.71 0.00 --
13717 2012:030:08:27:08.000 4 186.4 140.0 14856 14753 19 99.9% 100.0% 100.0% 99.9% 0.02 8.72 0.00 --
14441 2012:155:22:14:29.971 5 62.1 -208.8 9416 9363 5 100.0% 100.0% 100.0% 100.0% 0.02 8.76 0.00 --
15625 2013:082:07:51:23.256 5 67.3 163.9 5025 4925 9 99.8% 100.0% 100.0% 99.8% 0.02 8.73 0.00 --
15511 2013:115:05:36:17.559 5 219.5 -31.2 24895 24682 25 99.4% 100.0% 100.0% 99.4% 0.02 8.75 0.00 --
15524 2013:147:17:57:54.493 5 121.7 -179.7 24540 24454 28 99.9% 100.0% 100.0% 99.9% 0.03 8.74 0.00 --
17242 2015:185:10:20:02.291 3 216.6 -261.6 5422 5323 8 99.2% 100.0% 100.0% 99.2% 0.02 8.74 0.00 --
19904 2016:295:01:08:59.856 5 -241.0 30.6 15296 14992 9 99.0% 100.0% 100.0% 99.0% 0.03 8.72 0.00 --
19004 2017:036:10:07:47.308 4 194.2 126.5 19490 19413 21 99.9% 100.0% 100.0% 99.9% 0.06 8.71 0.00 --
50328 2017:036:21:35:44.604 1 193.3 130.6 249 120 0 98.4% 100.0% 100.0% 98.4% 0.01 8.72 0.00 --
20148 2018:168:04:20:54.523 3 268.4 174.8 5035 4838 15 97.6% 99.9% 100.0% 97.6% 0.04 8.71 0.00 --
22376 2020:149:13:26:44.275 4 115.7 -186.4 12350 12089 17 98.4% 100.0% 100.0% 98.4% 0.05 8.72 0.00 --
22377 2020:158:01:12:44.895 4 45.3 -215.5 12348 12149 14 98.9% 100.0% 100.0% 98.9% 0.05 8.75 0.00 --
22378 2020:165:23:52:53.176 5 -23.7 -221.3 12236 11941 21 97.9% 100.0% 100.0% 97.9% 0.05 8.70 0.00 --
29784 2025:133:17:41:42.595 7 173.1 -132.4 3758 3692 1 100.0% 100.0% 100.0% 100.0% 0.05 8.81 0.00 --
30922 2025:134:07:37:08.118 7 186.2 -116.4 3760 3691 2 99.9% 99.9% 100.0% 99.8% 0.07 8.80 0.00 --
28008 2025:157:05:48:43.363 5 -95.7 189.2 0 0 -1 0.0% 0.0% 0.0% 0.0% inf inf inf Error: No level 0 data.
29785 2025:158:05:48:30.442 6 42.6 -216.6 0 0 -1 0.0% 0.0% 0.0% 0.0% inf inf inf Error: No level 0 data.

  • sample: One sample of ACA image telemetry. This could be a real image readout or it could be a null 4x4 image when the ACA is not tracking. Be aware that the sample period is faster for null 4x4 images (1.025 sec) than for typical 6x6 or 8x8 tracked images (2.05 or 4.1 sec respectively).
  • Kalman samples: Subset of samples when ACA could be tracking stars (AOPCADMD == NPNT & AOACASEQ == KALM)
  • dr3: Subset of tracked Kalman samples with radial centroid residual < 3 arcsec. This corresponds to "high quality" readouts. This effectively includes the track subset (AOACFCT == TRAK) because readouts with no TRAK are assigned an infinite centroid residual.
  • dbox5: Subset of tracked Kalman samples with centroid residual within a 5 arcsec box. This corresponds to spatial filter used by the OBC for inclusion in Kalman filter. This effectively includes the track subset (AOACFCT == TRAK) because readouts with no TRAK are assigned an infinite centroid residual.
  • track: Subset of Kalman samples where the image is being tracked (AOACFCT == TRAK)
  • sat_pix: Subset of Kalman samples with saturated pixel flag OK (AOACISP == OK)
  • ion_rad: Subset of Kalman samples with ionizing radiation flag OK (AOACIIR == OK)
  • mag_est_ok: Subset of Kalman samples that have a magnitude estimate (track & ion_rad)
  • n_total: Total number of sample regardless of OBC PCAD status
  • n: Synonym for n_total
  • n_kalman: Number of Kalman samples
  • n_dr3: Number of dr3 samples.
  • n_dbox5: Number of dbox5 samples.
  • n_track: Number of track samples.
  • n_ok_3: Number of (track & sat_pix & ion_rad & dr3) samples
  • n_ok_5: Number of (track & sat_pix & ion_rad & dbox5) samples
  • n_mag_est_ok: Number of (track & ion_rad) samples
  • n_mag_est_ok_3: Number of (track & ion_rad & dr3) samples
  • n_mag_est_ok_5: Number of (track & ion_rad & dbox5) samples
  • f_dr3: Fraction of mag-est-ok samples with centroid residual < 3 arcsec((mag_est_ok & n_dr3)/n_mag_est_ok)
  • f_dbox5: Fraction of mag-est-ok samples with centroid within 5 arcsec box((mag_est_ok & n_dbox5)/n_mag_est_ok)
  • f_mag_est_ok: n_mag_est_ok_3/n_kalman. This is a measure of the fraction of time during an observation that a magnitude estimate is available.
  • f_mag_est_ok_3: n_mag_est_ok_3/n_kalman.
  • f_mag_est_ok_5: n_mag_est_ok_5/n_kalman.
  • f_ok: n_ok_5 / n_kalman. Same as f_ok_5
  • f_ok_3: n_ok_3 / n_kalman. This is a measure of the fraction of time during an observation that the Kalman filter is getting high-quality star centroids.
  • f_ok_5: n_ok_5 / n_kalman. This is a measure of the fraction of time during an observation that the Kalman filter is getting any star centroid at all. This includes measurements out to 5 arcsec box halfwidth, so potentially 7 arcsec radial offset.
