AGASC ID 818810616

Info

Last Obs. 2025:151:01:09
magcatalog 7.82 ± 0.02
mag3 arcsec 7.83 ± 0.01
mag5 arcsec 7.83 ± 0.01
Nobs 39 (0 bad)
fok 99.8%
f3 arcsec 100.0%
f5 arcsec 100.0%

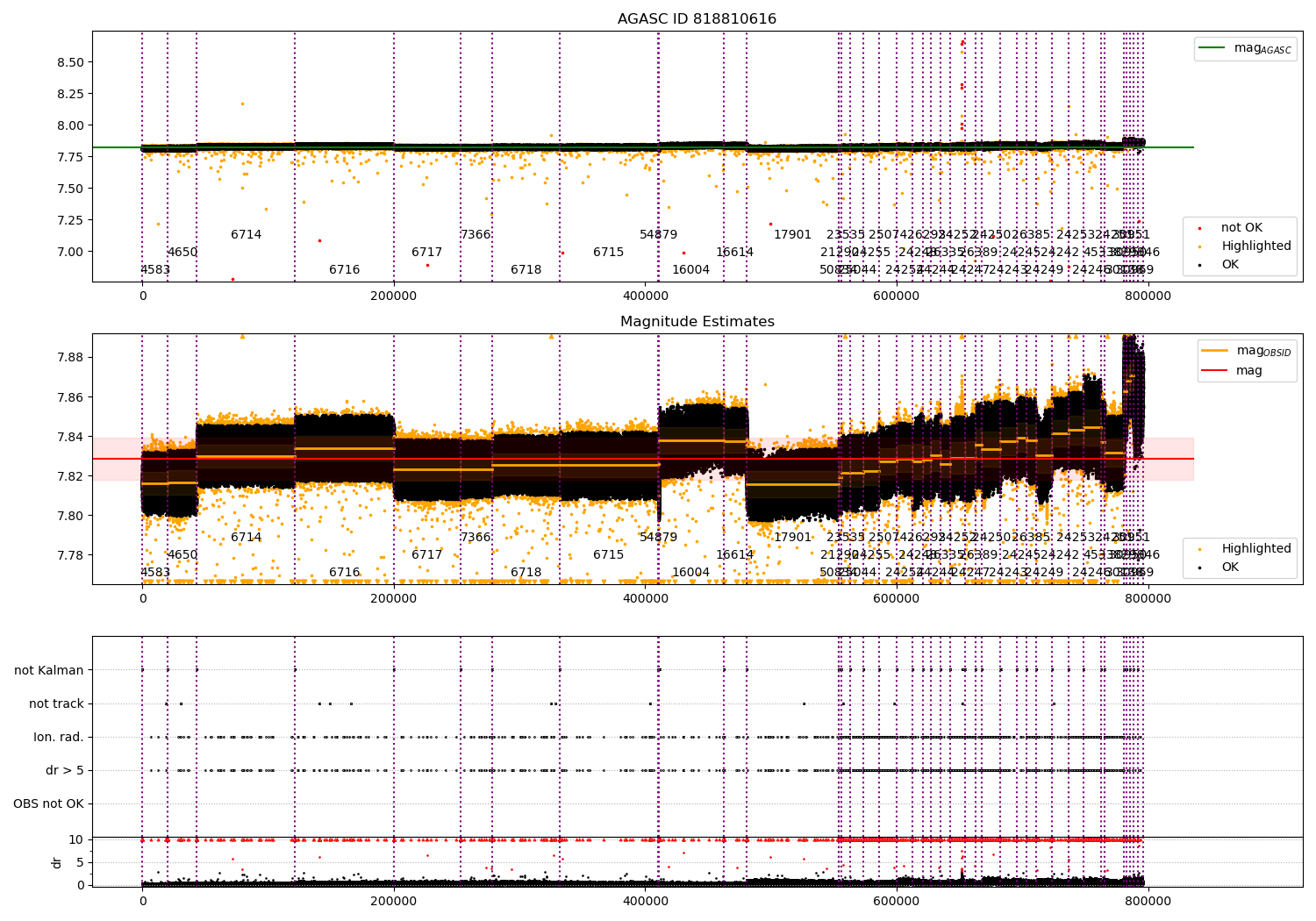

Timeline

Observation Info

OBSID Time Slot Row Col N Nmag est ok Nout fmag est ok fdr3 fdbox5 fmag est ok 3 ⟨ δ mag ⟩ 100s ⟨ mag ⟩ σmag Comments
4583 2004:132:05:42:35.213 4 -105.6 233.5 20289 20230 12 100.0% 100.0% 100.0% 100.0% 0.01 7.82 0.00 --
4650 2004:300:04:00:35.323 7 -266.9 355.9 23098 23031 16 99.9% 100.0% 100.0% 99.9% 0.02 7.82 0.00 --
6714 2006:117:23:01:11.739 6 291.7 -319.5 78155 78071 71 100.0% 100.0% 100.0% 100.0% 0.02 7.83 0.00 --
6716 2006:125:19:11:49.510 6 294.9 -316.9 78622 78477 58 99.9% 100.0% 100.0% 99.9% 0.02 7.83 0.00 --
6717 2006:194:18:48:21.508 3 -235.8 375.6 52827 52763 32 100.0% 100.0% 100.0% 100.0% 0.02 7.82 0.00 --
7366 2006:197:05:09:43.157 3 -235.8 375.6 25505 25443 20 100.0% 100.0% 100.0% 99.9% 0.01 7.82 0.00 --
6718 2006:202:14:30:34.368 3 -239.7 373.0 53317 53229 55 99.9% 100.0% 100.0% 99.9% 0.02 7.83 0.00 --
6715 2006:215:16:26:22.866 5 -245.1 369.2 78689 78598 59 100.0% 100.0% 100.0% 100.0% 0.02 7.83 0.00 --
54879 2012:034:05:16:03.209 5 -92.6 -99.3 651 601 0 100.0% 100.0% 100.0% 100.0% 0.01 7.81 0.00 --
16004 2014:133:17:30:07.787 5 287.1 -306.6 51156 51056 34 100.0% 100.0% 100.0% 100.0% 0.02 7.84 0.00 --
16614 2014:136:08:16:00.868 5 287.1 -306.6 18370 18280 15 100.0% 100.0% 100.0% 100.0% 0.02 7.84 0.00 --
17901 2016:202:18:28:27.968 6 -254.9 370.1 73040 72929 58 99.9% 100.0% 100.0% 99.9% 0.02 7.82 0.00 --
50834 2016:204:12:37:23.529 6 -254.9 370.1 175 52 0 100.0% 100.0% 100.0% 100.0% 0.01 7.82 0.00 --
21290 2019:184:12:40:35.453 6 413.9 -158.4 1859 1760 0 99.8% 100.0% 100.0% 99.8% 0.02 7.82 0.00 --
23535 2021:137:23:28:09.110 7 266.8 -319.4 7468 7326 8 98.9% 100.0% 100.0% 98.9% 0.02 7.82 0.00 --
25044 2021:138:12:48:15.736 7 266.9 -319.5 10489 10367 2 99.7% 100.0% 100.0% 99.7% 0.02 7.82 0.00 --
24255 2021:174:19:24:31.544 7 -199.5 402.5 12341 12162 13 99.2% 100.0% 100.0% 99.2% 0.02 7.82 0.00 --
25074 2021:177:18:51:09.624 7 -199.3 402.4 13802 13606 15 99.1% 100.0% 100.0% 99.1% 0.03 7.83 0.00 --
24254 2021:241:08:13:53.860 6 -244.4 376.1 12505 12425 21 99.8% 100.0% 100.0% 99.8% 0.02 7.83 0.00 --
24248 2022:032:07:42:54.456 3 212.7 -359.2 8442 8349 1 99.9% 100.0% 100.0% 99.9% 0.04 7.83 0.00 --
26293 2022:032:19:04:52.243 3 208.9 -360.9 6488 6376 4 99.5% 100.0% 100.0% 99.5% 0.03 7.83 0.00 --
24244 2022:053:05:27:27.012 3 178.7 -376.8 7468 7380 9 99.8% 100.0% 100.0% 99.8% 0.03 7.83 0.00 --
26335 2022:057:13:58:41.649 3 178.3 -376.5 7470 7382 5 99.9% 100.0% 100.0% 99.9% 0.02 7.83 0.00 --
24252 2022:087:06:45:34.085 4 253.5 -332.1 12404 12100 16 99.0% 99.9% 99.9% 98.9% 0.04 7.83 0.00 --
24247 2022:101:12:28:02.197 4 256.3 -329.5 8143 8046 16 99.5% 100.0% 100.0% 99.5% 0.03 7.83 0.00 --
26389 2022:102:17:41:33.849 4 254.1 -328.5 5132 5069 2 99.9% 100.0% 100.0% 99.9% 0.03 7.84 0.00 --
24250 2022:127:18:51:48.210 4 266.5 -323.8 14737 14581 7 99.5% 100.0% 100.0% 99.5% 0.04 7.83 0.00 --
24243 2022:141:02:38:53.110 3 250.5 -334.2 12588 12509 11 99.8% 100.0% 100.0% 99.8% 0.02 7.84 0.00 --
24245 2022:160:07:00:29.439 3 405.2 -108.1 7906 7820 7 99.9% 100.0% 100.0% 99.9% 0.02 7.84 0.00 --
26385 2022:161:04:38:20.823 3 406.5 -108.8 7854 7780 6 99.8% 100.0% 100.0% 99.8% 0.03 7.84 0.00 --
24249 2022:180:18:47:55.462 3 -228.1 382.4 12425 12345 10 99.8% 100.0% 100.0% 99.8% 0.04 7.83 0.00 --
24242 2022:184:15:34:42.544 3 -232.2 384.3 13069 12986 17 99.9% 100.0% 100.0% 99.9% 0.02 7.84 0.00 --
24253 2022:196:13:53:06.942 3 -329.2 302.5 11946 11847 12 99.7% 100.0% 100.0% 99.7% 0.02 7.84 0.00 --
24246 2022:197:11:09:03.183 3 -328.0 301.9 13799 13593 12 99.0% 100.0% 100.0% 99.0% 0.03 7.84 0.00 --
45338 2022:225:11:40:06.000 1 349.8 9.1 3271 3215 1 99.9% 100.0% 100.0% 99.9% 0.02 7.84 0.00 --
24251 2022:269:19:50:34.682 3 -278.9 348.5 14975 14845 9 99.8% 100.0% 100.0% 99.7% 0.02 7.83 0.00 --
30138 2025:150:04:29:58.165 3 319.4 -301.5 2531 2472 0 100.0% 100.0% 100.0% 100.0% 0.04 7.86 0.00 --
30950 2025:150:12:32:15.341 3 320.2 -300.2 2715 2657 1 99.9% 100.0% 100.0% 99.9% 0.03 7.87 0.00 --
30951 2025:151:01:09:45.299 3 232.7 -362.3 2527 2469 1 100.0% 100.0% 100.0% 100.0% 0.03 7.87 0.00 --

  • sample: One sample of ACA image telemetry. This could be a real image readout or it could be a null 4x4 image when the ACA is not tracking. Be aware that the sample period is faster for null 4x4 images (1.025 sec) than for typical 6x6 or 8x8 tracked images (2.05 or 4.1 sec respectively).
  • Kalman samples: Subset of samples when ACA could be tracking stars (AOPCADMD == NPNT & AOACASEQ == KALM)
  • dr3: Subset of tracked Kalman samples with radial centroid residual < 3 arcsec. This corresponds to "high quality" readouts. This effectively includes the track subset (AOACFCT == TRAK) because readouts with no TRAK are assigned an infinite centroid residual.
  • dbox5: Subset of tracked Kalman samples with centroid residual within a 5 arcsec box. This corresponds to spatial filter used by the OBC for inclusion in Kalman filter. This effectively includes the track subset (AOACFCT == TRAK) because readouts with no TRAK are assigned an infinite centroid residual.
  • track: Subset of Kalman samples where the image is being tracked (AOACFCT == TRAK)
  • sat_pix: Subset of Kalman samples with saturated pixel flag OK (AOACISP == OK)
  • ion_rad: Subset of Kalman samples with ionizing radiation flag OK (AOACIIR == OK)
  • mag_est_ok: Subset of Kalman samples that have a magnitude estimate (track & ion_rad)
  • n_total: Total number of sample regardless of OBC PCAD status
  • n: Synonym for n_total
  • n_kalman: Number of Kalman samples
  • n_dr3: Number of dr3 samples.
  • n_dbox5: Number of dbox5 samples.
  • n_track: Number of track samples.
  • n_ok_3: Number of (track & sat_pix & ion_rad & dr3) samples
  • n_ok_5: Number of (track & sat_pix & ion_rad & dbox5) samples
  • n_mag_est_ok: Number of (track & ion_rad) samples
  • n_mag_est_ok_3: Number of (track & ion_rad & dr3) samples
  • n_mag_est_ok_5: Number of (track & ion_rad & dbox5) samples
  • f_dr3: Fraction of mag-est-ok samples with centroid residual < 3 arcsec((mag_est_ok & n_dr3)/n_mag_est_ok)
  • f_dbox5: Fraction of mag-est-ok samples with centroid within 5 arcsec box((mag_est_ok & n_dbox5)/n_mag_est_ok)
  • f_mag_est_ok: n_mag_est_ok_3/n_kalman. This is a measure of the fraction of time during an observation that a magnitude estimate is available.
  • f_mag_est_ok_3: n_mag_est_ok_3/n_kalman.
  • f_mag_est_ok_5: n_mag_est_ok_5/n_kalman.
  • f_ok: n_ok_5 / n_kalman. Same as f_ok_5
  • f_ok_3: n_ok_3 / n_kalman. This is a measure of the fraction of time during an observation that the Kalman filter is getting high-quality star centroids.
  • f_ok_5: n_ok_5 / n_kalman. This is a measure of the fraction of time during an observation that the Kalman filter is getting any star centroid at all. This includes measurements out to 5 arcsec box halfwidth, so potentially 7 arcsec radial offset.
