AGASC ID 261503592

Info

Last Obs. 2025:212:16:13
magcatalog 7.83 ± 0.02
mag3 arcsec 7.85 ± 0.01
mag5 arcsec 7.85 ± 0.01
Nobs 35 (0 bad)
fok 99.8%
f3 arcsec 100.0%
f5 arcsec 100.0%

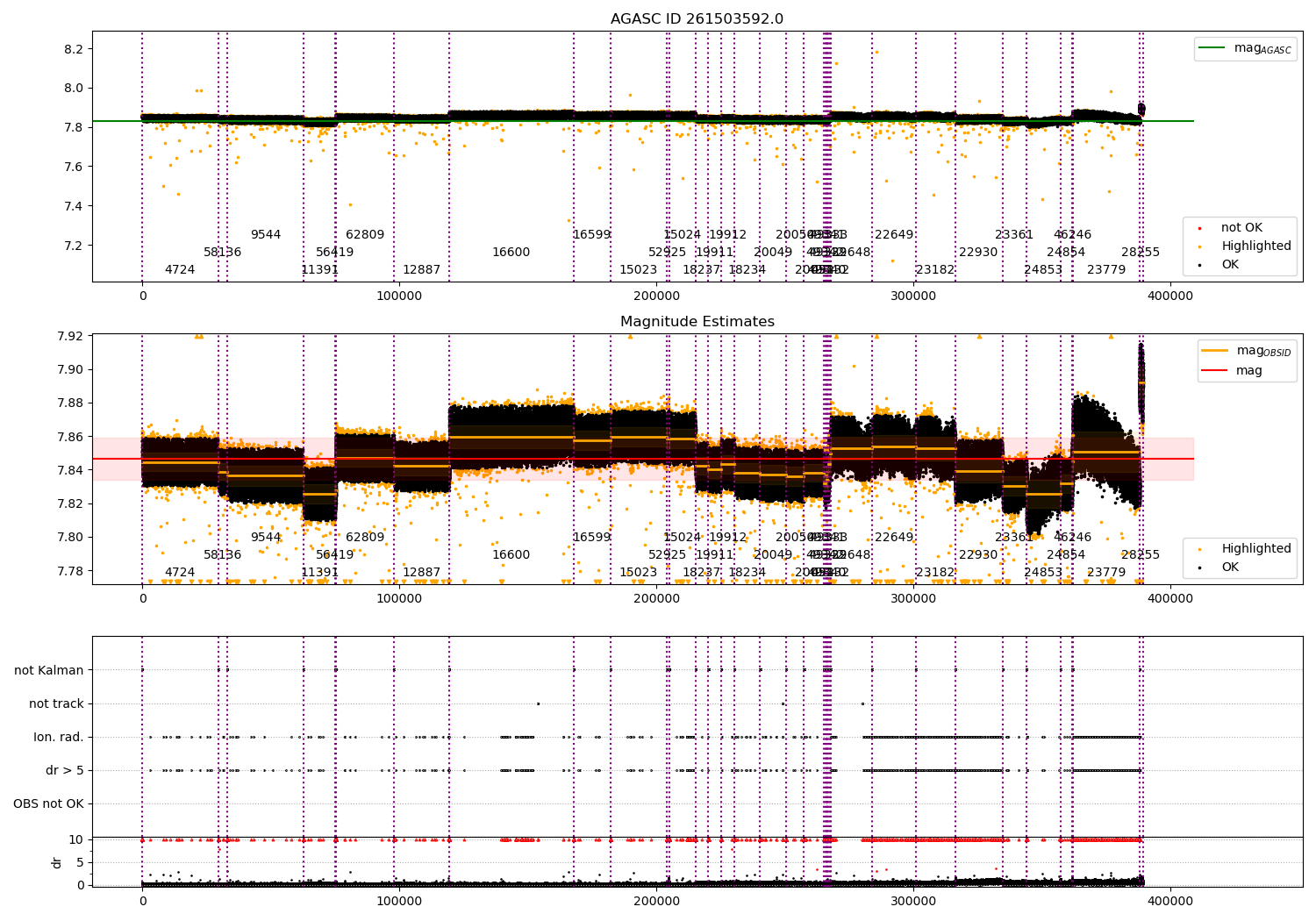

Timeline

Observation Info

OBSID Time Slot Row Col N Nmag est ok Nout fmag est ok fdr3 fdbox5 fmag est ok 3 ⟨ δ mag ⟩ 100s ⟨ mag ⟩ σmag Comments
4724 2004:048:19:27:55.847 6 -389.3 409.4 29546 29476 22 100.0% 100.0% 100.0% 100.0% 0.02 7.84 0.00 --
58136 2007:312:17:50:38.304 1 -295.3 -432.6 3599 3555 4 99.9% 100.0% 100.0% 99.9% 0.01 7.84 0.00 --
9544 2008:094:05:51:39.597 5 145.6 -439.3 29617 29552 27 100.0% 100.0% 100.0% 100.0% 0.02 7.84 0.00 --
11391 2010:062:15:48:12.581 4 -16.9 -167.1 12388 12329 16 100.0% 100.0% 100.0% 100.0% 0.02 7.83 0.00 --
56419 2010:062:23:15:38.221 2 -16.9 -167.1 146 26 0 100.0% 100.0% 100.0% 100.0% 0.00 7.83 0.00 --
62809 2010:065:00:37:21.380 4 182.6 -346.2 22587 22501 22 100.0% 100.0% 100.0% 100.0% 0.02 7.85 0.00 --
11975 2010:065:00:37:21.380 4 182.5 -346.1 22507 22501 22 100.0% 100.0% 100.0% 100.0% 0.02 7.85 0.00 --
12887 2010:315:01:01:14.720 6 169.8 393.8 21595 21502 18 99.9% 100.0% 100.0% 99.9% 0.02 7.84 0.00 --
16600 2014:070:06:47:37.220 5 34.7 -162.2 48230 48079 25 99.8% 100.0% 100.0% 99.8% 0.02 7.86 0.00 --
16599 2014:072:21:37:13.351 5 34.7 -162.2 14561 14482 11 100.0% 100.0% 100.0% 100.0% 0.02 7.86 0.00 --
15023 2014:074:12:52:31.653 5 34.7 -162.2 21612 21522 17 100.0% 100.0% 100.0% 100.0% 0.02 7.86 0.00 --
52925 2014:075:01:40:29.372 2 34.7 -162.2 1114 1066 1 100.0% 100.0% 100.0% 100.0% 0.02 7.86 0.00 --
15024 2014:075:13:33:07.771 5 34.7 -162.2 10172 10070 16 99.7% 100.0% 100.0% 99.7% 0.01 7.86 0.00 --
18237 2016:308:14:41:13.959 7 478.5 432.8 5050 4986 4 100.0% 100.0% 100.0% 100.0% 0.01 7.84 0.00 --
19911 2016:308:21:51:21.012 7 479.2 432.5 5028 4971 5 100.0% 100.0% 100.0% 100.0% 0.01 7.84 0.00 --
19912 2016:312:06:03:35.005 7 479.9 432.1 5031 4954 4 99.9% 100.0% 100.0% 99.9% 0.02 7.84 0.00 --
18234 2017:087:23:59:14.786 6 -367.9 477.5 10070 10005 13 99.9% 100.0% 100.0% 99.9% 0.02 7.84 0.00 --
20049 2017:088:09:24:12.986 6 -367.8 477.4 10070 9999 10 99.9% 100.0% 100.0% 99.9% 0.02 7.84 0.00 --
20050 2017:088:23:08:56.473 6 -367.5 477.3 6973 6916 8 100.0% 100.0% 100.0% 100.0% 0.02 7.84 0.00 --
20051 2017:090:07:41:45.787 6 -368.2 477.6 7907 7758 8 100.0% 100.0% 100.0% 99.9% 0.01 7.84 0.00 --
49342 2018:095:12:43:51.911 3 -340.9 140.4 604 559 0 100.0% 100.0% 100.0% 100.0% 0.02 7.83 0.00 --
49341 2018:095:22:16:09.744 3 -342.4 136.5 320 275 1 100.0% 100.0% 100.0% 100.0% 0.01 7.84 0.00 --
49340 2018:096:05:31:23.003 3 -343.6 133.4 325 275 0 100.0% 100.0% 100.0% 100.0% 0.01 7.83 0.00 --
49339 2018:096:15:54:54.430 3 -345.0 129.5 322 274 0 100.0% 100.0% 100.0% 100.0% 0.02 7.83 0.00 --
49333 2018:098:04:20:32.405 4 -349.9 114.6 537 479 0 100.0% 100.0% 100.0% 100.0% 0.01 7.84 0.00 --
49332 2018:098:14:59:30.757 4 -351.2 110.4 320 274 2 100.0% 100.0% 100.0% 100.0% 0.01 7.85 0.00 --
22648 2020:063:16:27:39.861 4 -365.3 180.7 16243 16136 13 99.8% 100.0% 100.0% 99.8% 0.03 7.85 0.00 --
22649 2020:064:07:44:29.812 4 -364.9 180.5 16976 16847 24 99.6% 100.0% 100.0% 99.6% 0.03 7.85 0.00 --
23182 2020:064:22:10:58.565 4 -364.5 180.4 15266 15121 13 99.5% 100.0% 100.0% 99.5% 0.02 7.85 0.00 --
22930 2020:224:02:12:41.204 5 224.0 -277.3 18408 18229 19 99.4% 100.0% 100.0% 99.4% 0.02 7.84 0.00 --
23361 2020:307:18:29:37.534 5 156.4 343.7 9415 9342 11 99.9% 100.0% 100.0% 99.9% 0.02 7.83 0.00 --
24853 2020:308:16:00:08.218 5 150.5 346.5 13317 13225 5 99.9% 100.0% 100.0% 99.9% 0.03 7.83 0.00 --
24854 2020:313:01:32:16.378 5 137.4 352.4 4296 4246 7 99.9% 100.0% 100.0% 99.9% 0.01 7.83 0.00 --
46246 2021:183:22:34:14.555 3 -402.0 428.0 471 419 1 99.8% 100.0% 100.0% 99.8% 0.01 7.84 0.00 --
23779 2022:185:04:57:28.762 5 -164.9 -384.5 25820 25594 16 99.3% 100.0% 100.0% 99.3% 0.05 7.85 0.00 --
28255 2025:212:16:13:52.555 3 34.5 -149.6 1303 1258 1 99.9% 100.0% 100.0% 99.9% 0.04 7.89 0.00 --

  • sample: One sample of ACA image telemetry. This could be a real image readout or it could be a null 4x4 image when the ACA is not tracking. Be aware that the sample period is faster for null 4x4 images (1.025 sec) than for typical 6x6 or 8x8 tracked images (2.05 or 4.1 sec respectively).
  • Kalman samples: Subset of samples when ACA could be tracking stars (AOPCADMD == NPNT & AOACASEQ == KALM)
  • dr3: Subset of tracked Kalman samples with radial centroid residual < 3 arcsec. This corresponds to "high quality" readouts. This effectively includes the track subset (AOACFCT == TRAK) because readouts with no TRAK are assigned an infinite centroid residual.
  • dbox5: Subset of tracked Kalman samples with centroid residual within a 5 arcsec box. This corresponds to spatial filter used by the OBC for inclusion in Kalman filter. This effectively includes the track subset (AOACFCT == TRAK) because readouts with no TRAK are assigned an infinite centroid residual.
  • track: Subset of Kalman samples where the image is being tracked (AOACFCT == TRAK)
  • sat_pix: Subset of Kalman samples with saturated pixel flag OK (AOACISP == OK)
  • ion_rad: Subset of Kalman samples with ionizing radiation flag OK (AOACIIR == OK)
  • mag_est_ok: Subset of Kalman samples that have a magnitude estimate (track & ion_rad)
  • n_total: Total number of sample regardless of OBC PCAD status
  • n: Synonym for n_total
  • n_kalman: Number of Kalman samples
  • n_dr3: Number of dr3 samples.
  • n_dbox5: Number of dbox5 samples.
  • n_track: Number of track samples.
  • n_ok_3: Number of (track & sat_pix & ion_rad & dr3) samples
  • n_ok_5: Number of (track & sat_pix & ion_rad & dbox5) samples
  • n_mag_est_ok: Number of (track & ion_rad) samples
  • n_mag_est_ok_3: Number of (track & ion_rad & dr3) samples
  • n_mag_est_ok_5: Number of (track & ion_rad & dbox5) samples
  • f_dr3: Fraction of mag-est-ok samples with centroid residual < 3 arcsec((mag_est_ok & n_dr3)/n_mag_est_ok)
  • f_dbox5: Fraction of mag-est-ok samples with centroid within 5 arcsec box((mag_est_ok & n_dbox5)/n_mag_est_ok)
  • f_mag_est_ok: n_mag_est_ok_3/n_kalman. This is a measure of the fraction of time during an observation that a magnitude estimate is available.
  • f_mag_est_ok_3: n_mag_est_ok_3/n_kalman.
  • f_mag_est_ok_5: n_mag_est_ok_5/n_kalman.
  • f_ok: n_ok_5 / n_kalman. Same as f_ok_5
  • f_ok_3: n_ok_3 / n_kalman. This is a measure of the fraction of time during an observation that the Kalman filter is getting high-quality star centroids.
  • f_ok_5: n_ok_5 / n_kalman. This is a measure of the fraction of time during an observation that the Kalman filter is getting any star centroid at all. This includes measurements out to 5 arcsec box halfwidth, so potentially 7 arcsec radial offset.
