AGASC ID 395707376

Info

Last Obs. 2025:329:03:11
magcatalog 9.35 ± 0.02
mag3 arcsec 9.35 ± 0.02
mag5 arcsec 9.35 ± 0.02
Nobs 41 (0 bad)
fok 98.7%
f3 arcsec 100.0%
f5 arcsec 100.0%

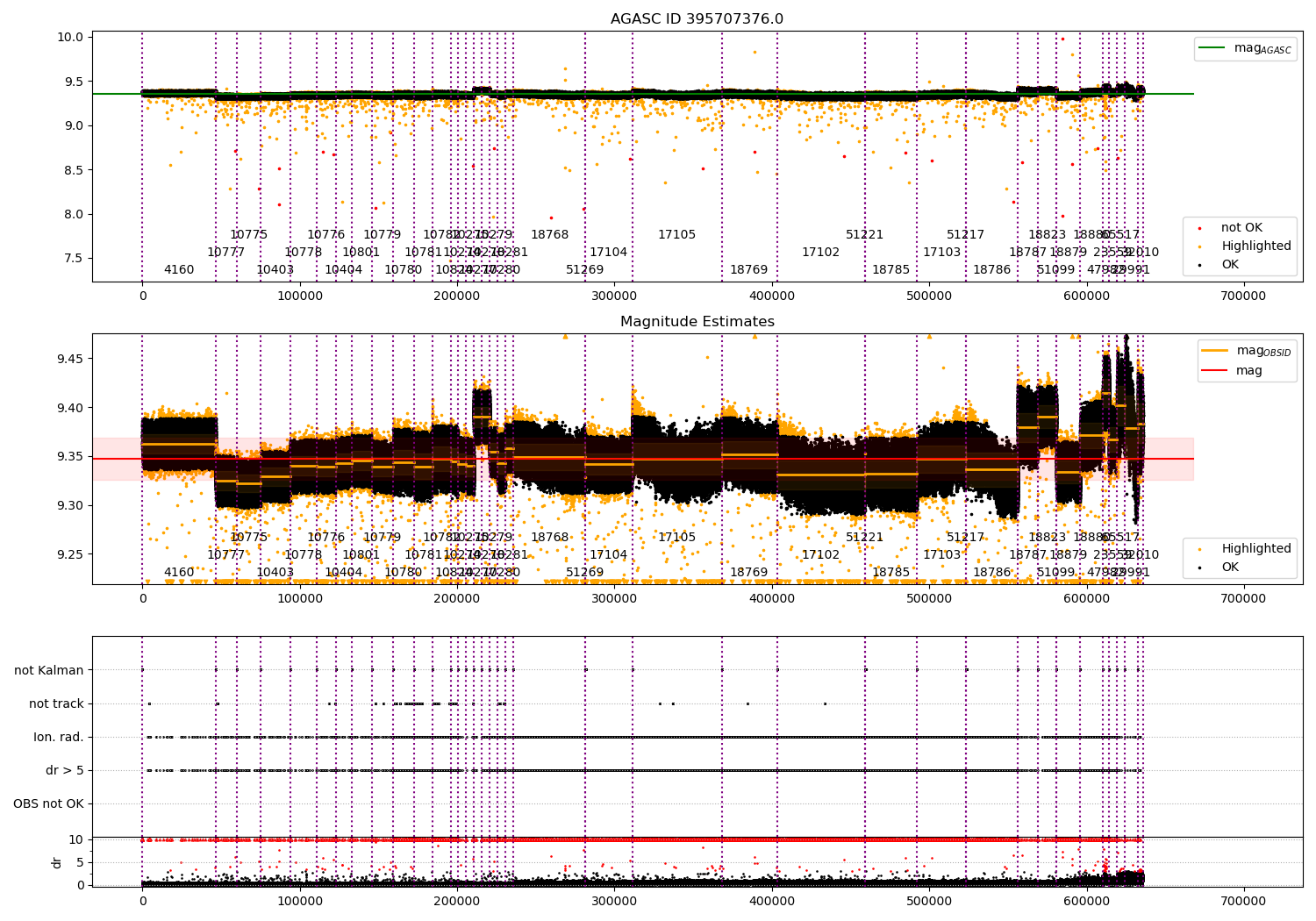

Timeline

Observation Info

OBSID Time Slot Row Col N Nmag est ok Nout fmag est ok fdr3 fdbox5 fmag est ok 3 ⟨ δ mag ⟩ 100s ⟨ mag ⟩ σmag Comments
4160 2003:204:00:17:25.282 3 216.5 133.8 46511 46345 39 99.9% 100.0% 100.0% 99.9% 0.03 9.36 0.00 --
10777 2008:311:14:50:05.598 3 -231.6 132.4 13646 13549 34 99.8% 100.0% 100.0% 99.8% 0.04 9.32 0.00 --
10775 2008:313:13:57:49.732 3 -231.6 132.4 15141 15044 28 99.8% 100.0% 100.0% 99.8% 0.03 9.32 0.00 --
10403 2008:314:20:01:45.549 3 -231.6 132.4 18679 18579 36 99.8% 100.0% 100.0% 99.8% 0.02 9.33 0.00 --
10778 2008:316:00:03:46.531 3 -242.8 108.3 16720 16628 26 99.9% 100.0% 100.0% 99.9% 0.03 9.34 0.00 --
10776 2008:316:22:34:50.239 3 -242.8 108.3 12333 12215 25 99.5% 100.0% 100.0% 99.5% 0.03 9.34 0.00 --
10404 2008:317:16:30:02.134 3 -242.8 108.3 9868 9787 14 99.9% 100.0% 100.0% 99.8% 0.03 9.34 0.00 --
10801 2008:318:14:08:40.600 3 -242.8 108.3 12816 12736 24 99.9% 100.0% 100.0% 99.8% 0.03 9.35 0.00 --
10779 2008:325:07:07:53.068 3 -249.4 90.3 13802 13709 29 99.7% 100.0% 100.0% 99.7% 0.03 9.34 0.00 --
10780 2008:330:09:37:17.103 3 -254.3 72.6 12978 12701 23 98.2% 100.0% 100.0% 98.2% 0.04 9.34 0.00 --
10781 2008:331:20:50:00.048 3 -254.3 72.6 11909 11621 12 98.5% 100.0% 100.0% 98.5% 0.04 9.34 0.00 --
10782 2008:334:11:18:25.872 3 -254.3 72.6 11622 11316 25 97.9% 100.0% 100.0% 97.9% 0.06 9.35 0.00 --
10824 2008:335:04:04:20.199 3 -254.3 72.6 4544 4375 10 97.7% 100.0% 100.0% 97.7% 0.04 9.34 0.00 --
10274 2009:007:03:52:27.543 3 -251.6 -56.5 5019 4965 5 99.9% 100.0% 100.0% 99.9% 0.03 9.34 0.00 --
10275 2009:043:23:09:52.560 3 -142.3 -201.5 5026 4911 4 98.7% 100.0% 100.0% 98.7% 0.03 9.34 0.00 --
10277 2009:112:00:56:06.286 3 195.0 -138.4 5026 4948 6 99.9% 100.0% 100.0% 99.9% 0.03 9.39 0.00 --
10278 2009:156:23:22:56.286 3 243.8 -15.7 5030 4950 8 99.8% 100.0% 100.0% 99.8% 0.03 9.39 0.00 --
10279 2009:174:18:46:37.236 3 244.5 35.0 5028 4957 13 99.7% 100.0% 100.0% 99.7% 0.02 9.35 0.00 --
10280 2009:194:10:20:08.972 3 230.8 98.2 5048 4910 5 98.3% 100.0% 100.0% 98.3% 0.03 9.34 0.00 --
10281 2009:212:02:09:42.986 3 196.4 163.2 5024 4961 13 99.8% 100.0% 100.0% 99.8% 0.02 9.36 0.00 --
18768 2016:042:03:45:12.537 3 -137.6 -205.9 45788 45192 44 98.8% 100.0% 100.0% 98.8% 0.06 9.35 0.00 --
51269 2016:043:06:09:34.368 1 -137.6 -205.9 86 48 0 100.0% 100.0% 100.0% 100.0% 0.01 9.35 0.00 --
17104 2016:047:08:58:16.137 3 -137.6 -205.9 29614 29252 50 99.0% 100.0% 100.0% 99.0% 0.04 9.34 0.00 --
17105 2016:049:13:29:53.916 3 -122.0 -214.2 56829 55653 77 98.0% 100.0% 100.0% 98.0% 0.08 9.35 0.00 --
18769 2016:052:12:59:47.708 3 -122.0 -214.2 35172 34190 36 97.4% 100.0% 100.0% 97.4% 0.06 9.35 0.00 --
17102 2016:057:18:51:30.615 3 -53.6 -236.3 56102 54615 69 97.4% 100.0% 100.0% 97.4% 0.08 9.33 0.00 --
51221 2016:059:03:16:02.235 1 -53.6 -236.3 145 25 0 100.0% 100.0% 100.0% 100.0% 0.01 9.32 0.00 --
18785 2016:059:15:26:23.328 3 -53.6 -236.3 32825 32084 39 98.1% 100.0% 100.0% 98.1% 0.06 9.33 0.00 --
17103 2016:060:23:57:28.156 3 -53.6 -236.3 31092 30117 31 97.1% 100.0% 100.0% 97.1% 0.06 9.35 0.00 --
51217 2016:061:18:12:47.122 1 -53.6 -236.3 138 26 0 89.7% 100.0% 100.0% 89.7% 0.00 9.35 0.00 --
18786 2016:062:07:32:15.979 3 -53.6 -236.3 32702 32012 34 98.3% 100.0% 100.0% 98.3% 0.08 9.34 0.00 --
18787 2016:105:06:40:04.461 3 177.8 -156.2 12840 12766 19 99.9% 100.0% 100.0% 99.9% 0.05 9.38 0.00 --
18823 2016:106:09:09:50.037 3 177.8 -156.2 11518 11440 16 99.8% 100.0% 100.0% 99.8% 0.03 9.39 0.00 --
51099 2016:106:16:01:01.127 1 177.8 -156.2 156 28 1 100.0% 100.0% 100.0% 100.0% 0.01 9.38 0.00 --
18879 2016:297:17:20:41.616 3 -345.1 318.2 15230 14745 23 97.7% 100.0% 100.0% 97.7% 0.04 9.33 0.00 --
18880 2017:078:17:02:22.939 3 103.4 -428.9 14415 14279 25 99.4% 100.0% 100.0% 99.4% 0.04 9.37 0.00 --
47982 2019:219:08:17:14.746 1 475.6 -269.0 3871 3703 35 97.6% 99.5% 100.0% 97.1% 0.04 9.41 0.00 --
23559 2020:313:04:09:53.378 3 -237.0 127.8 5069 4966 6 98.9% 100.0% 100.0% 98.9% 0.04 9.37 0.00 --
65517 2025:317:16:32:05.038 7 -246.3 111.7 4960 4908 3 99.9% 99.9% 100.0% 99.8% 0.10 9.40 0.00 --
29991 2025:328:14:02:16.689 7 -241.5 119.2 8132 8079 3 99.9% 100.0% 100.0% 99.9% 0.15 9.38 0.00 --
32010 2025:329:03:11:58.501 7 -243.9 110.6 3253 3198 2 99.9% 99.7% 100.0% 99.6% 0.09 9.38 0.00 --

  • sample: One sample of ACA image telemetry. This could be a real image readout or it could be a null 4x4 image when the ACA is not tracking. Be aware that the sample period is faster for null 4x4 images (1.025 sec) than for typical 6x6 or 8x8 tracked images (2.05 or 4.1 sec respectively).
  • Kalman samples: Subset of samples when ACA could be tracking stars (AOPCADMD == NPNT & AOACASEQ == KALM)
  • dr3: Subset of tracked Kalman samples with radial centroid residual < 3 arcsec. This corresponds to "high quality" readouts. This effectively includes the track subset (AOACFCT == TRAK) because readouts with no TRAK are assigned an infinite centroid residual.
  • dbox5: Subset of tracked Kalman samples with centroid residual within a 5 arcsec box. This corresponds to spatial filter used by the OBC for inclusion in Kalman filter. This effectively includes the track subset (AOACFCT == TRAK) because readouts with no TRAK are assigned an infinite centroid residual.
  • track: Subset of Kalman samples where the image is being tracked (AOACFCT == TRAK)
  • sat_pix: Subset of Kalman samples with saturated pixel flag OK (AOACISP == OK)
  • ion_rad: Subset of Kalman samples with ionizing radiation flag OK (AOACIIR == OK)
  • mag_est_ok: Subset of Kalman samples that have a magnitude estimate (track & ion_rad)
  • n_total: Total number of sample regardless of OBC PCAD status
  • n: Synonym for n_total
  • n_kalman: Number of Kalman samples
  • n_dr3: Number of dr3 samples.
  • n_dbox5: Number of dbox5 samples.
  • n_track: Number of track samples.
  • n_ok_3: Number of (track & sat_pix & ion_rad & dr3) samples
  • n_ok_5: Number of (track & sat_pix & ion_rad & dbox5) samples
  • n_mag_est_ok: Number of (track & ion_rad) samples
  • n_mag_est_ok_3: Number of (track & ion_rad & dr3) samples
  • n_mag_est_ok_5: Number of (track & ion_rad & dbox5) samples
  • f_dr3: Fraction of mag-est-ok samples with centroid residual < 3 arcsec((mag_est_ok & n_dr3)/n_mag_est_ok)
  • f_dbox5: Fraction of mag-est-ok samples with centroid within 5 arcsec box((mag_est_ok & n_dbox5)/n_mag_est_ok)
  • f_mag_est_ok: n_mag_est_ok_3/n_kalman. This is a measure of the fraction of time during an observation that a magnitude estimate is available.
  • f_mag_est_ok_3: n_mag_est_ok_3/n_kalman.
  • f_mag_est_ok_5: n_mag_est_ok_5/n_kalman.
  • f_ok: n_ok_5 / n_kalman. Same as f_ok_5
  • f_ok_3: n_ok_3 / n_kalman. This is a measure of the fraction of time during an observation that the Kalman filter is getting high-quality star centroids.
  • f_ok_5: n_ok_5 / n_kalman. This is a measure of the fraction of time during an observation that the Kalman filter is getting any star centroid at all. This includes measurements out to 5 arcsec box halfwidth, so potentially 7 arcsec radial offset.
