AGASC ID 395708616

Info

Last Obs. 2025:329:03:11
magcatalog 7.96 ± 0.02
mag3 arcsec 7.97 ± 0.01
mag5 arcsec 7.97 ± 0.01
Nobs 42 (0 bad)
fok 99.9%
f3 arcsec 100.0%
f5 arcsec 100.0%

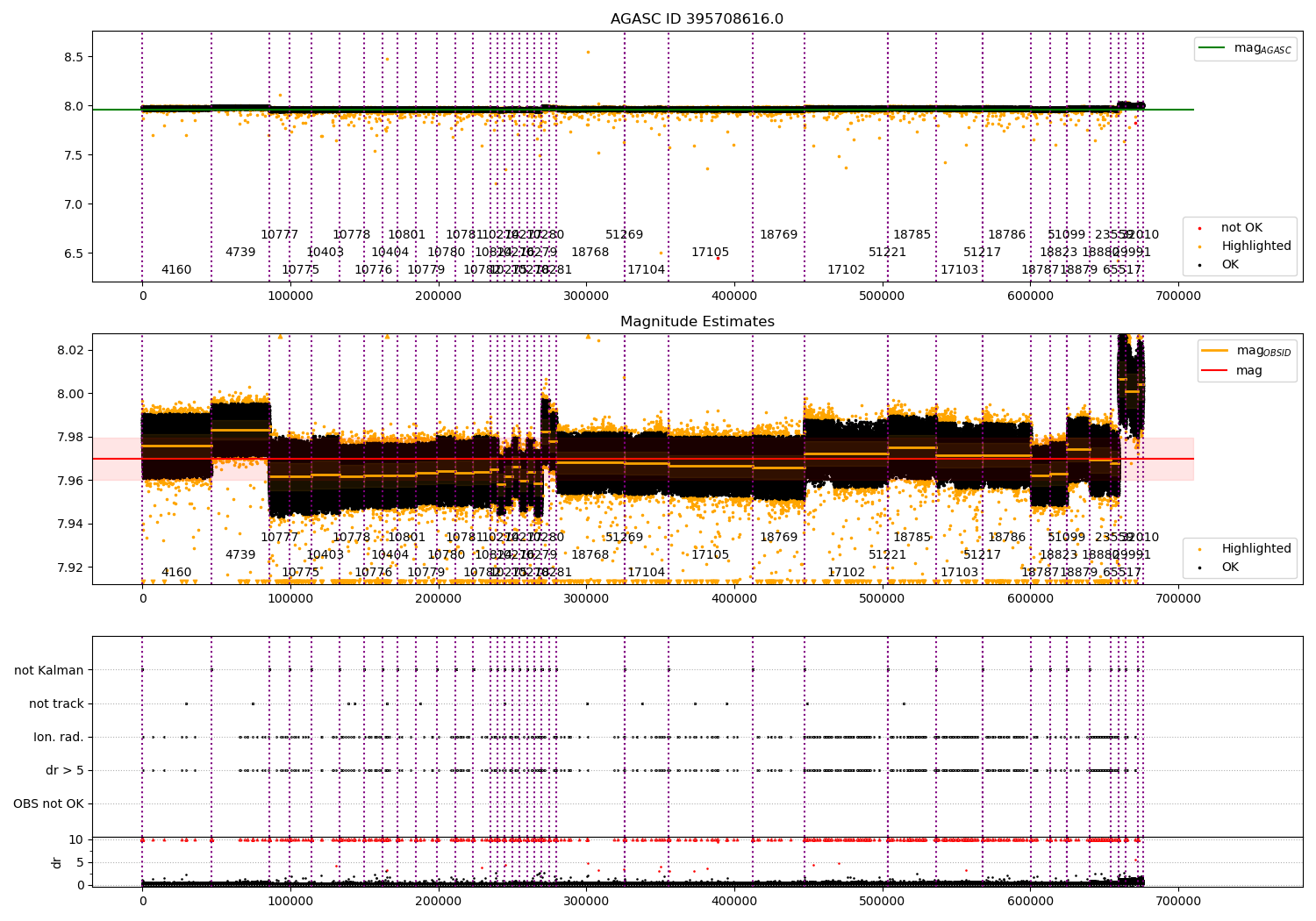

Timeline

Observation Info

OBSID Time Slot Row Col N Nmag est ok Nout fmag est ok fdr3 fdbox5 fmag est ok 3 ⟨ δ mag ⟩ 100s ⟨ mag ⟩ σmag Comments
4160 2003:204:00:17:25.282 4 105.1 -327.0 46506 46383 26 100.0% 100.0% 100.0% 100.0% 0.02 7.98 0.00 --
4739 2004:034:09:18:06.838 5 -345.5 -400.6 39169 39088 25 100.0% 100.0% 100.0% 100.0% 0.01 7.98 0.00 --
10777 2008:311:14:50:05.598 4 211.9 300.3 13656 13575 15 100.0% 100.0% 100.0% 100.0% 0.02 7.96 0.00 --
10775 2008:313:13:57:49.732 4 211.9 300.3 15149 15060 17 100.0% 100.0% 100.0% 100.0% 0.02 7.96 0.00 --
10403 2008:314:20:01:45.549 4 211.9 300.3 18689 18606 17 100.0% 100.0% 100.0% 100.0% 0.02 7.96 0.00 --
10778 2008:316:00:03:46.531 4 180.7 321.7 16730 16633 24 99.9% 100.0% 100.0% 99.9% 0.01 7.96 0.00 --
10776 2008:316:22:34:50.239 4 180.7 321.7 12342 12263 21 99.9% 100.0% 100.0% 99.9% 0.02 7.96 0.00 --
10404 2008:317:16:30:02.134 4 180.7 321.7 9881 9791 16 99.9% 100.0% 100.0% 99.9% 0.01 7.96 0.00 --
10801 2008:318:14:08:40.600 4 180.7 321.7 12826 12752 13 100.0% 100.0% 100.0% 100.0% 0.01 7.96 0.00 --
10779 2008:325:07:07:53.068 4 156.9 335.1 13809 13737 10 100.0% 100.0% 100.0% 100.0% 0.01 7.96 0.00 --
10780 2008:330:09:37:17.103 4 133.1 346.2 12955 12892 15 100.0% 100.0% 100.0% 100.0% 0.02 7.96 0.00 --
10781 2008:331:20:50:00.048 4 133.1 346.2 11854 11762 15 99.9% 100.0% 100.0% 99.9% 0.02 7.96 0.00 --
10782 2008:334:11:18:25.872 4 133.1 346.2 11615 11537 12 100.0% 100.0% 100.0% 100.0% 0.02 7.96 0.00 --
10824 2008:335:04:04:20.199 4 133.1 346.2 4539 4460 10 99.9% 100.0% 100.0% 99.9% 0.02 7.96 0.00 --
10274 2009:007:03:52:27.543 4 -49.3 372.5 5021 4966 4 99.9% 100.0% 100.0% 99.9% 0.01 7.96 0.00 --
10275 2009:043:23:09:52.560 4 -279.1 252.6 5021 4967 7 99.9% 100.0% 100.0% 99.9% 0.01 7.96 0.00 --
10276 2009:067:06:38:09.459 4 -367.0 57.4 5020 4962 8 99.9% 100.0% 100.0% 99.9% 0.01 7.97 0.00 --
10277 2009:112:00:56:06.286 4 -268.9 -237.1 5019 4952 3 100.0% 100.0% 100.0% 100.0% 0.02 7.96 0.00 --
10278 2009:156:23:22:56.286 5 -107.4 -334.3 5019 4954 6 99.9% 100.0% 100.0% 99.9% 0.01 7.96 0.00 --
10279 2009:174:18:46:37.236 5 -36.2 -347.1 5022 4963 12 99.8% 100.0% 100.0% 99.8% 0.01 7.96 0.00 --
10280 2009:194:10:20:08.972 4 55.9 -342.5 5025 4969 6 99.9% 100.0% 100.0% 99.9% 0.01 7.98 0.00 --
10281 2009:212:02:09:42.986 4 155.5 -309.1 5025 4965 9 99.9% 100.0% 100.0% 99.9% 0.01 7.98 0.00 --
18768 2016:042:03:45:12.537 4 -290.2 243.2 45783 45714 54 100.0% 100.0% 100.0% 100.0% 0.02 7.97 0.00 --
51269 2016:043:06:09:34.368 3 -290.2 243.2 86 48 0 100.0% 100.0% 100.0% 100.0% 0.01 7.97 0.00 --
17104 2016:047:08:58:16.137 4 -290.2 243.2 29609 29539 28 99.9% 100.0% 100.0% 99.9% 0.01 7.97 0.00 --
17105 2016:049:13:29:53.916 4 -305.6 223.1 56826 56751 51 100.0% 100.0% 100.0% 100.0% 0.02 7.97 0.00 --
18769 2016:052:12:59:47.708 4 -305.6 223.1 35169 35103 32 100.0% 100.0% 100.0% 100.0% 0.02 7.97 0.00 --
17102 2016:057:18:51:30.615 5 -351.9 132.5 56100 55978 54 99.9% 100.0% 100.0% 99.9% 0.02 7.97 0.00 --
51221 2016:059:03:16:02.235 3 -351.9 132.5 145 25 0 100.0% 100.0% 100.0% 100.0% 0.00 7.97 0.00 --
18785 2016:059:15:26:23.328 5 -351.9 132.5 32823 32653 31 99.9% 100.0% 100.0% 99.9% 0.02 7.98 0.00 --
17103 2016:060:23:57:28.156 5 -351.9 132.5 31089 30960 28 99.8% 100.0% 100.0% 99.8% 0.02 7.97 0.00 --
51217 2016:061:18:12:47.122 3 -351.9 132.5 136 29 0 100.0% 100.0% 100.0% 100.0% 0.00 7.97 0.00 --
18786 2016:062:07:32:15.979 5 -351.9 132.5 32700 32543 38 99.9% 100.0% 100.0% 99.9% 0.02 7.97 0.00 --
18787 2016:105:06:40:04.461 4 -293.3 -212.2 12835 12778 13 100.0% 100.0% 100.0% 100.0% 0.01 7.96 0.00 --
18823 2016:106:09:09:50.037 4 -293.3 -212.2 11513 11464 8 100.0% 100.0% 100.0% 100.0% 0.01 7.96 0.00 --
51099 2016:106:16:01:01.127 3 -293.3 -212.2 149 27 0 100.0% 100.0% 100.0% 100.0% 0.00 7.96 0.00 --
18879 2016:297:17:20:41.616 4 121.8 407.7 15236 15084 19 100.0% 100.0% 100.0% 100.0% 0.01 7.97 0.00 --
18880 2017:078:17:02:22.939 4 -335.0 -245.7 14413 14314 18 99.7% 100.0% 100.0% 99.7% 0.02 7.97 0.00 --
23559 2020:313:04:09:53.378 4 200.6 310.4 5079 5013 8 99.8% 100.0% 100.0% 99.8% 0.02 7.97 0.00 --
65517 2025:317:16:32:05.038 3 180.8 317.7 4972 4913 2 100.0% 100.0% 100.0% 100.0% 0.03 8.01 0.00 --
29991 2025:328:14:02:16.689 3 192.5 310.2 8144 8081 3 100.0% 100.0% 100.0% 99.9% 0.04 8.00 0.00 --
32010 2025:329:03:11:58.501 3 183.1 316.6 3265 3202 0 100.0% 100.0% 100.0% 100.0% 0.03 8.00 0.00 --

  • sample: One sample of ACA image telemetry. This could be a real image readout or it could be a null 4x4 image when the ACA is not tracking. Be aware that the sample period is faster for null 4x4 images (1.025 sec) than for typical 6x6 or 8x8 tracked images (2.05 or 4.1 sec respectively).
  • Kalman samples: Subset of samples when ACA could be tracking stars (AOPCADMD == NPNT & AOACASEQ == KALM)
  • dr3: Subset of tracked Kalman samples with radial centroid residual < 3 arcsec. This corresponds to "high quality" readouts. This effectively includes the track subset (AOACFCT == TRAK) because readouts with no TRAK are assigned an infinite centroid residual.
  • dbox5: Subset of tracked Kalman samples with centroid residual within a 5 arcsec box. This corresponds to spatial filter used by the OBC for inclusion in Kalman filter. This effectively includes the track subset (AOACFCT == TRAK) because readouts with no TRAK are assigned an infinite centroid residual.
  • track: Subset of Kalman samples where the image is being tracked (AOACFCT == TRAK)
  • sat_pix: Subset of Kalman samples with saturated pixel flag OK (AOACISP == OK)
  • ion_rad: Subset of Kalman samples with ionizing radiation flag OK (AOACIIR == OK)
  • mag_est_ok: Subset of Kalman samples that have a magnitude estimate (track & ion_rad)
  • n_total: Total number of sample regardless of OBC PCAD status
  • n: Synonym for n_total
  • n_kalman: Number of Kalman samples
  • n_dr3: Number of dr3 samples.
  • n_dbox5: Number of dbox5 samples.
  • n_track: Number of track samples.
  • n_ok_3: Number of (track & sat_pix & ion_rad & dr3) samples
  • n_ok_5: Number of (track & sat_pix & ion_rad & dbox5) samples
  • n_mag_est_ok: Number of (track & ion_rad) samples
  • n_mag_est_ok_3: Number of (track & ion_rad & dr3) samples
  • n_mag_est_ok_5: Number of (track & ion_rad & dbox5) samples
  • f_dr3: Fraction of mag-est-ok samples with centroid residual < 3 arcsec((mag_est_ok & n_dr3)/n_mag_est_ok)
  • f_dbox5: Fraction of mag-est-ok samples with centroid within 5 arcsec box((mag_est_ok & n_dbox5)/n_mag_est_ok)
  • f_mag_est_ok: n_mag_est_ok_3/n_kalman. This is a measure of the fraction of time during an observation that a magnitude estimate is available.
  • f_mag_est_ok_3: n_mag_est_ok_3/n_kalman.
  • f_mag_est_ok_5: n_mag_est_ok_5/n_kalman.
  • f_ok: n_ok_5 / n_kalman. Same as f_ok_5
  • f_ok_3: n_ok_3 / n_kalman. This is a measure of the fraction of time during an observation that the Kalman filter is getting high-quality star centroids.
  • f_ok_5: n_ok_5 / n_kalman. This is a measure of the fraction of time during an observation that the Kalman filter is getting any star centroid at all. This includes measurements out to 5 arcsec box halfwidth, so potentially 7 arcsec radial offset.
