AGASC ID 395710032

Info

Last Obs. 2025:329:03:11
magcatalog 8.79 ± 0.02
mag3 arcsec 8.81 ± 0.02
mag5 arcsec 8.81 ± 0.02
Nobs 40 (0 bad)
fok 99.7%
f3 arcsec 100.0%
f5 arcsec 100.0%

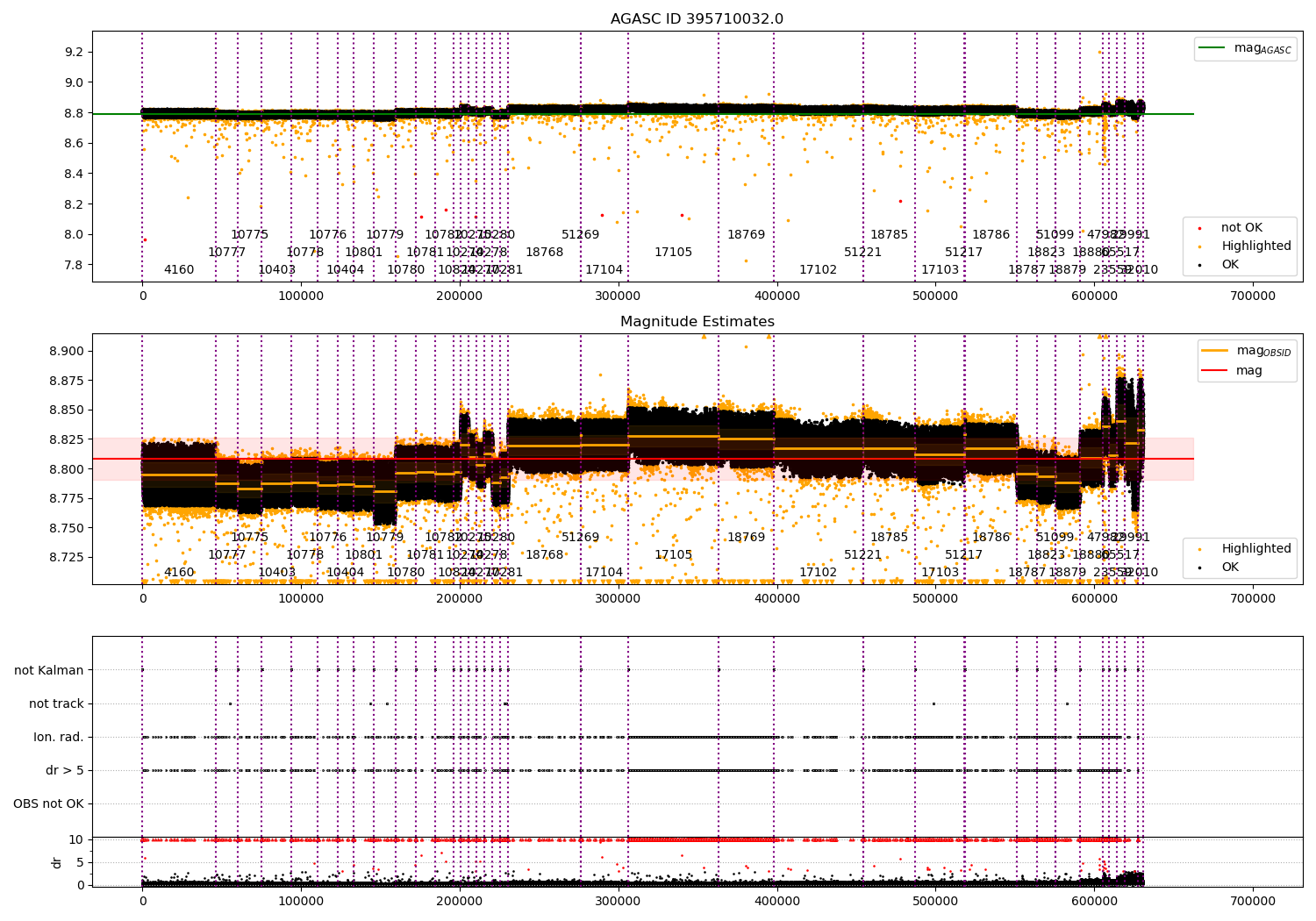

Timeline

Observation Info

OBSID Time Slot Row Col N Nmag est ok Nout fmag est ok fdr3 fdbox5 fmag est ok 3 ⟨ δ mag ⟩ 100s ⟨ mag ⟩ σmag Comments
4160 2003:204:00:17:25.282 7 -160.9 375.1 46502 46363 39 99.9% 100.0% 100.0% 99.9% 0.04 8.80 0.00 --
10777 2008:311:14:50:05.598 7 -218.1 -315.3 13648 13566 24 99.9% 100.0% 100.0% 99.9% 0.03 8.79 0.00 --
10775 2008:313:13:57:49.732 7 -218.1 -315.3 15140 15056 22 99.9% 100.0% 100.0% 99.9% 0.02 8.78 0.00 --
10403 2008:314:20:01:45.549 7 -218.1 -315.3 18680 18596 25 99.9% 100.0% 100.0% 99.9% 0.02 8.79 0.00 --
10778 2008:316:00:03:46.531 7 -182.6 -335.4 16724 16628 28 99.9% 100.0% 100.0% 99.9% 0.03 8.79 0.00 --
10776 2008:316:22:34:50.239 7 -182.6 -335.4 12334 12267 10 100.0% 100.0% 100.0% 100.0% 0.02 8.79 0.00 --
10404 2008:317:16:30:02.134 7 -182.6 -335.4 9870 9792 10 99.9% 100.0% 100.0% 99.9% 0.02 8.79 0.00 --
10801 2008:318:14:08:40.600 7 -182.6 -335.4 12820 12744 14 99.9% 100.0% 100.0% 99.9% 0.02 8.79 0.00 --
10779 2008:325:07:07:53.068 7 -155.7 -347.6 13801 13731 15 99.9% 100.0% 100.0% 99.9% 0.03 8.78 0.00 --
10780 2008:330:09:37:17.103 7 -129.1 -357.3 12947 12884 18 99.9% 100.0% 100.0% 99.9% 0.02 8.80 0.00 --
10781 2008:331:20:50:00.048 7 -129.1 -357.3 11846 11767 8 100.0% 100.0% 100.0% 100.0% 0.02 8.80 0.00 --
10782 2008:334:11:18:25.872 7 -129.1 -357.3 11601 11525 18 99.9% 100.0% 100.0% 99.9% 0.03 8.80 0.00 --
10824 2008:335:04:04:20.199 7 -129.1 -357.3 4534 4464 3 100.0% 100.0% 100.0% 100.0% 0.03 8.80 0.00 --
10274 2009:007:03:52:27.543 7 69.2 -368.8 5024 4963 12 99.8% 100.0% 100.0% 99.8% 0.03 8.82 0.00 --
10275 2009:043:23:09:52.560 7 305.0 -219.0 5026 4966 8 99.9% 100.0% 100.0% 99.9% 0.01 8.81 0.00 --
10277 2009:112:00:56:06.286 7 249.7 306.0 5020 4945 11 99.8% 100.0% 100.0% 99.8% 0.02 8.80 0.00 --
10278 2009:156:23:22:56.286 7 67.4 395.9 5026 4957 3 100.0% 100.0% 100.0% 100.0% 0.02 8.81 0.00 --
10280 2009:194:10:20:08.972 7 -108.9 389.9 5022 4968 9 99.9% 100.0% 100.0% 99.9% 0.02 8.79 0.00 --
10281 2009:212:02:09:42.986 7 -213.0 345.0 5027 4943 5 99.3% 100.0% 100.0% 99.3% 0.02 8.79 0.00 --
18768 2016:042:03:45:12.537 7 310.0 -207.8 45791 45700 50 99.9% 100.0% 100.0% 99.9% 0.03 8.82 0.00 --
51269 2016:043:06:09:34.368 7 310.0 -207.8 94 49 0 100.0% 100.0% 100.0% 100.0% 0.00 8.81 0.00 --
17104 2016:047:08:58:16.137 7 310.0 -207.8 29617 29532 41 99.9% 100.0% 100.0% 99.9% 0.03 8.82 0.00 --
17105 2016:049:13:29:53.916 7 324.7 -184.8 56831 56109 78 98.8% 100.0% 100.0% 98.8% 0.04 8.83 0.00 --
18769 2016:052:12:59:47.708 7 324.7 -184.8 35175 34788 37 99.1% 100.0% 100.0% 99.1% 0.03 8.83 0.00 --
17102 2016:057:18:51:30.615 7 367.2 -83.5 56108 55999 46 99.9% 100.0% 100.0% 99.9% 0.03 8.82 0.00 --
51221 2016:059:03:16:02.235 6 367.2 -83.5 157 25 0 100.0% 100.0% 100.0% 100.0% 0.01 8.83 0.00 --
18785 2016:059:15:26:23.328 7 367.2 -83.5 32824 32619 30 99.8% 100.0% 100.0% 99.8% 0.04 8.82 0.00 --
17103 2016:060:23:57:28.156 7 367.2 -83.5 31097 30924 42 99.7% 100.0% 100.0% 99.7% 0.03 8.81 0.00 --
51217 2016:061:18:12:47.122 6 367.2 -83.5 148 29 1 100.0% 100.0% 100.0% 100.0% 0.00 8.83 0.00 --
18786 2016:062:07:32:15.979 7 367.2 -83.5 32708 32535 42 99.9% 100.0% 100.0% 99.9% 0.03 8.82 0.00 --
18787 2016:105:06:40:04.461 7 272.9 281.2 12844 12730 14 99.6% 100.0% 100.0% 99.6% 0.02 8.80 0.00 --
18823 2016:106:09:09:50.037 7 272.9 281.2 11520 11343 12 98.9% 100.0% 100.0% 98.9% 0.03 8.79 0.00 --
51099 2016:106:16:01:01.127 7 272.9 281.2 160 28 0 100.0% 100.0% 100.0% 100.0% 0.01 8.80 0.00 --
18879 2016:297:17:20:41.616 6 -407.5 -126.1 15223 15069 24 99.9% 100.0% 100.0% 99.9% 0.02 8.79 0.00 --
18880 2017:078:17:02:22.939 7 400.8 -93.3 14422 14276 22 99.4% 100.0% 100.0% 99.4% 0.03 8.81 0.00 --
47982 2019:219:08:17:14.746 7 44.9 -138.9 3857 3706 38 97.7% 99.8% 100.0% 97.5% 0.03 8.84 0.00 --
23559 2020:313:04:09:53.378 7 -208.7 -319.1 5070 4947 4 98.5% 100.0% 100.0% 98.5% 0.03 8.81 0.00 --
65517 2025:317:16:32:05.038 5 -193.9 -333.0 4961 4906 4 99.9% 100.0% 100.0% 99.8% 0.05 8.84 0.00 --
29991 2025:328:14:02:16.689 5 -204.7 -327.0 8134 8082 1 100.0% 100.0% 100.0% 100.0% 0.09 8.82 0.00 --
32010 2025:329:03:11:58.501 5 -191.5 -334.1 3254 3199 0 99.9% 100.0% 100.0% 99.9% 0.06 8.83 0.00 --

  • sample: One sample of ACA image telemetry. This could be a real image readout or it could be a null 4x4 image when the ACA is not tracking. Be aware that the sample period is faster for null 4x4 images (1.025 sec) than for typical 6x6 or 8x8 tracked images (2.05 or 4.1 sec respectively).
  • Kalman samples: Subset of samples when ACA could be tracking stars (AOPCADMD == NPNT & AOACASEQ == KALM)
  • dr3: Subset of tracked Kalman samples with radial centroid residual < 3 arcsec. This corresponds to "high quality" readouts. This effectively includes the track subset (AOACFCT == TRAK) because readouts with no TRAK are assigned an infinite centroid residual.
  • dbox5: Subset of tracked Kalman samples with centroid residual within a 5 arcsec box. This corresponds to spatial filter used by the OBC for inclusion in Kalman filter. This effectively includes the track subset (AOACFCT == TRAK) because readouts with no TRAK are assigned an infinite centroid residual.
  • track: Subset of Kalman samples where the image is being tracked (AOACFCT == TRAK)
  • sat_pix: Subset of Kalman samples with saturated pixel flag OK (AOACISP == OK)
  • ion_rad: Subset of Kalman samples with ionizing radiation flag OK (AOACIIR == OK)
  • mag_est_ok: Subset of Kalman samples that have a magnitude estimate (track & ion_rad)
  • n_total: Total number of sample regardless of OBC PCAD status
  • n: Synonym for n_total
  • n_kalman: Number of Kalman samples
  • n_dr3: Number of dr3 samples.
  • n_dbox5: Number of dbox5 samples.
  • n_track: Number of track samples.
  • n_ok_3: Number of (track & sat_pix & ion_rad & dr3) samples
  • n_ok_5: Number of (track & sat_pix & ion_rad & dbox5) samples
  • n_mag_est_ok: Number of (track & ion_rad) samples
  • n_mag_est_ok_3: Number of (track & ion_rad & dr3) samples
  • n_mag_est_ok_5: Number of (track & ion_rad & dbox5) samples
  • f_dr3: Fraction of mag-est-ok samples with centroid residual < 3 arcsec((mag_est_ok & n_dr3)/n_mag_est_ok)
  • f_dbox5: Fraction of mag-est-ok samples with centroid within 5 arcsec box((mag_est_ok & n_dbox5)/n_mag_est_ok)
  • f_mag_est_ok: n_mag_est_ok_3/n_kalman. This is a measure of the fraction of time during an observation that a magnitude estimate is available.
  • f_mag_est_ok_3: n_mag_est_ok_3/n_kalman.
  • f_mag_est_ok_5: n_mag_est_ok_5/n_kalman.
  • f_ok: n_ok_5 / n_kalman. Same as f_ok_5
  • f_ok_3: n_ok_3 / n_kalman. This is a measure of the fraction of time during an observation that the Kalman filter is getting high-quality star centroids.
  • f_ok_5: n_ok_5 / n_kalman. This is a measure of the fraction of time during an observation that the Kalman filter is getting any star centroid at all. This includes measurements out to 5 arcsec box halfwidth, so potentially 7 arcsec radial offset.
