AGASC ID 878058736

Info

Last Obs. 2025:339:16:52
magcatalog 7.29 ± 0.02
mag3 arcsec 7.31 ± 0.01
mag5 arcsec 7.31 ± 0.01
Nobs 8 (0 bad)
fok 100.0%
f3 arcsec 100.0%
f5 arcsec 100.0%

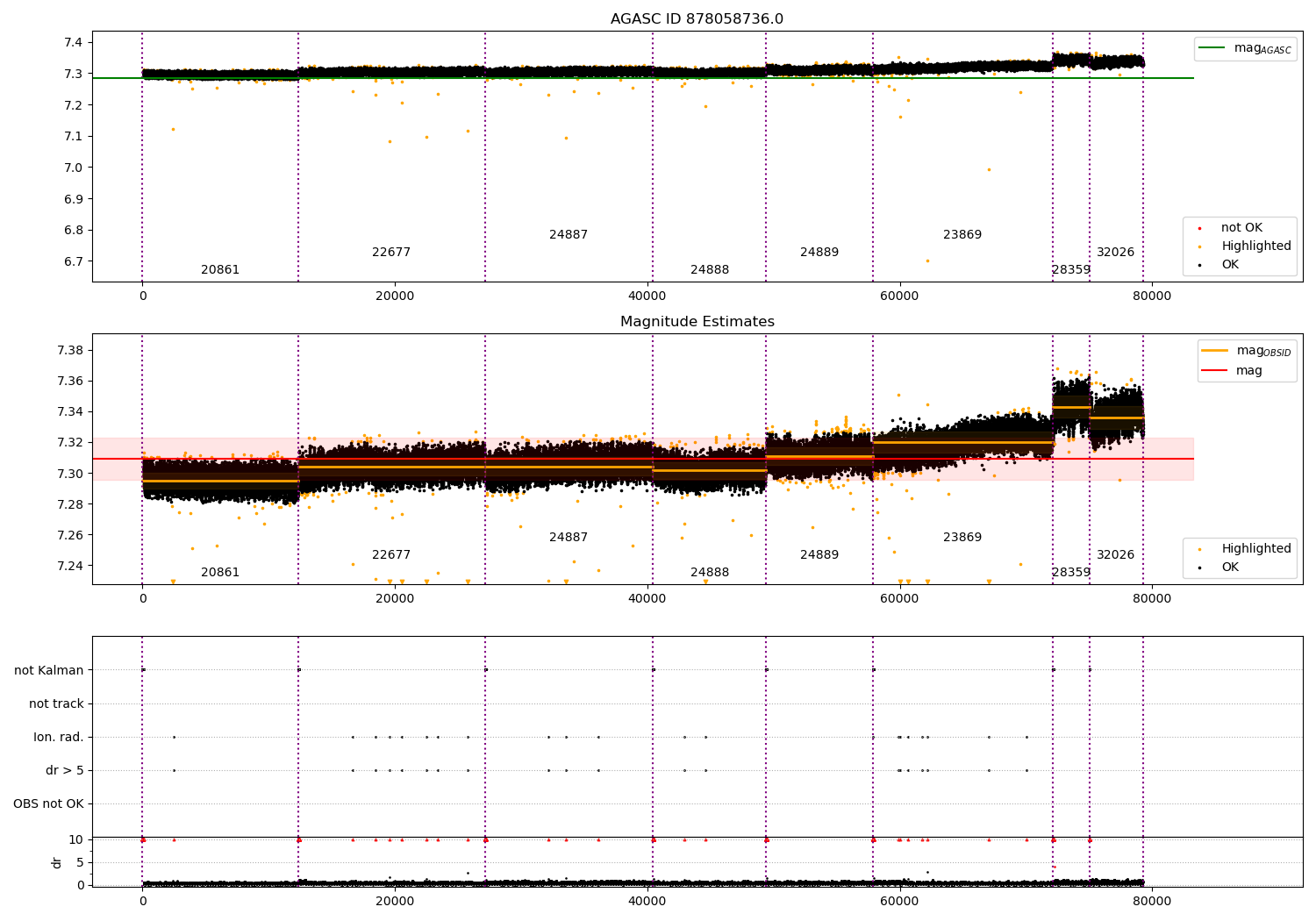

Timeline

Observation Info

OBSID Time Slot Row Col N Nmag est ok Nout fmag est ok fdr3 fdbox5 fmag est ok 3 ⟨ δ mag ⟩ 100s ⟨ mag ⟩ σmag Comments
20861 2017:340:10:28:55.132 7 -434.4 -487.3 12349 12257 4 100.0% 100.0% 100.0% 100.0% 0.02 7.29 0.00 --
22677 2020:343:23:46:29.805 7 -492.3 -432.8 14791 14697 9 100.0% 100.0% 100.0% 100.0% 0.02 7.30 0.00 --
24887 2020:346:15:14:40.987 7 -491.6 -433.2 13325 13246 6 100.0% 100.0% 100.0% 100.0% 0.02 7.30 0.00 --
24888 2020:347:12:41:12.069 7 -491.4 -433.3 8934 8859 5 100.0% 100.0% 100.0% 100.0% 0.01 7.30 0.00 --
24889 2020:348:09:02:55.178 7 -491.0 -433.4 8449 8362 2 100.0% 100.0% 100.0% 100.0% 0.02 7.31 0.00 --
23869 2021:341:09:27:26.191 7 -490.0 -435.4 14297 14204 11 100.0% 100.0% 100.0% 100.0% 0.03 7.32 0.00 --
28359 2025:338:21:07:22.384 3 -457.9 -469.8 2886 2843 0 100.0% 100.0% 100.0% 100.0% 0.03 7.34 0.00 --
32026 2025:339:16:52:48.929 3 -457.5 -470.0 4225 4189 1 100.0% 100.0% 100.0% 100.0% 0.03 7.34 0.00 --

  • sample: One sample of ACA image telemetry. This could be a real image readout or it could be a null 4x4 image when the ACA is not tracking. Be aware that the sample period is faster for null 4x4 images (1.025 sec) than for typical 6x6 or 8x8 tracked images (2.05 or 4.1 sec respectively).
  • Kalman samples: Subset of samples when ACA could be tracking stars (AOPCADMD == NPNT & AOACASEQ == KALM)
  • dr3: Subset of tracked Kalman samples with radial centroid residual < 3 arcsec. This corresponds to "high quality" readouts. This effectively includes the track subset (AOACFCT == TRAK) because readouts with no TRAK are assigned an infinite centroid residual.
  • dbox5: Subset of tracked Kalman samples with centroid residual within a 5 arcsec box. This corresponds to spatial filter used by the OBC for inclusion in Kalman filter. This effectively includes the track subset (AOACFCT == TRAK) because readouts with no TRAK are assigned an infinite centroid residual.
  • track: Subset of Kalman samples where the image is being tracked (AOACFCT == TRAK)
  • sat_pix: Subset of Kalman samples with saturated pixel flag OK (AOACISP == OK)
  • ion_rad: Subset of Kalman samples with ionizing radiation flag OK (AOACIIR == OK)
  • mag_est_ok: Subset of Kalman samples that have a magnitude estimate (track & ion_rad)
  • n_total: Total number of sample regardless of OBC PCAD status
  • n: Synonym for n_total
  • n_kalman: Number of Kalman samples
  • n_dr3: Number of dr3 samples.
  • n_dbox5: Number of dbox5 samples.
  • n_track: Number of track samples.
  • n_ok_3: Number of (track & sat_pix & ion_rad & dr3) samples
  • n_ok_5: Number of (track & sat_pix & ion_rad & dbox5) samples
  • n_mag_est_ok: Number of (track & ion_rad) samples
  • n_mag_est_ok_3: Number of (track & ion_rad & dr3) samples
  • n_mag_est_ok_5: Number of (track & ion_rad & dbox5) samples
  • f_dr3: Fraction of mag-est-ok samples with centroid residual < 3 arcsec((mag_est_ok & n_dr3)/n_mag_est_ok)
  • f_dbox5: Fraction of mag-est-ok samples with centroid within 5 arcsec box((mag_est_ok & n_dbox5)/n_mag_est_ok)
  • f_mag_est_ok: n_mag_est_ok_3/n_kalman. This is a measure of the fraction of time during an observation that a magnitude estimate is available.
  • f_mag_est_ok_3: n_mag_est_ok_3/n_kalman.
  • f_mag_est_ok_5: n_mag_est_ok_5/n_kalman.
  • f_ok: n_ok_5 / n_kalman. Same as f_ok_5
  • f_ok_3: n_ok_3 / n_kalman. This is a measure of the fraction of time during an observation that the Kalman filter is getting high-quality star centroids.
  • f_ok_5: n_ok_5 / n_kalman. This is a measure of the fraction of time during an observation that the Kalman filter is getting any star centroid at all. This includes measurements out to 5 arcsec box halfwidth, so potentially 7 arcsec radial offset.
