AGASC ID 896013056

Info

Last Obs. 2025:176:21:07
magcatalog 8.51 ± 0.02
mag3 arcsec 8.52 ± 0.02
mag5 arcsec 8.52 ± 0.02
Nobs 48 (0 bad)
fok 99.0%
f3 arcsec 100.0%
f5 arcsec 100.0%

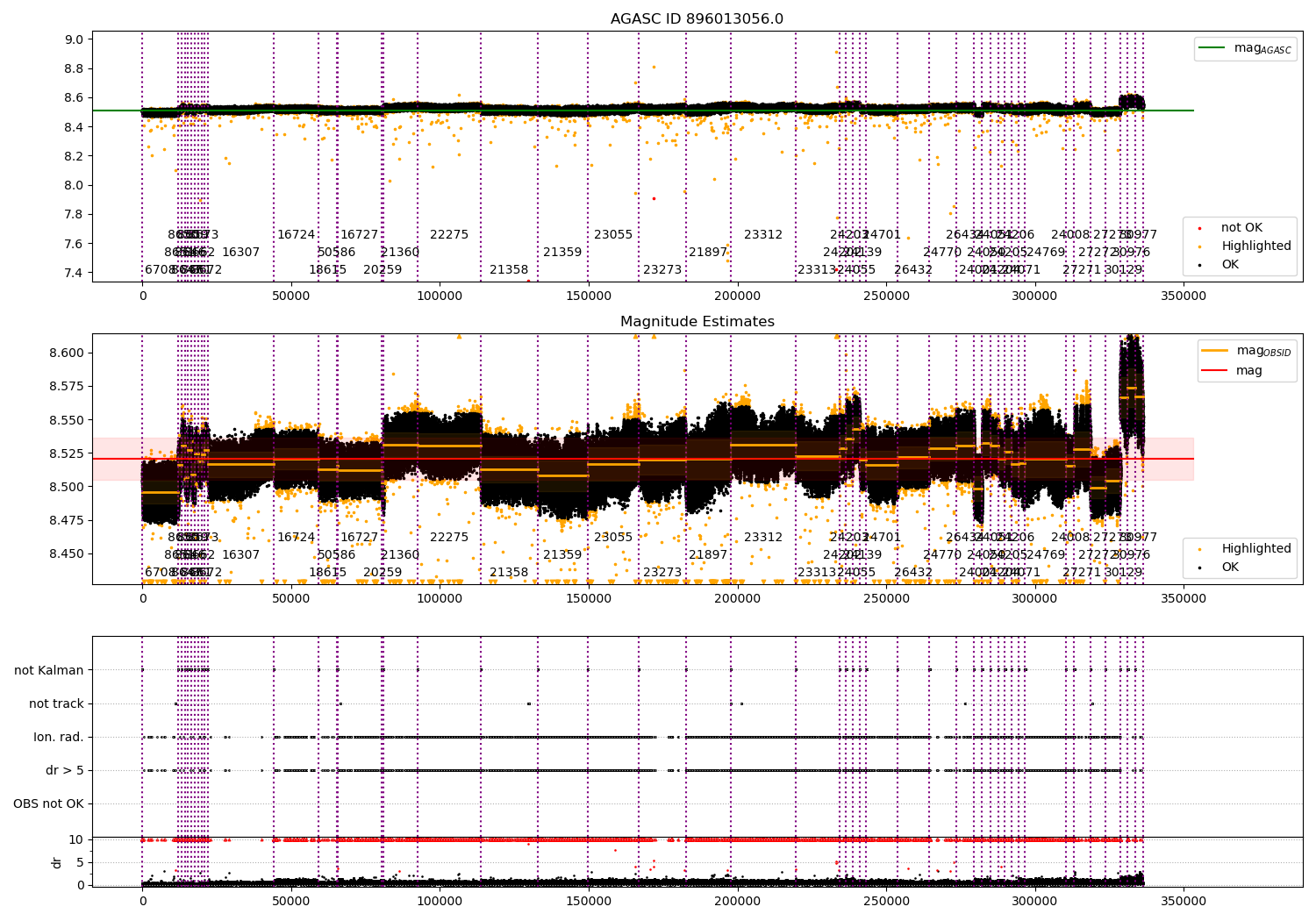

Timeline

Observation Info

OBSID Time Slot Row Col N Nmag est ok Nout fmag est ok fdr3 fdbox5 fmag est ok 3 ⟨ δ mag100s ⟨ mag ⟩ σmag Comments
6708 2007:041:08:28:02.738 5 -172.8 283.1 12015 11888 17 99.4% 100.0% 100.0% 99.4% 0.02 8.50 0.00 --
8651 2008:137:11:18:14.633 6 374.9 -102.9 1122 1064 1 99.9% 100.0% 100.0% 99.9% 0.02 8.52 0.00 --
8650 2008:137:12:00:04.633 6 217.3 -163.3 1120 1067 2 99.9% 100.0% 100.0% 99.9% 0.02 8.53 0.00 --
8647 2008:137:14:05:34.633 4 -253.5 -348.1 1116 1064 3 100.0% 100.0% 100.0% 100.0% 0.01 8.51 0.00 --
8646 2008:137:14:47:24.633 6 -412.0 -411.9 1113 1068 1 99.9% 100.0% 100.0% 99.9% 0.02 8.53 0.00 --
8659 2008:137:21:03:54.633 6 -121.8 -452.7 1117 1065 3 99.9% 100.0% 100.0% 99.9% 0.02 8.51 0.00 --
8661 2008:137:22:27:34.633 5 191.8 -328.6 1122 1067 1 100.0% 100.0% 100.0% 100.0% 0.01 8.52 0.00 --
8662 2008:137:23:09:24.633 5 349.1 -267.9 1121 1068 2 99.8% 100.0% 100.0% 99.8% 0.01 8.52 0.00 --
8673 2008:138:02:38:34.633 7 482.9 -373.3 1125 1064 1 99.7% 100.0% 100.0% 99.7% 0.02 8.52 0.00 --
8672 2008:138:19:26:48.099 5 324.8 -433.9 1124 1066 1 100.0% 100.0% 100.0% 100.0% 0.02 8.53 0.00 --
16307 2014:203:23:21:29.498 5 -282.8 -147.0 22092 22038 13 100.0% 100.0% 100.0% 100.0% 0.04 8.52 0.00 --
16724 2015:208:12:49:17.160 5 -213.3 -348.8 14924 14749 12 99.2% 100.0% 100.0% 99.2% 0.03 8.52 0.00 --
18615 2016:301:13:54:38.604 6 -302.2 -110.8 6241 6152 8 99.9% 100.0% 100.0% 99.9% 0.03 8.51 0.00 --
50586 2016:307:16:25:45.902 4 -303.1 -108.3 184 67 0 100.0% 100.0% 100.0% 100.0% 0.00 8.52 0.00 --
16727 2017:138:00:19:13.262 7 255.2 333.1 14874 14551 16 98.8% 100.0% 100.0% 98.8% 0.02 8.51 0.00 --
20259 2018:235:23:26:30.435 6 -307.4 -490.3 635 571 0 98.8% 100.0% 100.0% 98.8% 0.02 8.50 0.00 --
21360 2019:189:20:06:02.516 6 187.0 -230.4 11417 11157 13 98.2% 100.0% 100.0% 98.2% 0.03 8.53 0.00 --
22275 2019:194:08:42:57.302 6 186.5 -230.2 21218 20857 23 98.5% 100.0% 100.0% 98.5% 0.03 8.53 0.00 --
21358 2020:137:17:37:55.929 4 -124.7 304.2 19176 18877 12 98.9% 100.0% 100.0% 98.9% 0.03 8.51 0.00 --
21359 2020:139:00:36:55.865 4 -123.4 303.6 16732 16408 15 98.5% 100.0% 100.0% 98.5% 0.05 8.51 0.00 --
23055 2020:156:06:00:15.660 6 -0.9 325.8 17220 16907 14 98.7% 100.0% 100.0% 98.7% 0.06 8.52 0.00 --
23273 2020:157:01:18:01.008 5 -1.2 325.9 15755 15547 26 99.2% 100.0% 100.0% 99.2% 0.04 8.52 0.00 --
21897 2020:158:22:20:29.952 5 -1.4 326.0 15268 14973 24 98.6% 100.0% 100.0% 98.6% 0.06 8.52 0.00 --
23312 2020:197:11:32:47.148 5 135.3 -267.8 21590 21144 15 98.2% 100.0% 100.0% 98.2% 0.04 8.53 0.00 --
23313 2020:200:07:25:23.478 5 135.2 -267.7 14806 14570 26 98.8% 100.0% 100.0% 98.8% 0.04 8.52 0.00 --
24202 2022:076:18:15:45.065 6 -240.7 255.5 2256 2154 6 97.6% 100.0% 100.0% 97.6% 0.03 8.53 0.00 --
24203 2022:076:19:36:58.451 6 -249.7 57.0 2255 2183 1 98.8% 100.0% 100.0% 98.8% 0.03 8.54 0.00 --
24055 2022:111:07:47:56.722 6 -375.5 97.2 2255 2144 2 98.2% 100.0% 100.0% 98.2% 0.02 8.54 0.00 --
24139 2022:155:02:20:53.549 5 -311.5 -60.1 2258 2182 3 99.0% 100.0% 100.0% 99.0% 0.02 8.52 0.00 --
24701 2022:155:17:59:31.000 6 298.9 79.9 10395 10186 8 98.9% 100.0% 100.0% 98.9% 0.04 8.52 0.00 --
26432 2022:156:10:18:15.487 6 297.6 80.5 10864 10714 18 99.1% 100.0% 100.0% 99.1% 0.02 8.52 0.00 --
24770 2022:162:22:37:23.867 5 305.7 27.4 8926 8822 16 99.8% 100.0% 100.0% 99.8% 0.03 8.53 0.00 --
26434 2022:163:07:12:37.539 6 304.4 28.0 6002 5882 1 99.4% 100.0% 100.0% 99.4% 0.04 8.53 0.00 --
24001 2022:164:14:10:24.648 5 -125.5 -439.7 2718 2635 3 98.7% 100.0% 100.0% 98.7% 0.03 8.50 0.00 --
24050 2022:165:16:33:59.569 5 -370.2 52.7 2718 2650 3 99.5% 100.0% 100.0% 99.5% 0.03 8.53 0.00 --
24051 2022:165:18:21:12.304 5 -272.9 -86.6 2716 2655 2 99.6% 100.0% 100.0% 99.6% 0.02 8.53 0.00 --
24204 2022:175:17:49:16.238 6 139.2 275.7 2267 2161 5 99.3% 100.0% 100.0% 99.3% 0.03 8.52 0.00 --
24205 2022:178:00:47:00.424 6 392.3 -272.5 2260 2188 1 99.1% 100.0% 100.0% 99.1% 0.03 8.53 0.00 --
24206 2022:178:02:11:27.326 7 483.0 -457.0 2262 2203 4 99.8% 100.0% 100.0% 99.8% 0.02 8.52 0.00 --
24071 2022:204:04:23:52.439 6 181.9 -409.1 2256 2193 0 99.2% 100.0% 100.0% 99.2% 0.04 8.52 0.00 --
24769 2022:211:17:44:15.372 6 -283.4 -143.6 13801 13520 12 98.3% 100.0% 100.0% 98.3% 0.06 8.52 0.00 --
24008 2022:243:04:26:56.017 5 172.0 462.1 2721 2618 5 98.0% 100.0% 100.0% 98.0% 0.02 8.52 0.00 --
27271 2022:291:18:12:35.339 5 -300.7 -115.8 5365 5255 6 99.6% 100.0% 100.0% 99.6% 0.05 8.53 0.00 --
27272 2022:302:12:40:12.716 5 -303.8 -110.9 5034 4899 4 98.9% 100.0% 100.0% 98.9% 0.03 8.50 0.00 --
27273 2022:303:04:22:32.702 5 -297.5 -124.3 5016 4875 5 98.7% 100.0% 100.0% 98.7% 0.03 8.50 0.00 --
30129 2025:175:14:50:15.729 6 205.5 -214.6 2531 2476 0 100.0% 100.0% 100.0% 100.0% 0.06 8.57 0.00 --
30976 2025:176:00:23:59.316 6 229.3 -189.6 2533 2478 1 99.9% 100.0% 100.0% 99.9% 0.06 8.57 0.00 --
30977 2025:176:21:07:03.361 6 253.8 -160.1 2536 2471 1 99.9% 100.0% 100.0% 99.9% 0.08 8.57 0.00 --

  • sample: One sample of ACA image telemetry. This could be a real image readout or it could be a null 4x4 image when the ACA is not tracking. Be aware that the sample period is faster for null 4x4 images (1.025 sec) than for typical 6x6 or 8x8 tracked images (2.05 or 4.1 sec respectively).
  • Kalman samples: Subset of samples when ACA could be tracking stars (AOPCADMD == NPNT & AOACASEQ == KALM)
  • dr3: Subset of tracked Kalman samples with radial centroid residual < 3 arcsec. This corresponds to "high quality" readouts. This effectively includes the track subset (AOACFCT == TRAK) because readouts with no TRAK are assigned an infinite centroid residual.
  • dbox5: Subset of tracked Kalman samples with centroid residual within a 5 arcsec box. This corresponds to spatial filter used by the OBC for inclusion in Kalman filter. This effectively includes the track subset (AOACFCT == TRAK) because readouts with no TRAK are assigned an infinite centroid residual.
  • track: Subset of Kalman samples where the image is being tracked (AOACFCT == TRAK)
  • sat_pix: Subset of Kalman samples with saturated pixel flag OK (AOACISP == OK)
  • ion_rad: Subset of Kalman samples with ionizing radiation flag OK (AOACIIR == OK)
  • mag_est_ok: Subset of Kalman samples that have a magnitude estimate (track & ion_rad)
  • n_total: Total number of sample regardless of OBC PCAD status
  • n: Synonym for n_total
  • n_kalman: Number of Kalman samples
  • n_dr3: Number of dr3 samples.
  • n_dbox5: Number of dbox5 samples.
  • n_track: Number of track samples.
  • n_ok_3: Number of (track & sat_pix & ion_rad & dr3) samples
  • n_ok_5: Number of (track & sat_pix & ion_rad & dbox5) samples
  • n_mag_est_ok: Number of (track & ion_rad) samples
  • n_mag_est_ok_3: Number of (track & ion_rad & dr3) samples
  • n_mag_est_ok_5: Number of (track & ion_rad & dbox5) samples
  • f_dr3: Fraction of mag-est-ok samples with centroid residual < 3 arcsec((mag_est_ok & n_dr3)/n_mag_est_ok)
  • f_dbox5: Fraction of mag-est-ok samples with centroid within 5 arcsec box((mag_est_ok & n_dbox5)/n_mag_est_ok)
  • f_mag_est_ok: n_mag_est_ok_3/n_kalman. This is a measure of the fraction of time during an observation that a magnitude estimate is available.
  • f_mag_est_ok_3: n_mag_est_ok_3/n_kalman.
  • f_mag_est_ok_5: n_mag_est_ok_5/n_kalman.
  • f_ok: n_ok_5 / n_kalman. Same as f_ok_5
  • f_ok_3: n_ok_3 / n_kalman. This is a measure of the fraction of time during an observation that the Kalman filter is getting high-quality star centroids.
  • f_ok_5: n_ok_5 / n_kalman. This is a measure of the fraction of time during an observation that the Kalman filter is getting any star centroid at all. This includes measurements out to 5 arcsec box halfwidth, so potentially 7 arcsec radial offset.
