ACA L0 telemetry

The mica.archive.aca_l0 module provides tools to build and fetch from a file archive of ACA L0 telemetry. This telemetry is stored in directories by year and day-of-year, and ingested filenames are stored in a lookup table.

Get_files()

Methods are provided to retrieve files and read those data files into data structures.

>>> from mica.archive import aca_l0
>>> obsid_files = aca_l0.get_files(obsid=5438)
>>> time_8x8 = aca_l0.get_files(start='2011:001', stop='2011:010',
...                             imgsize=[8])
>>> time_files = aca_l0.get_files(start='2012:001:00:00:00.000',
...                               stop='2012:002:00:00:00.000',
...                               slots=[0], imgsize=[6, 8])

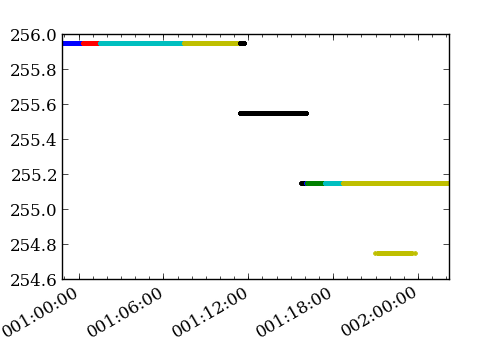

The values from those files may be read and plotted directly:

>>> from astropy.io import fits
>>> from Ska.Matplotlib import plot_cxctime
>>> figure(figsize=(5, 3.5))
>>> for aca_file in time_files:
...     f = fits.open(aca_file)
...     plot_cxctime(f[1].data['TIME'], f[1].data['TEMPCCD'], '.')
...

Get_slot_data()

The loop/plot above will break if the images aren’t filtered on “imgsize=[6, 8]”, as the ‘TEMPCCD’ columns is only available in 6x6 and 8x8 data. That’s one reason to use the convenience function get_slot_data(), as it places the values in a masked array (masking, for example, TEMPCCD when in 4x4 mode or when the data is just not available).

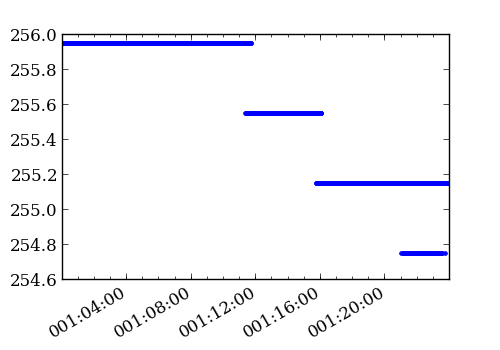

>>> temp_ccd = aca_l0.get_slot_data('2012:001:00:00:00.000',
...                                 '2012:002:00:00:00.000',
...                                  slot=0, imgsize=[6, 8],
...                                  columns=['TIME', 'TEMPCCD'])
>>> figure(figsize=(5, 3.5))
>>> plot_cxctime(temp_ccd['TIME'], temp_ccd['TEMPCCD'], '.')

(it is still wise to filter on imgsize in this example, as there is no advantage to reading each of the 4x4 files.)

The get_slot_data() method will retrieve all columns by default and the resulting data structure, as mentioned, will have masked columns where those values are not available (i.e. HD3TLM64 in 6x6 or 4x4 image data). See ACA L0 MSIDs/columns for the list of available columns.

The aca_l0 archive includes all of the raw image data. The following code grabs the image data from slot 2 during a fid shift and creates a plot of each readout.

>>> from scipy.stats import scoreatpercentile
>>> from itertools import izip, count
>>> slot_data = aca_l0.get_slot_data(98585849, 98585884, slot=2)
>>> vmax = scoreatpercentile(np.ravel(slot_data['IMGRAW']), 98)
>>> vmin = scoreatpercentile(np.ravel(slot_data['IMGRAW']), 2)
>>> norm = mpl.colors.LogNorm(vmin=vmin, vmax=vmax, clip=1)
>>> for raw, idx in izip(slot_data['IMGRAW'], count()):
...     fig = figure(figsize=(4,4))
...     imshow(raw.reshape(8,8, order='F'),
...            interpolation='none',
...            cmap=cm.gray,
...            origin='lower',
...            norm=norm,
...            aspect='equal')
...     savefig("slot_2_{0:02d}.png".format(idx))

ImageMagick can be used to knit those plots together into an animated gif:

convert -delay 20 -loop 0 slot*.png slot_2.gif

Get_l0_images()

An alternate way to access ACA L0 image is via the get_l0_images() function. This returns a Python list of ACAImage objects (see the chandra_aca.aca_image docs for details). Each of these objects contains the image along with relevant meta-data for each readout:: ['TIME', 'IMGROW0', 'IMGCOL0', 'BGDAVG', 'IMGSTAT', 'IMGFUNC1', 'IMGSIZE', 'INTEG'].

For example:

>>> imgs = aca_l0.get_l0_images(98585849, 98585884, slot=2)
>>> imgs[0]  # ACAImage rounds the values for viewing
<ACAImage row0=-246 col0=116
array([[  32,   81,   81,  212,  262,   98,   32,   27],
       [  21,   48,  305, 1170,  830,  169,   65,   38],
       [  38,   87,  825, 3434, 2635,  393,  147,   59],
       [  54,  114,  508, 3614, 5408, 1284,  398,   92],
       [  76,  163,  448, 2548, 5534, 1547,  344,  202],
       [  65,  103,  256,  809, 2602, 1656,  426,  114],
       [  16,   38,   54,  327, 1416, 1574,  502,  114],
       [  10,   16,   43,  103,  371, 1191,  491,   92]])>

>>> imgs[0].aca[-240, 118]  # Access row=-240, col=118
53.90625

>>> imgs[0].meta
{'BGDAVG': 25,
 'IMGCOL0': 116,
 'IMGFUNC1': 1,
 'IMGROW0': -246,
 'IMGSIZE': 8,
 'IMGSTAT': 0,
 'INTEG': 1.696,
 'TIME': 98585849.940383524}

>>> imgs[0].TIME
98585849.940383524

>>> imgs[0].row0, imgs[0].col0  # shortcut: row0 => IMGROW0
(-246, 116)

ACA L0 MSIDs/columns

msid	description	units
TIME	Time-tag of the data record	s
QUALITY	Data quality flag; 0 - good, 1 - bad
MJF	Major frame ctr value
MNF	Minor frame ctr value
END_INTEG_TIME	end integration time	s
INTEG	integration time	s
GLBSTAT	global status
COMMCNT	command count
COMMPROG	command progress
IMGFID1	image type
IMGNUM1	image number (of 8)
IMGFUNC1	image function
IMGSTAT	image status
IMGROW0	row of lowerleft image pixel
IMGCOL0	col of lowerleft image pixel
IMGSCALE	pixel scaling factor
BGDAVG	average background	DN
IMGFID2	image type
IMGNUM2	image number (of 8)
IMGFUNC2	image function
BGDRMS	background RMS	DN
TEMPCCD	temp 1 - CCD	K
TEMPHOUS	temp 2 - AC housing	K
TEMPPRIM	temp 3 - lens cell	K
TEMPSEC	temp 4 - secondary mirror	K
BGDSTAT	bgd pixel status
IMGFID3	image type
IMGNUM3	image number (of 8)
IMGFUNC3	image function
IMGFID4	image type
IMGNUM4	image number (of 8)
IMGFUNC4	image function
IMGRAW	aspect camera image	DN
HD3TLM62	Hdr 3 tlm. imgtype=6 word=2
HD3TLM63	Hdr 3 tlm. imgtype=6 word=3
HD3TLM64	Hdr 3 tlm. imgtype=6 word=4
HD3TLM65	Hdr 3 tlm. imgtype=6 word=5
HD3TLM66	Hdr 3 tlm. imgtype=6 word=6
HD3TLM67	Hdr 3 tlm. imgtype=6 word=7
HD3TLM72	Hdr 3 tlm. imgtype=7 word=2
HD3TLM73	Hdr 3 tlm. imgtype=7 word=3
HD3TLM74	Hdr 3 tlm. imgtype=7 word=4
HD3TLM75	Hdr 3 tlm. imgtype=7 word=5
HD3TLM76	Hdr 3 tlm. imgtype=7 word=6
HD3TLM77	Hdr 3 tlm. imgtype=7 word=7
IMGSIZE	derived param (4 6 or 8)
FILENAME	derived param; source filename
