MTA Monitoring Report 04/11/25 - 04/17/25

Archive of all weekly reports
Archive of monthly reports

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope:	5.214e-02 CTI/year	(1.428e-04 CTI/day)
Detrended slope:	4.865e-02 CTI/year	(1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

	CCD0	CCD1	CCD2	CCD3	CCD5	CCD6	CCD7	CCD8
Previously Unknown Bad Pixels						(193,56)
Current Warm Pixels	(786,117)	(985,393) (910,239)	(803,225) (837,378) (178,149) (99,899) (526,66)	(21,95) (811,637) (318,53)		(1000,214)	(335,412)	(333,466) (139,109) (136,65) (597,187) (275,393)
Flickering Warm Pixels	(283,278)	(90,859) (802,665) (427,125)	(726,537) (665,25) (104,31)	(394,80) (680,391) (617,159)	(369,376) (233,227) (161,206) (367,511) (357,303) (263,317) (282,385) (669,577) (233,102)	(670,387) (849,169) (287,164) (884,31)	(368,231)	(182,474) (178,399) (34,645) (332,324) (675,304) (447,769) (881,53) (295,978) (220,813) (838,239)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates					512 510 1022		512 1022
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 6 peaks are observed.

Day (DOY)	Temp (C)	Width (Days)
100.70	-97.29	0.90
102.02	-105.46	0.79
103.35	-95.71	0.90
104.58	-106.95	1.23
105.26	-109.52	0.44
106.00	-95.86	1.52

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.

SIM Movements

14 TSC moves this period

weekly average time/step	0.00133 s
mission average time/step	0.00132 s

Telemetry

New violations or new extrema are shown in blue cells.

MSID	04/11/25	04/12/25	04/13/25	04/14/25	04/15/25	04/16/25	04/17/25	yellow limits (lower) upper	red limits (lower) upper	Units	Description
AWD1TQI					(-3.39)			(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 1 TORQUE CURRENT
AWD4TQI				(-3.43)				(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 4 TORQUE CURRENT
AWD6TQI			(-3.43)		(-3.43)			(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 6 TORQUE CURRENT
CALPALV				(0.00)				(126.0) 128.0	(125.0) 129.0	V	Cal Pulser Amplitude
CTXBPWR	(0.00)	(0.00)	(0.00)	(0.00)	(0.00)	(0.00)	(0.00)	(36.12) 37.0	(36.0) 38.0	DBM	TRANSMITTER B OUTPUT POWER
HRMACAV	295.55							(293.4) 294.8	(292.8) 295.5	TEMP	HRMA CAVITY AVG TEMP
IMHBLV		(79.00)		(0.00)				(126.0) 128.0	(125.0) 129.0	(2IMHBLV)	Imaging Bot & Top MCP HV Monitor
MZOBACONE	312.56	312.67	312.28	312.98	310.07	309.59	309.59	(260.2) 303.0	(250.2) 308.0	CONE	-Z SIDE OBA CONE
OBAAVG	303.87	304.89		304.35	303.50	301.53	301.66	(282.5) 300.0	(281.4) 301.0	K	OBA/TFTE TEMP
OBACONEAVG							306.78	(282.5) 300.0	(281.8) 301.0	K	OBA CONE AVG TEMP
OBADIAGRAD	4.69	4.52	4.22	4.69	4.56	4.38	4.50	(-1.11) 3.5	(-2.78) 3.9	K	OBA DIAM GRAD
PZOBACONE	308.47	309.28	309.38	308.83	308.11			(260.2) 303.0	(250.2) 308.0	CONE	+Z SIDE OBA CONE
TCM_PA1						(260.05)		(269.15) 348.15	(260.15) 413.15	K	RF POWER AMP-1 EXT BPL TEMP
TCM_TX1					(268.79)	(268.43)	(268.79)	(283.15) 348.15	(269.15) 404.15	K	TRANSPONDER-1 EXT BPL TEMP
TFTERANGE		49.04	49.00	48.58	46.99	48.57	49.15	(16.7) 37.5	(11.1) 45.0	K	TFTE VENT/RAD TEMP
TSCTSF3	(268.43)	(268.79)			(268.79)		(268.43)	(278.15) 359.15	(269.15) 483.15	K	SC-TS FITTING -3 TEMP

IRUs

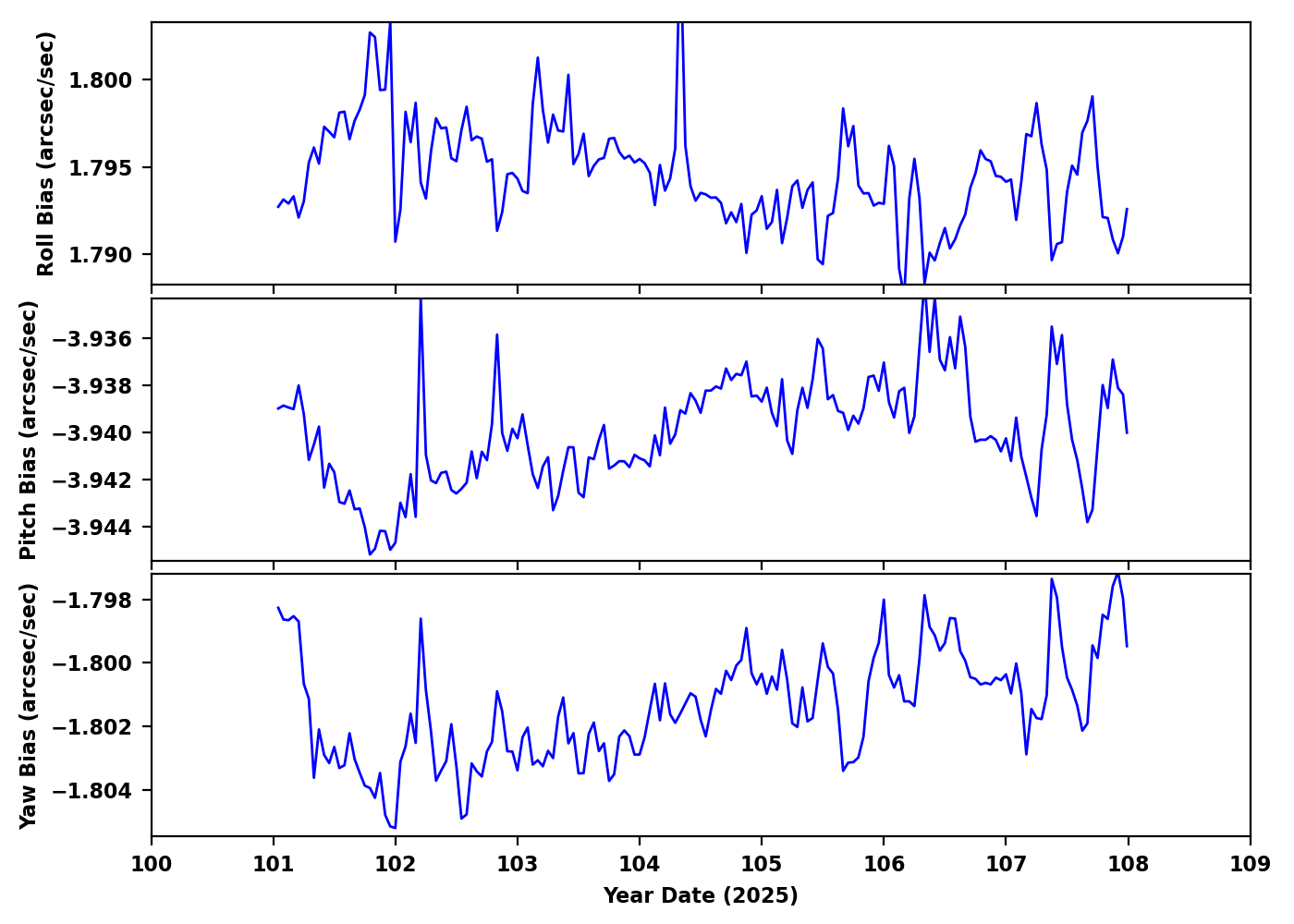

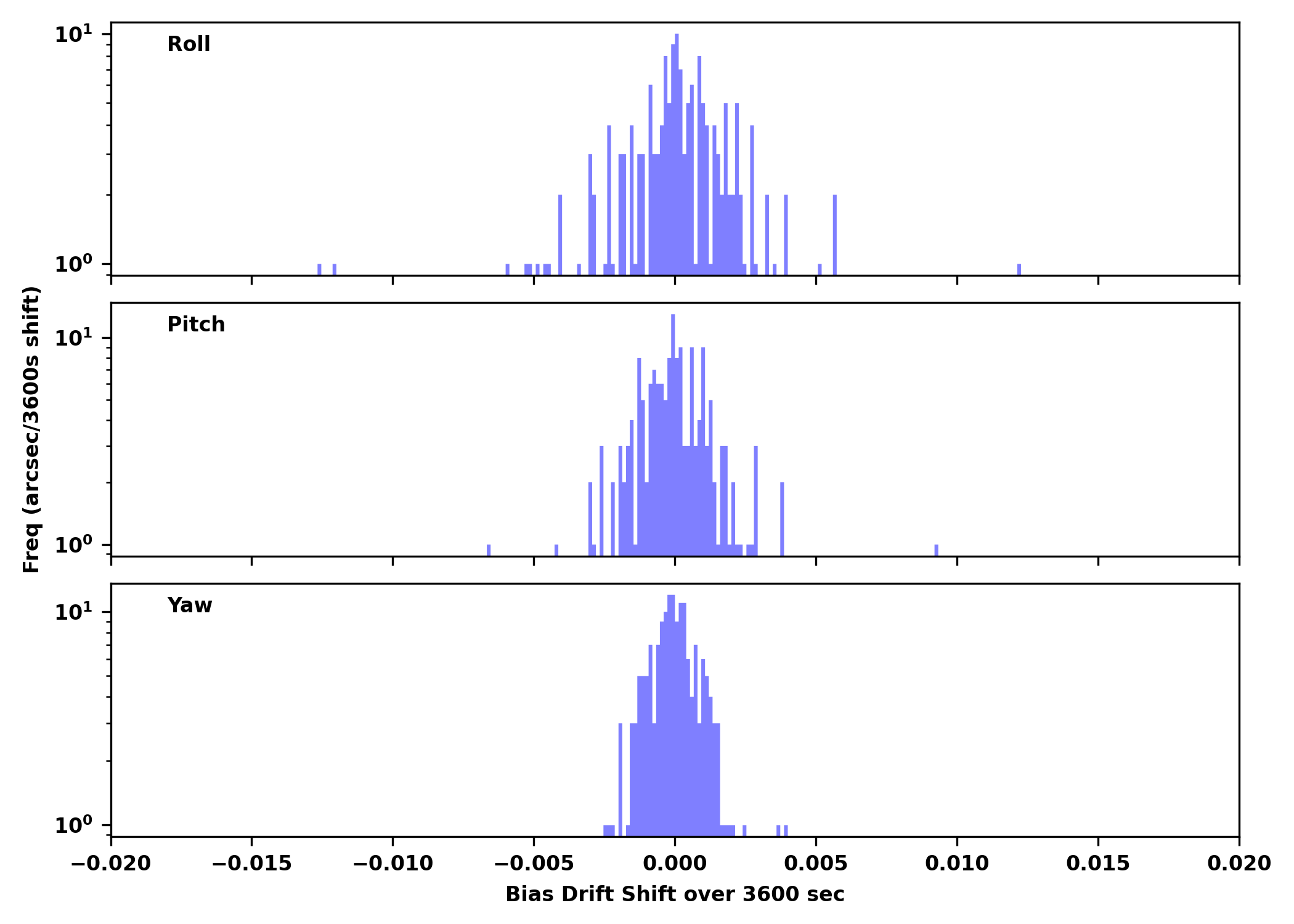

Gyro Bias Drift	Gyro Bias Drift Histogram

Recent Observations

OBSID	DETECTOR	GRATING	TARGET	ANALYSIS	ACA
28138	ACIS-67	NONE	IGR J17188-3008	OK	OK
29107	ACIS-67	NONE	CTS 117	OK	OK
28533	ACIS-67	NONE	Sextans A	OK	OK
30523	ACIS-0123	NONE	R CrA	OK	OK
29764	ACIS-678	NONE	1eRASS J132500.6+123114	OK	OK
29810	ACIS-3678	NONE	eRASSU J130821.3+130319	OK	OK
29766	ACIS-678	NONE	1eRASS J135925.2-113759	OK	OK
28737	HRC-I	NONE	NGC 6537	OK	OK
30887	ACIS-678	NONE	B2.2 2207+29	OK	OK
30159	ACIS-3678	NONE	NGC3059	OK	OK
28521	ACIS-0123	NONE	PSR J1101-6101	OK	OK
30508	ACIS-01236	NONE	Centaurus A	OK	OK
30888	ACIS-0123	NONE	NGC 7713	OK	OK
30454	HRC-I	NONE	HE 1353-1917	OK	OK
30889	ACIS-67	NONE	Sextans A	OK	OK
30085	ACIS-456789	HETG	TV Cassiopeia	OK/NA	OK
30781	ACIS-67	NONE	M84	OK	OK
27993	HRC-I	NONE	HD 75332	OK	OK
30179	ACIS-3678	NONE	NGC4781	OK	OK
30084	ACIS-0123	NONE	NGC1977 point	OK	OK
29928	ACIS-67	NONE	SDSS J090137.99+532051.2	OK	OK
28115	ACIS-0123	NONE	NGC4485	OK	OK
30905	ACIS-3678	NONE	NGC4781	OK	OK
28322	ACIS-01236	NONE	PSZ2G346.30-30.35	OK	OK
29782	ACIS-5678	HETG	4U 1630-47	CC/NA	OK
28234	ACIS-5678	NONE	SDSS J133856.51+224350.7	OK	OK
30902	ACIS-5678	HETG	TV Cassiopeia	OK/NA	OK
30899	ACIS-0123	NONE	NGC1977 point	OK	OK
28695	ACIS-01236	NONE	RXCJ1314.4-2515	OK	OK
30900	ACIS-0123	NONE	NGC1977 point	OK	OK
30895	ACIS-01236	NONE	RXCJ1314.4-2515	OK	OK

MSID	Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
5eiot	0.173	0.026	(3.37+/-0.18)e2	0.21 +/- 0.39	K	EIO TEMP
5ephint	2.253	0.011	(3.19+/-0.18)e2	-0.05 +/- 0.17	K	EPHIN TEMP
teio	1.506	0.021	(3.16+/-0.18)e2	-0.20 +/- 0.41	K	EPHIN ELECTRONICS HOUSING TEMP
tephin	2.248	0.011	(3.19+/-0.18)e2	-0.10 +/- 0.17	K	EPHIN SENSOR HOUSING TEMP
