MTA Monitoring Report 05/16/25 - 05/22/25

Archive of all weekly reports
Archive of monthly reports

Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope:	5.214e-02 CTI/year	(1.428e-04 CTI/day)
Detrended slope:	4.865e-02 CTI/year	(1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

	CCD0	CCD1	CCD2	CCD3	CCD5	CCD6	CCD7	CCD8
Previously Unknown Bad Pixels
Current Warm Pixels				(21,95) (811,637)		(1000,214) (849,169) (670,387)	(335,412)
Flickering Warm Pixels	(786,117)	(427,125) (802,665) (985,393) (910,239)	(178,149) (99,899) (104,31) (526,66) (837,378) (803,225) (726,537)	(680,391) (394,80)	(282,385) (369,376) (357,303) (669,577) (263,317) (367,511) (161,206)	(884,31) (287,164)	(126,856)	(295,978) (838,239) (675,304) (275,393) (881,53) (139,109) (893,490) (597,187) (136,65)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates					510 1022 512		512 1022
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 9 peaks are observed.

Day (DOY)	Temp (C)	Width (Days)
134.74	-105.45	1.29
135.90	-108.87	0.85
136.37	-109.67	0.50
136.94	-107.36	0.64
137.75	-108.90	0.53
138.08	-109.44	0.58
138.70	-109.47	1.05
139.74	-110.45	0.49
140.38	-106.69	0.97

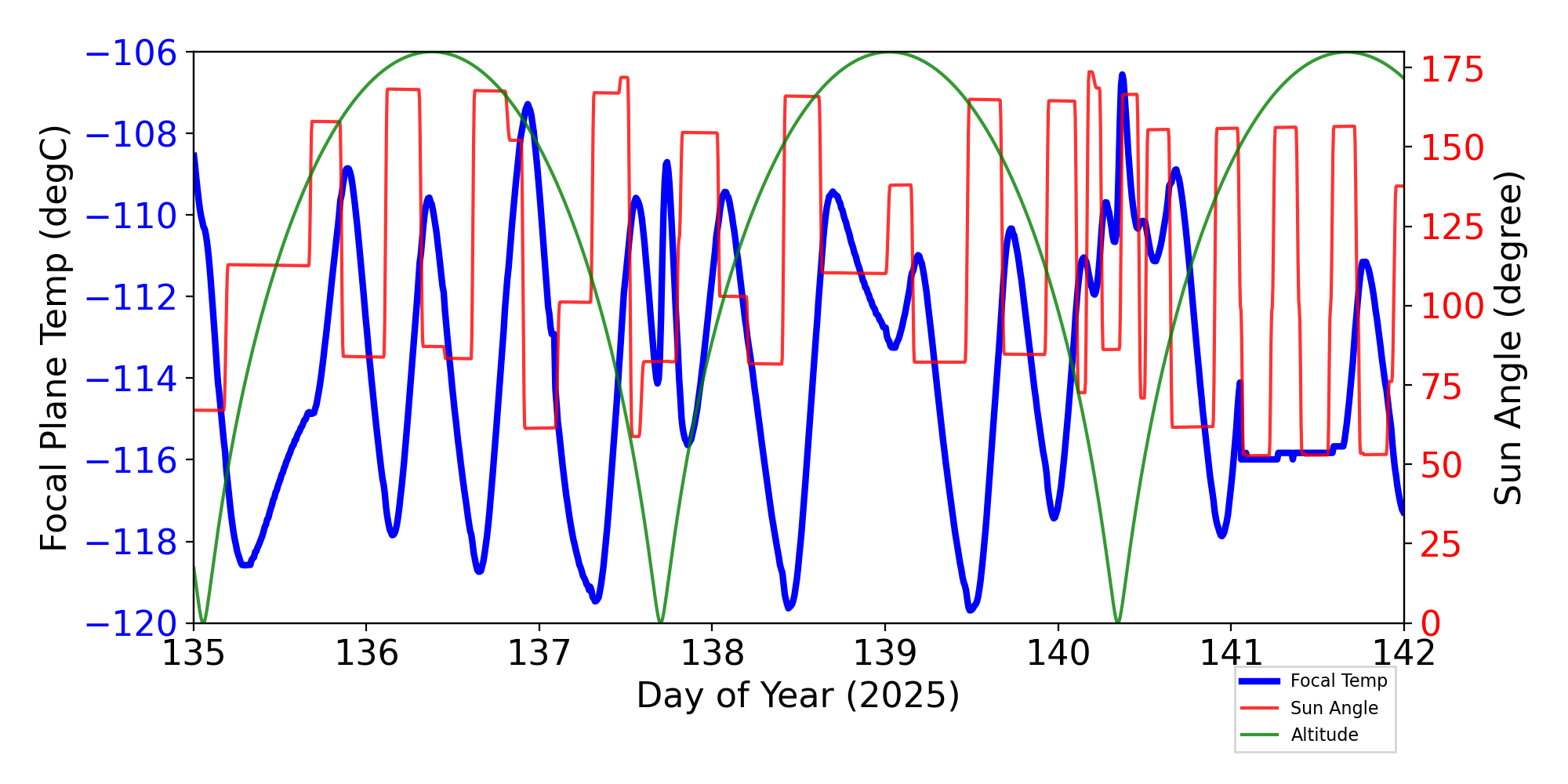

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.

SIM Movements

13 TSC moves this period

weekly average time/step	0.00128 s
mission average time/step	0.00132 s

Telemetry

New violations or new extrema are shown in blue cells.

MSID	05/16/25	05/17/25	05/18/25	05/19/25	05/20/25	05/21/25	05/22/25	yellow limits (lower) upper	red limits (lower) upper	Units	Description
AFTBLKHDT				308.02				(260.2) 303.0	(250.2) 308.0	TEMP	AFT BULKHEAD TEMP
AWD6TQI		(-3.43)						(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 6 TORQUE CURRENT
CALPALV	(118.00)		(113.00)					(126.0) 128.0	(125.0) 129.0	V	Cal Pulser Amplitude
CTXBPWR	(0.00)	(0.00)	(0.00)	(0.00)	(0.00)		(0.00)	(36.12) 37.0	(36.0) 38.0	DBM	TRANSMITTER B OUTPUT POWER
IMHBLV	(79.00)							(126.0) 128.0	(125.0) 129.0	(2IMHBLV)	Imaging Bot & Top MCP HV Monitor
MZOBACONE	313.26	310.67	312.16	314.22	309.37		313.54	(260.2) 303.0	(250.2) 308.0	CONE	-Z SIDE OBA CONE
OBAAVG	304.72	302.49	303.50		303.00		304.87	(282.5) 300.0	(281.4) 301.0	K	OBA/TFTE TEMP
OBADIAGRAD	4.74	4.69	4.65	4.57	4.59	4.46	4.42	(-1.11) 3.5	(-2.78) 3.9	K	OBA DIAM GRAD
PZOBACONE	309.03			309.92			309.38	(260.2) 303.0	(250.2) 308.0	CONE	+Z SIDE OBA CONE
TCM_TX1		(268.79)					(268.79)	(283.15) 348.15	(269.15) 404.15	K	TRANSPONDER-1 EXT BPL TEMP
TFTERANGE	47.79	47.50	48.59	48.66	47.27	45.91	48.77	(16.7) 37.5	(11.1) 45.0	K	TFTE VENT/RAD TEMP
TSCTSF3		(268.06)		(268.06)	(268.79)		(268.06)	(278.15) 359.15	(269.15) 483.15	K	SC-TS FITTING -3 TEMP

IRUs

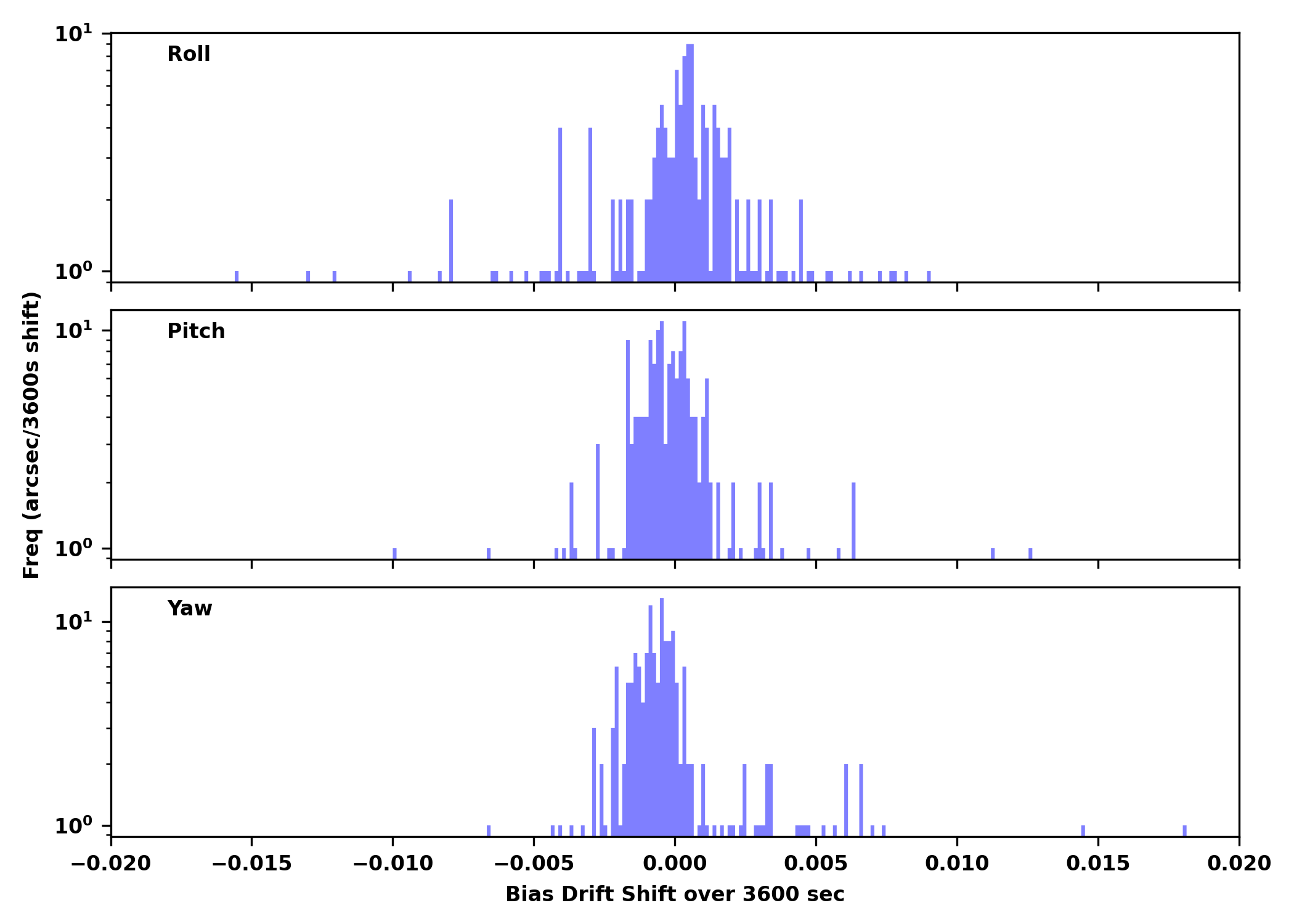

Gyro Bias Drift	Gyro Bias Drift Histogram

Recent Observations

OBSID	DETECTOR	GRATING	TARGET	ANALYSIS	ACA
30927	HRC-I	NONE	HE 1353-1917	OK	OK
28795	ACIS-01236	NONE	[ZCA2021] BOSS1244 SW	OK	OK
30373	ACIS-67	NONE	Abell 795	OK	OK
30752	ACIS-0123	NONE	UGC7242	OK	OK
30720	ACIS-67	NONE	Abell 795	OK	OK
30211	ACIS-67	NONE	NGC5728	OK	OK
29903	ACIS-0123	NONE	IGR J17303-2750	OK	OK
30924	ACIS-67	NONE	NGC5728	OK	OK
30925	ACIS-67	NONE	NGC5728	OK	OK
28797	ACIS-0123	NONE	A1550	OK	OK
28742	HRC-I	NONE	G29-38	OK	OK
28776	HRC-I	NONE	NGC 4449	OK	OK
30734	ACIS-3567	NONE	Abell 795	OK	OK
30012	ACIS-67	NONE	GAMA593724	OK	OK
30926	ACIS-67	NONE	NGC5728	OK	OK
28848	ACIS-01236	NONE	[ZCA2021] BOSS1244 SW	OK	OK
29607	HRC-I	NONE	SNR G21.5-0.9	OK	OK
30735	ACIS-67	NONE	FRB20220914A	OK	OK
30208	ACIS-67	NONE	NGC5728	OK	OK
30630	ACIS-456789	HETG	zeta Puppis	OK/NA	OK
30939	ACIS-67	NONE	NGC5728	OK	OK
30929	ACIS-67	NONE	2RXS J000539.7-075408	OK	OK
28769	ACIS-456789	HETG	GX 9+9	OK/NA	OK
30934	ACIS-456789	HETG	GX 9+9	OK/NA	OK
30142	ACIS-3678	NONE	NGC1097	OK	OK
30937	ACIS-3678	NONE	NGC1097	OK	OK
30935	ACIS-456789	HETG	GX 9+9	OK/NA	OK
26966	HRC-I	NONE	XI BOO	OK	OK
30938	ACIS-3678	NONE	NGC1097	OK	OK
30936	ACIS-456789	HETG	GX 9+9	OK/NA	OK
30728	ACIS-3678	NONE	NGC4781	OK	OK
28534	ACIS-67	NONE	Sextans A	OK	OK
30171	ACIS-3678	NONE	NGC4540	OK	OK

MSID	Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
oobthr02	0.380	0.033	(2.87+/-0.23)e2	0.06 +/- 0.03	K	RT 25: HRMA STRUT
oobthr03	0.598	0.023	(2.91+/-0.16)e2	0.07 +/- 0.03	K	RT 26: HRMA STRUT
oobthr04	0.748	0.023	(2.94+/-0.17)e2	0.08 +/- 0.04	K	RT 27: HRMA STRUT
oobthr05	0.736	0.031	(2.94+/-0.22)e2	0.09 +/- 0.04	K	RT 28: HRMA STRUT
oobthr06	0.606	0.025	(2.91+/-0.18)e2	0.08 +/- 0.03	K	RT 29: HRMA STRUT
oobthr07	0.399	0.023	(2.87+/-0.16)e2	0.06 +/- 0.03	K	RT 30: HRMA STRUT
oobthr08	0.995	0.003	(2.93+/-0.07)e2	0.14 +/- 0.05	K	RT 31: OBA CONE
oobthr09	0.690	0.159	(2.93+/-1.10)e2	0.13 +/- 0.05	K	RT 32: OBA CONE
oobthr10	0.718	0.104	(2.92+/-0.73)e2	0.13 +/- 0.05	K	RT 33: OBA CONE
oobthr11	0.887	0.003	(2.91+/-0.07)e2	0.13 +/- 0.05	K	RT 34: OBA CONE
oobthr12	0.876	0.003	(2.91+/-0.07)e2	0.14 +/- 0.05	K	RT 35: OBA CONE
oobthr13	-4.743	3.219	(3.12+/-22.33)e2	0.14 +/- 0.05	K	RT 36: OBA CONE
oobthr14	-1.617	1.454	(3.01+/-10.08)e2	0.14 +/- 0.05	K	RT 37: OBA CONE
oobthr15	0.896	0.003	(2.91+/-0.07)e2	0.14 +/- 0.05	K	RT 38: OBA CONE

HRMA Heaters

MSID	Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
ohrthr02	-0.003	0.001	(2.95+/-0.01)e2	(2.20+/-0.96)e-4	K	RT 2: HRMA FORWARD APERTURE PLATE
ohrthr03	7.855e-04	5.670e-05	(2.95+/-0.00)e2	-(9.26+/-6.96)e-4	K	RT 5: HRMA FORWARD APERTURE PLATE
ohrthr04	-0.005	0.003	(2.95+/-0.02)e2	(3.39+/-6.10)e-5	K	RT 9: HRMA PRECOLLIMATOR PLATE 10
ohrthr05	0.089	9.100e-04	(2.95+/-0.01)e2	0.04 +/- 0.01	K	RT 13: HRMA AFT HEATER PLATE
ohrthr06	0.069	6.025e-04	(2.95+/-0.01)e2	0.03 +/- 0.01	K	RT 14: HRMA MOUNT
ohrthr07	0.077	5.946e-04	(2.95+/-0.01)e2	0.03 +/- 0.01	K	RT 18: HSA OUTER CYLINDER
ohrthr08	0.071	5.783e-04	(2.94+/-0.01)e2	0.03 +/- 0.01	K	RT 103: HRMA CAP
ohrthr09	0.069	5.449e-04	(2.95+/-0.01)e2	0.02 +/- 0.01	K	RT 105: HRMA CAP
ohrthr10	0.064	4.870e-04	(2.95+/-0.01)e2	0.02 +/- 0.01	K	RT 107: HRMA P1 FLEXURE
ohrthr11	0.061	4.803e-04	(2.95+/-0.01)e2	0.02 +/- 0.01	K	RT 108: HRMA P4 FLEXURE
ohrthr12	0.078	6.284e-04	(2.95+/-0.01)e2	0.03 +/- 0.01	K	RT 115: HRMA H1 FLEXURE
ohrthr13	0.076	6.031e-04	(2.95+/-0.01)e2	0.03 +/- 0.01	K	RT 116: HRMA H6 FLEXURE
ohrthr14	0.110	7.496e-04	(2.95+/-0.01)e2	0.03 +/- 0.01	K	RT 121: HSA AFT INNER CYLINDER
