Although we prefer to quote CTI values of the cleanest data (FT <= -119.7 C, int time > 7000sec), the data that fulfills these conditions are getting rare. We now quote CTI based on temperature corrected data for Focal plane temperature <= -118.5 C).

The unit is now CTI/year not CTI/day.

Average of ACIS-I CCDs (MnKa) slope:	5.214e-02 CTI/year	(1.428e-04 CTI/day)
Detrended slope:	4.865e-02 CTI/year	(1.333e-04 CTI/day)

ACIS Warm Pixels

We display all bad pixels that have showed up in past, and, if any, previously unknown bad pixels appeared in the last 14 days. We also list hot pixels (defined as 1000 above the average of bias background). Warm columns 509-514 are probably due to boundaries.

New definitions of warm pixels and flickering pixels (May 15, 2014). If a pixel displays the level beyond a threshold for more than 70% of the time in the past two weeks, the pixel is categorized as a "warm" pixel. If a pixel is above the threshold more than 30% of time but less than 70% of the time in the past two weeks, the pixel is categorized as a "flickering" pixel.

	CCD0	CCD1	CCD2	CCD3	CCD5	CCD6	CCD7	CCD8
Previously Unknown Bad Pixels
Current Warm Pixels	(786,117)	(910,239) (985,393) (802,665)	(803,225) (526,66) (726,537) (178,149)	(318,53) (394,80) (21,95)		(670,387) (849,169) (1000,214)	(335,412)
Flickering Warm Pixels		(90,859)	(665,25) (99,899) (837,378)	(811,637) (680,391)	(282,385) (669,577) (233,102) (369,376) (263,317) (233,227) (161,206) (357,303)	(884,31)	(126,856)	(295,978) (597,187) (675,304) (182,474) (275,393) (136,65) (447,769) (139,109)
Current Hot Pixels
Flickering Hot Pixels
Warm column candidates					1022 510 512		1022 512
Flickering Warm column candidates

ACIS Focal Plane Temperature

For this period, 4 peaks are observed.

Day (DOY)	Temp (C)	Width (Days)
162.80	-108.94	0.75
167.65	-111.23	0.51
168.20	-109.78	0.48
168.74	-108.39	1.54

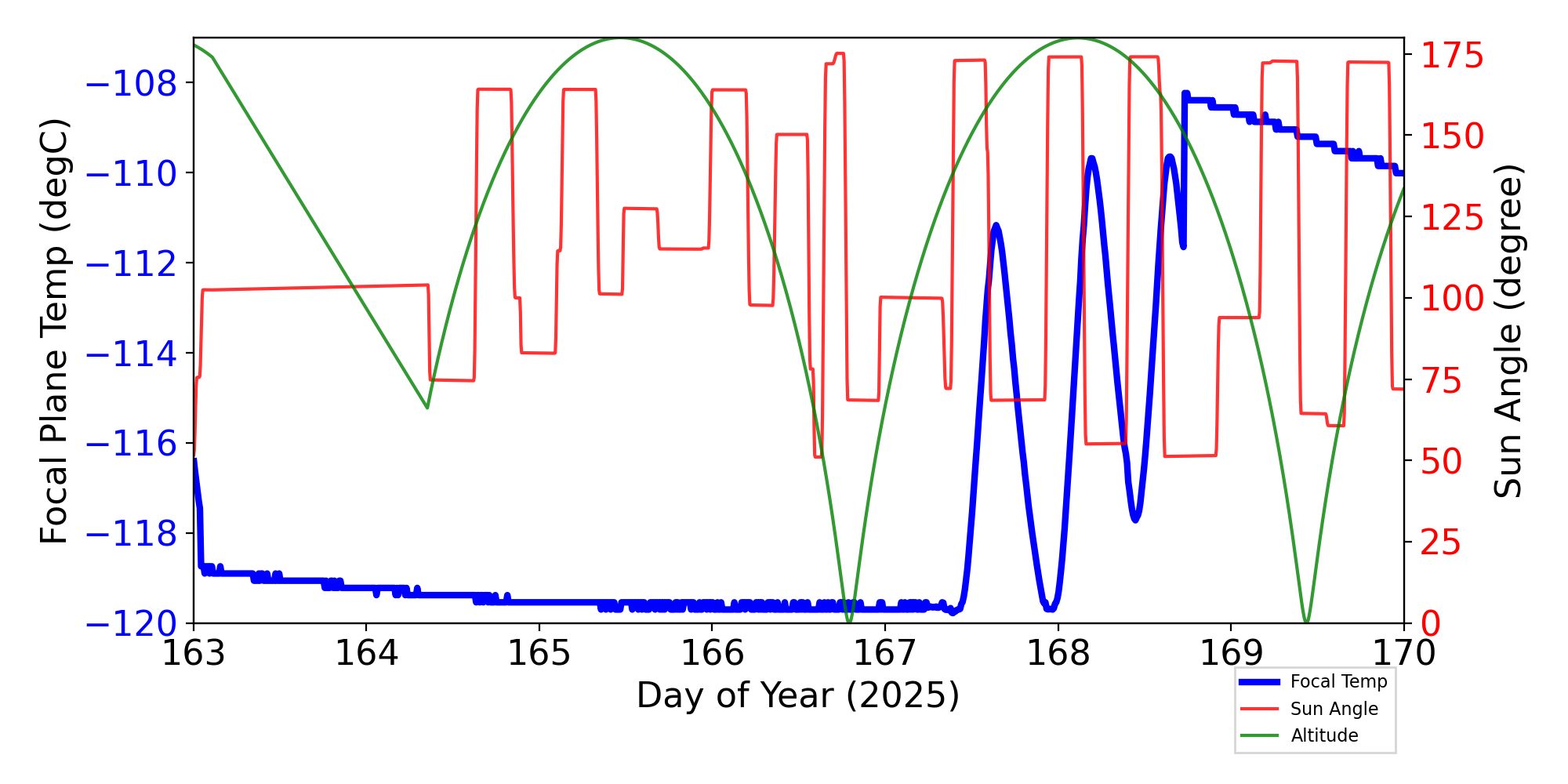

Weekly focal plane temperature with sun angle, earth angle, and altitude overplotted. Sun angle is the solar array angle, that is the angle between the sun and the optical axis (+X axis). The earth angle is the angle between earth and the ACIS radiator (+Z axis). Altitude varies from 34 kkm to 128 kkm.

SIM Movements

17 TSC moves this period

weekly average time/step	0.00129 s
mission average time/step	0.00132 s

Telemetry

New violations or new extrema are shown in blue cells.

MSID	06/13/25	06/14/25	06/15/25	06/16/25	06/17/25	06/18/25	06/19/25	yellow limits (lower) upper	red limits (lower) upper	Units	Description
AFTBLKHDT	(198.92)							(260.2) 303.0	(250.2) 308.0	TEMP	AFT BULKHEAD TEMP
AWD1TQI			(-3.43)			(-3.39)		(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 1 TORQUE CURRENT
AWD3TQI	(-3.35)							(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 3 TORQUE CURRENT
AWD4TQI	(-3.43)							(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 4 TORQUE CURRENT
AWD6TQI		(-3.39)	(-3.43)			(-3.47)		(-1.22) 1.22	(-3.3) 3.3	AMP	WHEEL 6 TORQUE CURRENT
CTXBPWR	(0.00)	(0.00)	(0.00)	(0.00)	(0.00)	(0.00)	(0.00)	(36.12) 37.0	(36.0) 38.0	DBM	TRANSMITTER B OUTPUT POWER
MZOBACONE	(247.41)	312.16	311.58	313.26			308.65	(260.2) 303.0	(250.2) 308.0	CONE	-Z SIDE OBA CONE
OBAAVG		304.40	304.39	304.57	301.04			(282.5) 300.0	(281.4) 301.0	K	OBA/TFTE TEMP
OBACONEAVG					305.26	304.78	305.55	(282.5) 300.0	(281.8) 301.0	K	OBA CONE AVG TEMP
OBADIAGRAD	4.68	4.69	4.67	4.74	4.73	4.75		(-1.11) 3.5	(-2.78) 3.9	K	OBA DIAM GRAD
PZOBACONE	(217.10)	308.64	308.64	309.10				(260.2) 303.0	(250.2) 308.0	CONE	+Z SIDE OBA CONE
TFTERANGE	(0.00)		48.59	48.41		46.69	47.52	(16.7) 37.5	(11.1) 45.0	K	TFTE VENT/RAD TEMP
TSCTSF3				(268.43)	(268.43)	(268.43)	(267.70)	(278.15) 359.15	(269.15) 483.15	K	SC-TS FITTING -3 TEMP

IRUs

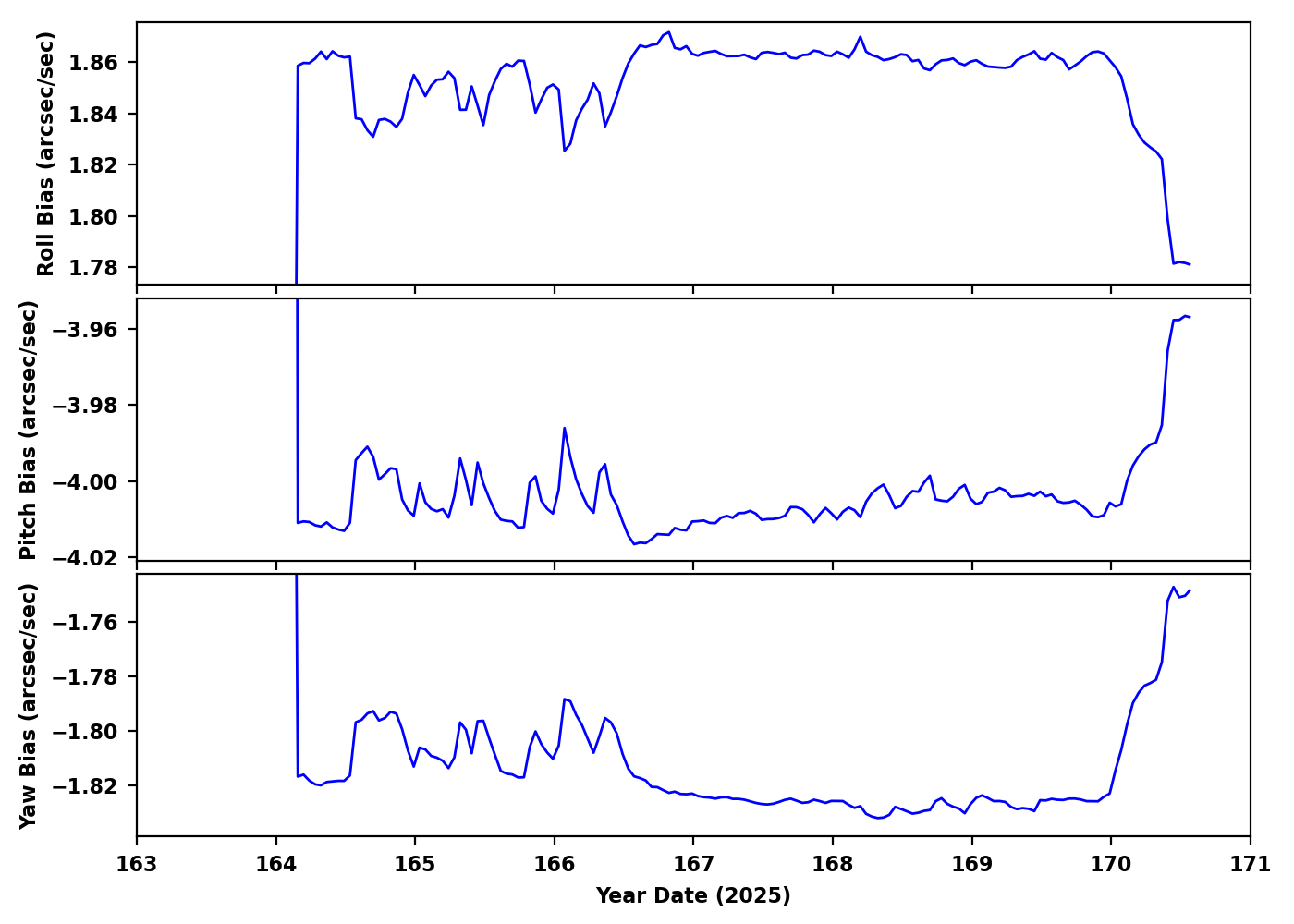

Gyro Bias Drift	Gyro Bias Drift Histogram

Recent Observations

OBSID	DETECTOR	GRATING	TARGET	ANALYSIS	ACA
30962	ACIS-67	NONE	Sextans A	OK	OK
29733	ACIS-0123	NONE	4FGL J1714.8-3849	OK	OK
29529	HRC-I	LETG	HZ43	OK/NA	OK
29984	ACIS-7	HETG	NGC 4151	OK/NA	OK
30841	ACIS-67	NONE	NGC4535	OK	OK
29731	ACIS-0123	NONE	4FGL J1714.8-3849	OK	OK
30014	ACIS-67	NONE	GAMA484908	OK	OK
29765	ACIS-678	NONE	1eRASS J134737.2+104211	OK	OK
30964	ACIS-0123	NONE	SpARCS J163437+402149	OK	OK
30548	HRC-I	NONE	M87	OK	OK
29735	ACIS-0123	NONE	4FGL J1721.3-5257	OK	OK
29732	ACIS-0123	NONE	4FGL J1714.8-3849	OK	OK
29590	ACIS-23	NONE	Cas A	OK	OK
30176	ACIS-3678	NONE	NGC4689	OK	OK
28739	HRC-I	NONE	NGC 6537	OK	OK
30143	ACIS-3678	NONE	NGC1317	OK	OK
28731	ACIS-0123	NONE	[JDW2009] G359.55+0.16	OK	OK
28540	ACIS-23567	NONE	NGC1300	OK	OK
30967	ACIS-0123	NONE	[JDW2009] G359.55+0.16	OK	OK
30048	ACIS-678	NONE	EXO 0748-676	OK	OK
30771	ACIS-0123	NONE	Abell 370	OK	OK
28840	ACIS-56789	HETG	GX 9+9	OK/NA	OK
28803	ACIS-01236	NONE	PSZ2G135.19+57.88	OK	OK
30966	ACIS-23567	NONE	NGC1300	OK	OK
30157	ACIS-3678	NONE	NGC3059	OK	OK
28784	HRC-S	LETG	LEDA407	OK/NA	OK
28518	ACIS-0123	NONE	PSR J1101-6101	OK	OK

MSID	Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
2ceahvpt	-0.092	0.009	(2.96+/-0.06)e2	-0.14 +/- 0.09	K	CEA RADIATOR TEMPERATURE AT CENTER
2chtrpzt	0.311	0.004	(2.94+/-0.03)e2	-0.05 +/- 0.10	K	CENTRAL ELECTRONICS BOX TEMP
2condmxt	-0.051	0.009	(2.89+/-0.06)e2	-0.13 +/- 0.08	K	CONDUIT -X FACE TEMPERATURE
2dcentrt	-0.072	0.008	(2.89+/-0.05)e2	-0.06 +/- 0.08	K	DETECTOR HOUSING TEMP 2
2dtstatt	-0.132	0.009	(2.89+/-0.06)e2	-0.06 +/- 0.08	K	DETECTOR HOUSING TEMP 1
2fhtrmzt	-0.222	0.012	(2.90+/-0.08)e2	-0.10 +/- 0.08	K	FRONT END ELECTRONICS BOX TEMPERATURE
2fradpyt	-0.192	0.011	(2.86+/-0.08)e2	-0.11 +/- 0.08	K	FRONT END ASSEMBLY +Y AT RADIATOR CENTER TEMP
2pmt1t	0.139	0.006	(2.91+/-0.04)e2	-0.11 +/- 0.10	K	PMT 1 TEMPERATURE
2pmt2t	0.140	0.007	(2.93+/-0.05)e2	-0.09 +/- 0.11	K	PMT 2 TEMPERATURE
2uvlspxt	-0.027	0.006	(2.86+/-0.04)e2	-0.06 +/- 0.10	K	UV LIGHT SHIELD NEXT TO SNOUT TEMP

HRC Housekeeping

MSID		Mean	RMS	Delta/Yr	Delta/Yr/Yr	Unit	Description
2fe00atm		0.193	0.005	19.68 +/- 3.20	-0.07 +/- 0.07	C	Front end temperature
2fepratm	off	-5.243	0.280	19.61 +/- 10.53	-1.34 +/- 4.30	C	FE temp card temperature
	on	0.279	0.003	22.04 +/- 2.64	-0.14 +/- 0.08	C	FE temp card temperature
2iminatm	off	-3.754	0.211	16.58 +/- 7.77	-0.71 +/- 3.91	C	Imaging det temperature
	on	0.237	0.004	16.73 +/- 2.76	-0.06 +/- 0.10	C	Imaging det temperature
2lvplatm	off	-3.555	0.196	24.65 +/- 7.27	-2.16 +/- 3.37	C	LVPS plate temperature
	on	0.230	0.003	25.87 +/- 2.29	-0.12 +/- 0.07	C	LVPS plate temperature
2prbscr	off	-0.001	0.002	1.74 +/- 0.07	-0.05 +/- 0.15	AMP	Primary bus current
	on	-8.701e-04	8.346e-05	1.60 +/- 0.05	(1.91+/-14.58)e-4	AMP	Primary bus current
2prbsvl		-0.109	5.253e-04	28.15 +/- 0.81	0.00 +/- 0.01	V	Primary bus voltage
